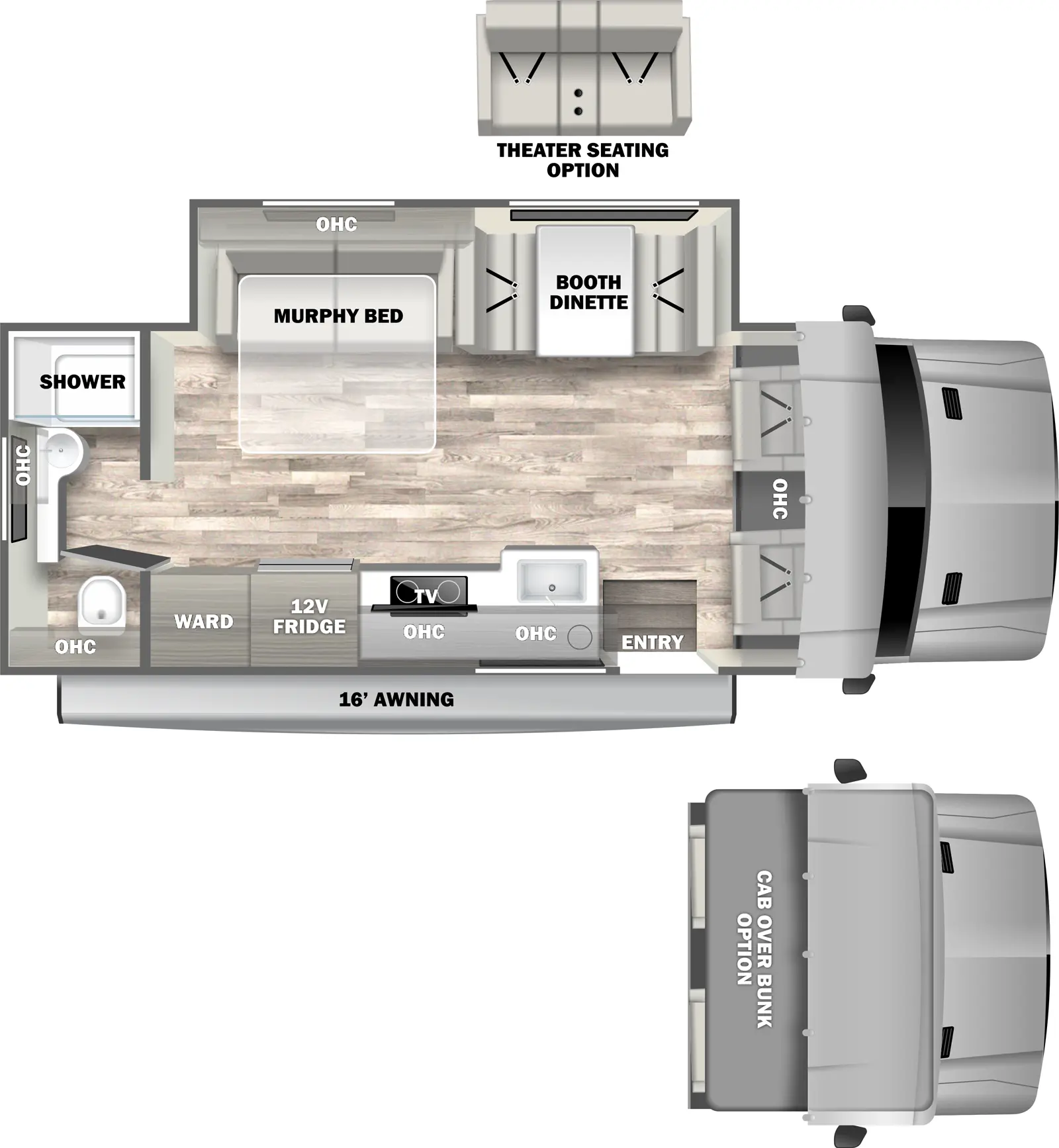

24SSSFXM Floorplan

Wheelbase
170"
GVWR
11,030 lb.
GCWR
15,250 lb.
GAWR Front
4,410 lb.
GAWR Rear
7,720 lb.
Fuel Capacity
24 gal.
LP Tank Capacity
0 lb.
Exterior Length
25' 5"
Exterior Height
11' 5"
Exterior Width
94"
Fresh Water
35 gal.
Gray Water
32 gal.
Black Water
32 gal.
Awning Size
16'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Chassis

    • Mercedes-Benz® Sprinter Chassis (11,030-lbs. GVWR / 15,250-lbs. GCWR)
    • 2.0L I4 Turbo Diesel Engine (211 hp / 332 lb-ft. of Torque)
    • 9G-TRONIC PLUS Automatic Transmission with Overdrive
    • 24.5-Gallon Fuel Tank
    • 5.75-Gallon Diesel Exhaust Fluid Tank
    • Lane Keep Assist
    • Adaptive Cruise Control
    • Active Brake Assist
    • Hill Start Assist
    • Crosswind Assist
    • Attention Assist
    • Traffic Sign Assist
    • Rescue Assist
    • Electronic Stability Program (ESP)
    • Wet Wiper System
    • Trailer Hitch (5,000 Tow lbs. / 500 Tongue lbs.) with 7-Way Round Tow Connection
    • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
    • Single AGM 12V Chassis Battery
    • 250-Amp Alternator
    • LED Brake, Turn, and Backup Lights
    • Fog Lights
    • Aluminum Running Boards
    • Bilstein® Gas-Charged Rear Shock Absorbers
    • Front and Rear Tires: LT215/85 R16
    • Single Front Wheels and Dual Rear Wheels (5.5" x 16")
    • Aluminum Wheels (Set of Four) with Valve Extensions
    • 4.727 Rear Axle Ratio
    • Power, Heated Leatherette Cab Seats with Swivel Bases
    • Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
    • MBUX (Mercedes-Benz User Experience) 10.25" Touch Screen Infotainment System with Navigation, AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and "Hey Mercedes" Voice Control
    • 12V and USB-C Accessory Ports
    • Wireless Smartphone Charging Tray
    • Instrument Cluster with Color Display
    • Multifunction Steering Wheel
    • Adjustable Steering Column
    • Power Windows and Locks
    • Power Exterior Mirrors (Auto-Heated at Low Temperatures)
    • 3-Point Seat Belts
    • Front, Thorax, & Window Safety Air Bags
    • Deluxe, Removable Automotive Cab Carpet Mat
    • Drink Holders
    • Banded Tire Pressure Monitoring System

  • Construction

    • 1 ½” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
    • Composite Exterior Fiberglass (No Exterior Wood)
    • Aluminum-Framed Floor
    • Composite Flooring Substrate (Lightweight & Moisture-Resistant)
    • Aluminum-Framed Roof Trusses
    • Crowned, One-Piece Fiberglass Roof
    • Fiberglass Rear Bumper
    • Foil-Lined Ductwork Throughout
    • Aerodynamic Fiberglass Front Wing Panels
    • Automatic, 4-Point Hydraulic Leveling Jacks with Bluetooth® Smart Phone App Control
    • Dark-Tinted, Frameless Windows
    • Seamless Rotocast Storage Compartments with LED Lighting
    • Locking Aluminum Exterior Storage Doors with Compression Latches
    • Electric Slide System

  • Exterior

    • Custom Full Body Paint Package
    • Premium Cut and Buffed Paint Finish
    • Front-End Diamond Shield® Paint Protection
    • Armless Patio Awning with LED Lighting and Motion-Activated Retraction
    • Slideout Topper(s)
    • LED Patio Light
    • Entry Door with Dark-Tinted, Frameless Window and Integrated Shade
    • Lighted Acrylic Entry Grab Handle
    • Power Entry Step with Upgraded SeaDek® Step Tread
    • Exterior TV Mount
    • Exterior Speakers
    • Front and Rear LED Clearance and Marker Lighting

  • Interior

    • Premium Vinyl Flooring Throughout
    • Soft-Touch Padded Vinyl Ceiling
    • LED Ceiling Lighting
    • Sprung, Residential-Style Dinette Seats with Lift Up Storage
    • Coordinating Window Treatments
    • Blackout Roller Shades (Steel Blind at Kitchen Window)
    • Hardwood Craftsman-Style Cabinetry
    • Full Extension, Soft-Closing Drawer Guides (where applicable)
    • Hidden Hinges
    • 32" LED Smart TV (Living Area)
    • Stereo System - AM/FM with Zoned Speaker Control and Bluetooth® Smart Phone App Control
    • Easy Access Battery Compartment Beneath Entry Step
    • Entry with Non-Skid Rubber Step and Steel Risers
    • Thermal, Reflective Front Privacy Shades
    • USB Charging Ports
    • Cocktail Table Between Cab Seats
    • Cab Seat Booster Cushions (Set of Two)

  • Kitchen

    • 12V 8 cu. ft. 2-Door Compressor-Driven Refrigerator
    • Gas Range with Glass Cover and Overhead Range Cover
    • Convection Microwave Oven
    • Solid Surface Countertops with LED Edge Lighting and Backsplash
    • Solid Surface Countertop Extension
    • Stainless Steel Sink with Solid Surface Cover
    • Residential Stainless Steel Spring Gooseneck Faucet
    • Overhead Cabinet Accent Lighting
    • Under-Cabinet Lighting
    • MaxxAir® Power Vent with Built-In Rain Cover

  • Bedroom

    • Queen Bed (60"x75") with Gel-Infused Memory Foam Mattress
    • Designer Bedding Package
    • Cedar-Lined Wardrobe
    • LED Reading Lights
    • USB Charging Ports
    • Privacy Partition

  • Bathroom

    • Shower with Light-Weight, Soft-Sided Shower Door and Skylight
    • Oxygenics Body Spa® RV Shower Head
    • Stainless Steel Sink with Residential Faucet
    • Composite Foot-Flush Toilet with Hand Sprayer
    • MaxxAir® Power Vent with Built-In Rain Cover

  • Utilities

    • Dual Low-Temp Lithium Auxiliary Batteries (200aH Total)
    • Firefly® Multiplex Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
    • Battery Disconnect at Entry
    • 30-Amp Service
    • 2,000W Pure Sine Wave Inverter (3,300 Peak Watts)
    • 3.6kW Onan® LP Generator with Auto Transfer Switch (Mounted on Isolator Pads)
    • Automatic Generator Start
    • Solar Panel - Single 190 Watt with 30 Amp Controller
    • Ducted, Low-Profile 15,000-BTU Air Conditioner with Heat Pump
    • 20,000-BTU Furnace with Electronic Ignition
    • 60,000-BTU Truma® AquaGo Comfort Plus™ On-Demand Water Heater (LP)
    • 20.3-Gallon LP Tank (WC)
    • LP Quick Connect
    • Water Filtration System
    • Exterior Shower in Service Bay
    • Exterior GFCI Receptacle
    • Winegard® AIR 360+™ with Gateway Router (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
    • 4x4 HDMI Matrix
    • Cable TV/Satellite Hookup
    • 60-Amp Progressive Dynamics Converter with Charge Wizard® System
    • Black Tank Flush
    • SureLevel® Tank Level Monitoring System
    • 12V Heat Pads on Fresh, Gray, and Black Tanks
    • Water Management Valve for Fill and Winterizing
    • Upgraded 12V On-Demand Water Pump (4 gallons per minute)
    • Carbon-Monoxide, LP, and Smoke Detectors
    • Fire Extinguisher

  • Options

    • Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
    • Extended Fiberglass Front Cap with Cab-Over Bunk Mattress and Privacy Curtain (+179 lbs.)
    • Three-Seat, Power Reclining Theater Seats in Place of Dinette (24FW - Only Outer Seats are Powered) (+40 lbs.)
    • Dual, Power Reclining Theater Seats in Place of Dinette (24RW & 24SSSFX) (+40 lbs.)
    • Black Aluminum Wheels (Set of Four) with Metal Valve Extensions

  • Freedom Edition (24FWSFX &24SSSFX)

    • Exclusive Freedom Edition Full-Body Paint Scheme (Freedom Light or Freedom Dark)
    • Dual-Pane Acrylic Windows with Built-In Day/Night Shades (Delete Standard Valances & Slide-Out End Wall Windows)
    • Insulated Cab Curtain
    • Additional 280-Amp Alternator
    • Delete 3.6kW Onan® LP Generator - Replaced by Additional Alternator
    • Delete 20.3-Gallon LP Tank
    • Two Low-Temp Lithium House Batteries (620AH Total)
    • Three 190W (570W Total) Solar Panels with 30-Amp Controller
    • 3,000W Pure Sine Wave Inverter/Charger
    • 20,400-BTU Truma® Combi D 6 E - High-Efficiency Furnace & Water Heater (Diesel)
    • 2-Burner Induction Range
