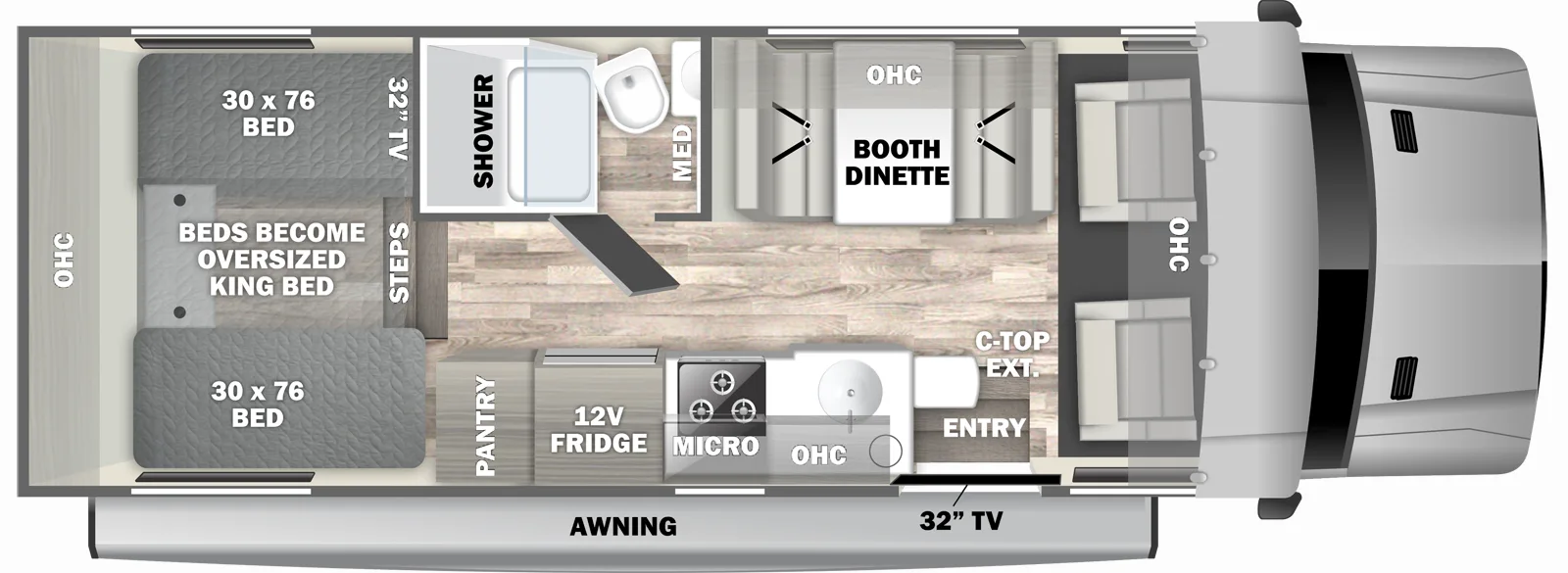

Isata 24TW Floorplan

Wheelbase
170"
GVWR
11,030 lb.
GCWR
15,250 lb.
GAWR Front
4,410 lb.
GAWR Rear
7,720 lb.
Fuel Capacity
24 gal.
LP Tank Capacity
86 lb.
Exterior Length
25' 10"
Exterior Height
11' 5"
Exterior Width
94"
Fresh Water
50 gal.
Gray Water
32 gal.
Black Water
32 gal.
Awning Size
16;

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Chassis

    • Mercedes-Benz Sprinter Chassis (11,030-lbs. GVWR / 15,250-lbs. GCWR)
    • 2.0L I4 Turbo Diesel Engine (208 hp / 332 lb-ft. of Torque)
    • 9G-TRONIC PLUS Automatic Transmission with Overdrive
    • 4.727 Rear Axle Ratio
    • Trailer Hitch (5,000 Tow lbs. / 500 Tongue lbs.) with 7-Way Round Tow Connection
    • 24.5-Gallon Fuel Tank
    • 5.75-Gallon Diesel Exhaust Fluid Tank
    • 250-Amp Alternator
    • Bilstein Gas-Charged Rear Shock Absorbers
    • Electronic Stability Program (ESP)
    • Remote Start System
    • Active Brake Assist
    • Adaptive Cruise Control
    • Lane Keep Assist
    • Hill Start Assist
    • Crosswind Assist
    • Attention Assist
    • Traffic Sign Assist
    • Rescue Assist
    • Wet Wiper System
    • LED Brake, Turn, and Backup Lights
    • Fog Lights
    • Front and Rear Tires: LT215/85 R16
    • Aluminum Wheels (Set of Four)
    • Single Front Wheels and Dual Rear Wheels (5.5" x 16")
    • Mercedes-Benz OEM Flow-Through Tire Pressure Monitoring System
    • Power, Heated Leatherette Cab Seats with Swivel Bases
    • Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
    • MBUX (Mercedes-Benz User Experience) 10.25" Touch Screen Infotainment System with Navigation, AM/FM, Bluetooth, Sirius/XM (tuner and antenna), Apple CarPlay / Android Auto Functionality, and "Hey Mercedes" Voice Control
    • 12V and USB-C Accessory Ports
    • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
    • Instrument Cluster with Color Display
    • Heated, Multifunction Steering Wheel
    • Adjustable Steering Column
    • Wireless Smartphone Charging Tray
    • Power Windows and Locks
    • Power Exterior Mirrors (Auto-Heated at Low Temperatures)
    • 3-Point Seat Belts
    • Front, Thorax, & Window Safety Air Bags

  • Construction

    • 1 ½” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
    • Composite Exterior Fiberglass (No Exterior Wood)
    • Aluminum-Framed Floor
    • Composite Flooring Substrate (Lightweight & Moisture-Resistant)
    • Aluminum-Framed Roof Trusses
    • Crowned, One-Piece Fiberglass Roof
    • Fiberglass Rear Bumper
    • Foil-Lined Ductwork Throughout
    • Fiberglass Front Cap and Front Wing Panels
    • Rear Bumper
    • Automatic, 4-Point Leveling Jacks
    • Dual-Pane Acrylic Windows with Built-In Night Shades & Screens
    • Seamless Rotocast Storage Compartments with LED Lighting
    • Locking Aluminum Exterior Storage Doors with Compression Latches

  • Exterior

    • Custom Full Body Paint Package
    • Premium Cut and Buffed Paint Finish
    • Front-End Diamond Shield Paint Protection
    • Armless Patio Awning with LED Lighting and Motion-Activated Retraction
    • LED Patio Light
    • Entry Door with Dark-Tinted, Frameless Window and Integrated Shade
    • Lighted Acrylic Entry Grab Handle
    • Power Entry Step with Upgraded SeaDek Step Tread
    • Exterior TV Mount
    • Exterior Speakers
    • Front and Rear LED Clearance and Marker Lighting
    • Aluminum Running Boards

  • Interior

    • Premium Vinyl Flooring Throughout
    • Soft-Touch Padded Vinyl Ceiling
    • Dimmable LED Recessed Ceiling Lights
    • Sprung, Residential-Style Dinette Seats with Lift Up Storage
    • Hardwood Shaker-Style Cabinetry
    • Full Extension, Soft-Closing Drawer Guides (where applicable)
    • Hidden Hinges
    • 32" LED SMART TV (Living Area)
    • Stereo System AM/FM with Zoned Speaker Control and Bluetooth Smart Phone App Control
    • Easy Access Battery Compartment Beneath Entry Step
    • Magnetic Thermal, Reflective Front Privacy Shades
    • USB/USB-C Charging Ports
    • Cab Seat Booster Cushions (Set of Two)

  • Kitchen

    • 12V 8 cu. ft. 2-Door Compressor-Driven Refrigerator
    • Gas Range with Glass Cover and Overhead Range Cover
    • Convection Microwave Oven
    • Solid Surface Countertops with LED Edge Lighting and Backsplash
    • Solid Surface Countertop Extension
    • Stainless Steel Sink with Solid Surface Cover
    • Residential Stainless Steel Spring Gooseneck Faucet
    • Overhead Cabinet Accent Lighting
    • Under-Cabinet Lighting
    • MaxxAir Power Vent with Built-In Rain Cover

  • Bedroom

    • Twin Beds (30"x76" Each; Converts to 91"x76" King Bed)
    • Designer Bedding Package
    • 32" LED Smart TV (N/A 24SSSFX)
    • Cedar-Lined Wardrobe
    • LED Reading Lights
    • USB/USB-C Charging Ports
    • Privacy Partition

  • Bathroom

    • Designer 26"x36" Shower
    • Soft-Sided Shower Door
    • Shower Skylight
    • Oxygenics Body Spa RV Shower Head
    • Stainless Steel Sink with Residential Faucet
    • Composite Foot-Flush Toilet with Hand Sprayer
    • MaxxAir Power Vent with Built-In Rain Cover

  • Utilities

    • Dual Low-Temp Lithium Auxiliary Batteries (200aH Total)
    • 200W Glass Solar Panel with 30-Amp Controller
    • 2,000W Pure Sine Wave Inverter (3,300 Peak Watts)
    • 60-Amp Progressive Dynamics Converter with Charge Wizard System
    • 30-Amp Service with 30' Detachable Power Cord
    • Firefly Multiplex Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth Smart Phone App Control
    • Flex Power 4000i LP Generator with Auto Transfer Switch (Mounted on Isolator Pads)
    • Automatic Generator Start
    • Ducted, Low-Profile 15,000-BTU Air Conditioner with Heat Pump
    • 20,000-BTU Furnace with Electronic Ignition
    • 60,000-BTU Truma AquaGo Comfort Plus On-Demand Water Heater (LP)
    • 20.3-Gallon LP Tank (WC)
    • LP Quick Connect
    • Water Filtration System
    • Exterior Shower in Service Bay
    • Exterior GFCI Receptacle
    • Prepped for Roof-Mounted Starlink Satellite Internet System
    • Prepped for Roof-Mounted Satellite
    • Winegard OTA HDTV Antenna
    • 4x4 HDMI Matrix
    • Cable TV/Satellite Hookup
    • Gravity Sewer System
    • Black Tank Flush
    • SureLevel Tank Level Monitoring System
    • 12V Heat Pads on Fresh, Gray, and Black Tanks
    • Water Management Valve for Fill and Winterizing
    • Upgraded 12V On-Demand Water Pump (4 gallons per minute)
    • Carbon-Monoxide, LP, and Smoke Detectors
    • Fire Extinguisher

  • Options

    • Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
    • Extended Fiberglass Front Cap with Cab-Over Bunk Mattress and Privacy Curtain (+179 lbs.)
    • Single Color Full Body Paint
    • Black Aluminum Wheels (Set of Four)
    • Three-Seat, Power Reclining Theater Seats in Place of Dinette (24FW Only Outer Seats are Powered) (+80 lbs.)
