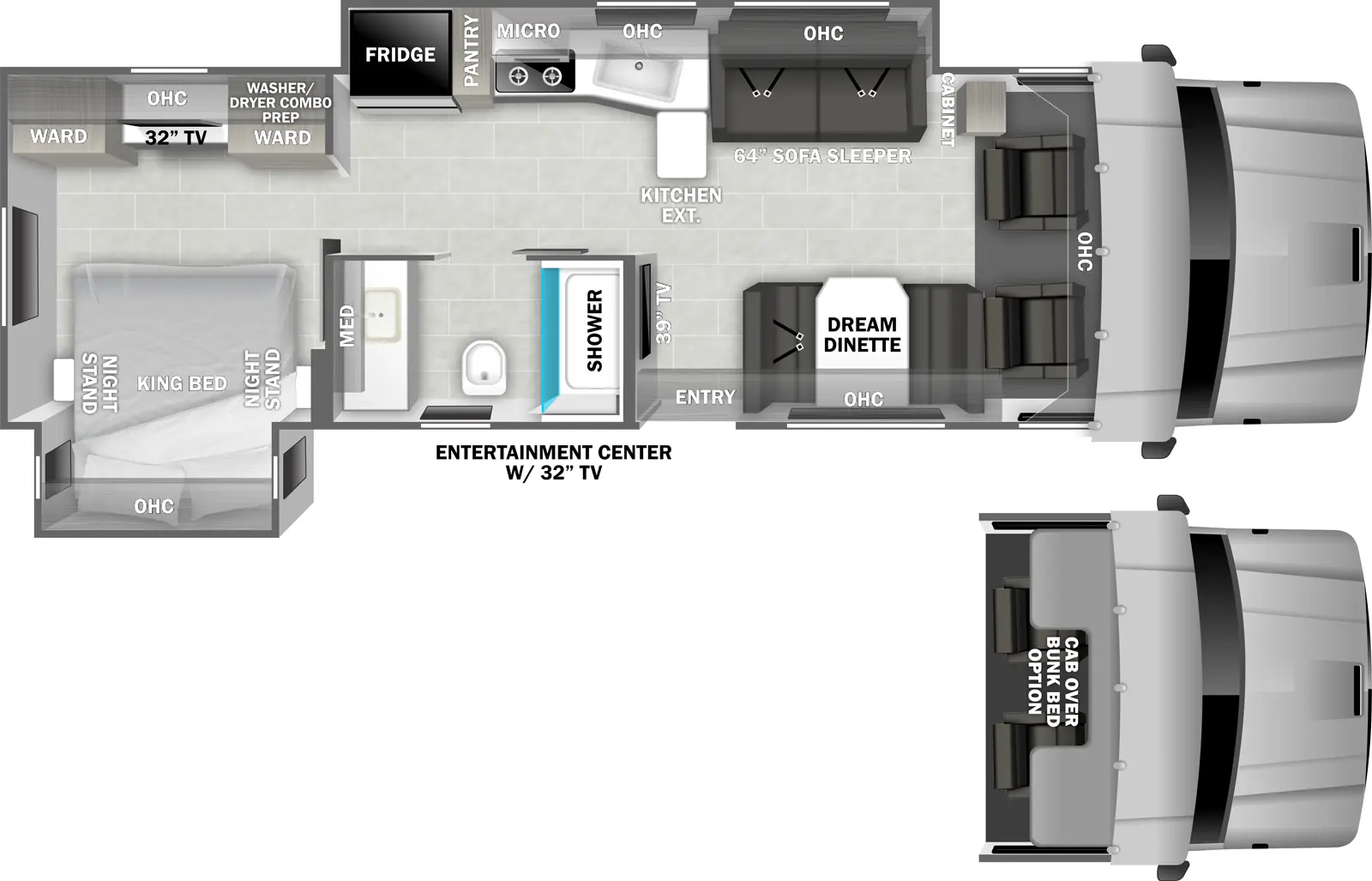

3200KD Floorplan

Wheelbase
245"
GVWR
33,000 lb.
GCWR
59,000 lb.
GAWR Front
TBD
GAWR Rear
TBD
Fuel Capacity
100 gal.
LP Tank Capacity
TBD
Exterior Length
34' 4"
Exterior Height
12' 9"
Exterior Width
TBD
Fresh Water
94 gal.
Gray Water
52 gal.
Black Water
52 gal.
Awning Size
TBD

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Chassis

    • Freightliner® M2 112 Plus Chassis (33,000-lbs. GVWR / 54,000-lbs. GCWR)
    • Cummins® L9 Turbo Diesel Engine (450hp / 1,250 lb-ft. of Torque)
    • Allison® 3200 TRV Six-Speed Automatic Transmission
    • 100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks)
    • 6-Gallon Diesel Exhaust Fluid Tank
    • Trailer Hitch (20,000 Tow lbs. / 2,000 Tongue lbs.) with 7-Way Round Tow Connection
    • Active Brake Assist
    • Front Collision Warning
    • Lane Departure Warning
    • Brake Controller
    • C-Brake by Jacobs® with High/Low Settings
    • Locking Differential
    • Airliner® 21,000-lb. Rear Suspension
    • Manual Air Suspension Dump Valve Switch on the Dash
    • 275-Amp Alternator
    • Quick Disconnect Fitting with Tire Inflation Kit
    • Air Brakes with 4-Wheel ABS
    • Equiflo™ Inboard Fuel System (Dual Supply – Dual Return)
    • Fuel Filter/Water Separator with Primer Pump
    • Engine Block Heater
    • Steel-Reinforced, Aluminum Cab
    • Chrome Grille and Air Intake Grille
    • Front and Rear Tires: Michelin® XZE2 275/80R22.5 (14 Ply Radials)
    • Single Front Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
    • Dual Rear Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
    • Valve Extensions
    • Tire Pressure Monitoring System
    • 4.78 Rear Axle Ratio
    • Daytime Running Lights
    • LED Headlights
    • Tinted Door Glass and Wing Windows
    • Chassis Battery Shut Off Switch in Cab
    • Leatherette Driver and Passenger Air Ride Seats with Air Lumbar Controls
    • Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
    • Kenwood® 10” Touch Screen Dash Infotainment System with AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and Garmin® RV Navigation
    • JBL® Premium Cab Sound System - JBL full range/tweeter coaxial speakers, dual voice coil subwoofer, and a high-efficiency, high-performing, 4-channel DSP amplifier, all "Tuned" specifically for the Freightliner M2
    • 12V Accessory Ports
    • One Valve Parking Brake System with Warning Indicator
    • Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
    • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
    • Marker Lights with Separate Interrupter Switch
    • Low Air Pressure Light and Buzzer
    • Cruise Control
    • Adjustable Steering Column
    • 18? Leather-Wrapped Steering Wheel
    • Power Remote/Heated Mirrors
    • Power Windows and Locks
    • 3-Point Seat Belts
    • Dual Reading Lights
    • Two (2) Cup Holders in Dash

  • Construction

    • 2" Aluminum-Framed, Laminated Sidewalls with High-Density Block Foam Insulation
    • Composite Exterior Fiberglass (No Exterior Wood)
    • Aluminum-Framed Floor
    • Aluminum-Framed Roof Trusses
    • Crowned, One-Piece Fiberglass Roof
    • Foil-Lined Ductwork Throughout
    • Fiberglass Rear Cap and Front Wing Panels
    • Automatic, 4-Point Hydraulic Leveling Jacks
    • Dual-Pane, Dark-Tinted, Frameless Windows
    • Seamless Rotocast Storage Compartments with LED Lighting
    • Side-Hinged, Locking Aluminum Exterior Storage Doors with Chrome Handles

  • Exterior

    • Custom Full Body Paint Package with Scheme-Matching Slideout Sides
    • Premium Cut and Buffed Paint Finish
    • Front-End Diamond Shield® Paint Protection
    • Dual Roof-Mounted, Integrated Armless Patio Awnings with LED Lighting and Wind Sensors (Single Awning - 3200KD)
    • Aluminum-Wrapped Slideout Toppers
    • LED Patio Light
    • Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
    • Keyless Entry Touch Pad at Entry Door
    • Lighted Acrylic Entry Grab Handle
    • Power Entry Steps with Upgraded SeaDek® Step Treads and Polished Stainless Steel Step Treads
    • Remote Locking System for Exterior Storage Doors & Entry Door
    • 1.55 cu. ft. Portable Truma® Cooler (Fridge/Freezer) on Sliding Tray in Exterior Storage Bay (3200KD)
    • Exterior Wall-Mounted Entertainment Center with 32? LED Smart TV
    • Front and Rear LED Clearance and Marker Lighting
    • Rear LED Docking Lights
    • Dual Chrome Roof-Mounted Air Horns
    • Molded Fiberglass Cab Step Covers with Polished Stainless Steel Step Treads
    • Polished Stainless Accents on Lower Skirt
    • Polished Stainless Rear Tail Light Accents
    • Rear “DYNAMAX” Rock Guard
    • Chrome Exhaust Tip

  • Interior

    • Luxury Vinyl Tile with Soft Silence Accoustical Pad Throughout with Non-Skid Rubber Steps
    • Deluxe Carpet with Pad in Select Living Area Slide Rooms
    • Soft-Touch Padded Vinyl Ceiling
    • Luxury Vinyl Tile Entry with Non-Skid Rubber Steps
    • LED Recessed Ceiling Lights
    • Sprung, Residential Style Dinette Seats with Lift Up Storage
    • Tri-Fold Sofa
    • Coordinating Fabric Window Treatments
    • Day/Night Roller Shades
    • Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
    • Hardwood Shaker-Style Passage Doors
    • Full Extension, Soft-Closing Drawer Guides (where applicable)
    • Dovetail Joints on Cabinet Drawers
    • Hidden Hinges
    • 42? LED Smart TV (Living Area) (N/A - 3700BD & 3801TS)
    • Bose® Sound System
    • Thermal, Reflective Front Privacy Shades
    • USB Charging Ports

  • Kitchen

    • 16 cu. ft. Residential Refrigerator with Ice Maker and Side Pantry (3200KD Only)
    • Induction Range
    • Convection Microwave Oven
    • Solid Surface Countertops with LED Edge Lighting and Backsplash
    • Stainless Steel Sink with Solid Surface Covers
    • Residential Stainless Steel Spring Gooseneck Faucet
    • Pantry
    • Overhead Cabinet Accent Lighting
    • Under-Cabinet Lighting
    • MaxxAir® Power Vent with Built-In Rain Cover

  • Bedroom

    • King Bed (71"x78") with Gel-Infused Memory Foam Mattress
    • Deluxe Padded Headboard
    • Designer Bedding Package
    • 32" LED Smart TV
    • Bose® Sound Bar
    • Cedar-Lined Wardrobe
    • Nightstands with Solid Surface Countertops
    • LED Reading Lights
    • USB Charging Ports

  • Bathroom

    • Polymarm® Shower Surround (3200KD Only)
    • Teak-Fold Seat in Shower
    • Shower Skylight
    • Glass Shower Door
    • Oxygenics Body Spa® RV Shower Head
    • Solid Surface Countertop with LED Edge Lighting and Backsplash
    • Under-Mount Sink with Residential Brushed Nickel Faucet
    • Porcelain Electronic-Flush Macerator Toilet(s) (N/A - 3700BD & 3801TS)
    • MaxxAir® Power Vent with Built-In Rain Cover

  • Utilities

    • Two (2) 12V Group 8D AGM Deep-Cycle, Maintenance-Free Batteries
    • Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
    • Battery Disconnect
    • 50-Amp Service with Power Cord Reel
    • 3,000W Hybrid Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
    • 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
    • Automatic Generator Start
    • Solar Panel - Single 200 Watt with 30 Amp Controller
    • Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pumps
    • Aqua-Hot® 450D Diesel System with Engine Pre-Heat
    • Combo Washer Dryer Prep (3200KD)
    • Water Filtration System
    • Exterior Shower in Service Bay
    • Power Water Hose Reel in Service Bay
    • Exterior GFCI Receptacle
    • Winegard® AIR 360+™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
    • 4x4 HDMI Matrix
    • Cable TV/Satellite Hookup in Service Bay
    • Thetford® Sani-Con Turbo Macerator System
    • Black Tank Flush
    • SureLevel® Tank Level Monitoring System
    • Utility Compartment Heated by Aqua-Hot® System
    • Enclosed Holding Tanks Heated by Aqua-Hot® System
    • Upgraded 12V On-Demand Water Pump (4 gallons per minute)
    • Carbon-Monoxide, LP, and Smoke Detectors
    • Fire Extinguisher
    • Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)

  • Options

    • Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
    • Extended Fiberglass Front Cap with Cab-Over Bunk Mattress and Privacy Curtain
    • Black Out Package (Cab Entry Steps; Side Mirrors; Rock Guard; Wheels; Headlight Bezels; Exterior Grab Handle Trim; Exterior Storage Door Handles; Custom Grill and Vent; and Black Stainless Lower Skirt Accents and Rear Tail Light Accents)
    • Three-Seat, Power Reclining Theater Seats in Place of Dinette (3400KD - Only Outer Seats are Powered) (+40 lbs.)
    • Dual, Power Reclining Theater Seats in Place of Dinette (N/A - 3400KD) (+40 lbs.)
    • Xplorer Package - includes Insulated Cab Curtain; Two Lithium House Batteries (600aH Total); 1,000W Solar Package; & Insulated Utility Bay
