34DS Floorplan

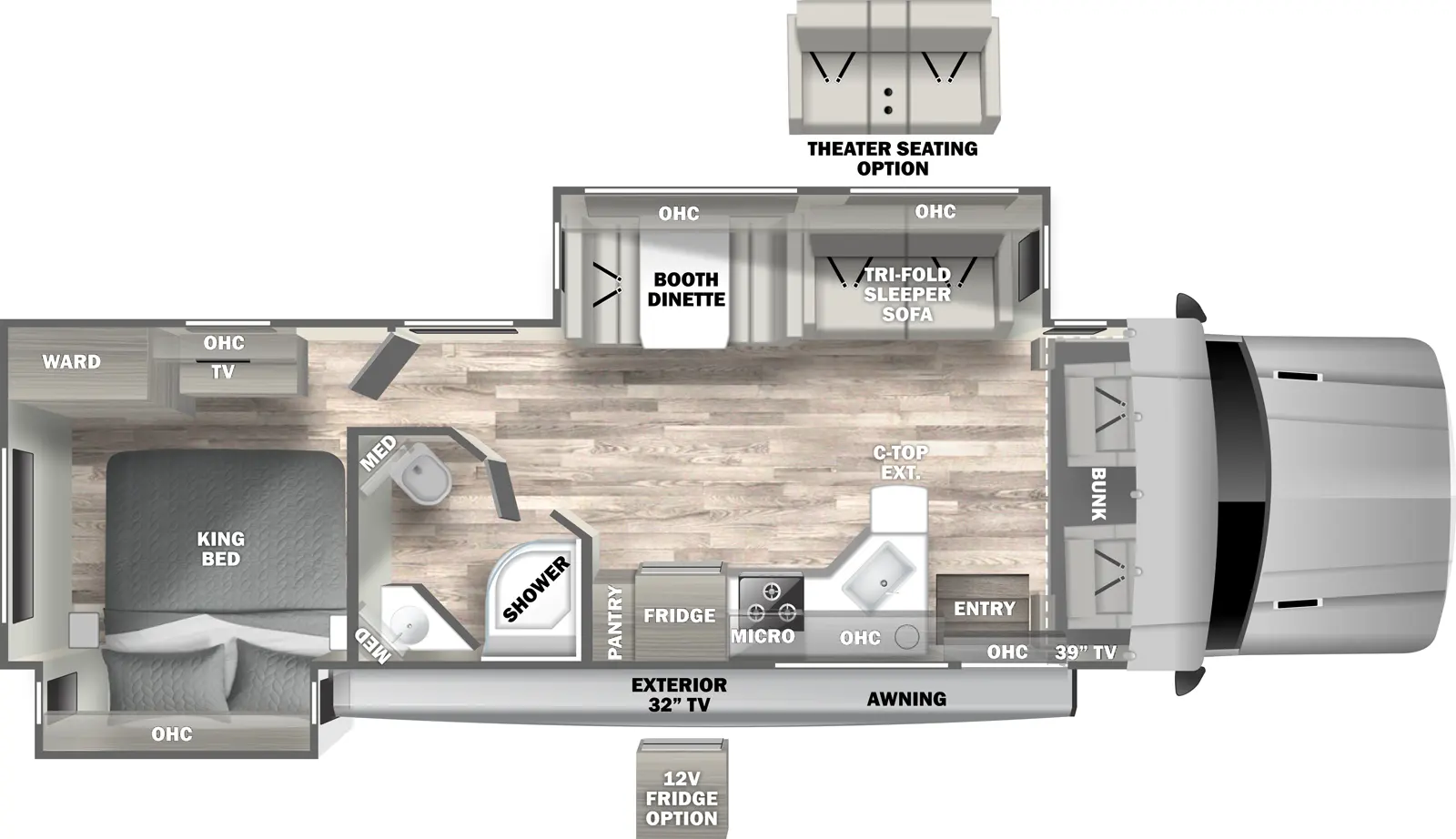

This 35'11" dual-slide floorplan is the longest and most spacious of the Isata 5 Series floorplans. This floorplan features a private rear bedroom with king size bed in the rear slide out, large wardrobe and pantry, standard booth dinette and sofa in the living room slide out, a fully equipped kitchen, and a full bath.

Wheelbase
265"
GVWR
19,500 lb.
GCWR
37,500 lb.
GAWR Front
7,250 lb.
GAWR Rear
13,500 lb.
Fuel Capacity
52 gal.
LP Tank Capacity
86 lb.
Exterior Length
35' 11"
Exterior Height
12' 4"
Exterior Width
96"
Fresh Water
78 gal.
Gray Water
45 gal.
Black Water
45 gal.
Awning Size
16'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Chassis

    • Ram® 5500 SLT Chassis - Factory 4-Wheel Drive (19,500-lbs. GVWR / 37,500-lbs. GCWR)
    • Cummins® 6.7L I6 Turbo Diesel Engine (360 hp / 800 lb-ft. of Torque)
    • AISIN® HD 6-Speed Automatic Transmission
    • 52-Gallon Fuel Tank
    • 9-Gallon Diesel Exhaust Fluid Tank
    • Trailer Hitch (10,000 Tow lbs. / 750 Tongue lbs.) with 7-Way Round Tow Connection
    • Remote Start System
    • Lane-Keep Assist
    • Active Brake Assist
    • Adaptive Cruise Control
    • Ram® OEM Trailer Brake Control
    • Cummins® Smart Exhaust Brake System
    • Ram® ESC Suspension and Stability Package
    • DynaRide+ Upgraded Suspension System featuring Four-Point Bilstein® Gas-Charged Shock Absorbers and Rear MORryde® RSX™ Rubber Shear Springs with Heavy-Duty Rear Sway Bar
    • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
    • Dual 12V Chassis Batteries
    • Dual 220-Amp Alternators (440 Total Amps)
    • 4-Wheel ABS
    • B-20 Bio Diesel Capability
    • Ram® 50KSI Chassis Construction
    • Aluminum Running Boards
    • Aluminum Wheels (Set of Four)
    • Front and Rear Tires: 225/70R19.5G (All Position Front And Rear Traction)
    • Single Front Wheels and Dual Rear Wheels (19.5"x 6")
    • Dual Rear Wheels: Aluminum (19.5"x 6.0") *Outside Rims are Polished
    • 4.88 Rear Axle Ratio
    • Daytime Running Lights
    • Heated, Leatherette Reclining Driver and Passenger Seats with Armrest
    • Power Driver Seat with Power Lumbar Control
    • Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
    • 12V and USB Accessory Ports
    • Temperature/Compass Gauge with Traveler/Mini-Trip Computer
    • 8.4" Touch Screen Dash Radio with U-Connect®, Hands-Free Voice Command with Bluetooth®, Media Hub (SD, USB, AUX), Apple CarPlay®, Android Auto®, 4G LTE Wi-Fi Hotspot Ready, and Six (6) Speakers
    • Heated Steering Wheel
    • Adjustable Steering Column
    • Power and Heated Exterior Mirrors with Courtesy Lamps and Turn Signals
    • Power Windows and Locks
    • 3-Point Seat Belts
    • Front Safety Airbags
    • Drink Holders

  • Construction

    • 2" Aluminum-Framed, Laminated Sidewalls with High-Density Block Foam Insulation
    • Composite Exterior Fiberglass (No Exterior Wood)
    • Aluminum-Framed Floor
    • Composite Flooring Substrate (Lightweight & Moisture-Resistant)
    • Aluminum-Framed Roof Trusses
    • Crowned, One-Piece Fiberglass Roof
    • Foil-Lined Ductwork Throughout
    • Fiberglass Front Cap and Front Wing Panels
    • Rear Bumper
    • Automatic, 4-Point Hydraulic Leveling Jacks
    • Dark-Tinted, Frameless Windows
    • Seamless Rotocast Storage Compartments with LED Lighting
    • Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
    • Electric Slide System

  • Exterior

    • Custom Full Body Paint Package
    • Premium Cut and Buffed Paint Finish
    • Front-End Diamond Shield® Paint Protection
    • Armless Patio Awning with LED Lighting and Motion-Activated Retraction
    • Slideout Toppers
    • LED Patio Light
    • Power Entry Steps with Upgraded SeaDek® Step Treads
    • Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
    • Keyless Entry Touch Pad at Entry Door
    • Remote Key Fob Entry (Integrated with Chassis Key Fob)
    • Lighted Acrylic Entry Grab Handle
    • Exterior Wall-Mounted Entertainment Center with 32" Smart LED TV (N/A - 28SS)
    • Front and Rear LED Clearance and Marker Lighting
    • Rear LED Docking Lights
    • Rear “DYNAMAX” Rock Guard

  • Interior

    • Front Cab-Over Bunk Area with Mattress (50"x80") and Privacy Curtain
    • Premium Vinyl Flooring Throughout
    • Soft-Touch Padded Vinyl Ceiling
    • LED Ceiling Lighting
    • Sprung, Residential Style Dinette Seats with Lift Up Storage
    • Tri-Fold Sofa (30FW, 34DS)
    • Coordinating Window Treatments
    • Blackout Roller Shades
    • Hardwood Craftsman-Style Cabinetry
    • Full Extension, Soft-Closing Drawer Guides (where applicable)
    • Hidden Hinges
    • 39" Smart LED TV (Living Area)
    • Sound Bar (Living Area)
    • Entry with Non-Skid Rubber Steps and Risers
    • Thermal, Reflective Front Privacy Shades
    • USB Charging Ports

  • Kitchen

    • Gas Range with Glass Cover
    • Convection Microwave Oven
    • 16 cu. ft. Residential Refrigerator with Ice Maker (N/A - 28SS)
    • Solid Surface Countertops with LED Lighting and Backsplash
    • Solid Surface Countertop Extension
    • Stainless Steel Sink with Solid Surface Covers
    • Residential Stainless Steel Spring Gooseneck Faucet
    • Pantry (Floor Plan Specific)
    • Overhead Cabinet Accent Lighting
    • Under-Cabinet Lighting
    • Kitchen Trash Can
    • MaxxAir® Power Vent with Built-In Rain Cover

  • Bedroom or Bunk Area

    • King Bed (71"x78") with Gel-Infused Memory Foam Mattress (34DS)
    • Deluxe Padded Headboard (28SS & 34DS)
    • Designer Bedding Package
    • 32” LED Smart TV
    • Cedar-Lined Wardrobe
    • LED Reading Lights
    • USB Charging Ports

  • Bathroom

    • Designer Shower with Skylight
    • Oxygenics Body Spa® RV Shower Head
    • Stainless Steel Sink with Residential Faucet
    • Porcelain Electronic-Flush Macerator Toilet (N/A – 30FW)
    • MaxxAir® Power Vent with Built-In Rain Cover

  • Utilities

    • Dual Low-Temp Lithium Auxiliary Batterys (200aH Total)
    • Firefly Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
    • Battery Disconnect
    • 50-Amp Service
    • 3,000W Hybrid Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
    • 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
    • Automatic Generator Start
    • Solar Panel - Single 190 Watt with 30 Amp Controller
    • Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pumps
    • 40,000-BTU LP Furnace with Electronic Ignition
    • 60,000-BTU Truma® AquaGo Comfort Plus™ On-Demand Water Heater (LP)
    • 20.3-Gallon LP Tank (WC)
    • LP Quick Connect
    • Water Filtration System
    • Exterior Shower in Service Bay
    • Exterior GFCI Receptacle
    • Winegard® AIR 360+™ with Gateway Router (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
    • 4x4 HDMI Matrix
    • Cable TV/Satellite Hookup in Service Bay
    • Black Tank Flush
    • SureLevel® Tank Level Monitoring System
    • Furnace-Heated Utility Compartment
    • Enclosed and Furnace-Heated Holding Tanks
    • Upgraded 12V On-Demand Water Pump (4 gallons per minute)
    • Carbon-Monoxide, LP, and Smoke Detectors
    • Fire Extinguisher

  • Options

    • 12V 10 cu. ft. 2-Door Compressor-Driven Refrigerator in place of Standard Refrigerator (30FW, 34DS)
    • Dual, Power Reclining Theater Seats in place of Sofa (30FW, 34DS)
