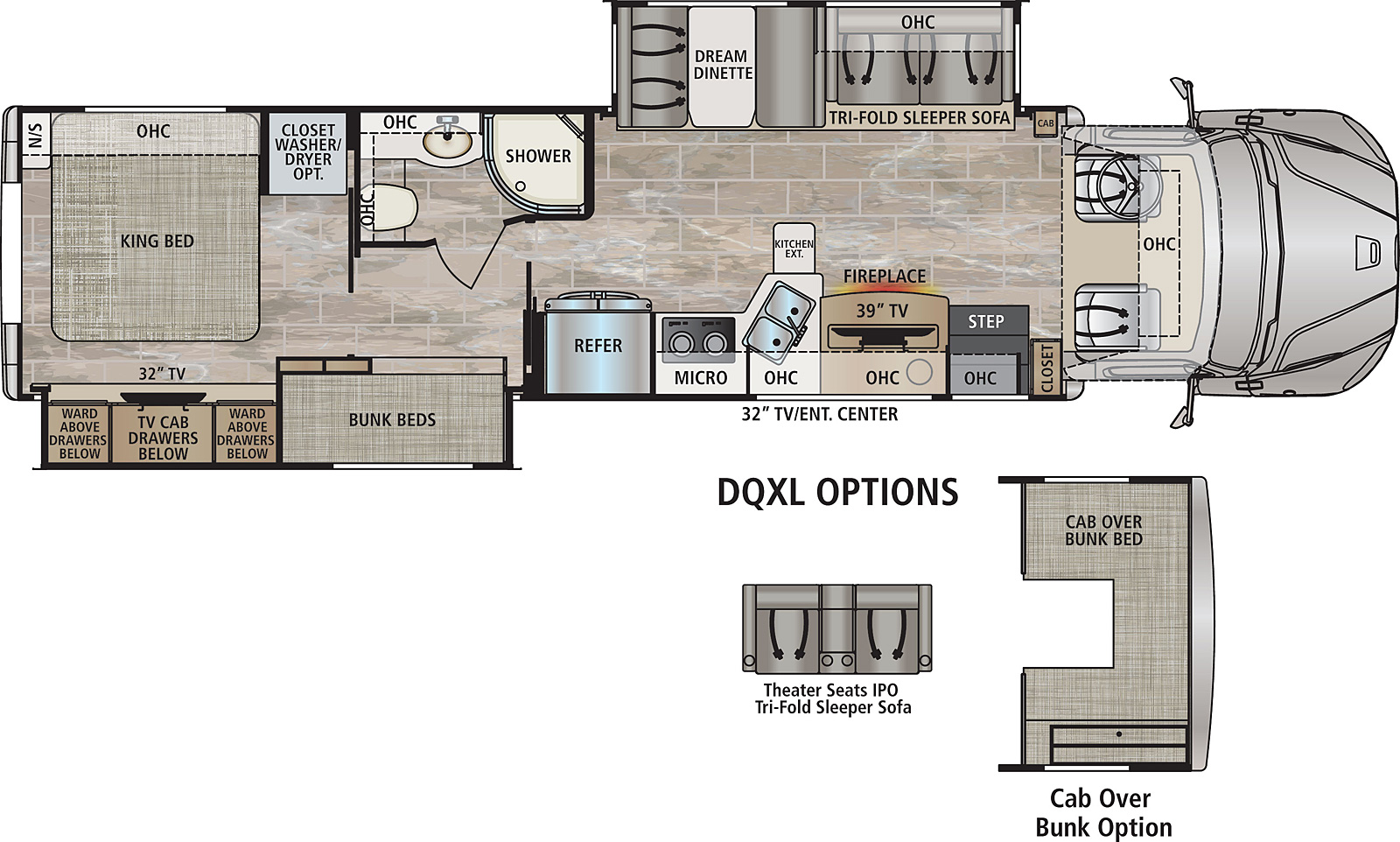

This 39'8" dual-slide floorplan features the most sleeping positions of any DynaQuest XL floorplan. This floorplan features a private rear bedroom with king size bed, as well as a rear slide out featuring two bunk beds and a large bedroom wardrobe. The front living area consists of a standard booth dinette and sofa in the living room slide out, a fully equipped kitchen, fireplace with a pop-up TV and a full bath.
- 33,000 lb.
- 54,000 lb.
- GAWR Front
- 12,000 lb.
- GAWR Rear
- 21,000 lb.
- Fuel Capacity
- 100 gal.
- LP Tank Capacity
- 0 lb.
- Exterior Length
- 39' 8"
- Exterior Height
- 12' 9"
- Exterior Width
- Fresh Water
- 94 gal.
- Gray Water
- 52 gal.
- Black Water
- 52 gal.
- Awning Size
- 30' 3"
GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.
GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.
GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.
UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.
CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.
Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.
The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
Note: Specifications are subject to change without notice.
- Freightliner® M2 112 Chassis (33,000-lb. GVWR / 54,000-lb. GCWR)
- Cummins® L9 Turbo Diesel Engine (450hp / 1,250 lb-ft. of Torque)
- Allison® 3200 TRV Six-Speed Automatic Transmission
- 100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks)
- 6-Gallon Diesel Exhaust Fluid Tank
- Trailer Hitch (20,000 Tow lb. / 2,000 Tongue lb.) with 7-Way Round Tow Connection
- Weigh Safe® Trailer Hitch Receiver
- Active Brake Assist
- Brake Controller
- Dual-Stage Compression Brake with High/Off/Low Braking Dash Switch
- Locking Differential
- Airliner® 21,000-lb. Rear Suspension
- Manual Air Suspension Dump Valve Switch on the Dash
- 275-Amp Alternator
- Quick Disconnect Fitting with Tire Inflation Kit
- Air Brakes with 4-Wheel ABS
- Equiflo™ Inboard Fuel System (Dual Supply – Dual Return)
- Fuel Filter/Water Separator with Primer Pump
- Engine Block Heater
- Steel-Reinforced, Aluminum Cab
- Chrome Grille and Air Intake Grille
- Front and Rear Tires: Michelin® XZE2 275/80R22.5 (14 Ply Radials)
- Single Front Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
- Dual Rear Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
- Valve Extensions
- Tire Pressure Monitoring System
- 4.78 Rear Axle Ratio
- Daytime Running Lights
- LED Headlights
- Tinted Door Glass and Operating Wing Windows
- Chassis Battery Shut Off Switch in Cab
- Leatherette Driver and Passenger Air Ride Seats with Air Lumbar Control
- Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
- Kenwood® 7” Touch Screen Dash Infotainment System with AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and Garmin® RV Navigation
- JBL® Premium Cab Sound System - JBL full range/tweeter coaxial speakers, dual voice coil subwoofer, and a high-efficiency, high-performing, 4-channel DSP amplifier, all "Tuned" specifically for the Freightliner M2
- 12V Accessory Ports
- One Valve Parking Brake System with Warning Indicator
- Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
- Momentary Battery Booster Switch for Connecting Chassis and House Batteries
- Marker Lights with Separate Interrupter Switch
- Low Air Pressure Light and Buzzer
- Adaptive Cruise Control
- Adjustable Steering Column
- 18? Leather-Wrapped Steering Wheel
- Hydrographic Woodgrain Cab Accents
- Power Remote/Heated Mirrors
- Power Windows and Locks
- 3-Point Seat Belts
- Dual Reading Lights
- Two (2) Cup Holders in Dash
- 2" Aluminum-Framed, Laminated Sidewalls with High-Density Block Foam Insulation
- Composite Exterior Fiberglass (No Exterior Wood)
- Aluminum-Framed Floor
- Aluminum-Framed Roof Trusses
- Crowned, One-Piece Fiberglass Roof
- Foil-Lined Ductwork Throughout
- Fiberglass Rear Cap and Front Wing Panels
- Automatic, 4-Point Hydraulic Leveling Jacks
- Dual-Pane, Dark-Tinted, Frameless Windows
- Seamless Rotocast Storage Compartments with LED Lighting
- Side-Hinged, Locking Aluminum Exterior Storage Doors with Chrome Handles
- Custom Full Body Paint Package with Scheme-Matching Slideout Sides
- Premium Cut and Buffed Paint Finish
- Front-End Diamond Shield® Paint Protection
- Dual Roof-Mounted, Integrated Armless Patio Awnings with LED Lighting and Wind Sensors
- Aluminum-Wrapped Slideout Toppers
- LED Patio Light
- Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
- Keyless Entry Touch Pad at Entry Door
- Lighted Acrylic Entry Grab Handle
- Power Entry Steps with Polished Stainless Steel Step Treads
- Remote Locking System for Exterior Storage Doors
- Exterior Wall-Mounted Entertainment Center with 32? LED Smart TV
- Front and Rear LED Clearance and Marker Lighting
- Rear LED Docking Lights
- Dual Chrome Roof-Mounted Air Horns
- Molded Fiberglass Cab Step Covers with Polished Stainless Steel Step Treads
- Polished Stainless Accents on Lower Skirt
- Polished Stainless Rear Tail Light Accents
- Rear “DYNAMAX” Rock Guard
- Chrome Exhaust Tip
- Luxury Vinyl Tile with Soft Silence Accoustical Pad Throughout with Non-Skid Rubber Steps
- Deluxe Carpet with Pad in Select Living Area Slide Rooms
- Soft-Touch Padded Vinyl Ceiling
- LED Recessed Ceiling Lights
- Sprung, Residential Style Dinette Seats with Lift Up Storage
- Tri-Fold Sofa
- Coordinating Fabric Window Treatments
- Day/Night Roller Shades
- Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
- Hardwood Shaker-Style Passage Doors
- Full Extension, Soft-Closing Drawer Guides (where applicable)
- Dovetail Joints on Cabinet Drawers
- Hidden Hinges
- 39" LED Smart TV (Living Area) (N/A - 3801TS)
- Entertainment Center with Fireplace (3700BD Only)
- Entertainment Center with 50" LED Smart TV and Fireplace (3801TS Only)
- Bose® Sound System
- Thermal, Reflective Front Privacy Shades
- USB Charging Ports
- 23 cu. ft. Residential Refrigerator with Ice Maker
- Induction Range
- Convection Microwave Oven
- Solid Surface Countertops with LED Edge Lighting and Backsplash
- Stainless Steel Sink with Solid Surface Covers
- Residential Stainless Steel Spring Gooseneck Faucet
- Under-Cabinet Lighting
- MaxxAir® Power Vent with Built-In Rain Cover
- King Bed (71"x78") with Gel-Infused Memory Foam Mattress
- Deluxe Padded Headboard
- Designer Bedding Package
- 32" LED Smart TV
- Bose® Sound Bar
- Cedar-Lined Wardrobe
- Nightstands with Solid Surface Countertops
- LED Reading Lights
- USB Charging Ports
- Bunk Bed Mattresses (28" x 76") and Privacy Partition (3700BD)
- Two Bunk CD/DVD Players with Monitors (3700BD)
- Solid Surface Shower with Teak Fold-Down Seat and Skylight
- Glass Shower Door
- Oxygenics Body Spa® RV Shower Head
- Solid Surface Countertop with LED Edge Lighting and Backsplash
- Under-Mount Sink with Residential Brushed Nickel Faucet
- Porcelain Foot-Flush Toilet (3700BD & 3801TS)
- Porcelain Electronic-Flush Macerator Toilet(s) (3400KD & 37RB)
- MaxxAir® Power Vent with Built-In Rain Cover
- Two (2) 12V Group 8D AGM Deep-Cycle, Maintenance-Free Batteries
- Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
- Battery Disconnect
- 50-Amp Service with Power Cord Reel
- 3,000W Hybrid Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
- 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
- Automatic Generator Start
- Solar Panel - Single 200W with 30 Amp Controller
- Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat
- Aqua-Hot® 450D Diesel System with Engine Pre-Heat
- Dyson® Rechargeable Vacuum with Attachments
- Water Filtration System
- Exterior Shower in Service Bay
- Power Water Hose Reel in Service Bay
- Exterior GFCI Receptacle
- Winegard® AIR 360+™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
- 4x4 HDMI Matrix
- Cable TV/Satellite Hookup in Service Bay
- Thetford® Sani-Con Turbo Macerator System
- Black Tank Flush
- Utility Compartment Heated by Aqua-Hot® System
- Enclosed Holding Tanks Heated by Aqua-Hot® System
- Upgraded 12V On-Demand Water Pump (4 gallons per minute)
- Carbon-Monoxide, LP, and Smoke Detectors
- Fire Extinguisher
- Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
- Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
- Extended Fiberglass Front Cap with Cab-Over Bunk Mattress and Privacy Curtain
- Black Out Package (Cab Entry Steps; Side Mirrors; Rock Guard; Wheels; Headlight Bezels; Exterior Grab Handle Trim; Exterior Storage Door Handles; Custom Grill and Vent; and Black Stainless Lower Skirt Accents and Rear Tail Light Accents)
- Dual, Power Reclining Theater Seats in Place of Dinette (3400KD: Three Seats - Only Outer Seats are Powered)
- Low-Temp Lithium (600aH) in place of AGM Batteries
- Adventure Package - includes Insulated Cab Curtain; Two Lithium House Batteries (600aH Total); 1,000W Solar Package; & Insulated Utility Bay
