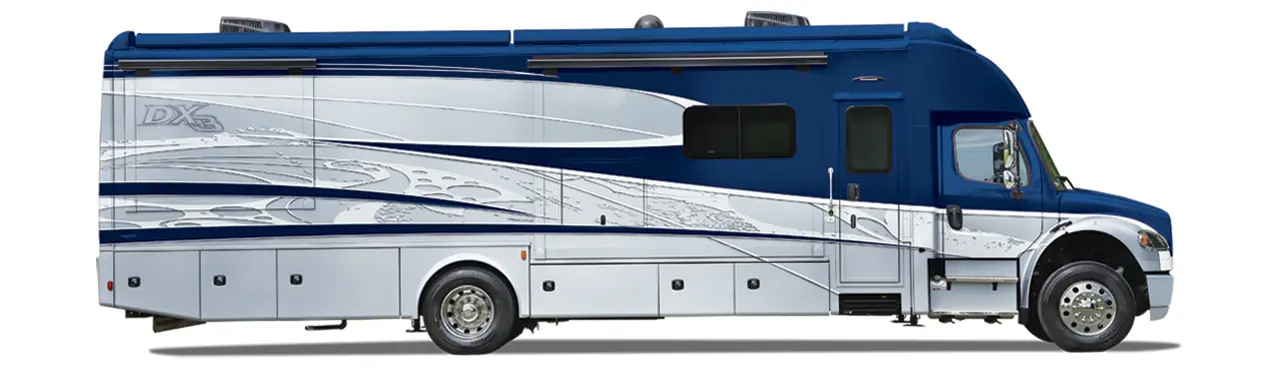

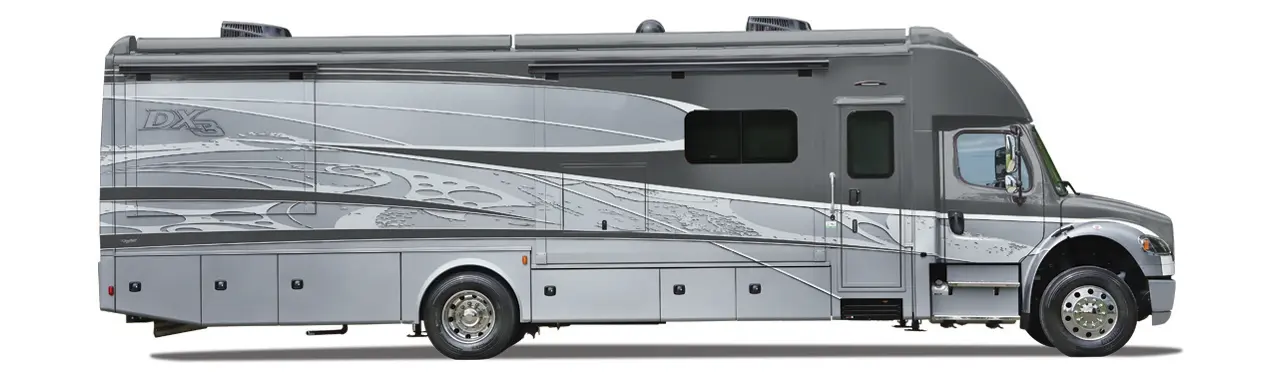

DX3 Class C Motorhome
The DX3 emanates a legendary level of power, prestige, and precision. It turns heads with its impeccable paint schemes and eye-catching curb appeal. A look under the DX3’s hood reveals an impressive powerhouse that showcases the Cummins 8.9L 360 HP engine and the Allison 3200 TRV automatic transmission, resulting in remarkable torque (1,150 lb.-ft.) and towing capacity (20,000 lbs.). All this power and performance is perfectly matched with a living space that exceeds expectations.
- We picked up our 2022 Dynamax DX3 TS in July. It is a joy to spend time in, and we're always turning heads! She has the power to tow our Jeep and gear, and stay at 65MPH climbing up mountains and passing the big rigs. Couldn't have asked for a nicer rig! - Londa F.
DX3 Motorhome
 copy.webp)
-
- Freightliner M2 106 PLUS Chassis (33,000-lbs. GVWR / 54,000-lbs. GCWR)
- Cummins L9 Turbo Diesel Engine (360hp / 1,150 lb-ft. of Torque)
- Allison 3200 TRV Six-Speed Automatic Transmission
- 4.78 Rear Axle Ratio
- Trailer Hitch (20,000 Tow lbs. / 2,000 Tongue lbs.) with 7-Way Round Tow Connection
- 100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks) with Equiflo Inboard Fuel System
- 6-Gallon Diesel Exhaust Fluid Tank
- 275-Amp Alternator
- Air Brakes with 4-Wheel ABS
- Fuel Filter/Water Separator with Primer Pump
- C-Brake by Jacobs with High/Medium/Low Settings
- Brake Controller
- Airliner 21,000-lb. Rear Air Suspension
- Manual Air Suspension Dump Valve Switch on the Dash
- Bilstein Gas-Charged Front Shock Absorbers
- Front Sway Bar
- Rear Locking Differential
- Cruise Control
- Steel-Reinforced, Aluminum Cab
- Chrome Grille
- LED Headlights
- Fog Lights
- Daytime Running Lights
- Tinted Door Glass and Wing Windows
- Front and Rear Tires: 275/80R22.5 (14 Ply Radials)
- Single Front Wheels: Alcoa Aluminum (22.5" x 8.25") *Outside Rims are Polished
- Dual Rear Wheels: Alcoa Aluminum (22.5" x 8.25") *Outside Rims are Polished
- Valve Extensions
- Tire Pressure Monitoring System
- Quick Disconnect Fitting with Tire Inflation Kit
- Engine Block Heater
- Leatherette Driver and Passenger Air Ride Seats with Air Lumbar Controls
- Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
- Mobileye Collision Avoidance System
- Sony 10.1" HD Touch Screen Dash Infotainment System with AM/FM, Bluetooth, Sirius/XM (tuner and antenna), Wired and Wireless Apple CarPlay / Android Auto Connectivity, USB-C Port, and High-Resolution Audio
- JBL Premium Cab Sound System JBL full range/tweeter coaxial speakers, dual voice coil subwoofer, and a high-efficiency, high-performing, 4-channel DSP amplifier, all "Tuned" specifically for the Freightliner M2
- 12V Accessory Ports
- Chassis Battery Shut Off Switch in Cab
- Air Horn
- One Valve Parking Brake System with Warning Indicator
- Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
- Momentary Battery Booster Switch for Connecting Chassis and House Batteries
- Marker Lights with Separate Interrupter Switch
- Low Air Pressure Light and Buzzer
- Adjustable Steering Column
- 18" Leather-Wrapped Steering Wheel
- Power and Heated Exterior Mirrors
- Power Windows and Locks
- 3-Point Seat Belts
-
- 2" Aluminum-Framed, Laminated Sidewalls with High-Density Block Foam Insulation
- Composite Exterior Fiberglass (No Exterior Wood)
- Aluminum-Framed Floor
- Aluminum-Framed Roof Trusses
- Crowned, One-Piece Fiberglass Roof
- Foil-Lined Ductwork Throughout
- Fiberglass Rear Cap and Front Wing Panels
- Automatic, 4-Point Hydraulic Leveling Jacks
- Dual-Pane, Dark-Tinted, Frameless Square Windows with Built-In Night Shades & Screens
- Seamless Rotocast Storage Compartments with LED Lighting
- Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
-
- Custom full Body Paint Package with Scheme-Matching Cab Door Jambs
- Premium Cut and Buffed Paint Finish
- Front-End Diamond Shield Paint Protection

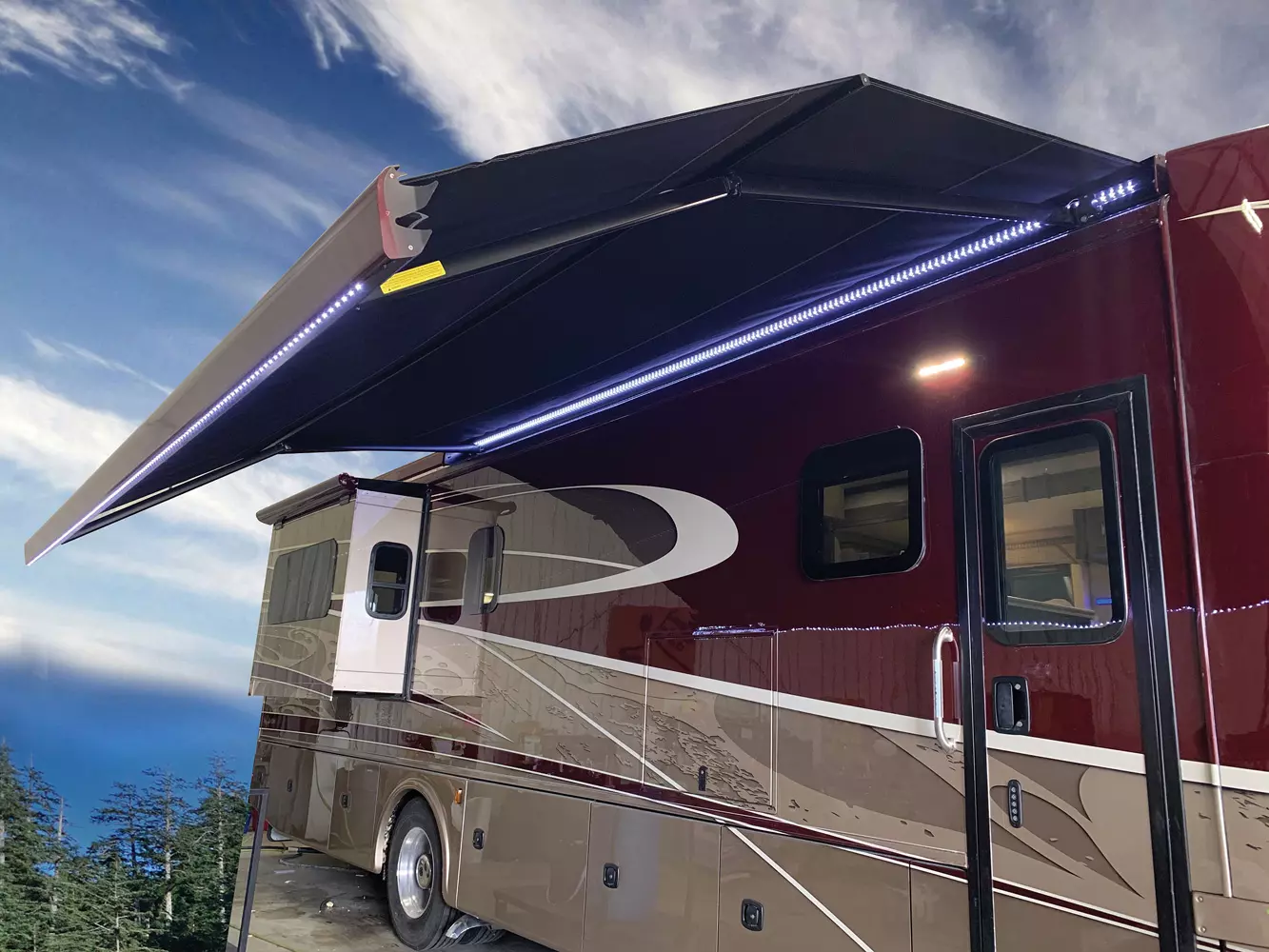

- Roof-Mounted, Integrated Armless Patio Awning with LED Lighting and Wind Sensor

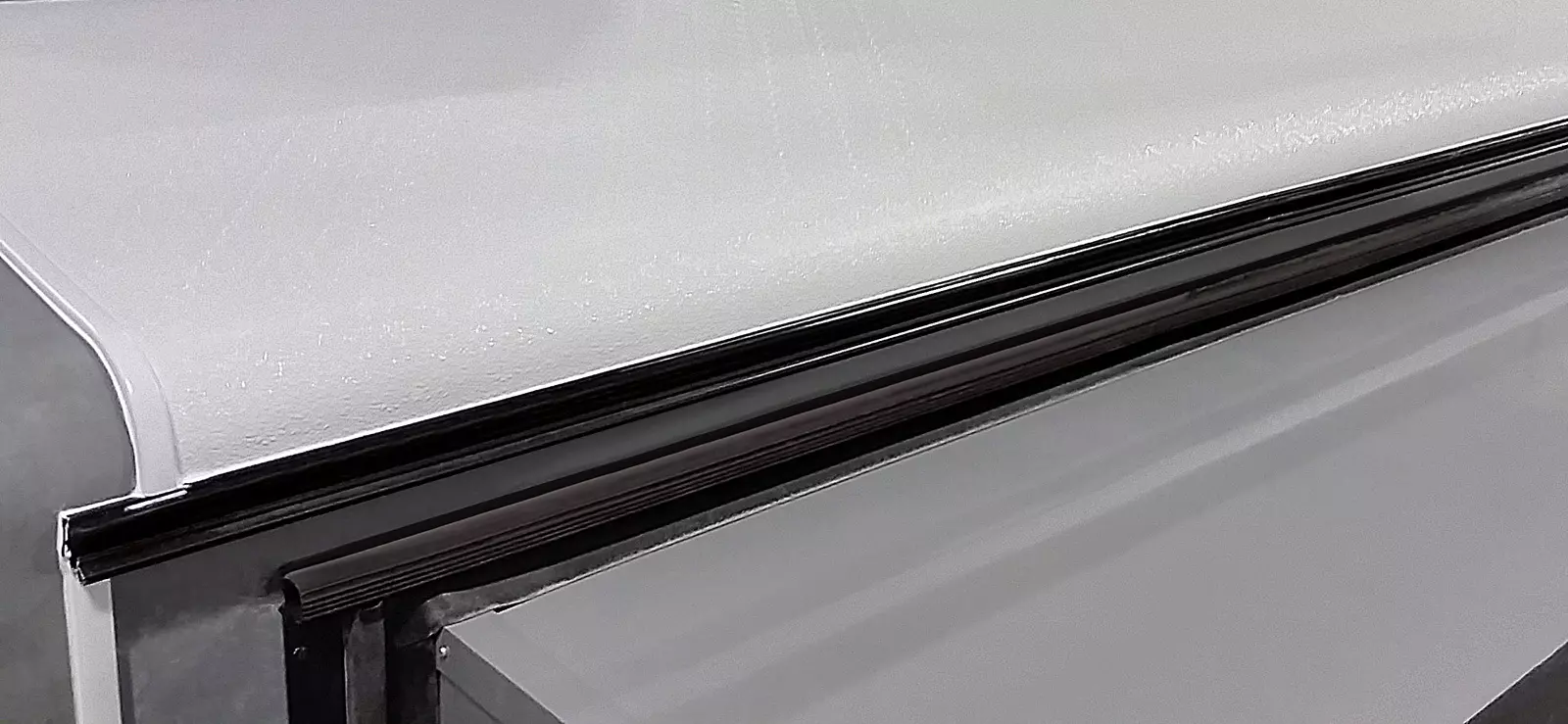

- Aluminum-Wrapped Slideout Toppers
- LED Patio Light
- Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
- Keyless Entry Touch Pad at Entry Door
- Remote Locking System for Exterior Storage Doors & Entry Door
- Lighted Acrylic Entry Grab Handle
- Power Entry Steps with Upgraded SeaDek Step Treads
- Exterior Wall-Mounted Entertainment Center with 40" LED Smart TV with Integrated JBL Sound Bar on Swivel Extension Mount
- Front and Rear LED Clearance and Marker Lighting
- Rear LED Docking Lights
- Rear “DYNAMAX” Rock Guard
- Polished Stainless Steel Cab Step Treads
- Chrome Exhaust Tip
-
- Luxury Vinyl Tile Throughout
- Soft-Touch Padded Vinyl Ceiling
- Luxury Vinyl Tile Entry
- Dimmable LED Recessed Ceiling Lights
- Sprung, Residential Style Dinette Seats with Lift Up Storage
- Tri-Fold Sofa
- Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
- Hardwood Shaker-Style Passage Doors
- Full Extension, Soft-Closing Drawer Guides (where applicable)
- Hidden Hinges
- 42" LED Smart TV (Living Area) (N/A 37BD & 37TS)
- 39" LED Smart TV (Living Area) (37BD Only)
- Entertainment Center with Pop-Up 50" LED Smart TV and Fireplace (37TS Only)
- JBL Sound Bar
- Magnetic Thermal, Reflective Front Privacy Shades
- USB/USB-C Charging Ports
-
- 18 cu. ft. Residential Refrigerator with Ice Maker (N/A 32KD)
- 16 cu. ft. Residential Refrigerator with Ice Maker (32KD Only)
- Sealed Gas range with Glass Cover
- Convection Microwave Oven with Air Fryer Functionality
- Solid Surface Countertops with LED Edge Lighting and Solid Surface Backsplash
- Stainless Steel Sink with Solid Surface Covers
- Residential Stainless Steel Spring Gooseneck Faucet
- Pantry
- Overhead Cabinet Accent Lighting
- Under-Cabinet Lighting
- MaxxAir Power Vent with Built-in Rain Cover
-
- King Bed (71"x78") with Gel-Infused Memory Foam Mattress
- Deluxe Padded Headboard
- Designer Bedding Package
- 32" LED Smart TV
- JBL Sound Bar (N/A 32KD)
- Cedar-Lined Wardrobe
- Digital Safe in Wardrobe
- Nightstands with Solid Surface Countertops
- LED Reading Lights
- USB/USB-C Charging Ports

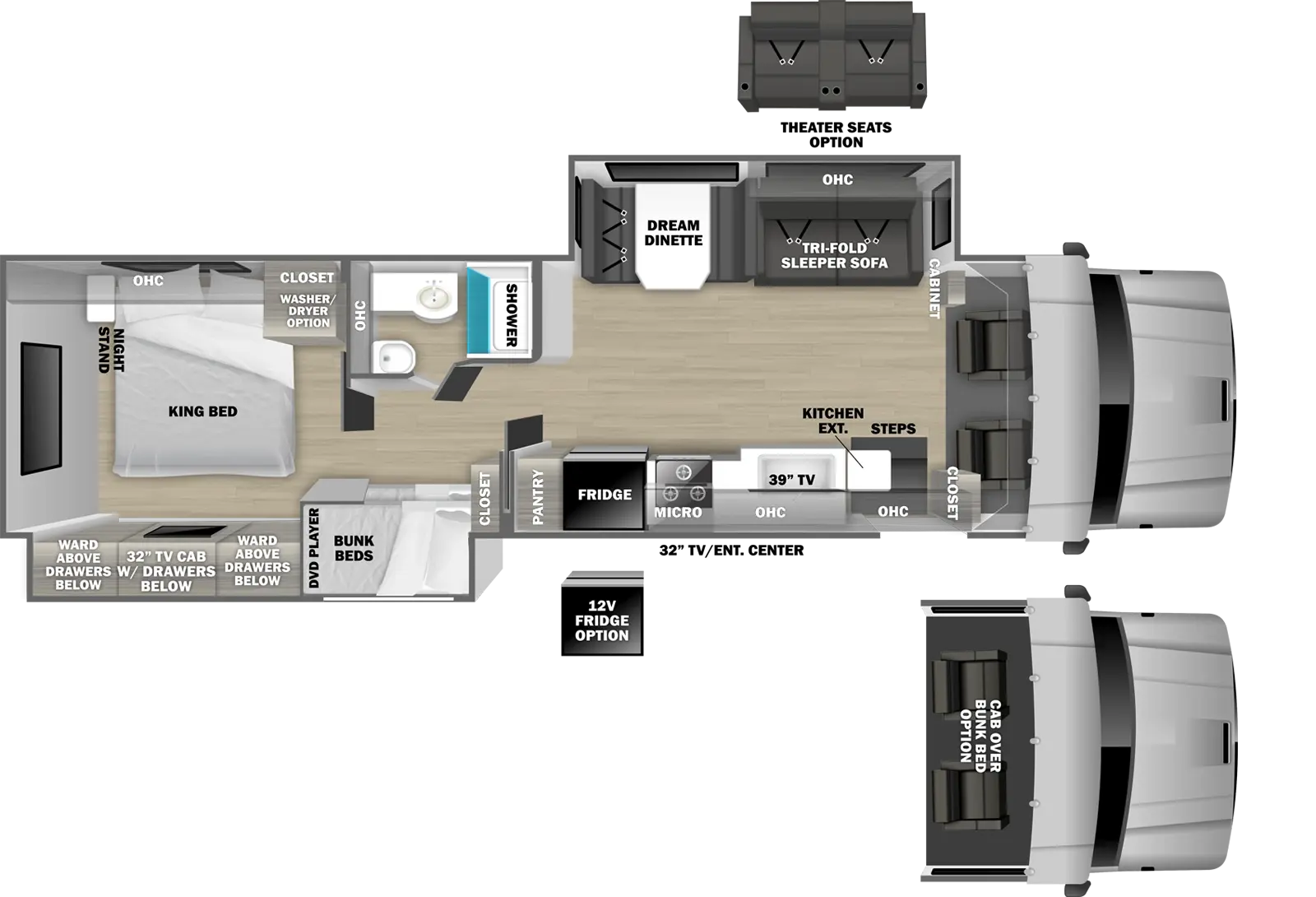

- Bunk Bed Mattresses (28" x 76") and Privacy Partition (37BD)
- Two Bunk CD/DVD Players with Monitors (37BD)
-
- Solid Surface Shower Surround (30"x36")
- Glass Shower Door
- Shower Skylight
- Oxygenics Body Spa RV Shower Head
- Solid Surface Countertop with LED Edge Lighting and Backsplash
- Under-Mount Sink with Residential Brushed Nickel Faucet (37RB: Two Sinks in Full Rear Bath)
- Porcelain Foot-Flush Toilet (37BD & 37TS)
- Porcelain Electronic-Flush Macerator Toilet(s) (N/A 37BD & 37TS)
- MaxxAir Power Vent with Built-in Rain Cover
-

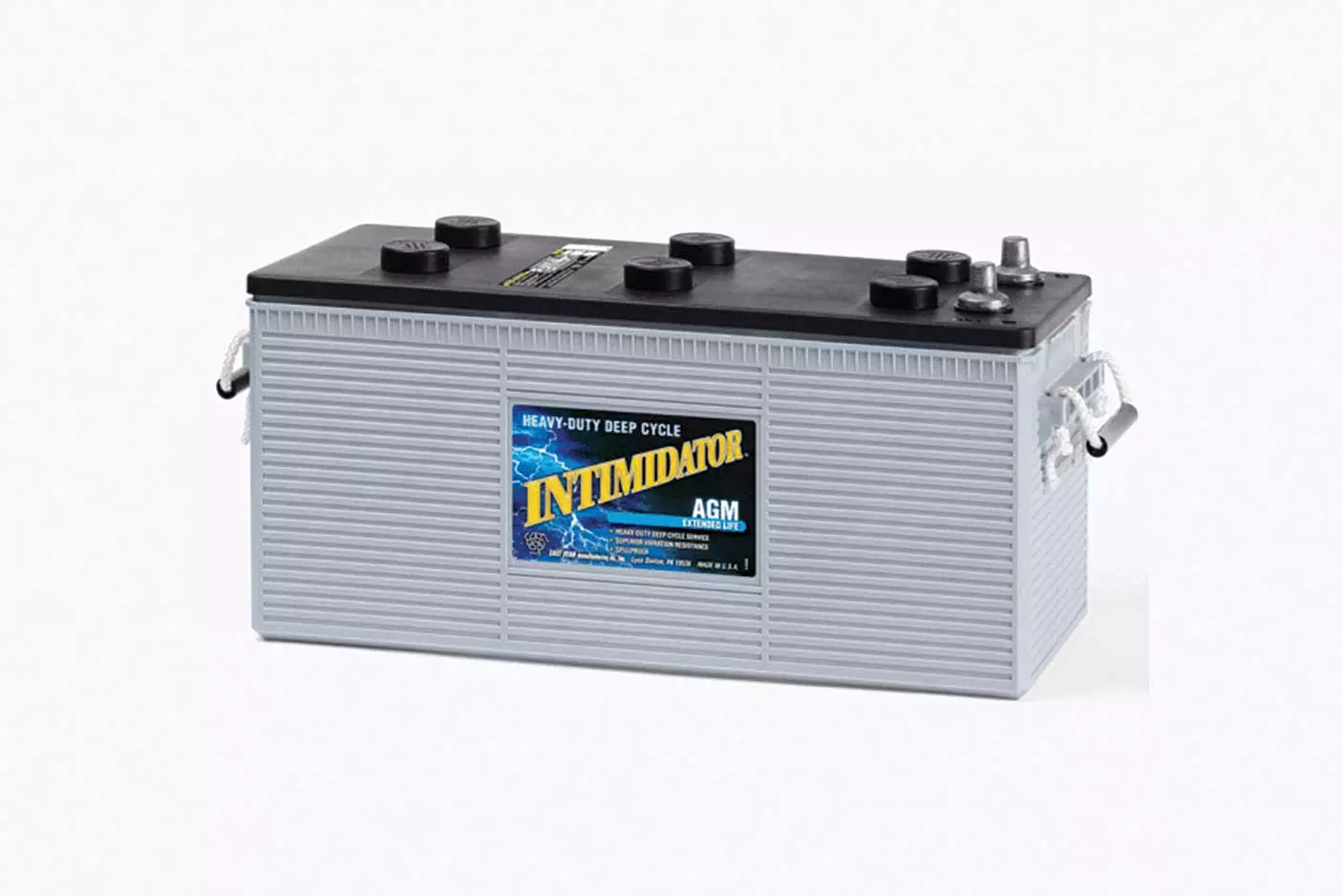

- Dual 12V 8D AGM Deep-Cycle, Maintenance-Free Batteries (490aH Total)
- 200W Glass Solar Panel with 30-Amp Controller
- 3,000W Hybrid Pure Sine Wave Inverter/Charger
- 50-Amp Service with 36' Power Cord Reel
- Firefly Multiplex Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth Smart Phone App Control

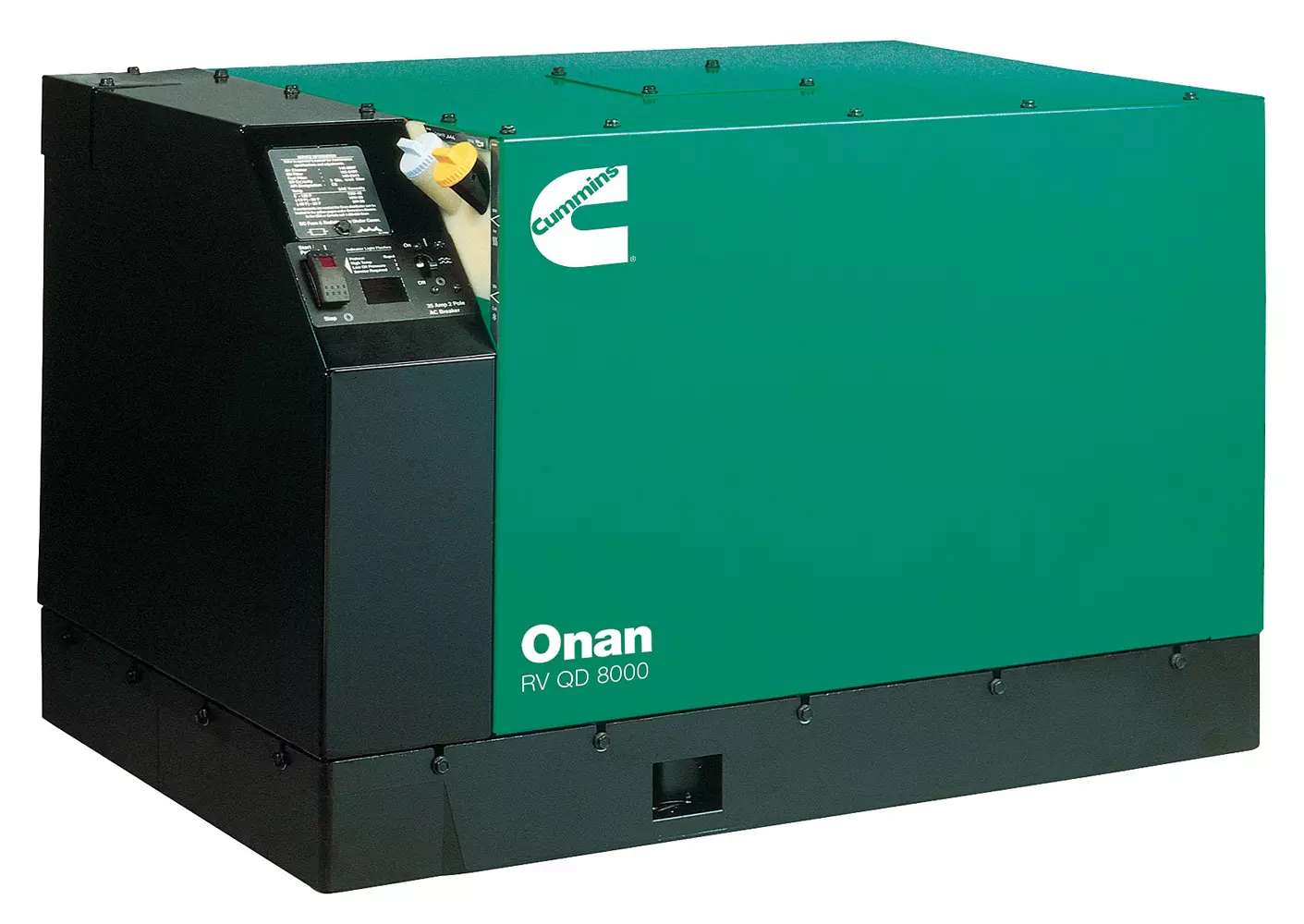

- 8kW Onan Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
- Automatic Generator Start
- Energy Management System (EMS)
- Battery Disconnect
- Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pumps

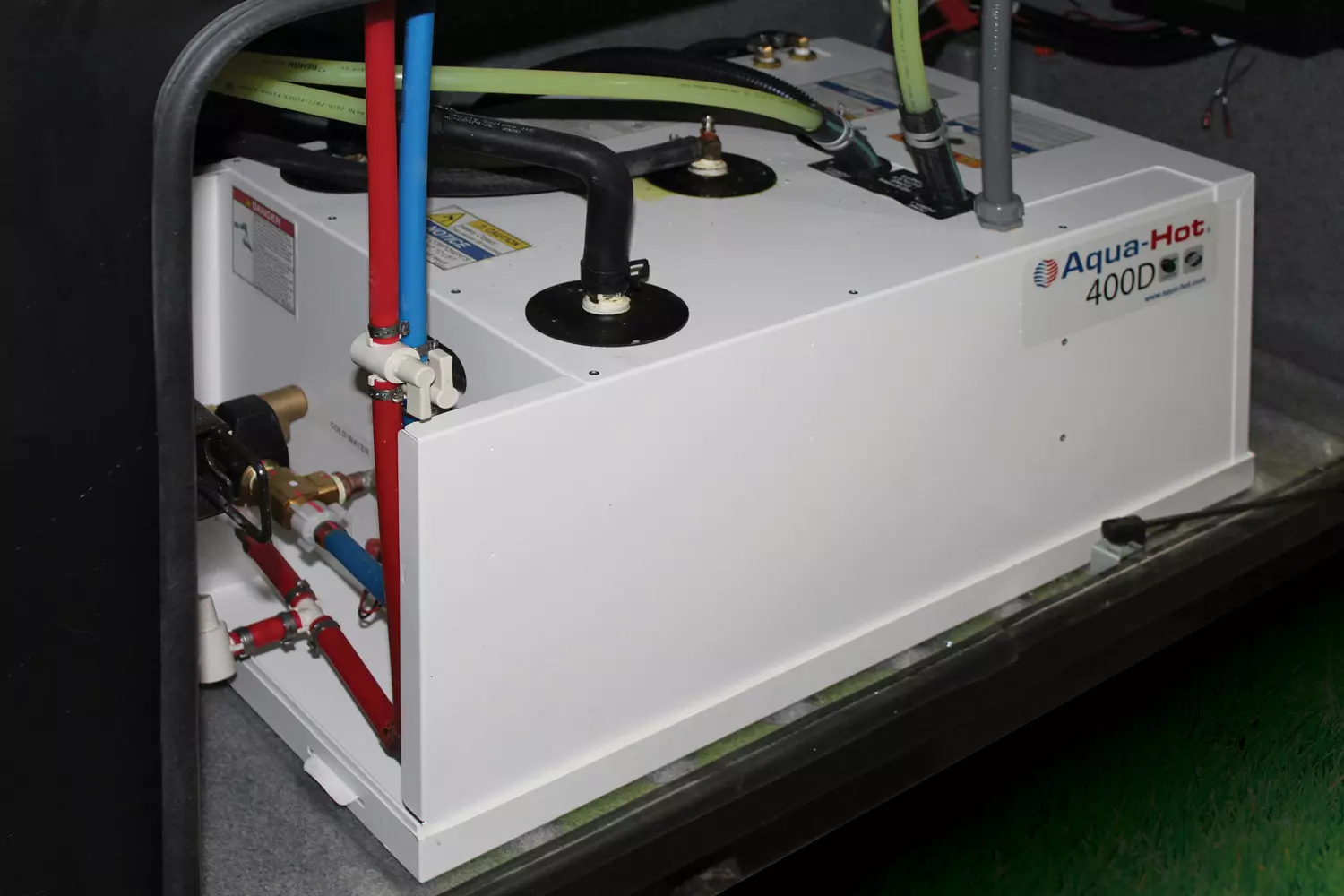

- Aqua-Hot 400D Diesel System
- Combo Washer Dryer Prep (32KD)
- Stackable Washer/Dryer Prep (N/A 32KD)
- 20.3-Gallon LP Tank (WC)
- LP Quick Connect
- Water Filtration System
- Exterior Shower in Service Bay
- Power Water Hose Reel in Service Bay
- Exterior GFCI Receptacle
- Starlink Satellite Internet System (Roof-Mounted)
- Winegard OTA HDTV Antenna
- King DISH Tailgater Pro Premium HD Satellite with DISH Network Receiver

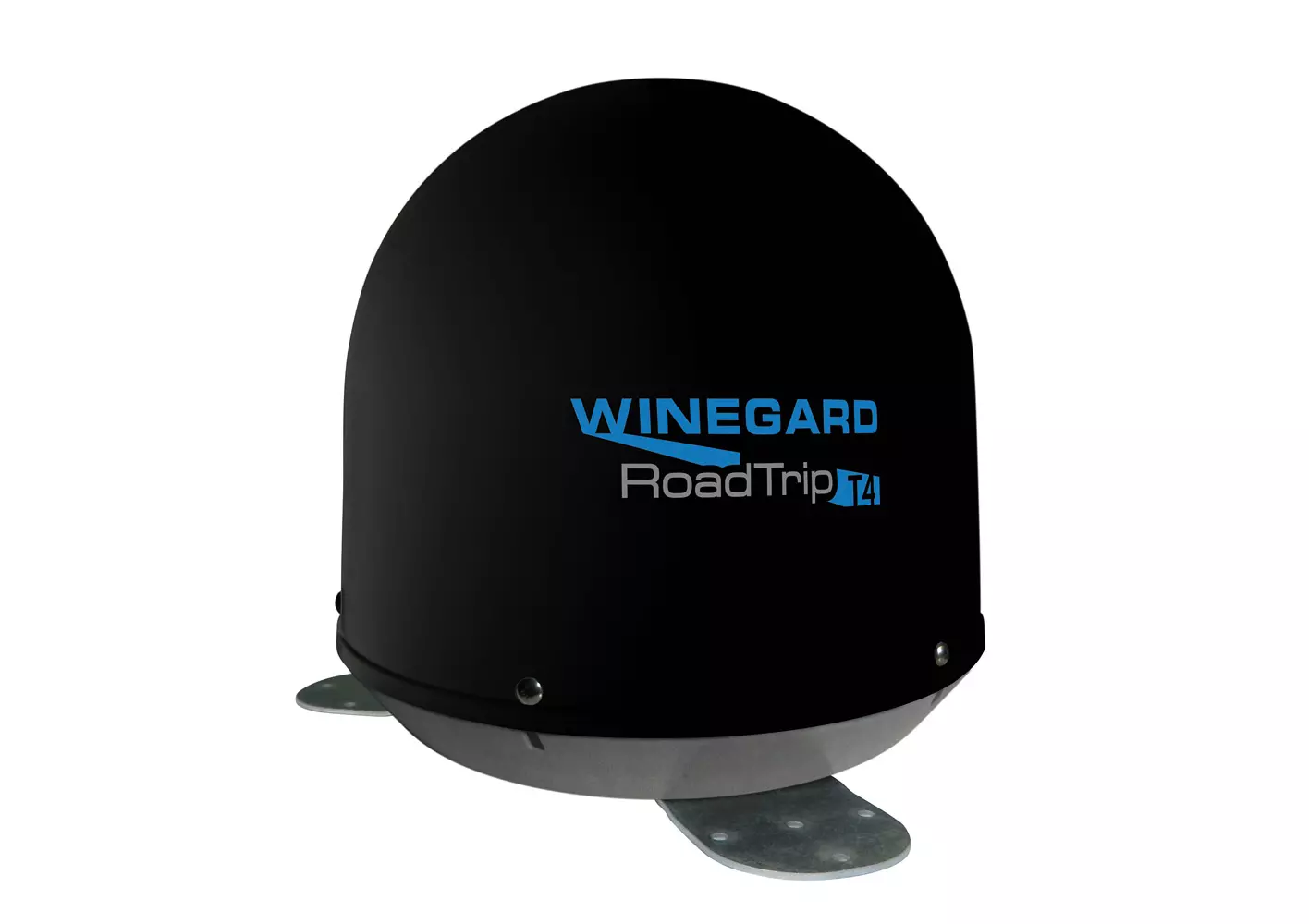

- Winegard in-Motion Satellite
- 4x4 HDMI Matrix
- Cable TV/Satellite Hookup in Service Bay
- Thetford Sani-Con Turbo Macerator System
- Black Tank Flush
- SureLevel Tank Level Monitoring System
- Utility Compartment Heated by Aqua-Hot System
- Enclosed Holding Tanks Heated by Aqua-Hot System
- Upgraded 12V On-Demand Water Pump (4 gallons per minute)
- Carbon-Monoxide, LP Gas, and Smoke Detectors
- Fire Extinguisher
-
- Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
- Extended Fiberglass Front Cap with Cab-Over Bunk Mattress (50"x79") and Privacy Curtain

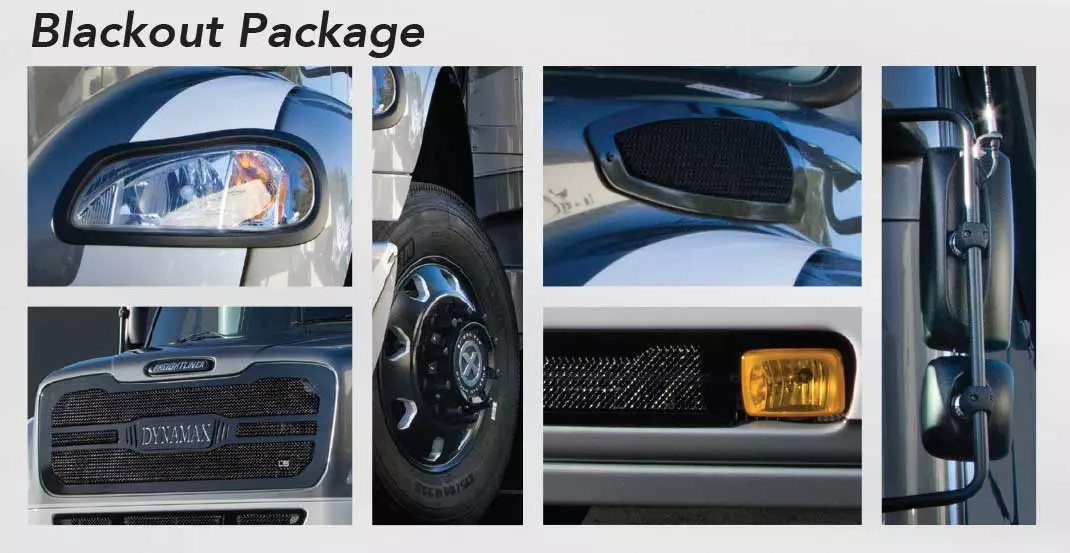

- Black Out Package (Cab Entry Steps, Side Mirrors, Rock Guard, Wheels, Headlight Bezels, Exterior Grab Handle Trim, Custom Grille & Vent)

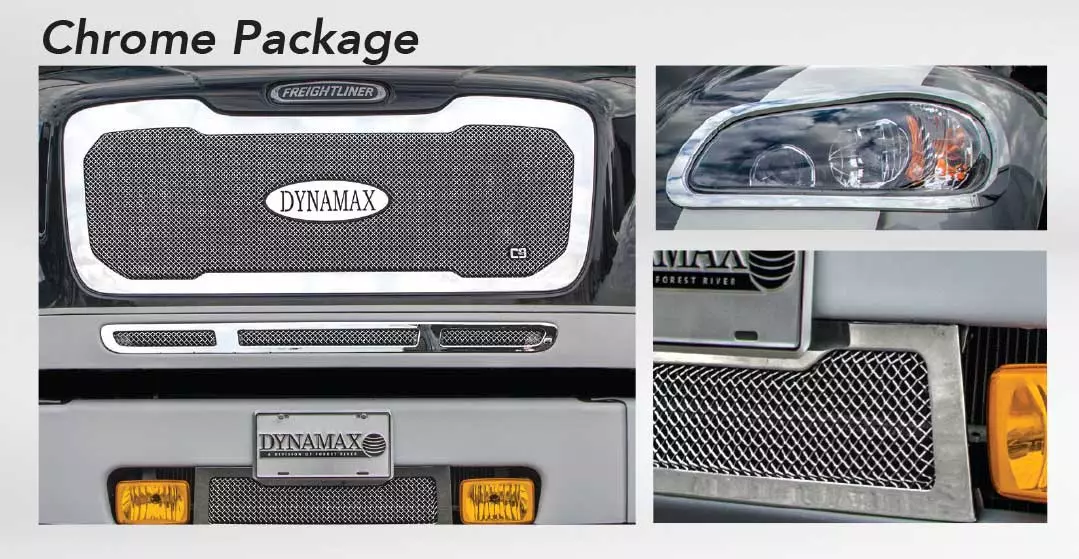

- Chrome Appearance Package (Custom Grill and Vent; Dual Roof-Mounted Air Horns, Baggage Door Handles; & Remote-Locking System for Exterior Bays & Entry Door)
- Remote-Locking System
- Single Color Full Body Paint (with $3,750 MSRP credit)
- 12V 15 cu. ft. 3-Door Compressor-Driven Refrigerator in place of Standard Refrigerator
- Washer/Dryer (N/A 32KD)
- All-Electric Package: Induction range and Exterior Storage Compartment in Place of LP Tank
- Dual, Power Reclining Theater Seats in Place of Sofa (N/A 34KD & 37RB)
- Three-Seat, Power Reclining Theater Seats in Place of Sofa (34KD & 37RB Only Outer Seats are Powered)

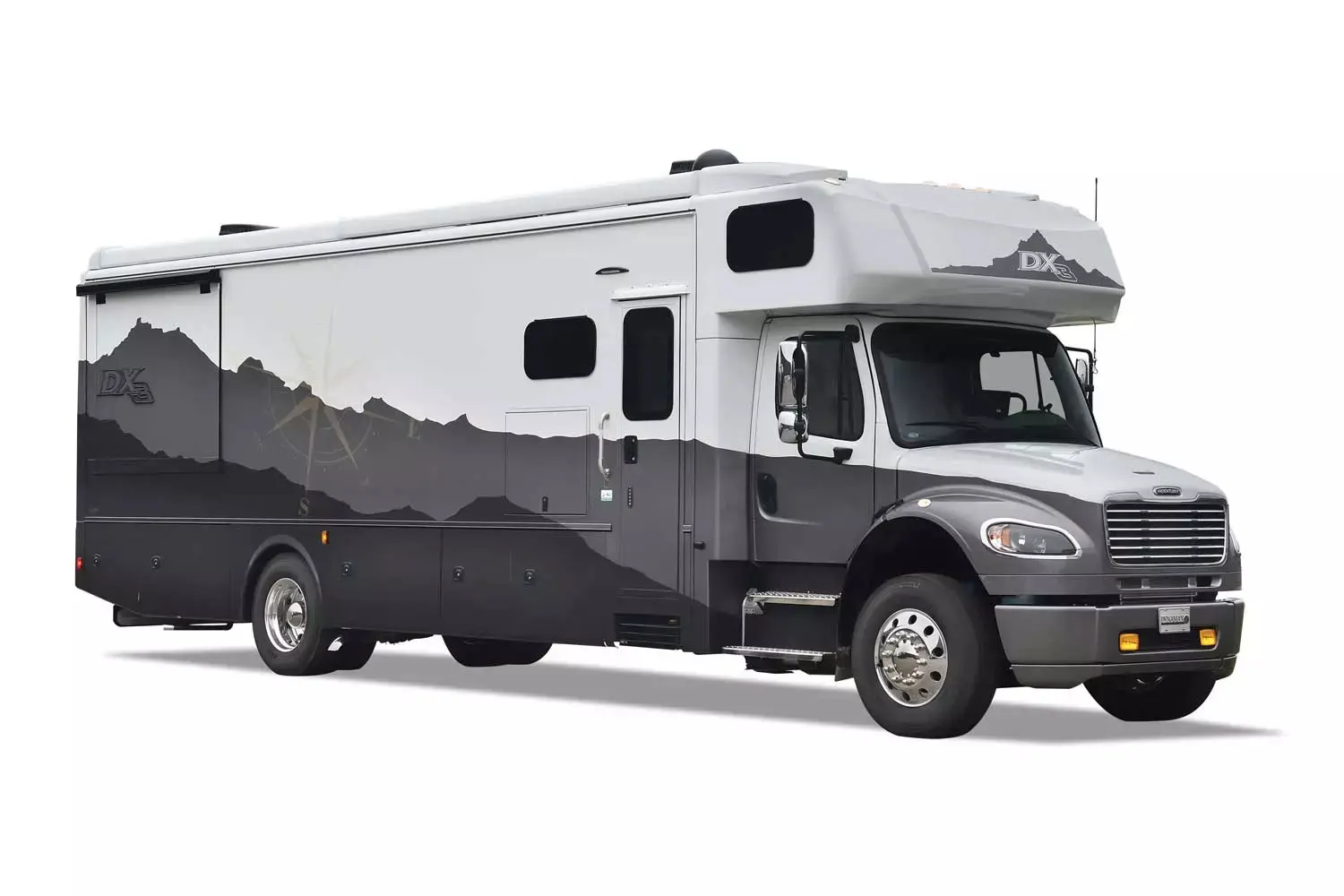

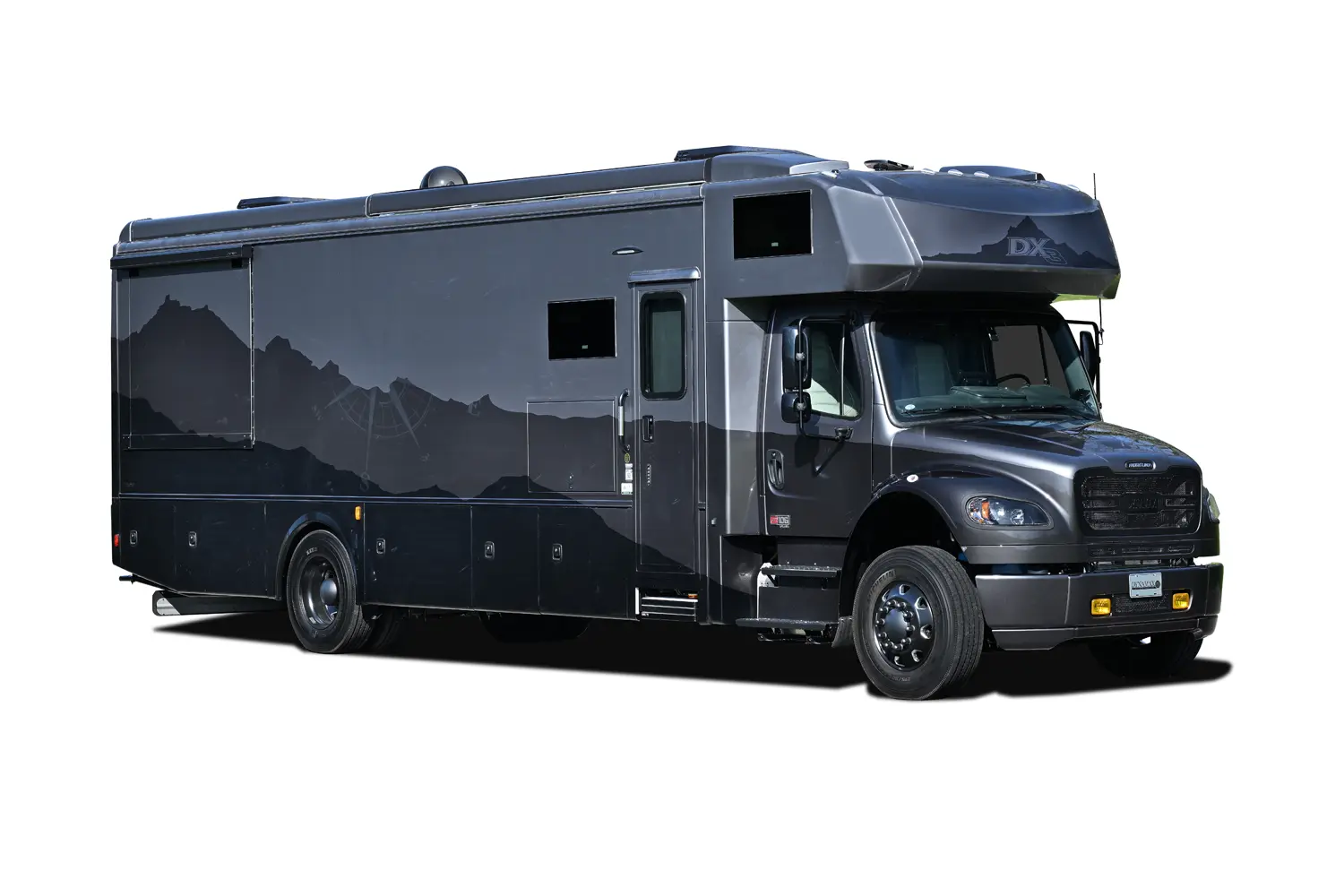

- Xplorer Package includes Insulated Cab Curtain; Two Lithium House Batteries (540aH Total); 1,000W Solar Package; Insulated Utility Bay; & Access to Exclusive Xplorer Package Paint Scheme (Dark, Light, or Midnight)
- Three Lithium House Batteries (720aH Total)
