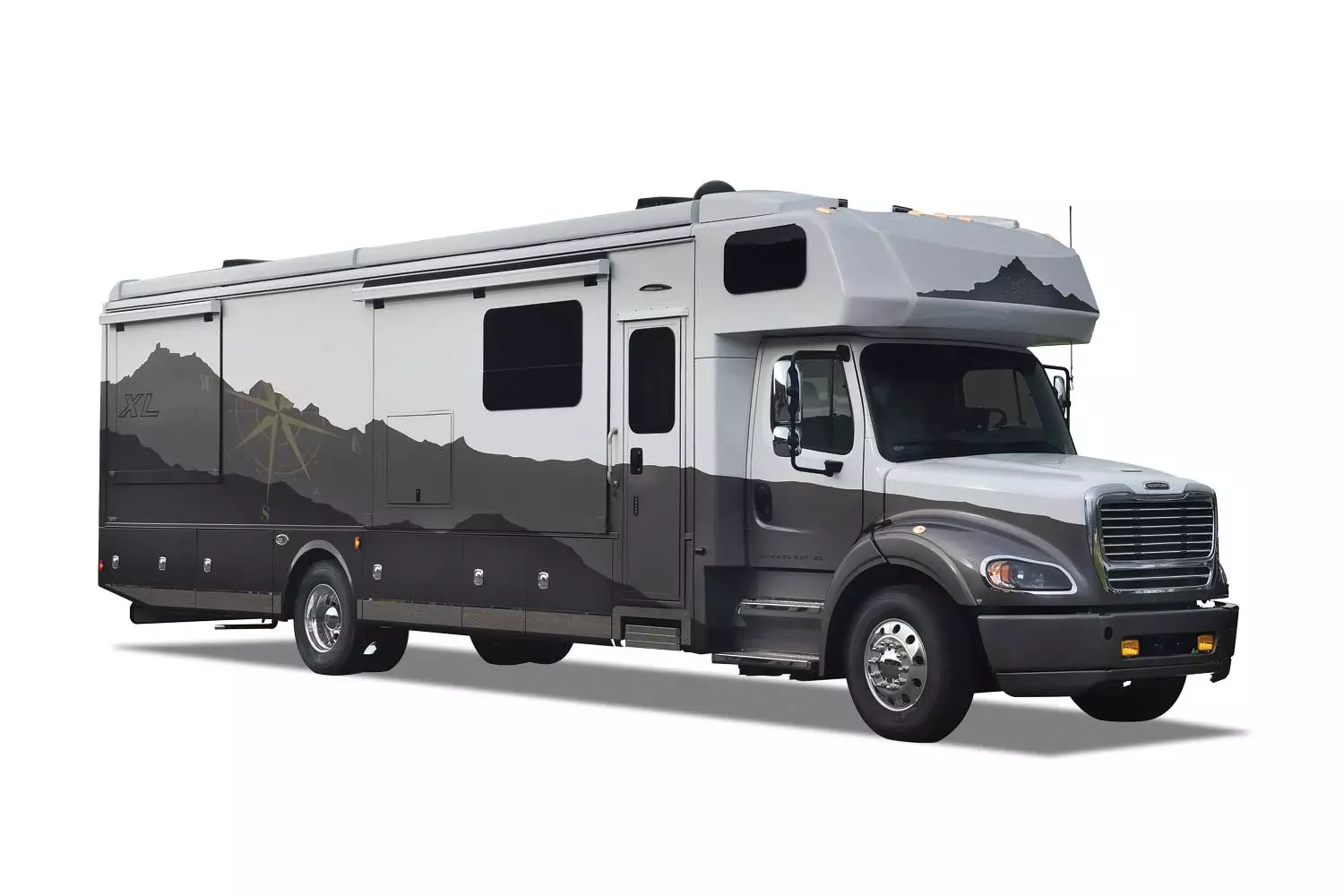

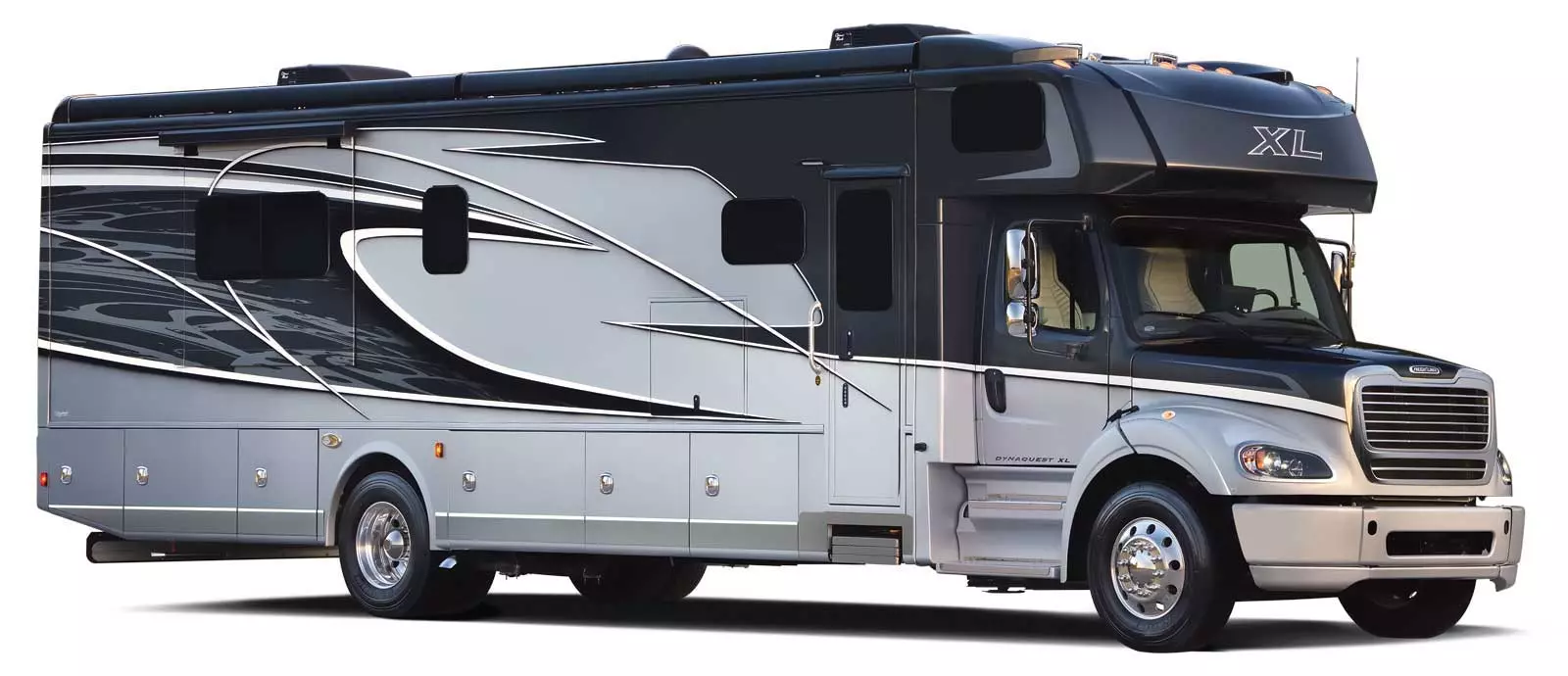

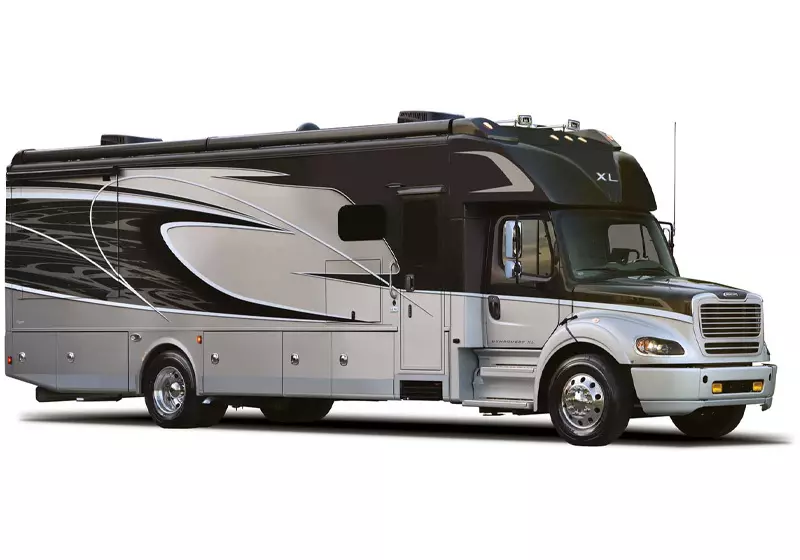

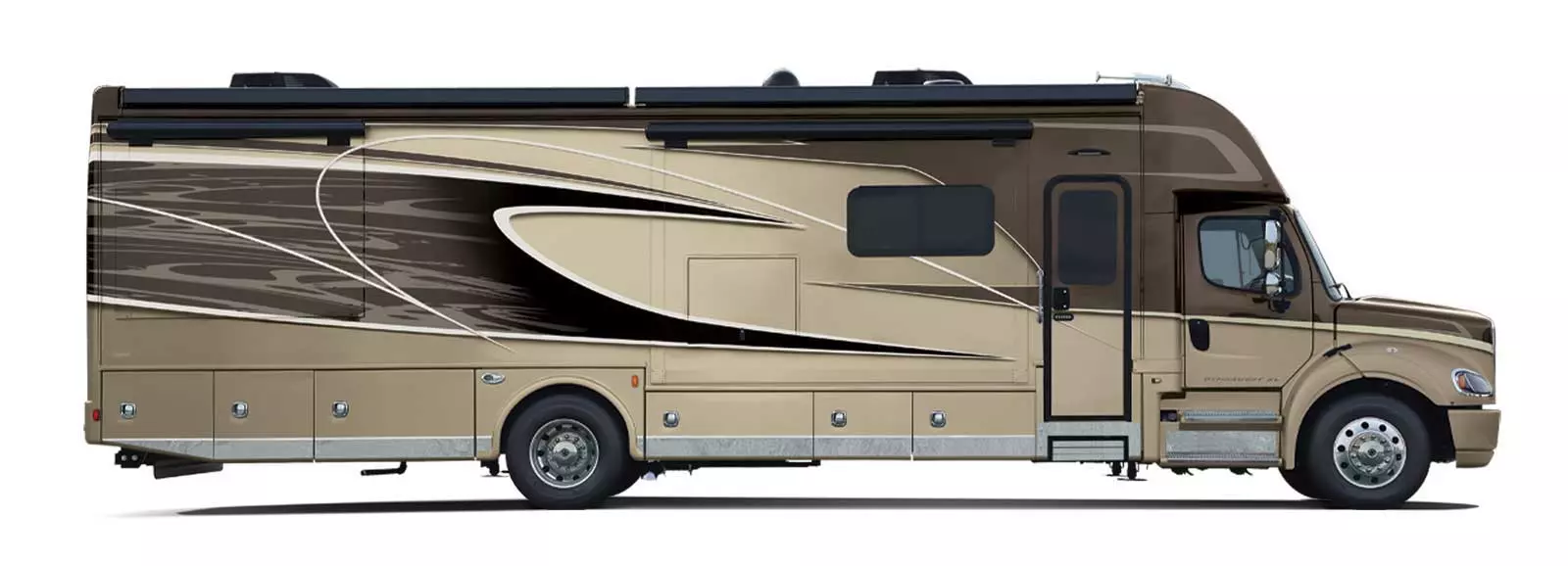

Dynaquest XL Class C Motorhome

For the motorhome enthusiast, the drive is as important as the destination. We start with a commercial grade chassis designed to exceed the comfort and safety demands of professional drivers. We add to that all the upscale appointments you’ve come to expect in a luxury Class A. The end result is a perfect combination of brute force and refined living space - The Ultimate Super Class C Motorhome.


SPECIAL FEATURES

  • Multiplex® Wiring with Touch Screen Command Center, Back-Lit Switch Panels, and Bluetooth® Smart Phone App Control
  • Polished Tile Floor

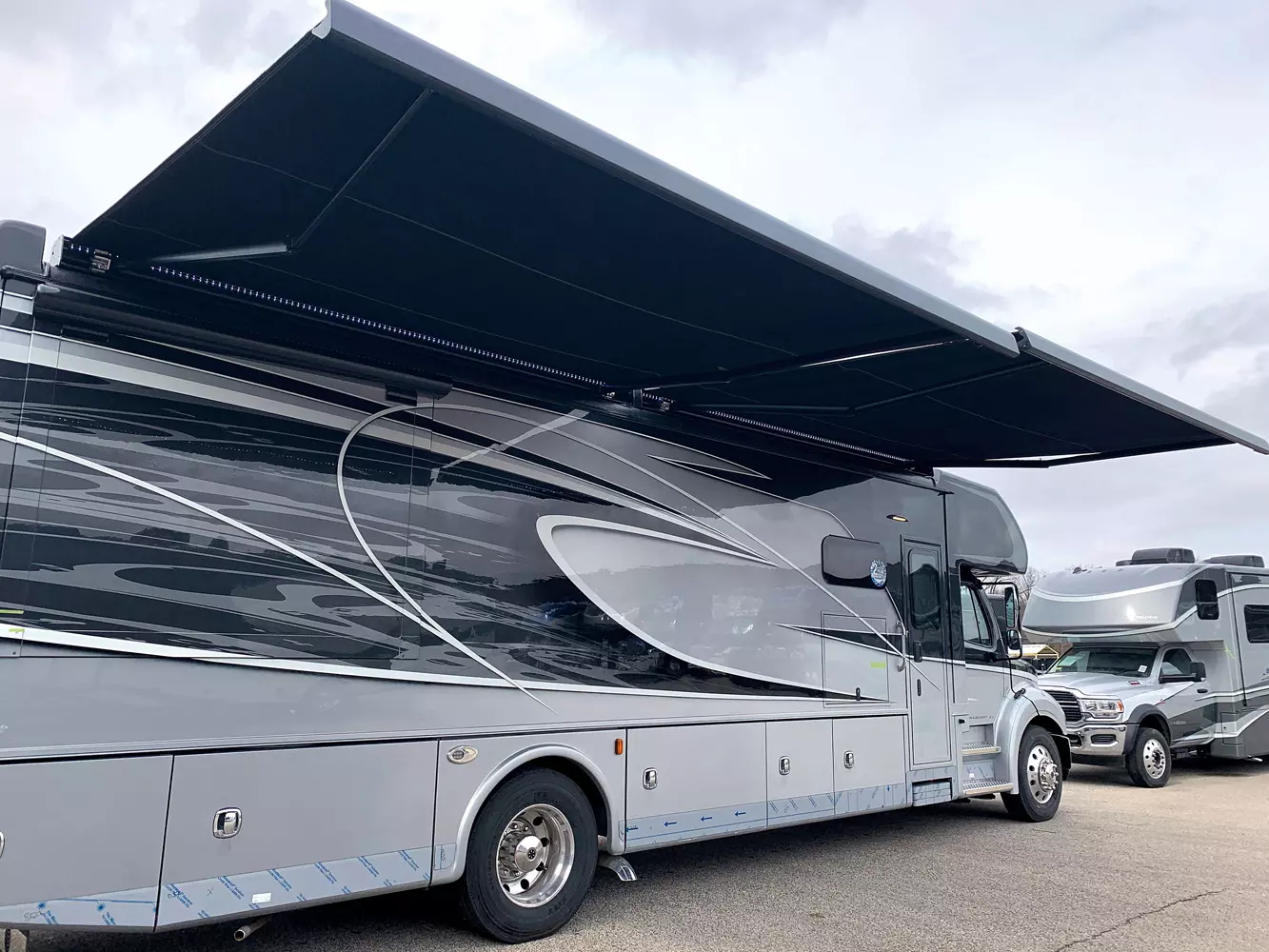

  • Dual Roof-Mounted, Integrated Armless Patio Awnings with Wind Sensors

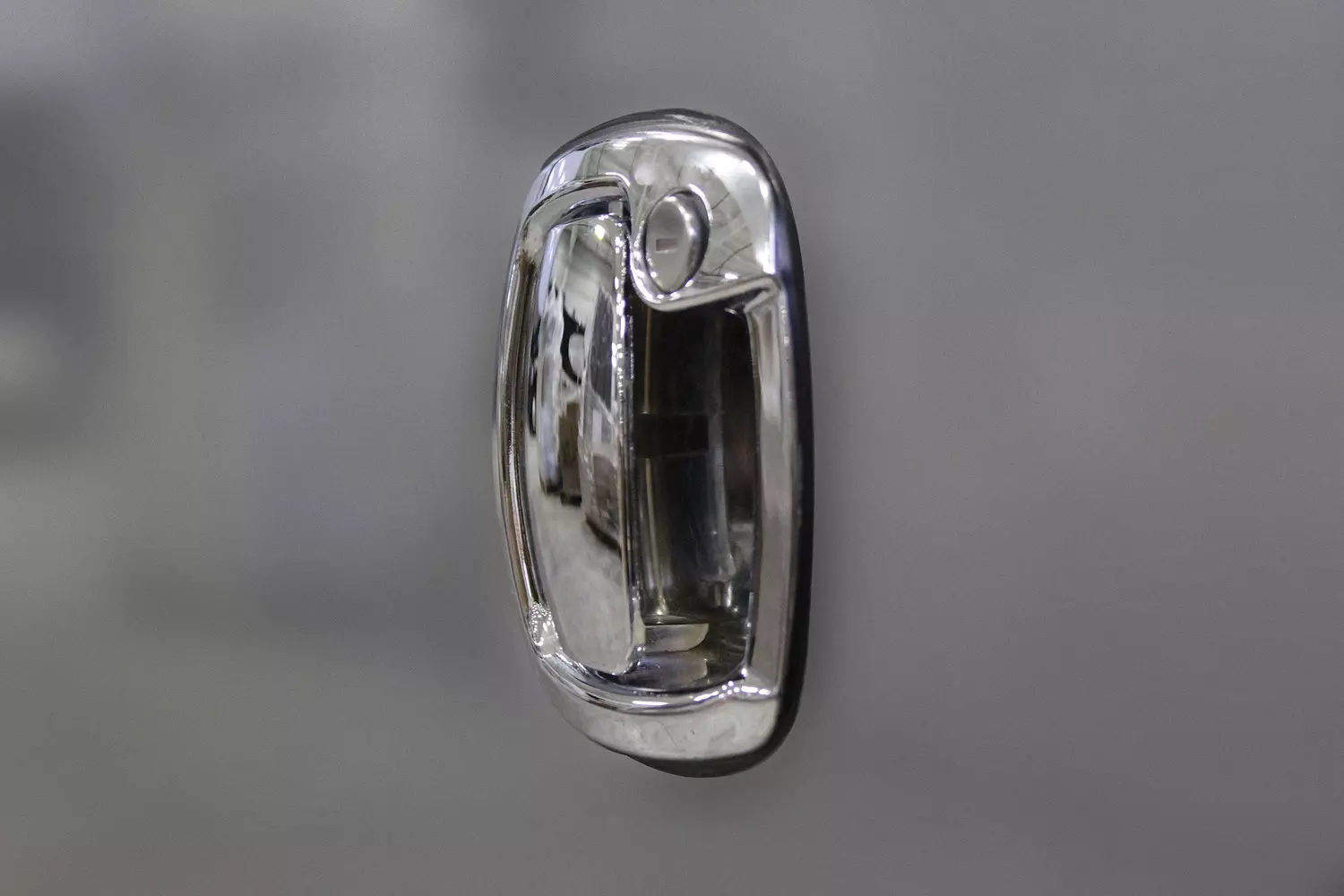

  • Remote Locking Exterior Storage Doors
  • Diesel Aqua-Hot with Engine Pre-Heat

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications








to




Specifications

Print


Wheelbase:
GVWR:
GCWR
GAWR Front:
GAWR Rear:
Fuel Capacity:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
268"
33000 lb.
54000 lb.
12000 lb.
21000 lb.
100 gal.
37' 2"
12' 9"
101"
94 gal.
52 gal.
52 gal.
25' 6"
268"
33000 lb.
54000 lb.
12000 lb.
21000 lb.
100 gal.
39' 8"
12' 9"
101"
94 gal.
52 gal.
52 gal.
30' 3"
286"
33000 lb.
54000 lb.
12000 lb.
21000 lb.
100 gal.
41' 3"
12' 9"
101"
100 gal.
52 gal.
52 gal.
29' 11"
268"
33000 lb.
54000 lb.
12000 lb.
21000 lb.
100 gal.
39' 8"
12' 9"
101"
94 gal.
52 gal.
52 gal.
30' 3"

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Dynamax RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Dynamax RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Freightliner® M2 112 Chassis (33,000-lbs. GVWR/54,000-lbs. GCWR)
  • Cummins® 8.9L ISL Turbo Diesel Engine (450hp/1,250 lb.-ft. of Torque)
  • Allison® 3200 TRV Six-Speed Automatic Transmission
  • 100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks)
  • 6-Gallon Diesel Exhaust Fluid Tank
  • Trailer Hitch (20,000 Tow lbs./2,000 Tongue lbs.) with 7-Way Round Tow Connection
  • Brake Controller

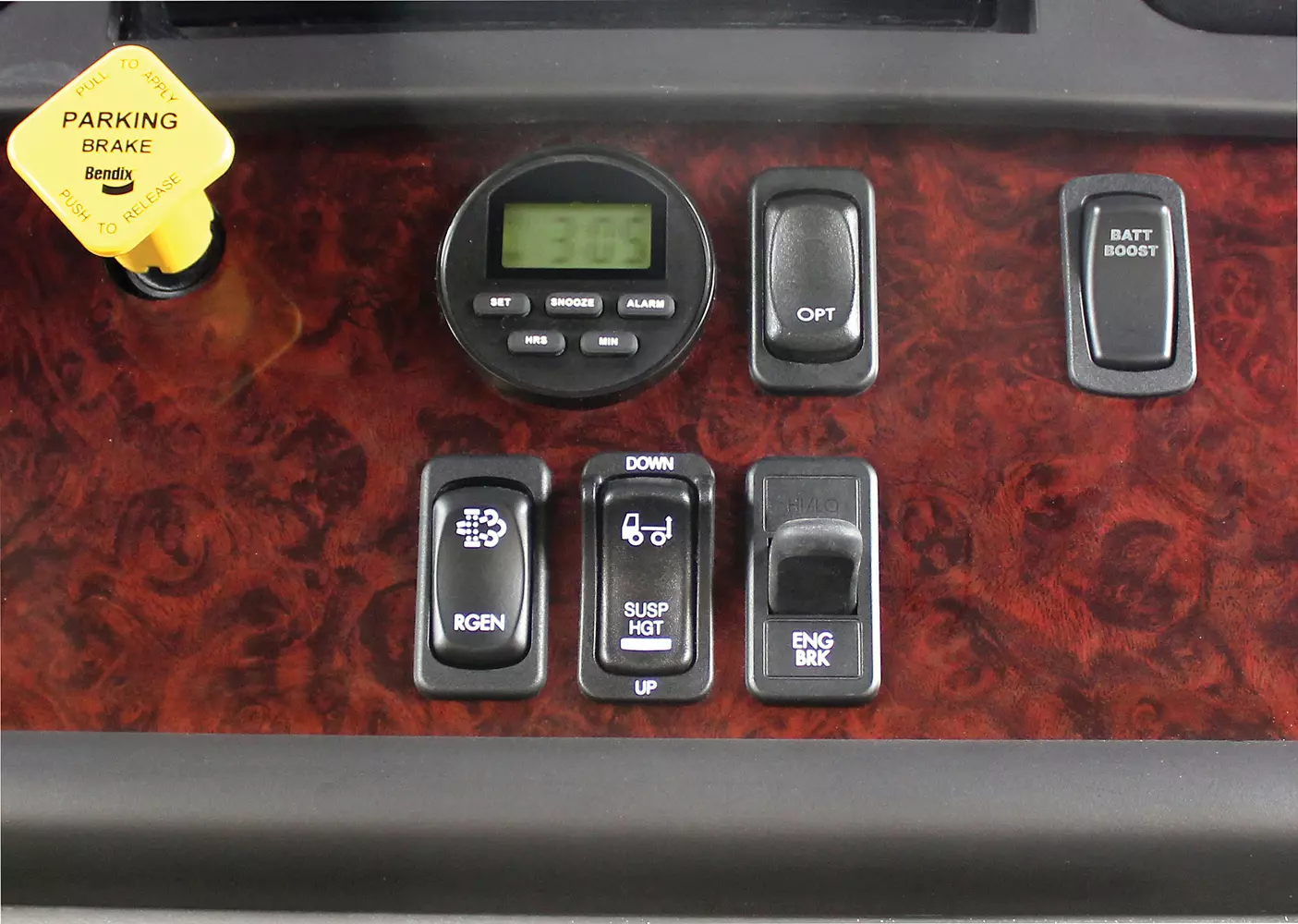

  • Dual-Stage C-Brake by Jacobs® with High/Off/Low Braking Dash Switch
  • Locking Differential
  • Airliner® 21,000-lb. Rear Suspension
  • Manual Air Suspension Dump Valve Switch on the Dash
  • 275-Amp Alternator
  • Air Brakes with 4-Wheel ABS
  • Equiflo™ Inboard Fuel System (Dual Supply – Dual Return)
  • Fuel Filter/Water Separator with Primer Pump
  • Steel-Reinforced, Aluminum Cab
  • Chrome Grille and Air Intake Grille
  • Front and Rear Tires: Michelin® XZE2 275/80R22.5 (14 Ply Radials)
  • Single Front Wheels: Alcoa® Aluminum (22.5” x 8.25”) *Outside Rims are Polished
  • Dual Rear Wheels: Alcoa® Aluminum (22.5” x 8.25”) *Outside Rims are Polished
  • Valve Extensions
  • Tire Pressure Monitoring System
  • Quick Disconnect Fitting with Tire Inflation Kit
  • 4.56 Rear Axle Ratio
  • LED Headlights
  • Daytime Running Lights
  • Tinted Door Glass and Operating Wing Windows
  • Chassis Battery Shut Off Switch in Cab
  • Leatherette Driver and Passenger Air Ride Seats with Swivel Bases
  • Backup and Side View Cameras
  • Kenwood® 7” Touch Screen Dash Infotainment System with AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™/Android® Auto™ Functionality
  • Mobileye® Collision Avoidance System
  • In-Dash Garmin® RV Navigation System
  • JBL® Premium Cab Sound System - JBL Full Range/Tweeter Coaxial Speakers, Dual Voice Coil Subwoofer, and a High-Efficiency, High-Performing, 4-Channel DSP Amplifier, All “Tuned” Specifically for t
  • 12V Accessory Ports
  • CB Radio with Left Hand Mirror Mounted Antenna
  • One Valve Parking Brake System with Warning Indicator
  • Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
  • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
  • Marker Lights with Separate Interrupter Switch
  • Low Air Pressure Light and Buzzer
  • Cruise Control
  • Adjustable Steering Column
  • 18” Leather-Wrapped Steering Wheel
  • Hydrographic Woodgrain Cab Accents
  • Power Remote/Heated Mirrors
  • Power Windows and Locks
  • 3-Point Seat Belts
  • Dual Reading Lights
  • Two (2) Cup Holders in Dash
  • 2” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
  • Gel-Coat Fiberglass Walls
  • Aluminum-Framed Floor
  • Aluminum-Framed Roof Trusses

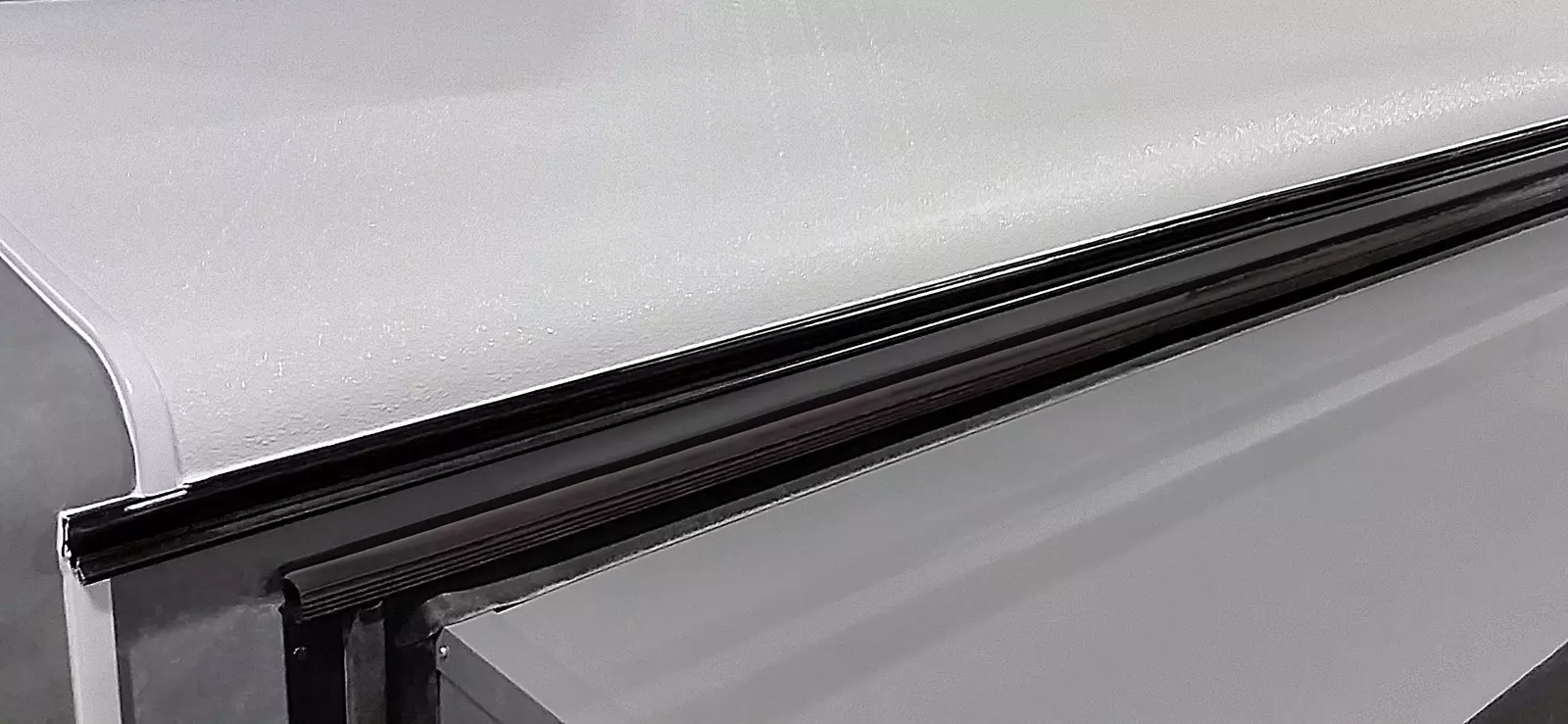

  • Crowned, One-Piece Fiberglass Roof
  • Foil-Lined Ductwork Throughout
  • Fiberglass Front Cap, Rear Cap, and Front Wing Panels
  • Automatic, 4-Point Hydraulic Leveling Jacks
  • Dual-Pane, Dark-Tinted, Frameless Windows
  • Seamless, Easy-Clean Rotocast Storage Compartments with LED Lighting
  • Side-Hinged, Locking Aluminum Exterior Storage Doors with Chrome Handles
  • Custom Full Body Paint Package with Scheme-Matching Slideout Sides
  • Premium Cut and Buffed Paint Finish
  • Front-End Diamond Shield® Paint Protection
  • Dual Roof-Mounted, Integrated Armless Patio Awnings with LED Lighting and Wind Sensors
  • Aluminum-Wrapped Slideout Toppers
  • LED Patio Light
  • Entry Door with Rotary Latch, Dark-Tinted, Frameless Window, and Integrated Shade
  • Remote Locking System for Entry Door
  • Keyless Entry Touch Pad at Entry Door
  • Lighted Acrylic Entry Grab Handle
  • Power Entry Steps with Polished Stainless Steel Step Treads
  • Remote Locking System for Exterior Storage Doors
  • Exterior Wall-Mounted Entertainment Center with 32” LED TV, AM/FM/CD/DVD Module, and Two (2) Speakers
  • Front and Rear LED Clearance and Marker Lighting
  • Rear LED Docking Lights
  • Dual Hadley® Chrome Roof-Mounted Air Horns
  • Molded Fiberglass Cab Step Covers with Polished Stainless Steel Step Treads
  • Polished Stainless Accents on Lower Skirt
  • Rear “DYNAMAX” Rock Guard
  • Chrome Exhaust Tip
  • Polished Porcelain Tile Throughout
  • Deluxe Carpet with Pad in Select Living Area Slide Rooms
  • Solid Surface Entry with Non-Skid Rubber Steps
  • Soft-Touch Padded Vinyl Ceiling
  • LED Recessed Ceiling Lights
  • Wall Sconces
  • Booth Dinette
  • Coordinating Fabric Window Treatments and Lambrequins with Hardwood Trim and Crown
  • Day/Night Roller Shades
  • Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
  • Hardwood Shaker-Style Passage Doors
  • Full Extension, Soft-Closing Drawer Guides (where applicable)
  • Hidden Hinges
  • 40” 4K Samsung® LED SMART TV (Living Area)(N/A - 3801TS)
  • Entertainment Center with 50” Samsung® LED 4K SMART TV and Fireplace (3801TS Only)
  • 4K DVD Player with Bose® Sound System (Living Area)
  • Thermal, Reflective Front Privacy Shades
  • USB Charging Ports
  • 22 cu. ft. Residential Refrigerator with Ice Maker (Double-Door)
  • Induction Range with Induction Pan Set
  • Convection Microwave Oven
  • Solid Surface Countertops with LED Edge Lighting
  • Hand-Laid Tile Backsplash
  • Double Bowl Stainless Steel Sink with Solid Surface Covers
  • Residential Stainless Steel Spring Gooseneck Faucet
  • Pantry
  • Under-Cabinet Lighting
  • MaxxAir® Power Vent with Built-In Rain Cover
  • King Bed with Gel-Infused Memory Foam Mattress (72” x 80” – Nominal Size)
  • Under-Bed Storage (Floor Plan Specific)
  • Deluxe Padded Headboard
  • Designer Bedding Package
  • 32” Samsung® LED SMART TV
  • Samsung® 4K DVD and Bose® Solo-5 Sound Bar
  • Cedar-Lined Wardrobe
  • Nightstands with Solid Surface Countertops
  • LED Reading Lights
  • USB Charging Ports
  • Bunk Bed Mattresses (28” x 76”) and Privacy Partition (37BH)
  • Two Bunk CD/DVD Players with Monitors (37BH)

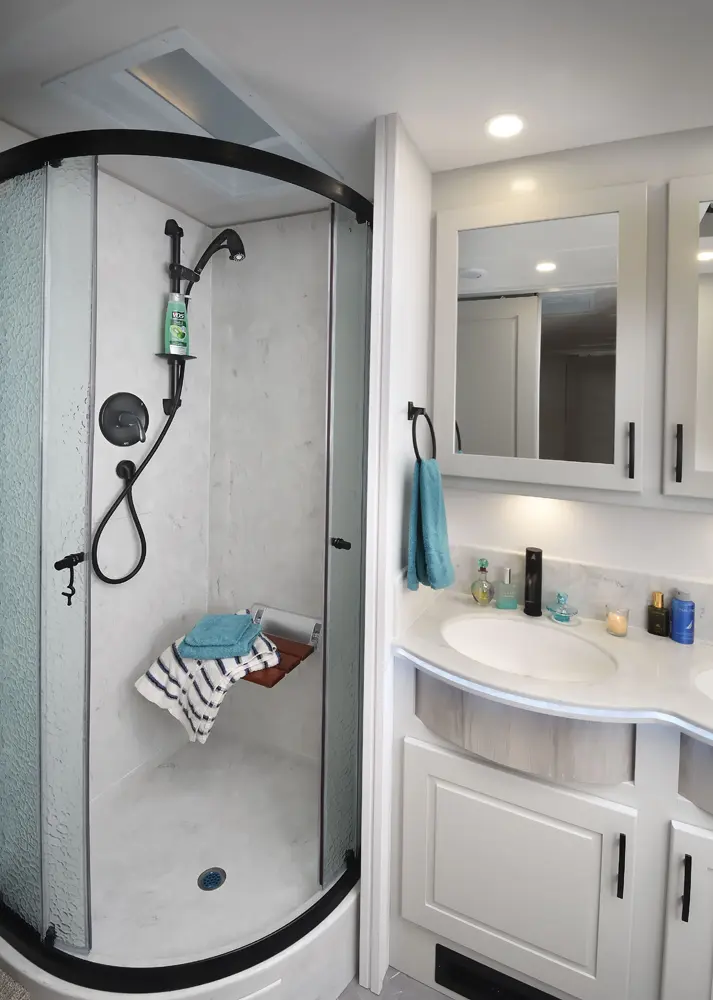

  • Solid Surface Shower
  • Shower Skylight
  • Glass Shower Door

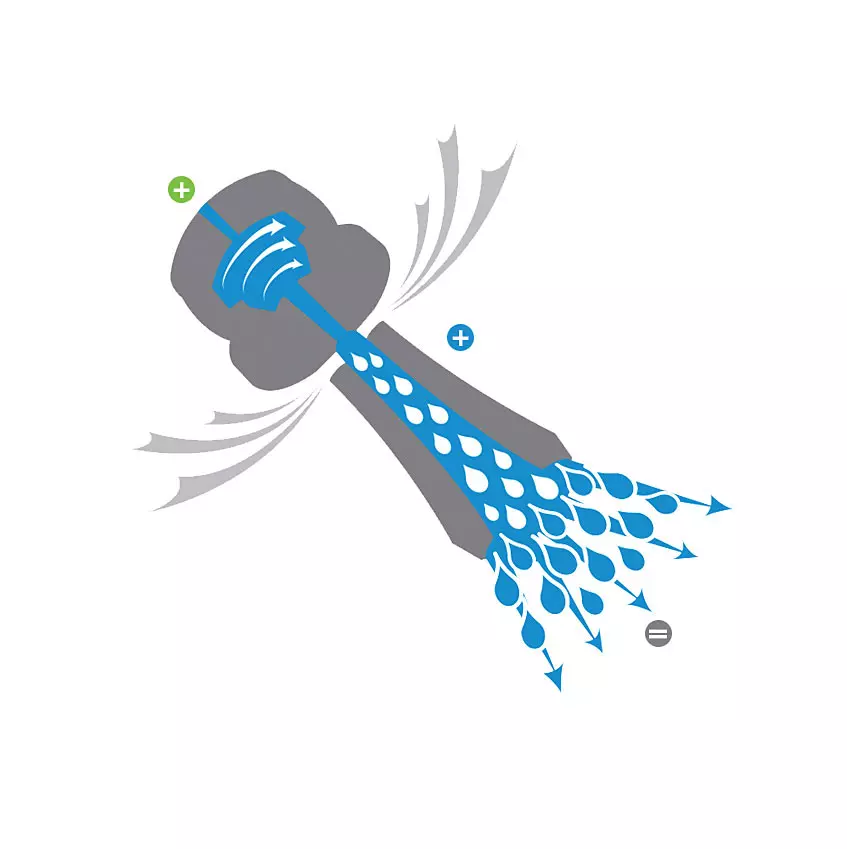

  • Oxygenics Body Spa® RV Shower Head
  • Solid Surface Countertops with LED Edge Lighting
  • Hand-Laid Tile Backsplash
  • Under-Mount Sink with Residential Brushed Nickel Faucet
  • Porcelain Macerator Electronic-Flush Toilet(s)
  • MaxxAir® Power Vent with Built-In Rain Cover

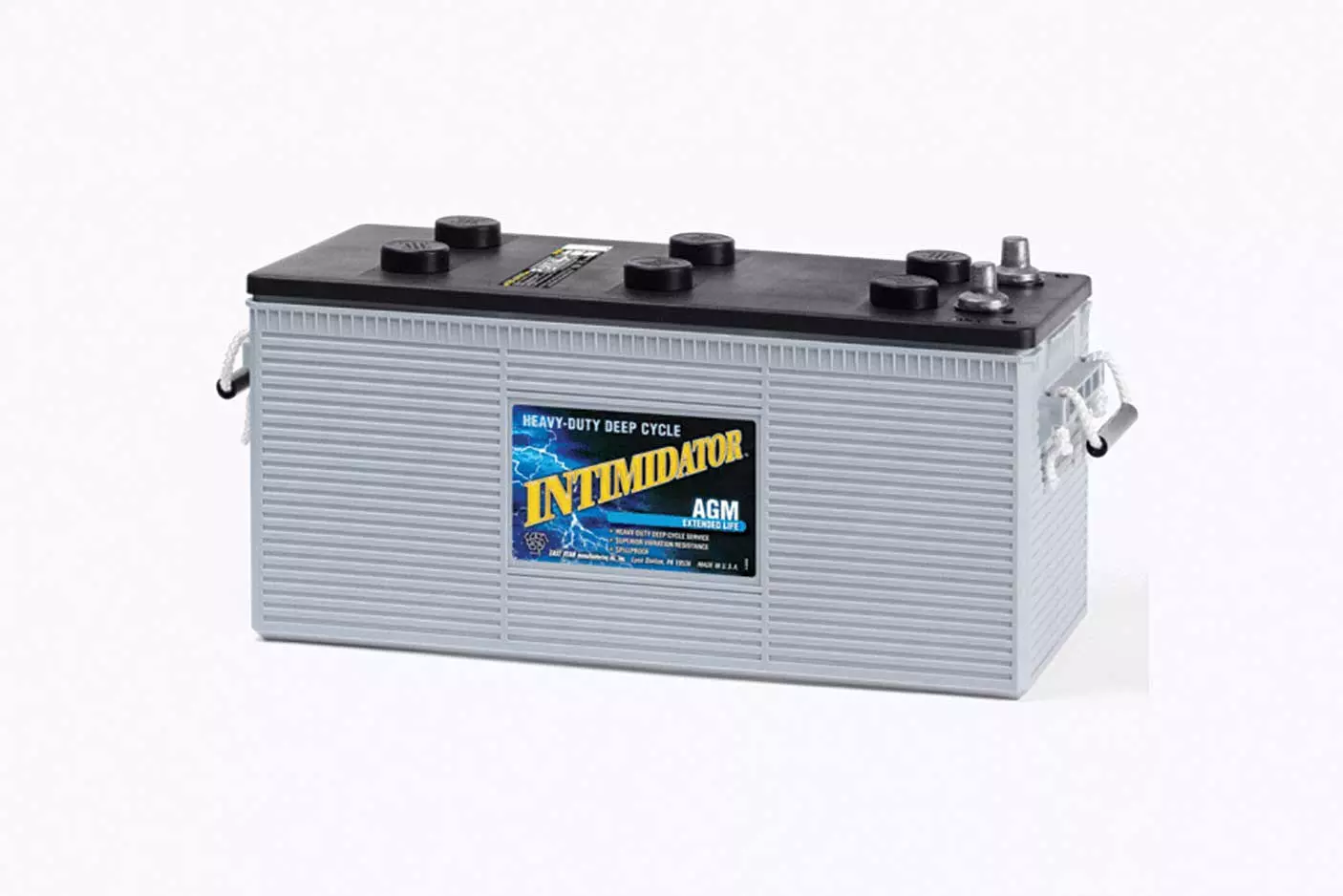

  • Three (3) 12V Group 4D AGM Deep-Cycle, Maintenance-Free Batteries
  • Multiplex® Wiring with Touch Screen Command Center, Back-Lit Switch Panels, and Bluetooth® Smart Phone App Control
  • 4x4 HDMI Matrix
  • Battery Disconnect
  • 50-Amp Service with Power Cord Reel
  • 2,800W Pure Sine Wave Inverter/Charger (3,900 Peak Watts)

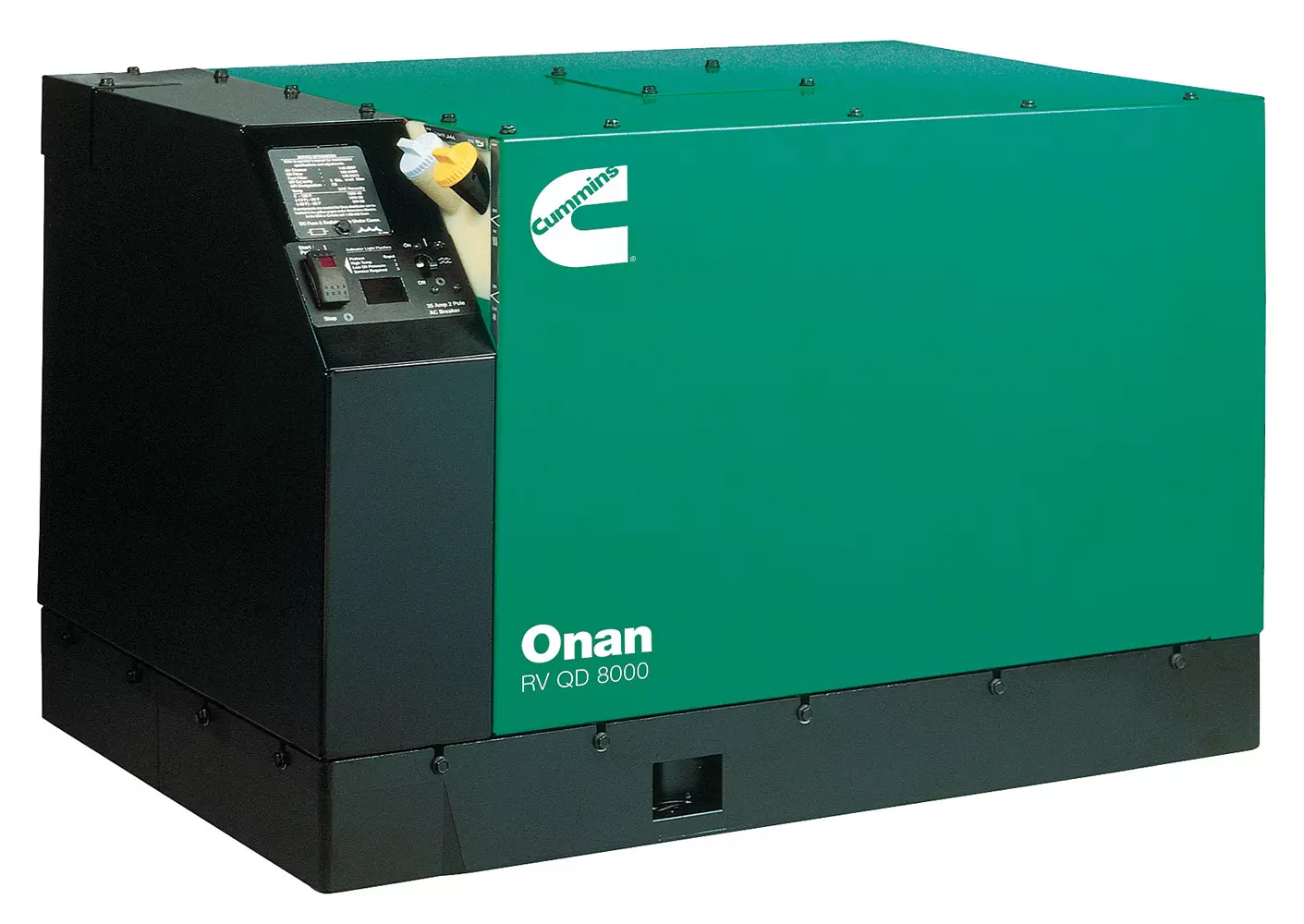

  • 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
  • Automatic Generator Start
  • Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Strip

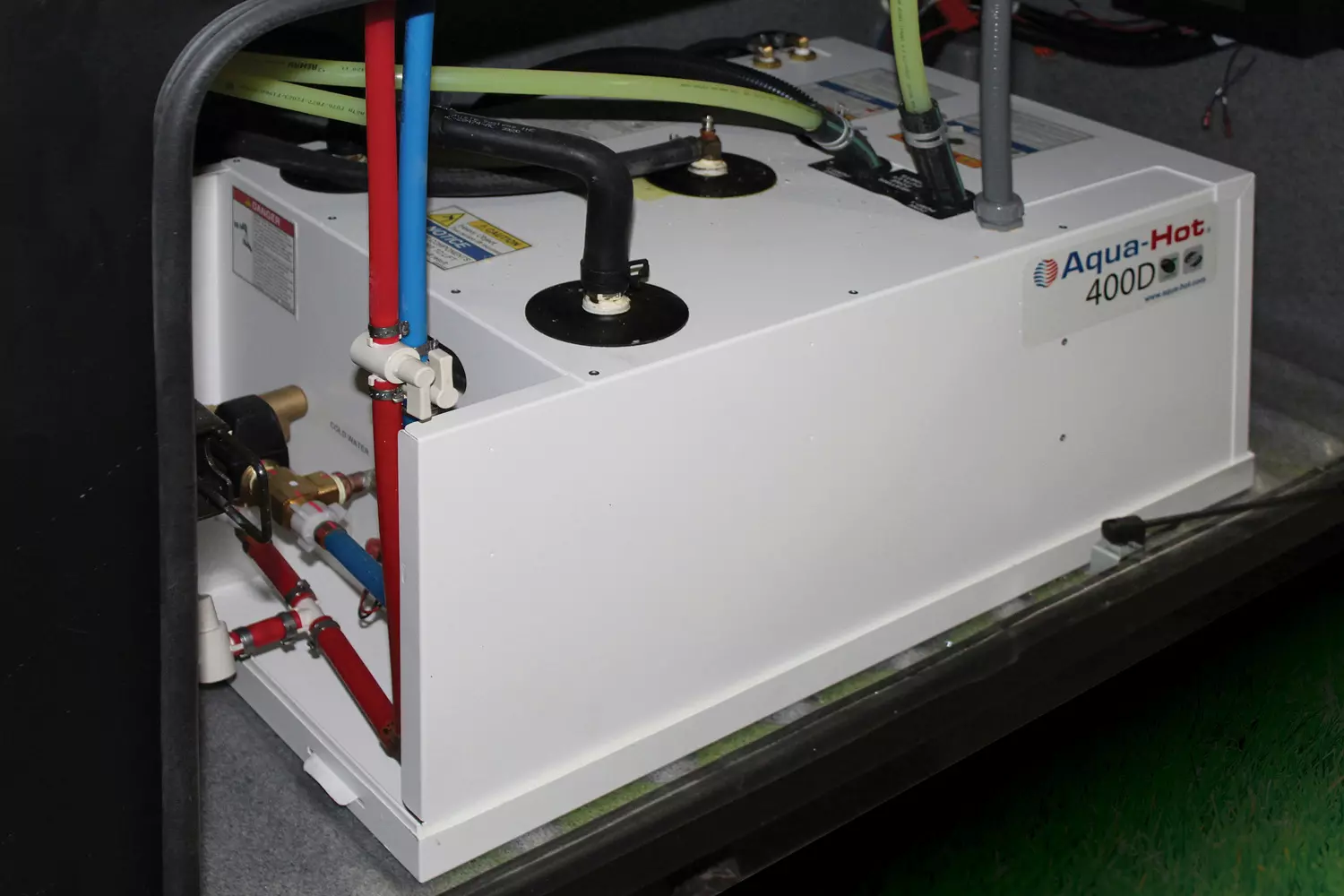

  • Aqua-Hot® 450D Diesel System with Engine Pre-Heat
  • Zoned Remote Thermostatically-Controlled Heating and Cooling
  • Dyson® Rechargeable Vacuum with Attachments
  • Water Filtration System
  • Exterior Shower in Service Bay
  • Power Water Hose Reel in Service Bay
  • Exterior GFCI Receptacle
  • Winegard® ConnecT 2.0™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional HD OTA, FM, SIM Card Port)
  • Cable TV/Satellite Hookup in Service Bay
  • Thetford® Sani-Con Turbo Macerator System
  • Black Tank Flush
  • Utility Compartment Heated by Aqua-Hot® System
  • Enclosed Holding Tanks Heated by Aqua-Hot® System
  • Upgraded 12V On-Demand Water Pump (4 gallons per minute)
  • Carbon-Monoxide, LP, and Smoke Detectors
  • Fire Extinguisher

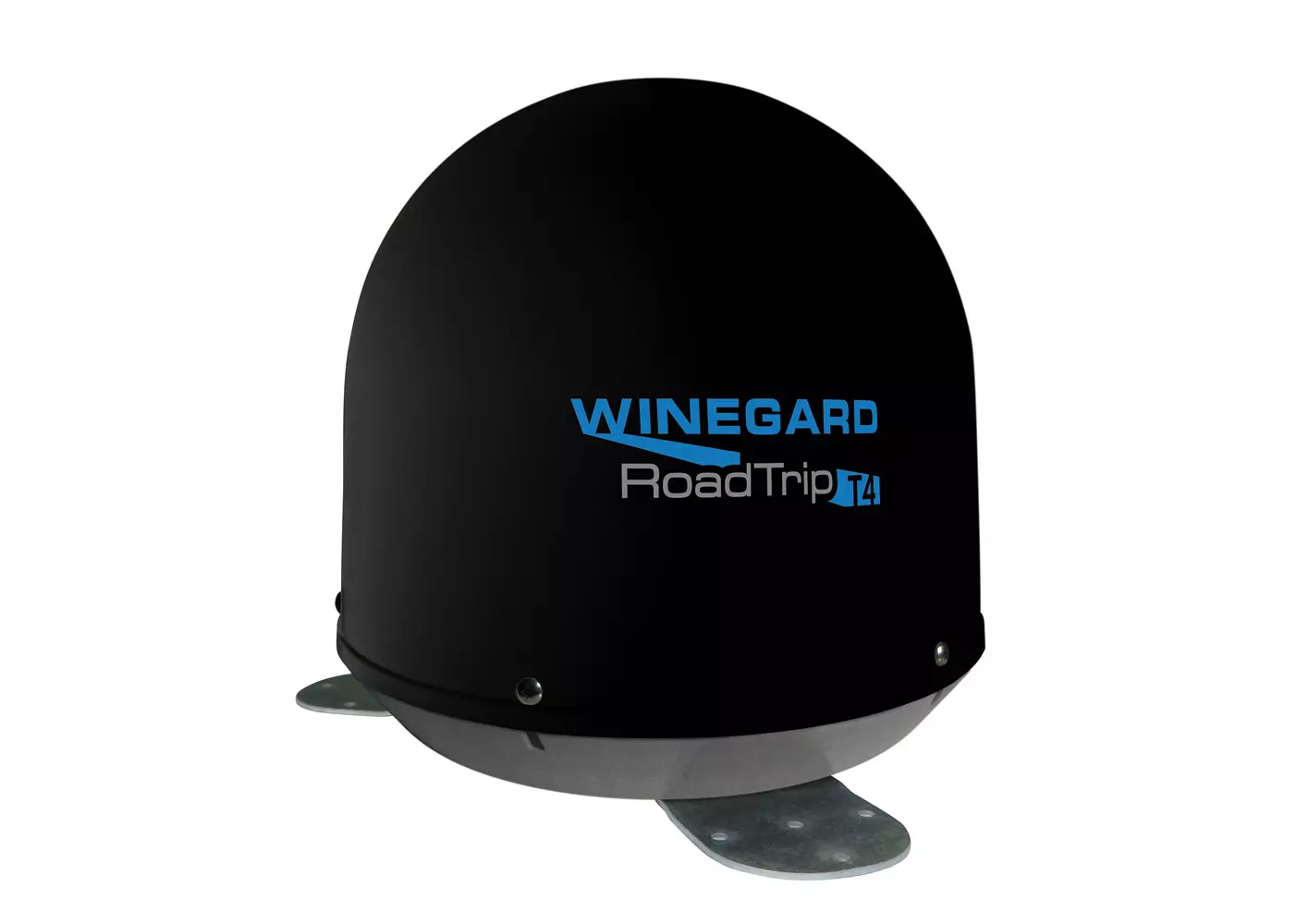

  • Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
  • Solar Panels – Two 100 Watt with 30-Amp Controller

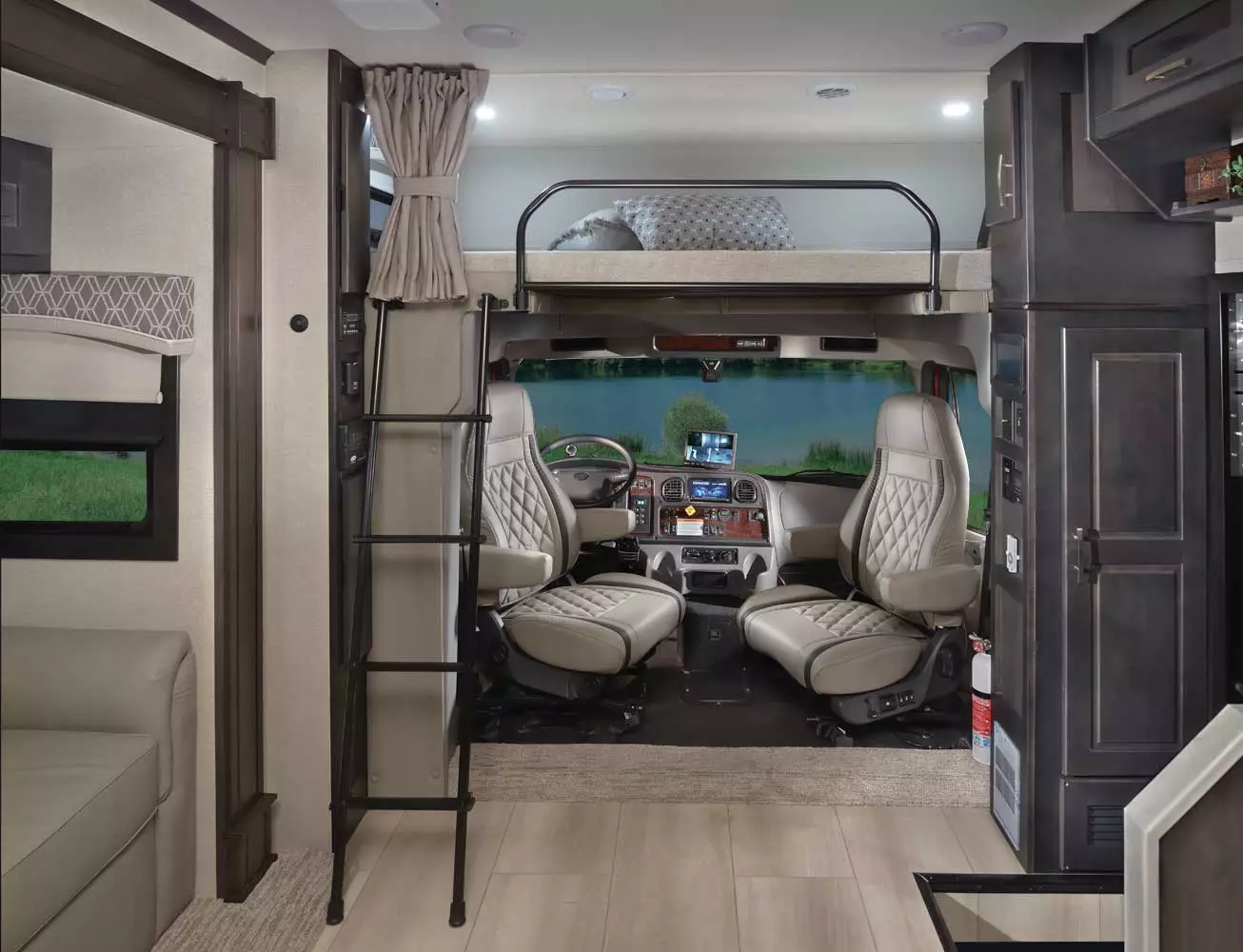

  • Cab-Over Bed with LED TV (Extended Front Cap)

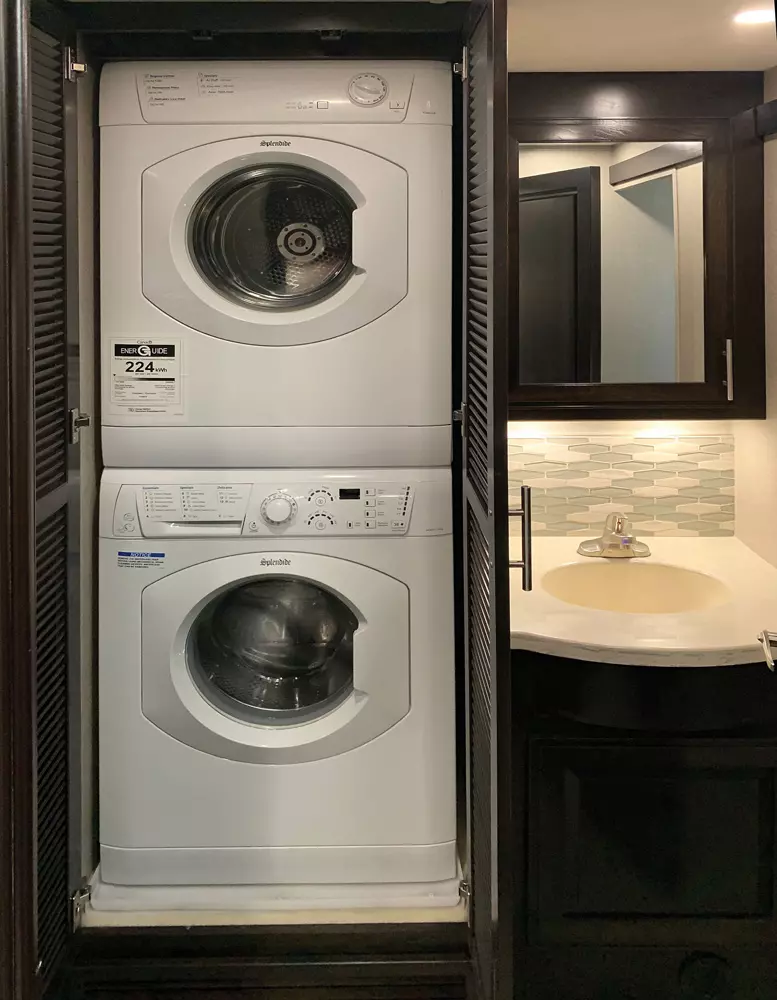

  • Washer/Dryer

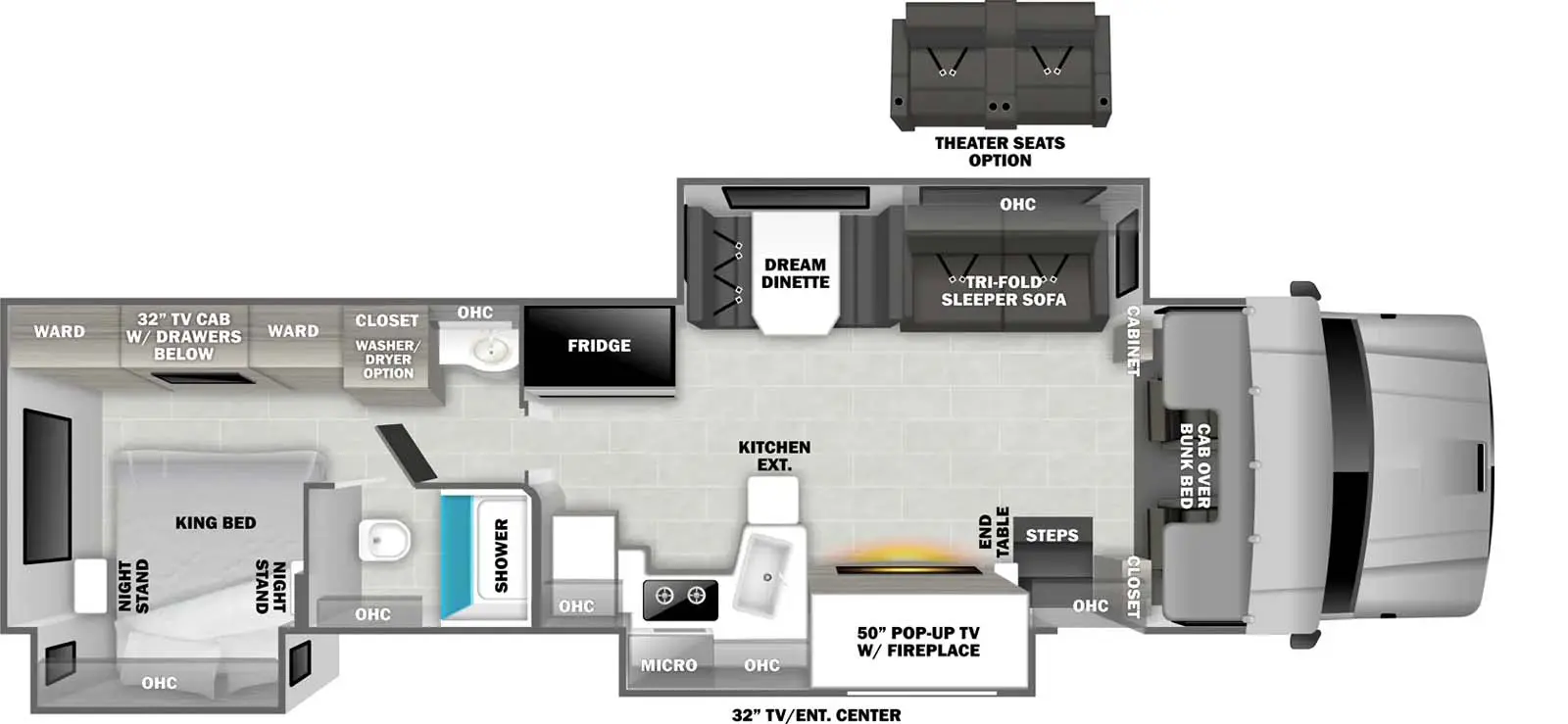

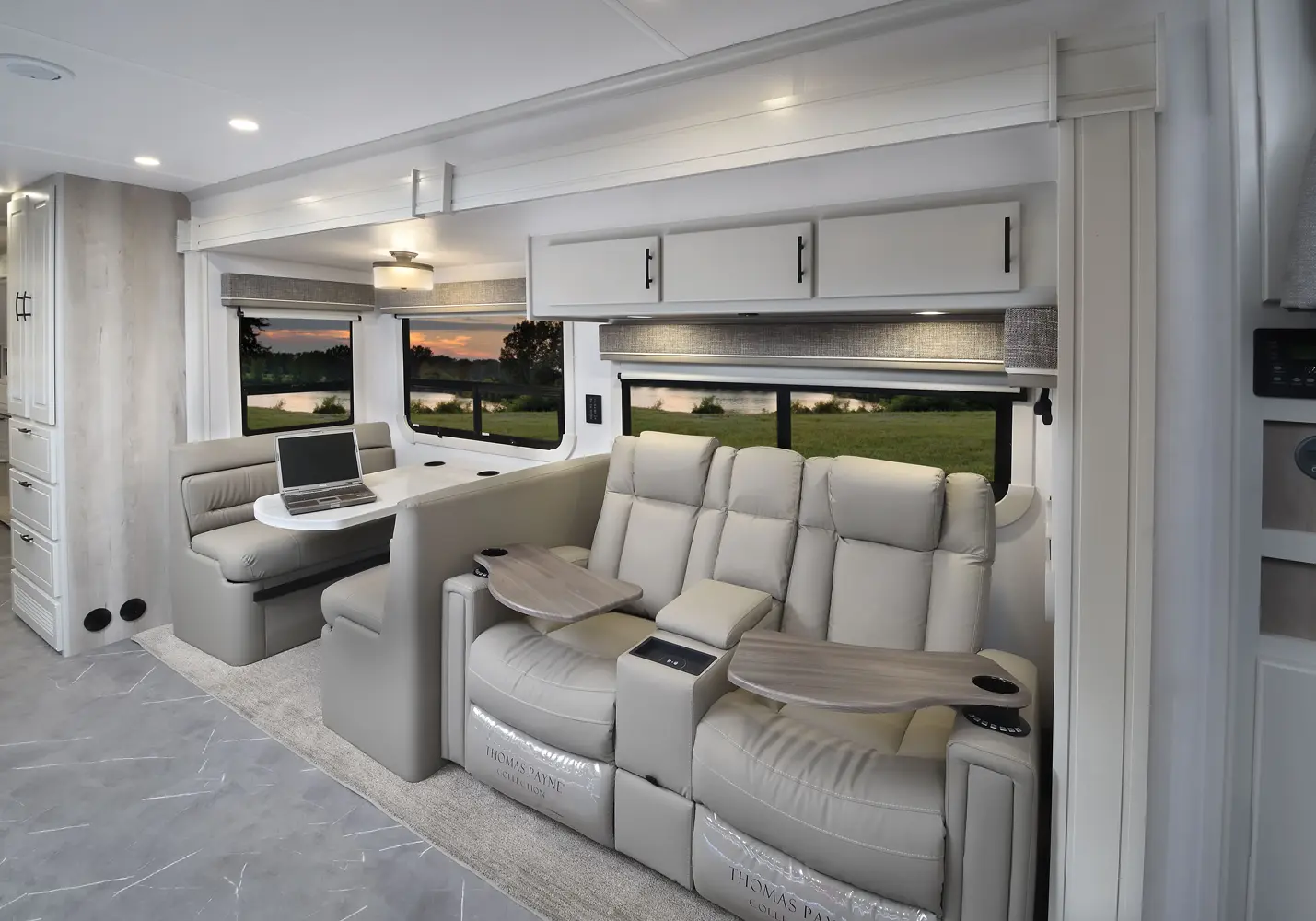

  • Dual Reclining Theater Seats in Place of Sofa
  • Entertainment Center with 50” LED TV and Fireplace in Place of Loveseat and Cab-Over TV (37BH Only)
  • Winegard® Trav’ler Stationary Triple LNB Satellite Dish (DirecTV® SD-HD)

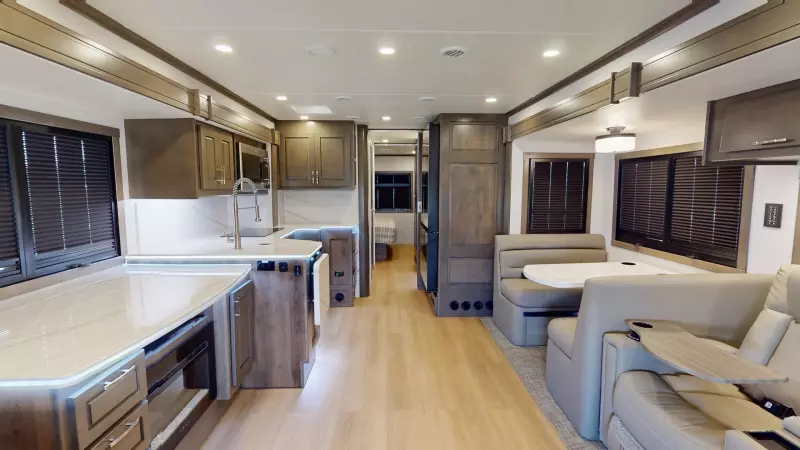

Virtual Tours

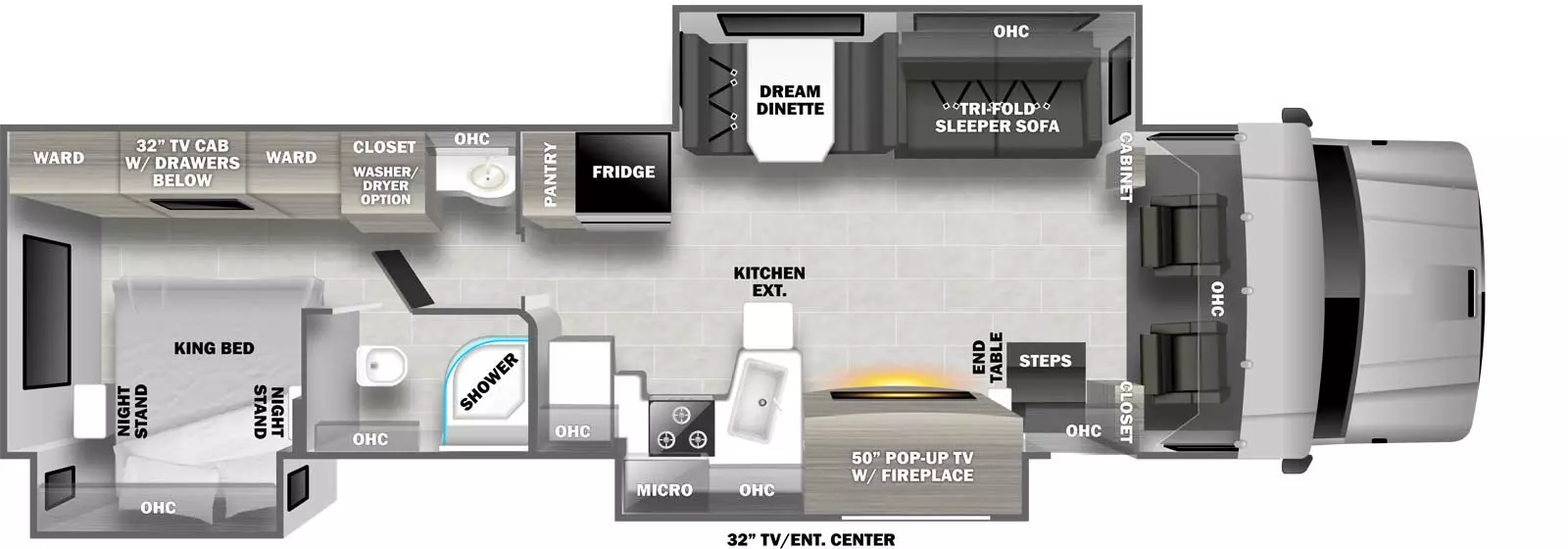

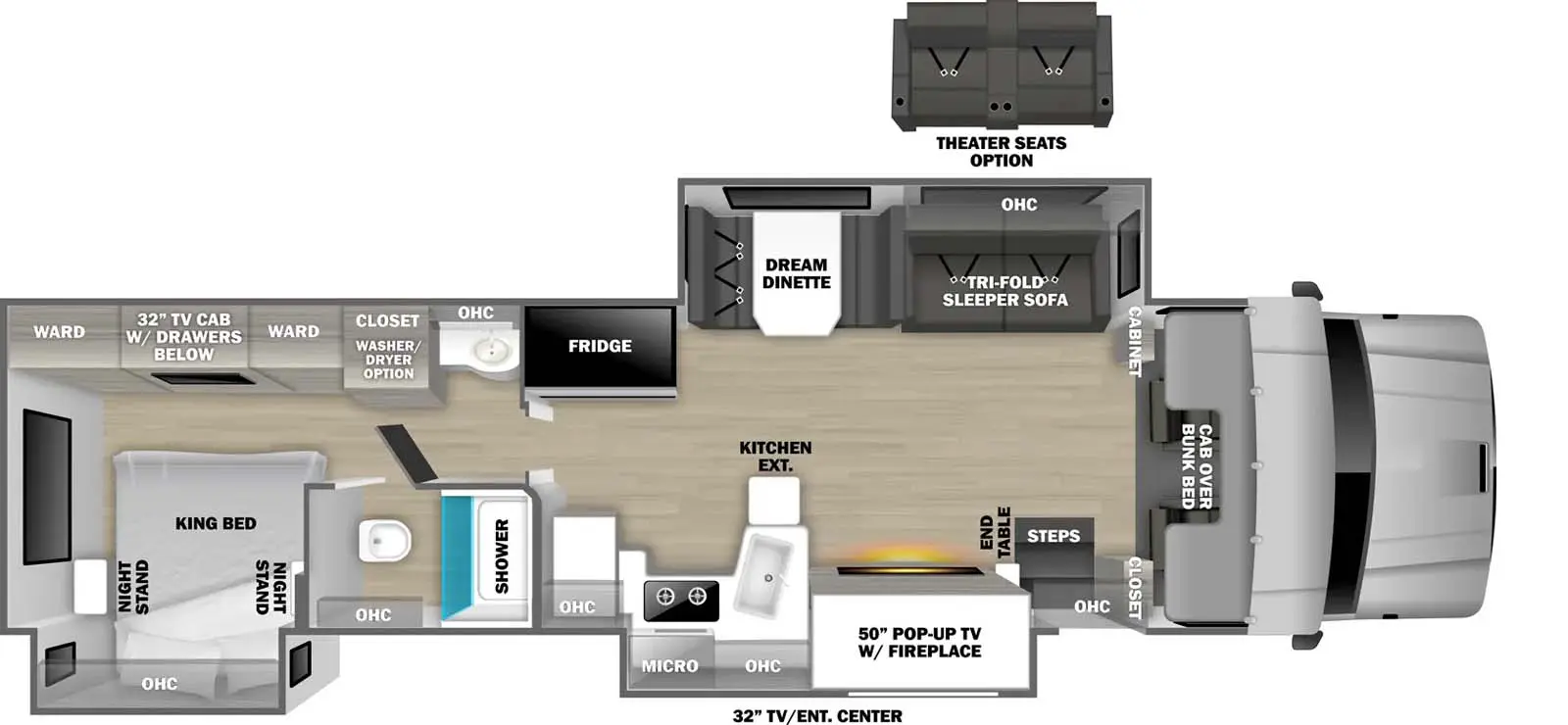

3801TS
