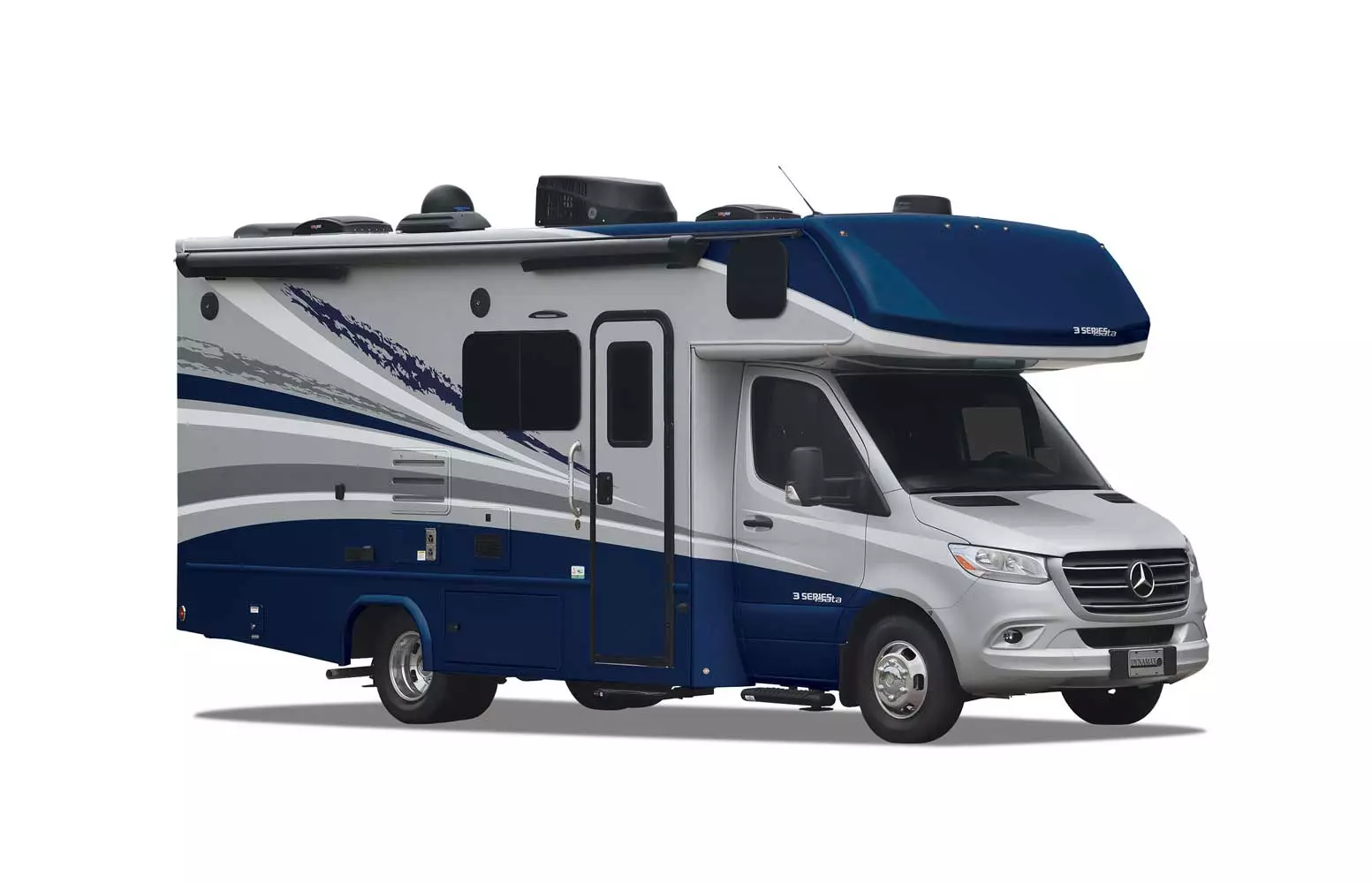

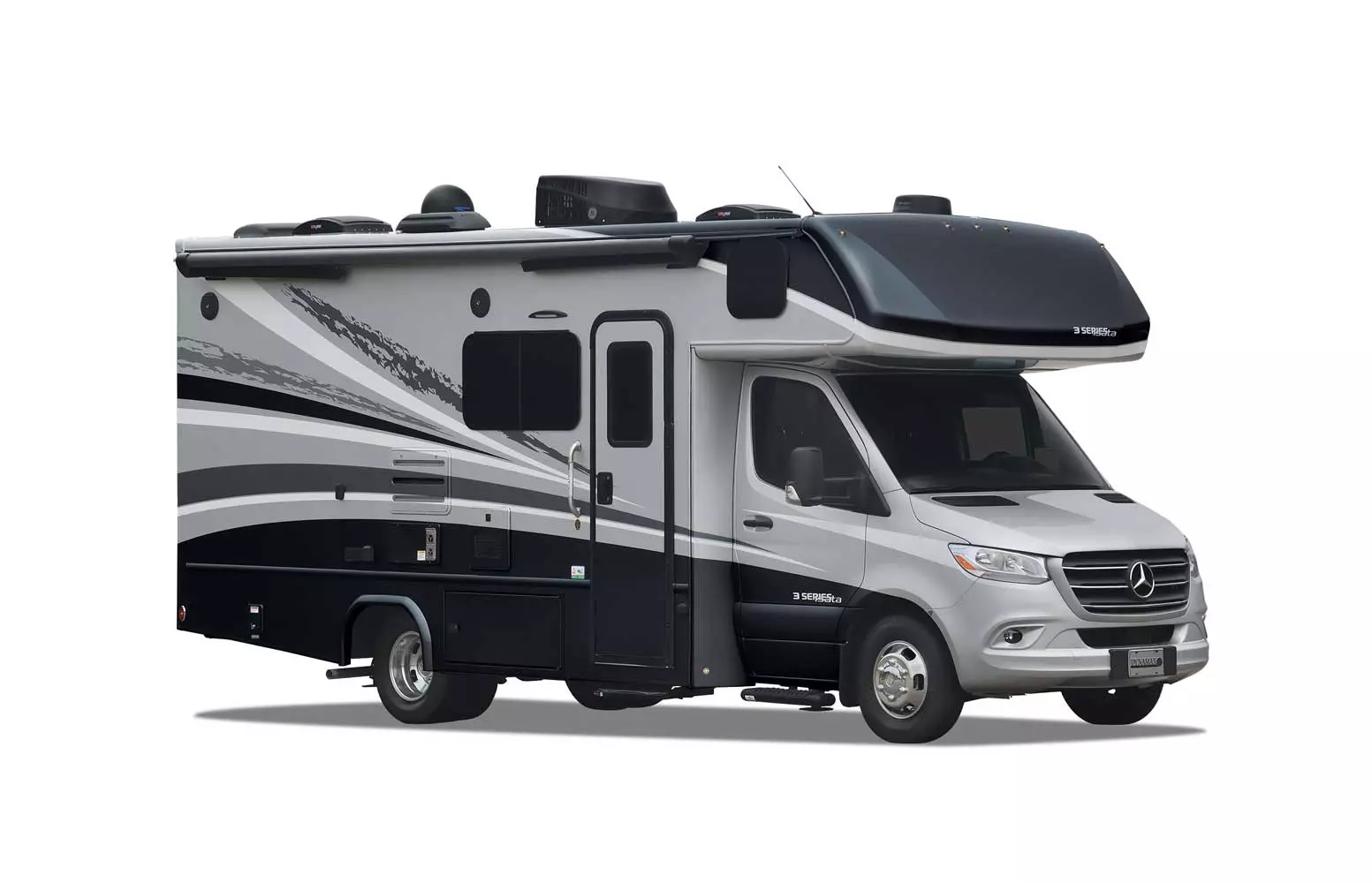

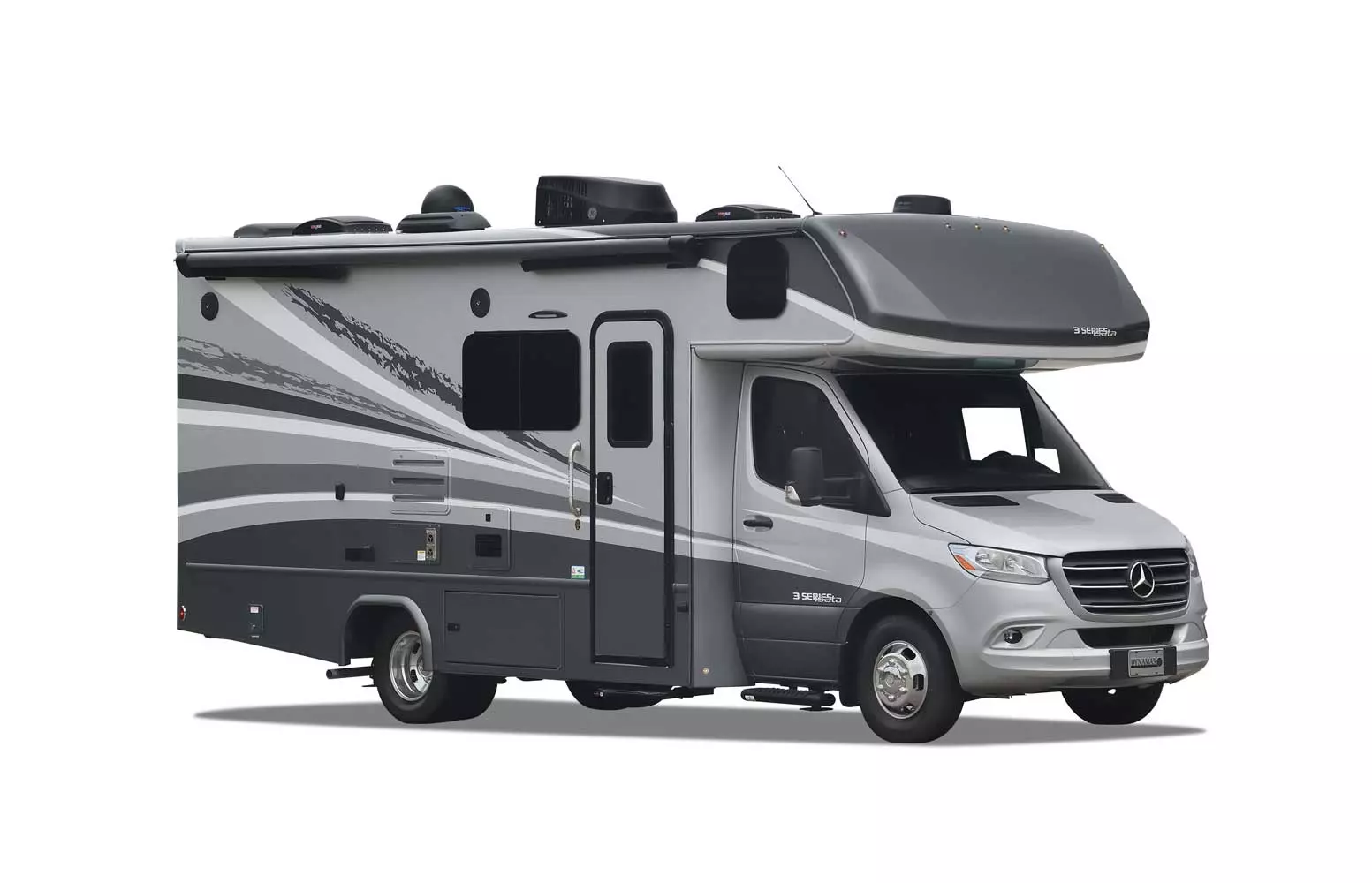

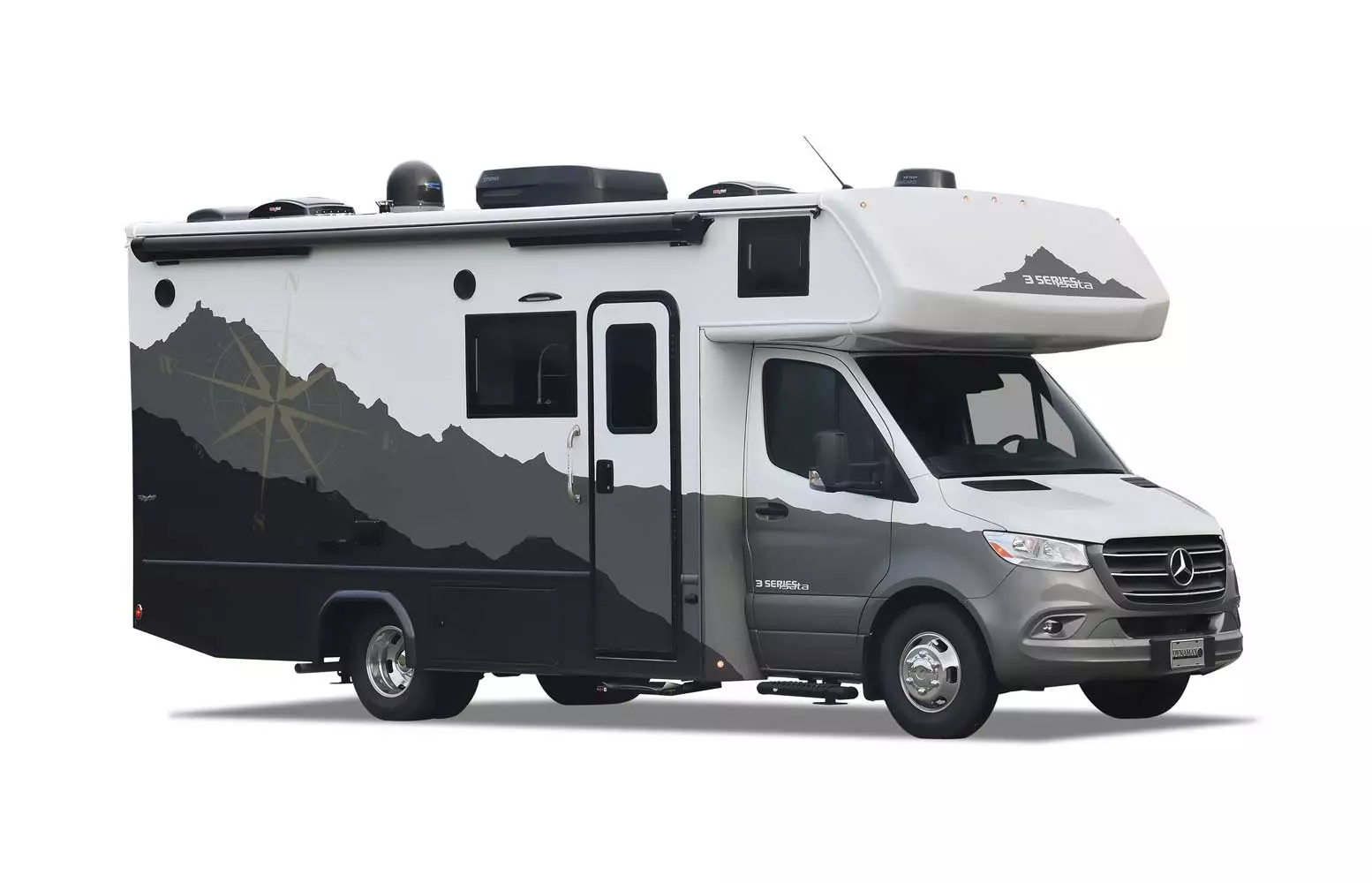

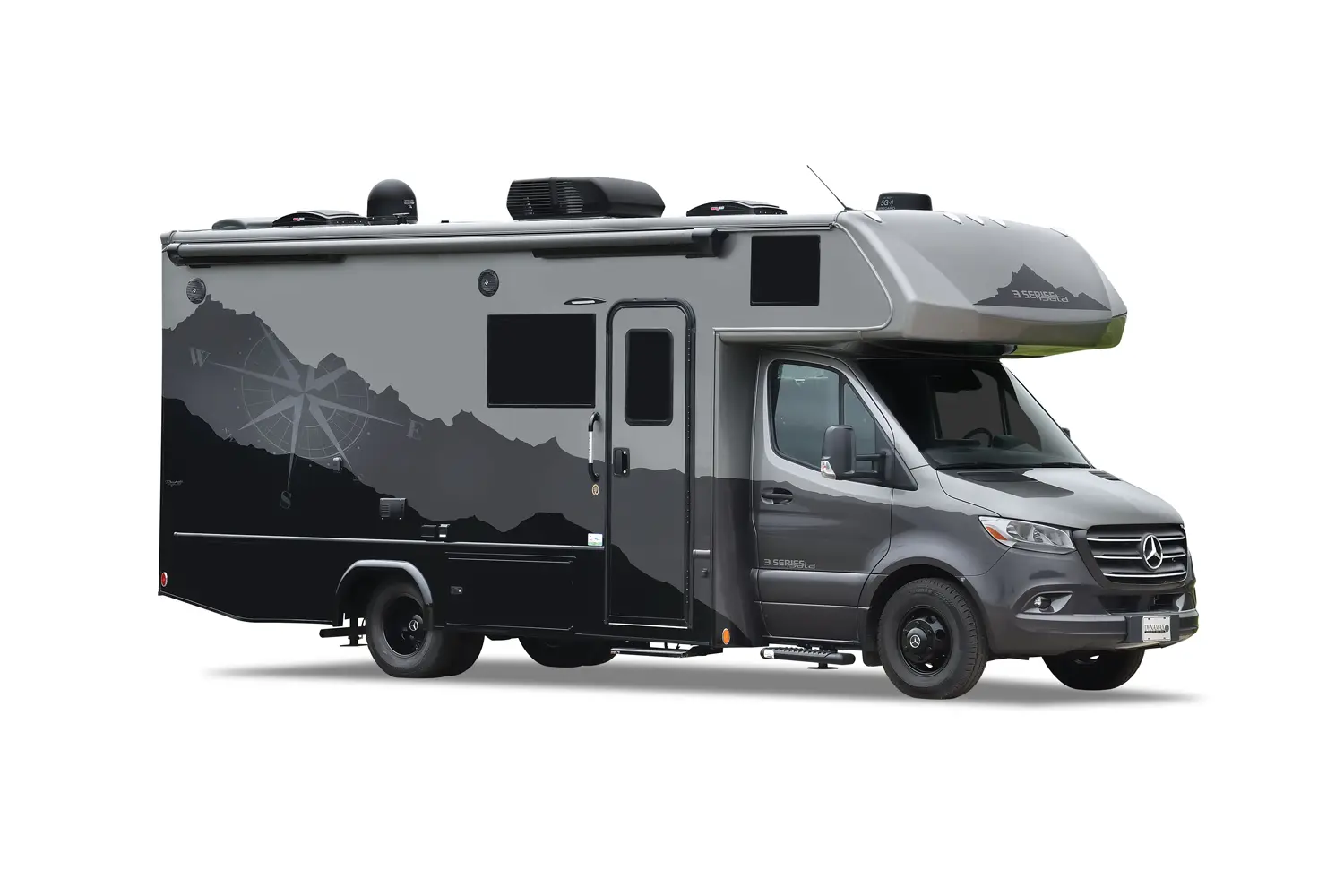

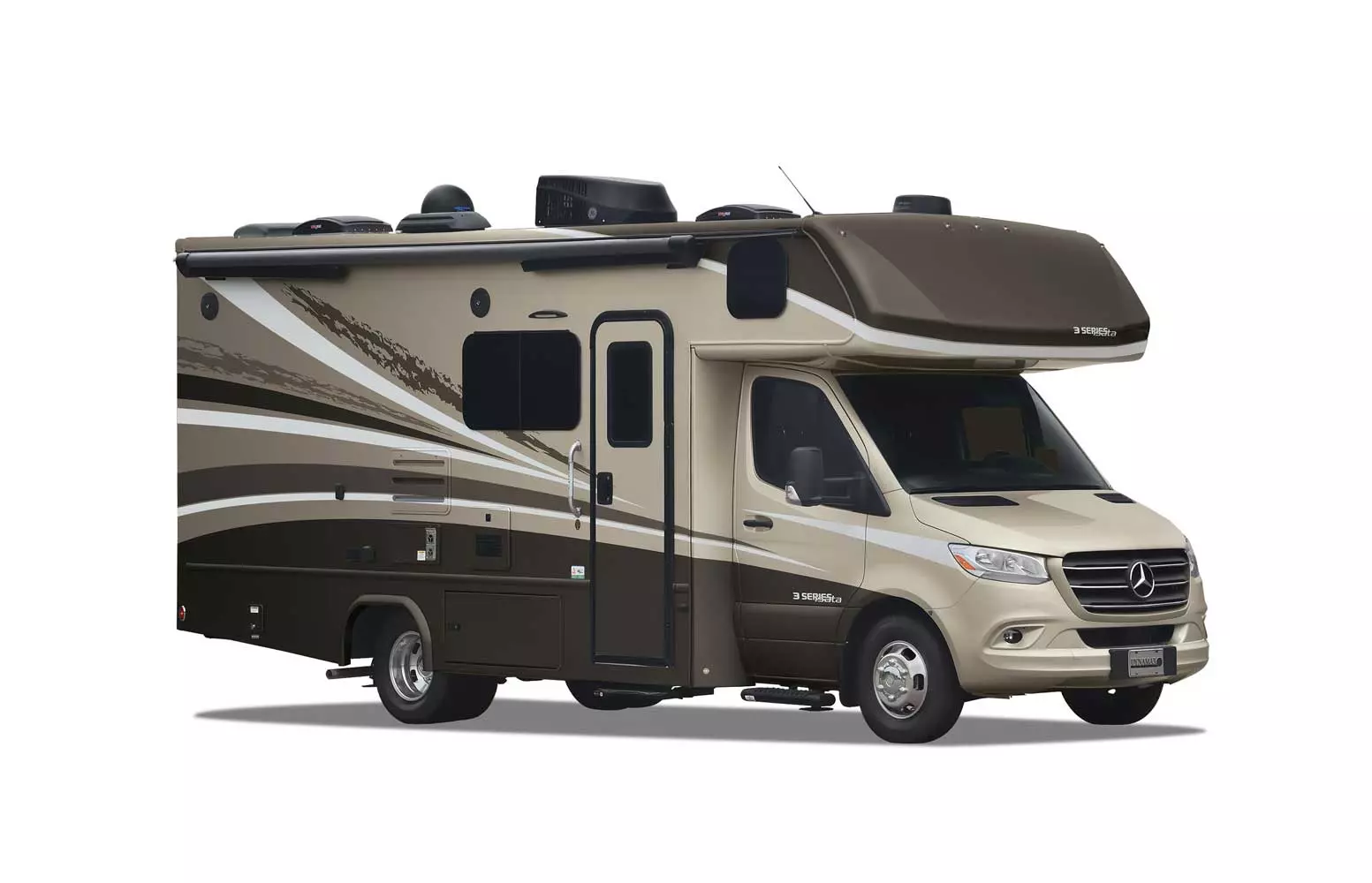

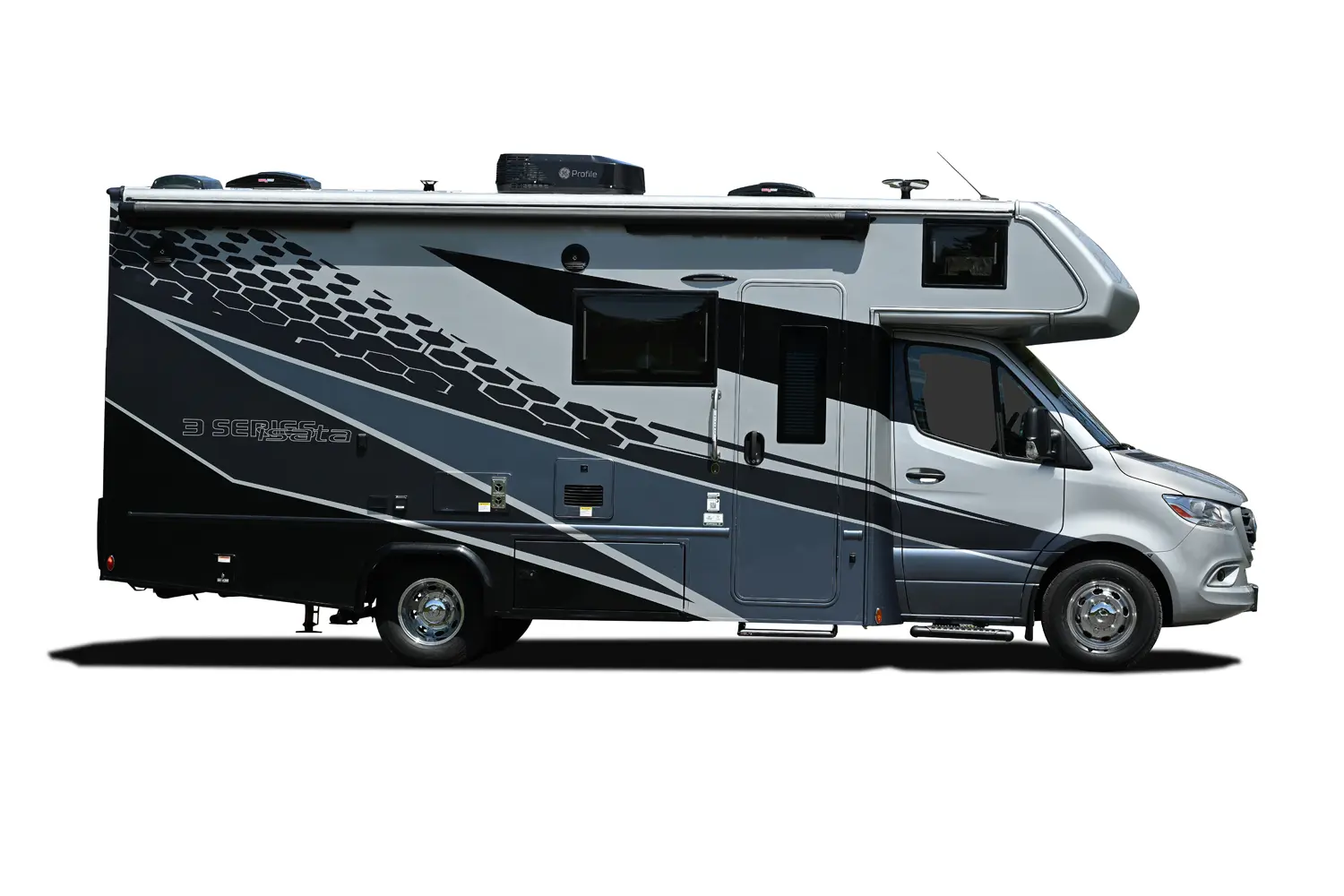

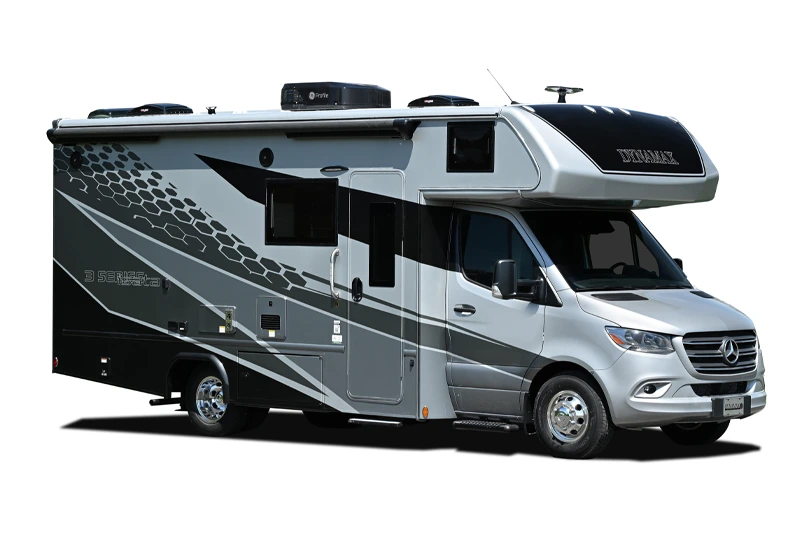

Isata 3 Series Class C Motorhome

Built on the fuel efficient Mercedes Sprinter platform, the Isata 3 Series embodies everything you love about Dynamax. Legendary full body paint, contemporary interiors and functional living space, paired with a high performance chassis. The Isata 3 Series Class C Motorhome boasts an extensive list of upgraded, standard features not found in similar products and - as always - the industry leading two-year warranty comes standard.


SPECIAL FEATURES

  • Mercedes-Benz® Sprinter Chassis
  • Contemporary Frameless Windows
  • Aluminum Truss Structured Roof with Crowned, One-Piece Fiberglass Skin

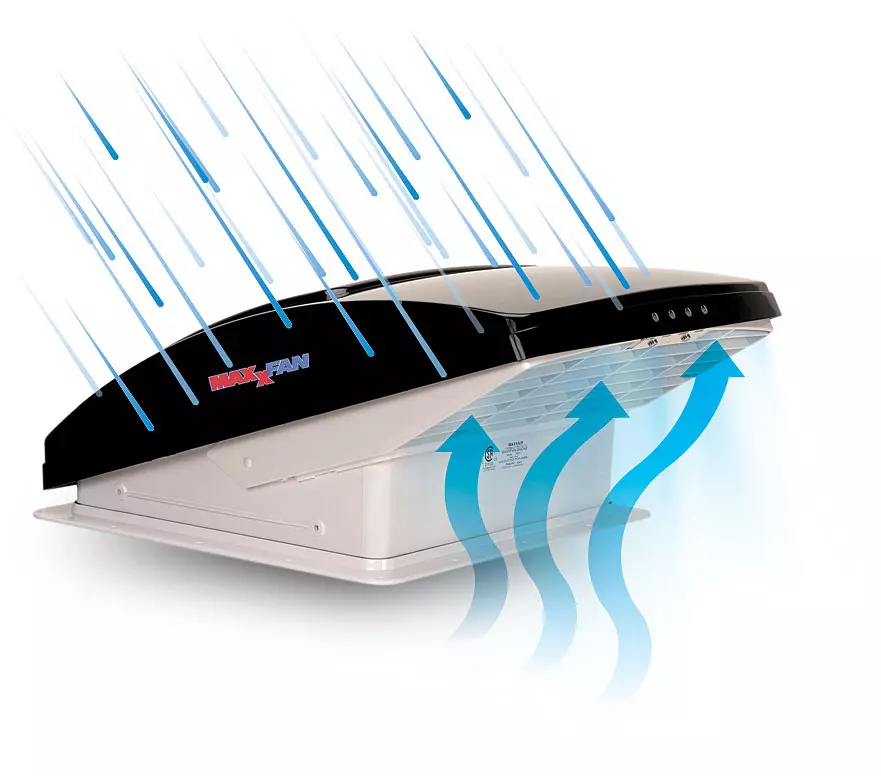

  • MaxxAir® Power Vents

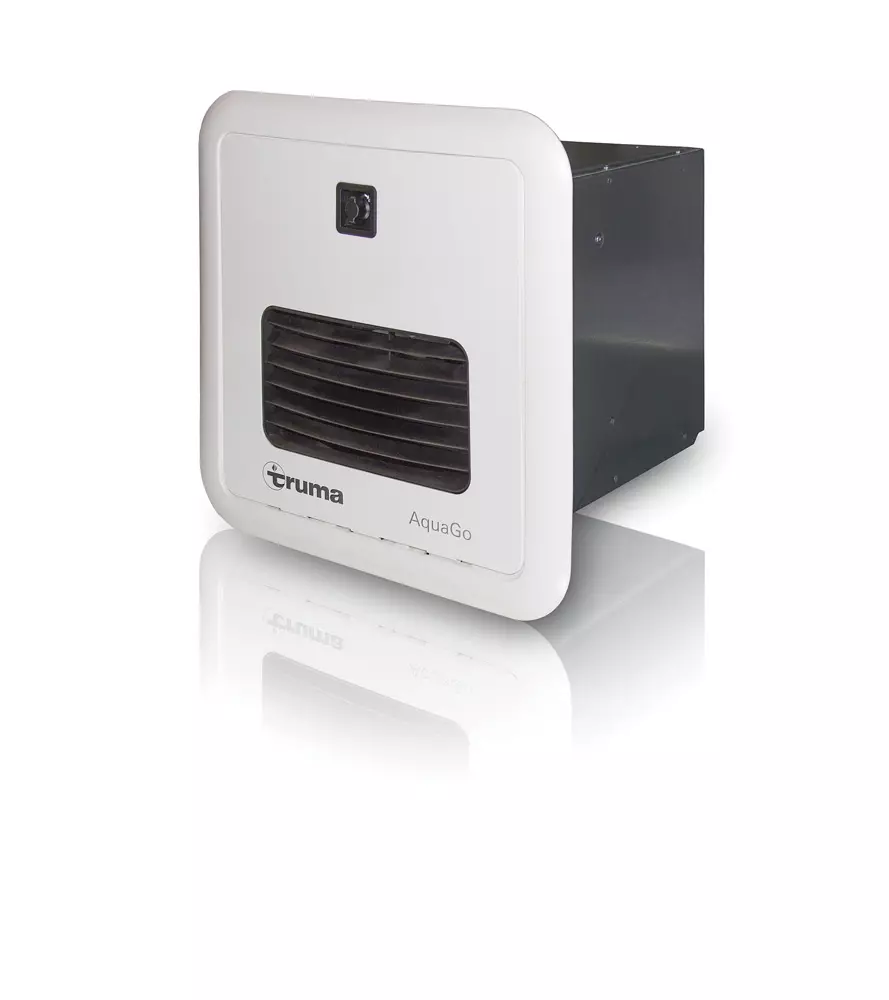

  • Truma AquaGo® Water Heater with Hybrid Technology
  • Dual AGM Maintenance-Free House Batteries

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications








to




Floorplans

Print


Class C Motorhomes

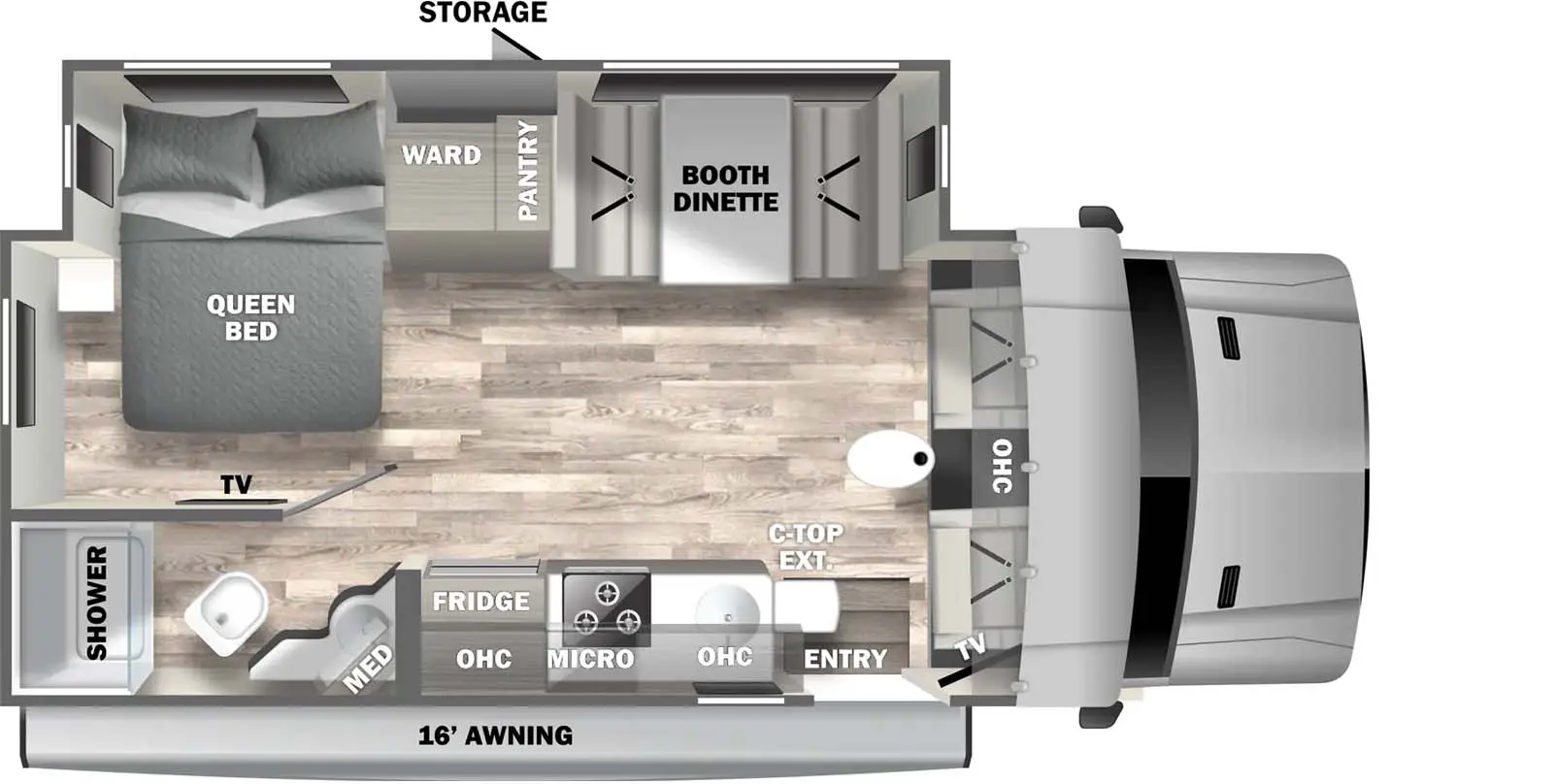

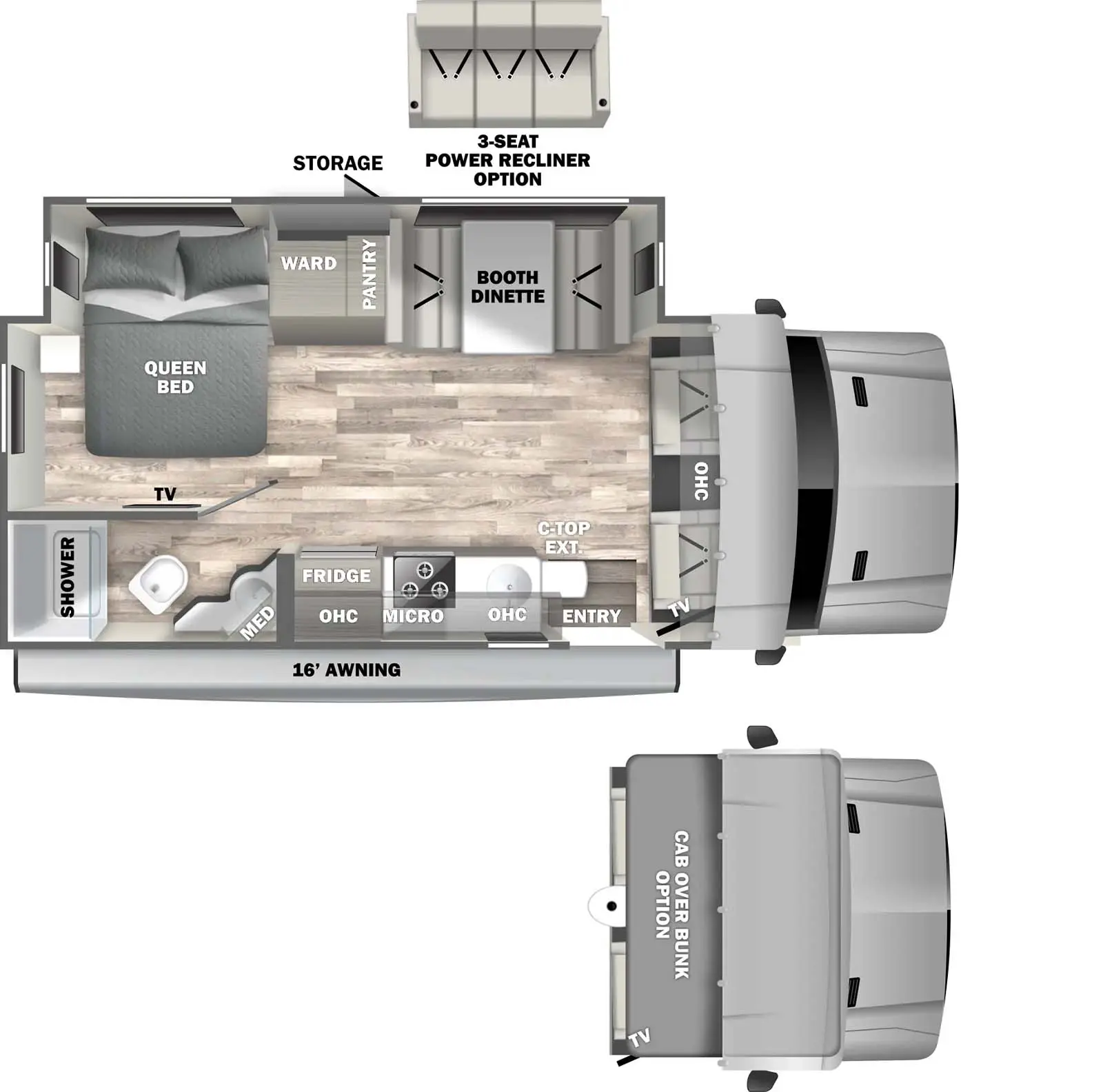

24FW
Has Gallery Photos Has 360 Tour

24FW


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

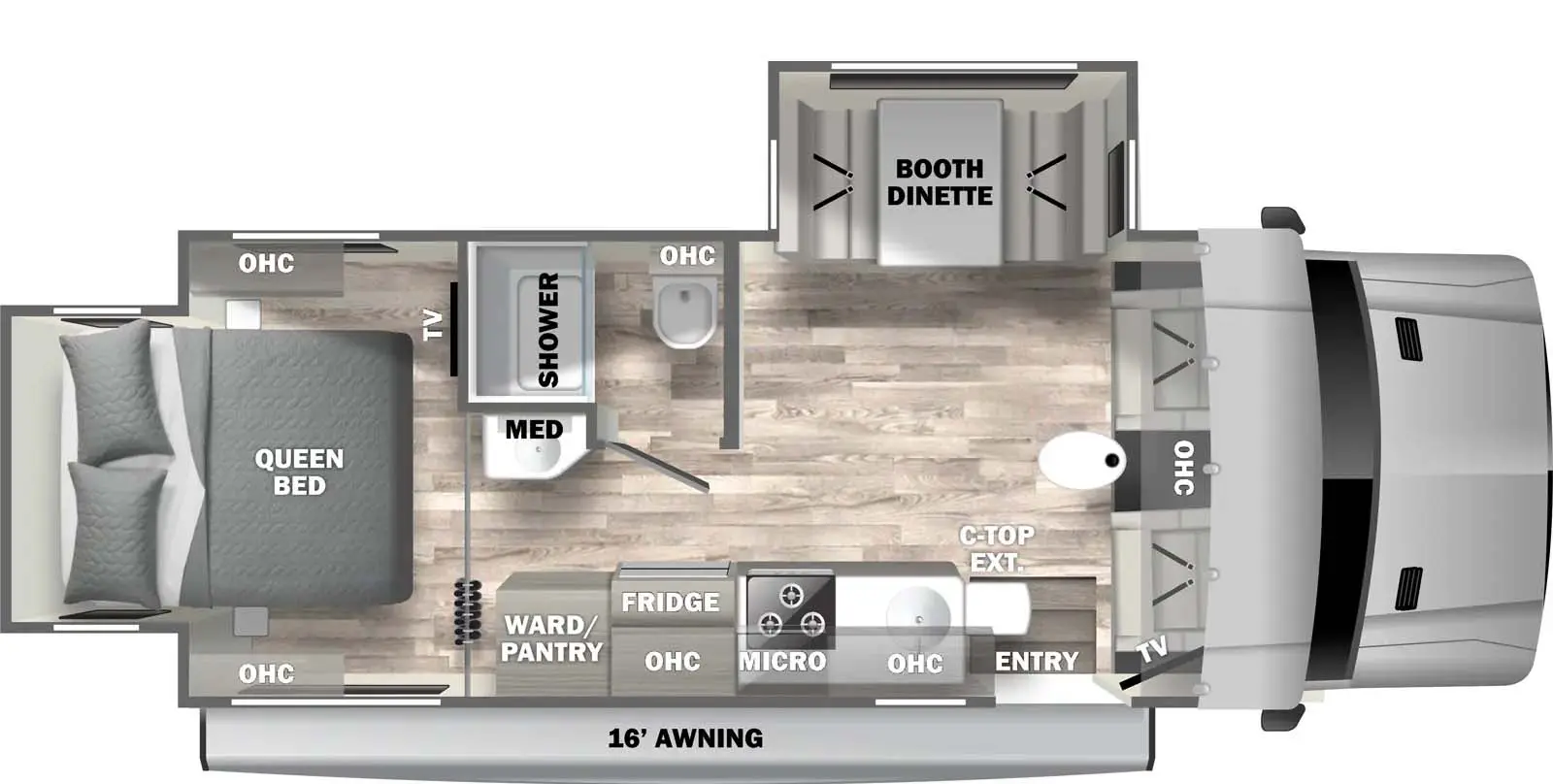

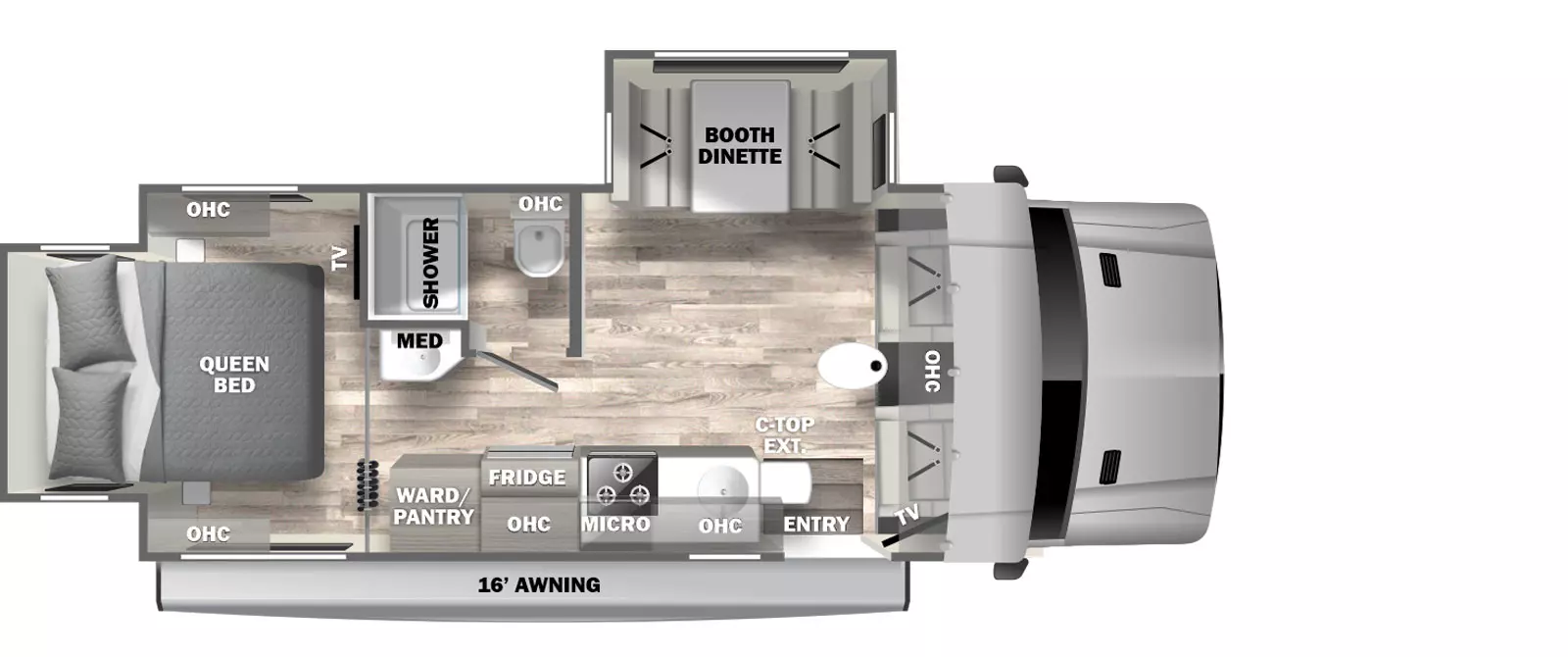

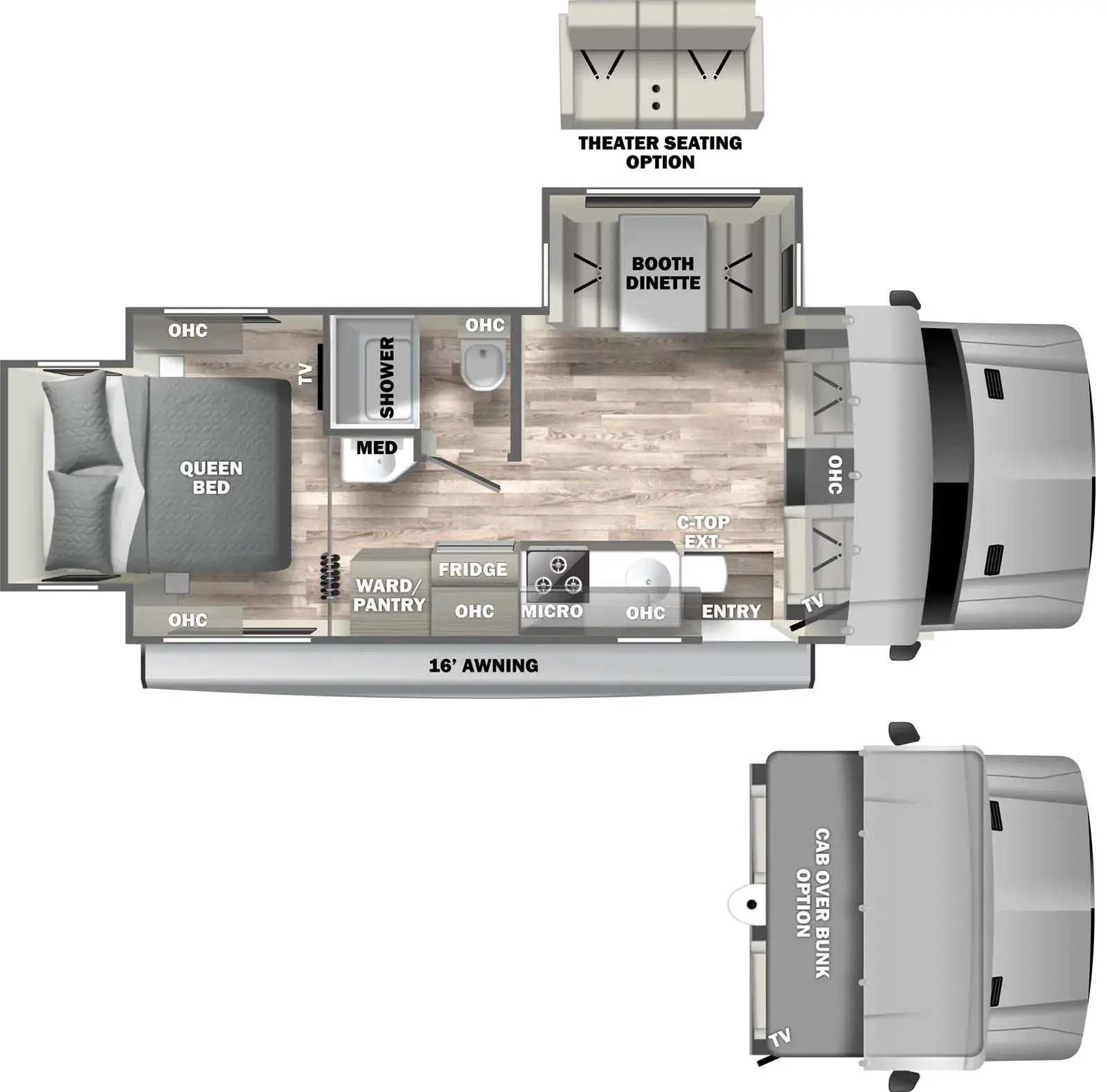

24RW
Has Gallery Photos Has 360 Tour

24RW


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

Dealer Stock Only

24CB

24CB - DSO


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.
24RB
Has Gallery Photos Has 360 Tour

24RB - DSO


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.
24RW
Has Gallery Photos

24RW - DSO


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.


Specifications

Print


Wheelbase:
GVWR:
GCWR
GAWR Front:
GAWR Rear:
Fuel Capacity:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
170"
11030 lb.
15250 lb.
4410 lb.
7720 lb.
26 gal.
24' 7"
11' 5"
94"
35.00 gal.
32.00 gal.
32.00 gal.
16'
170"
11030 lb.
15250 lb.
4410 lb.
7720 lb.
26 gal.
24' 7"
11' 5"
94"
35.00 gal.
32.00 gal.
32.00 gal.
16'
170"
11030 lb.
15250 lb.
4410 lb.
7720 lb.
26 gal.
25' 5"
11' 5"
94"
35.00 gal.
32.00 gal.
32.00 gal.
16'
170"
11030 lb.
15250 lb.
4410 lb.
7720 lb.
26 gal.
24' 7"
11' 5"
94"
35.00 gal.
32.00 gal.
32.00 gal.
16'
170"
11030 lb.
15250 lb.
4410 lb.
7720 lb.
26 gal.
24' 7"
11' 5"
94"
35.00 gal.
32.00 gal.
32.00 gal.
16'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Dynamax RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Dynamax RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Mercedes-Benz® Sprinter Chassis
  • 3.0L V6 Turbo Diesel Engine (188hp and 325 ft.-lbs. of Torque)
  • 7G-TRONIC PLUS Automatic Transmission with Overdrive
  • 26.4-Gallon Fuel Tank
  • 5.75-Gallon Diesel Exhaust Fluid Tank
  • Lane Keep Assist
  • Adaptive Cruise Control
  • Active Brake Assist
  • High-Beam Assist
  • Crosswind Assist
  • Attention Assist
  • Traffic Sign Assist
  • Rescue Assist
  • Electronic Stability Program (ESP)
  • Wet Wiper System
  • Trailer Hitch (5,000 Tow lbs.) with 7-Way Round Tow Connection
  • Bilstein® Gas-Charged Rear Shock Absorbers
  • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
  • Single 12V Chassis Battery
  • 220-Amp Alternator
  • LED Brake, Turn, and Backup Lights
  • Aluminum Running Boards
  • Front and Rear Tires: LT215/85 R16
  • Single Front Wheels: Steel (5.5” x 16”)
  • Dual Rear Wheels: Steel (5.5” x 16”)
  • Valve Extensions (where applicable)
  • 4.18 Rear Axle Ratio

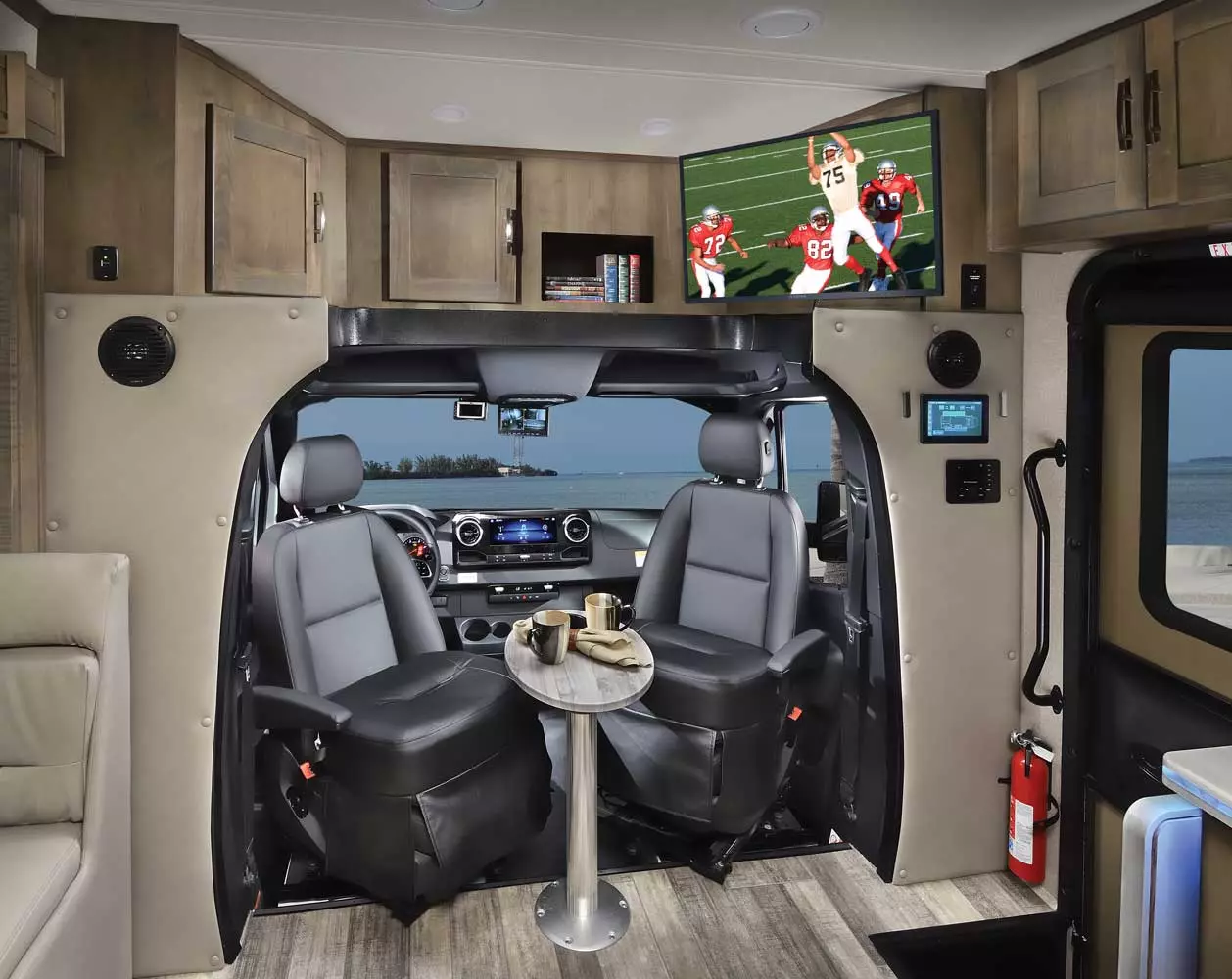

  • Power, Heated Leatherette Cab Seats with Swivel Bases
  • Upgraded MultifunctioSteering Wheel
  • Upgraded Instrument Cluster with Pixel-Matrix Display
  • Quad-View Camera System (Right Side, Left Side, Hitch, and Rear HorizoViews)

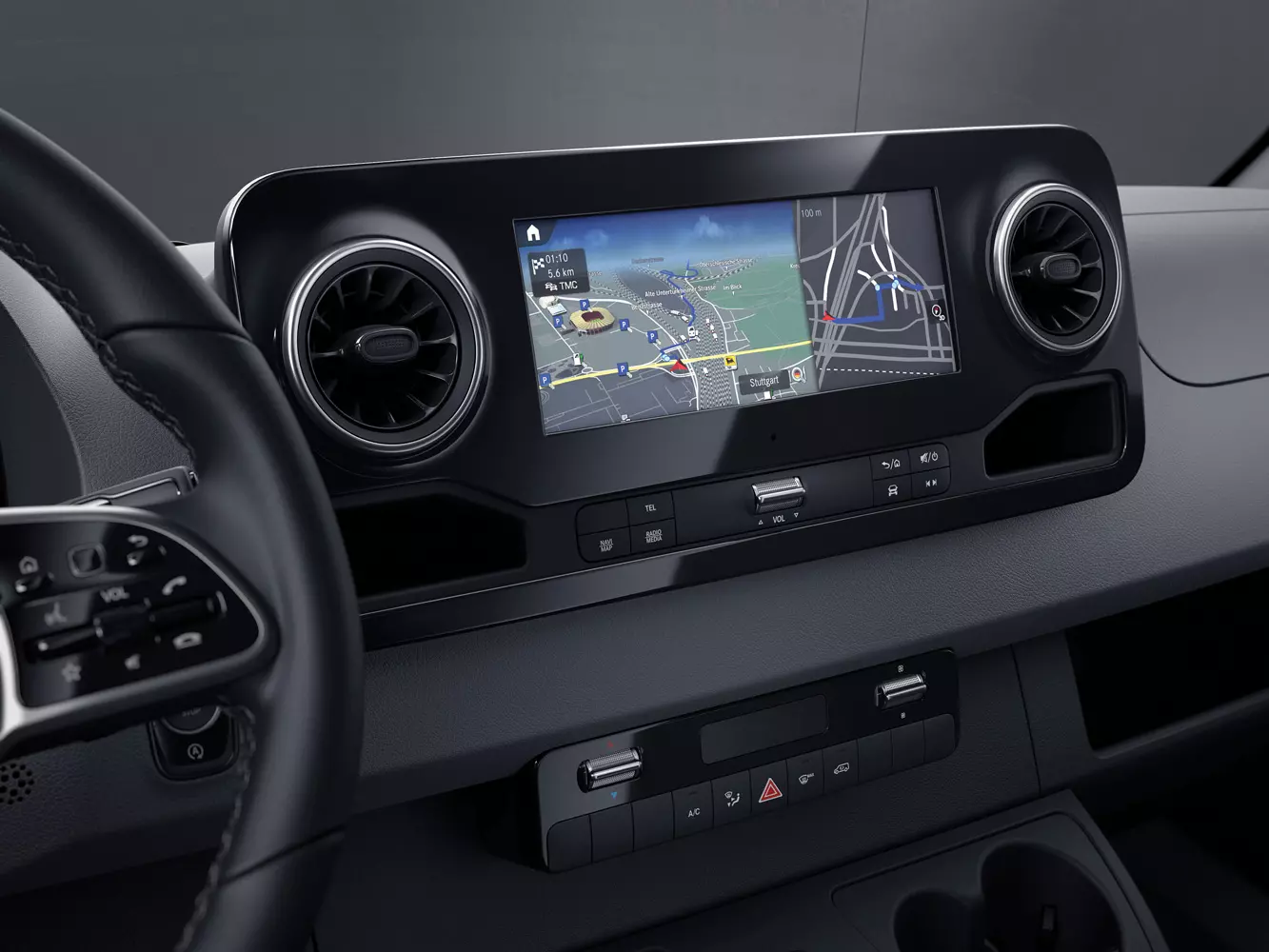

  • MBUX (Mercedes-Benz User Experience) 10.25” Touch ScreeInfotainment System with Navigation, AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™/Android® Auto™ Functi
  • 12V and USB Accessory Ports
  • Adjustable Steering Column
  • Power Windows and Locks
  • Power Exterior Mirrors (Auto-Heated at Low Temperatures)
  • 3-Point Seat Belts
  • Front, Thorax, & Window Safety Air Bags
  • Lockable Safe iPassenger Seat Base
  • Deluxe, Removable Automotive Cab Carpet Mat
  • Drink Holders

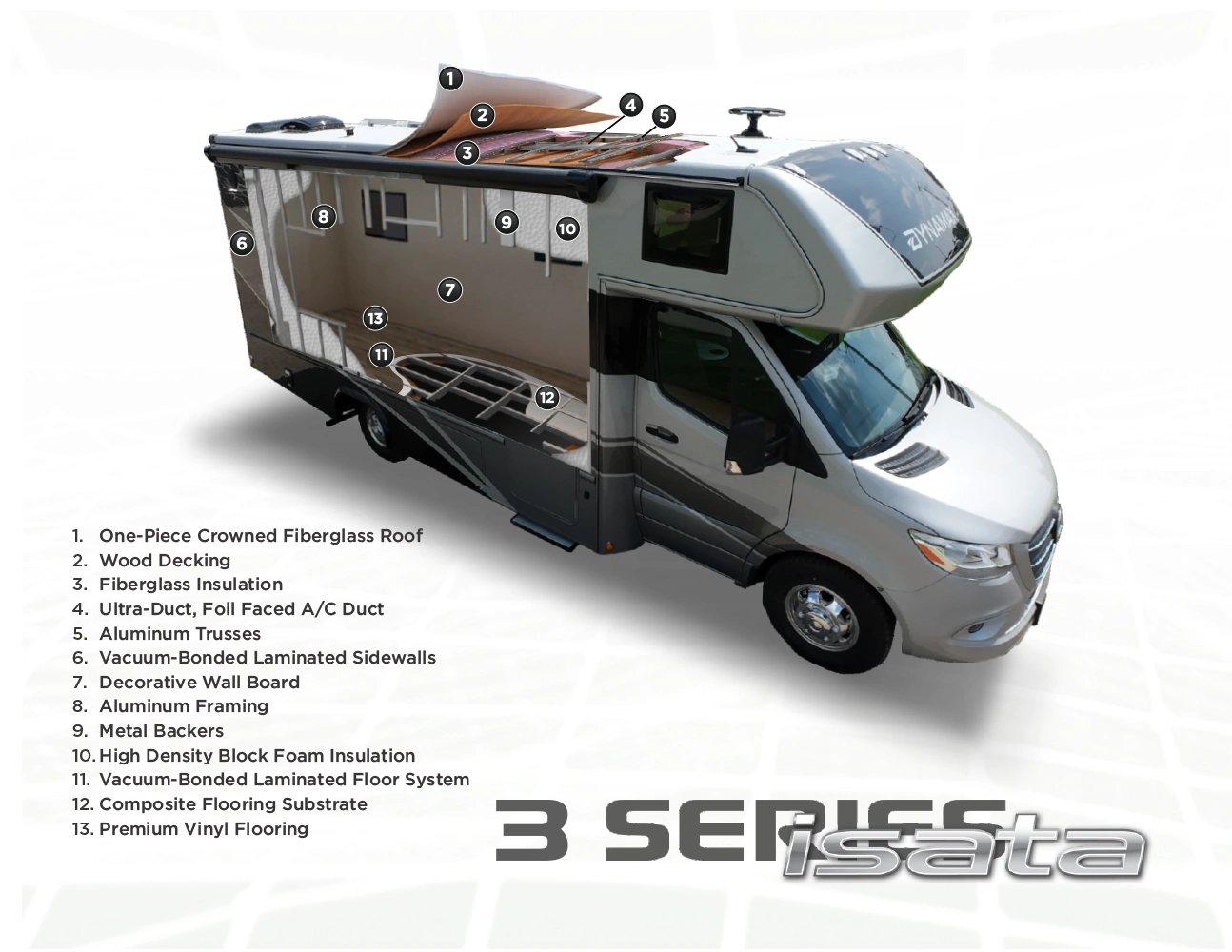

  • 1 ½” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
  • Gel-Coat Fiberglass Walls with Azdel Backing
  • Aluminum-Framed Floor
  • Aluminum-Framed Roof Trusses

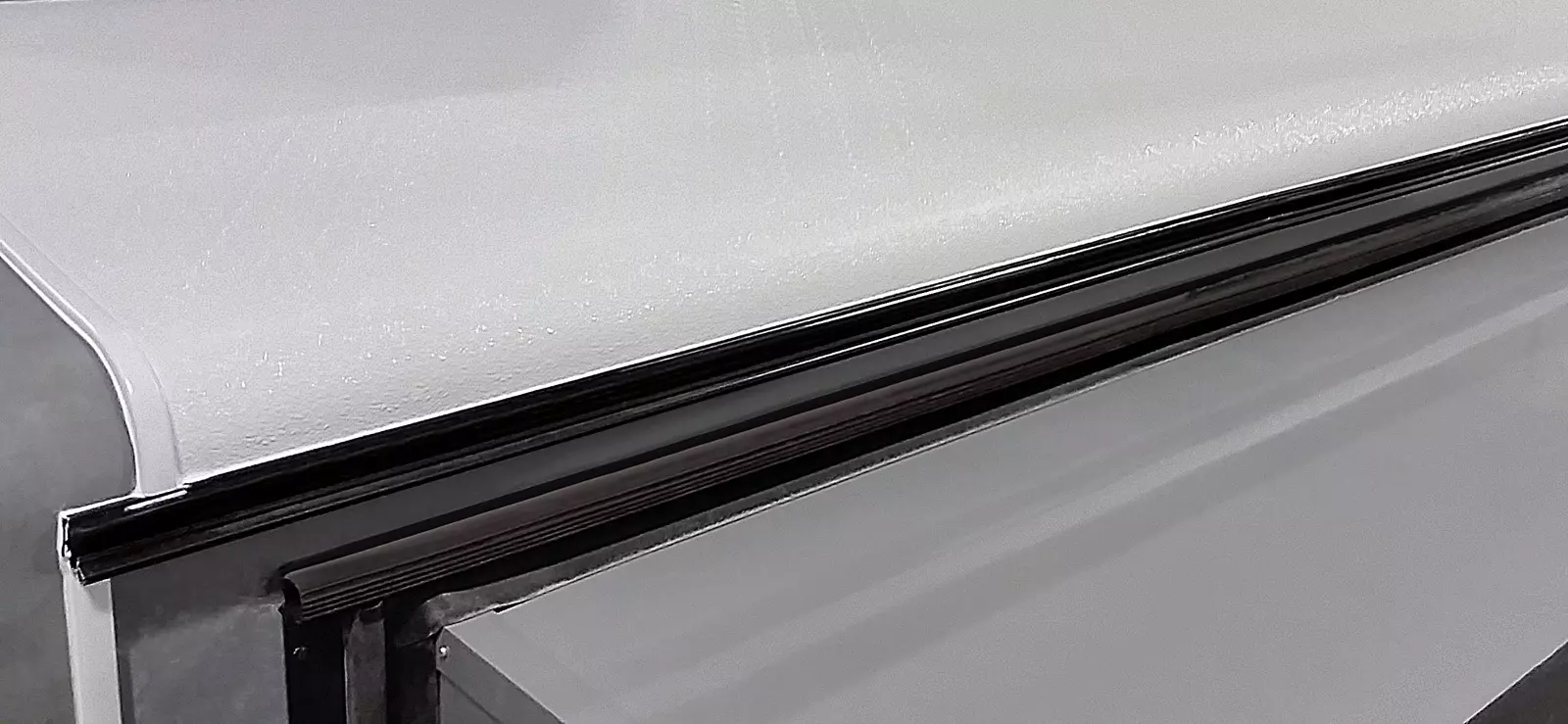

  • Crowned, One-Piece Fiberglass Roof
  • Fiberglass Rear Bumper
  • Foil-Lined Ductwork Throughout
  • Aerodynamic Fiberglass Front Wing Panels
  • Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
  • Dark-Tinted, Frameless Windows
  • Seamless Rotocast Storage Compartments with LED Lighting
  • Locking Aluminum Exterior Storage Doors with CompressioLatches
  • Electric Slide System
  • Power Rear Stabilizer Jacks with Independent Left and Right Controls

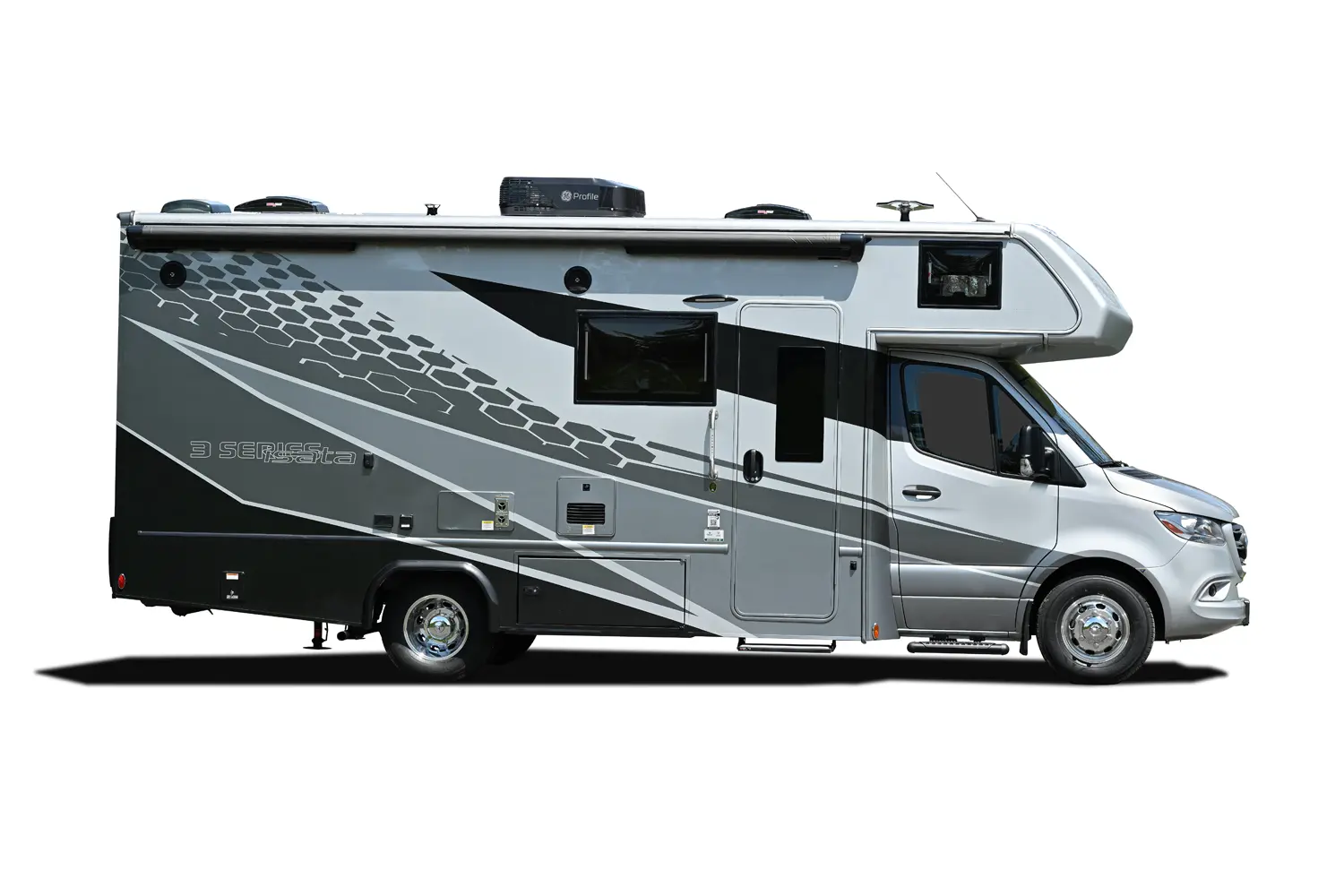

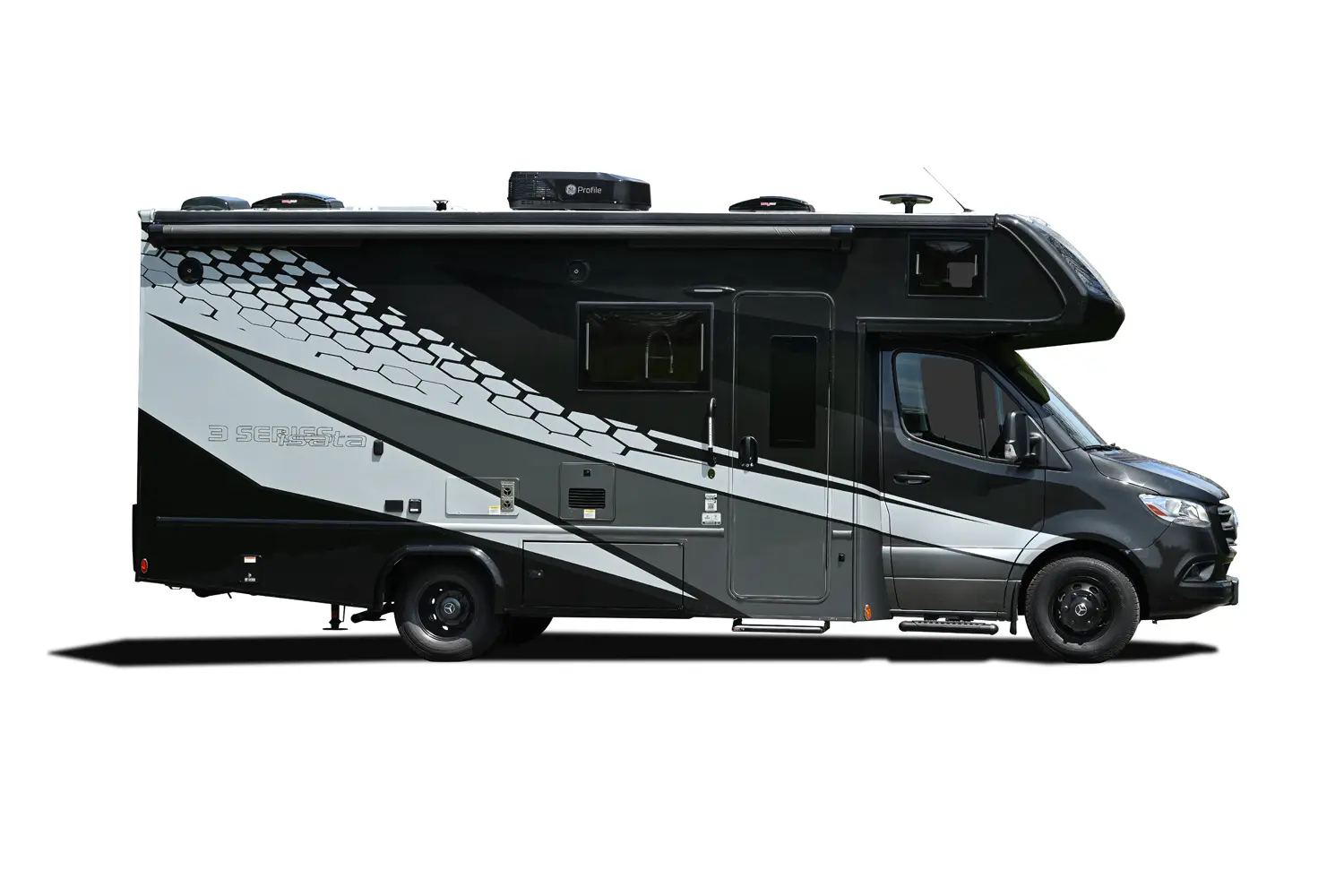

  • Custom Full Body Paint Package
  • Premium Cut and Buffed Paint Finish
  • Front-End Diamond Shield® Paint Protection
  • Dual-Pitch, Armless Patio Awning with LED Lighting and Motion-Activated Retraction
  • Slideout Topper(s)
  • LED Patio Light
  • Entry Door with Dark-Tinted, Frameless Window and Integrated Shade
  • Lighted Acrylic Entry Grab Handle
  • Lighted Power Entry Step
  • Exterior TV Mount
  • Exterior Speakers
  • Front and Rear LED Clearance and Marker Lighting
  • Premium Vinyl Flooring Throughout
  • Soft-Touch Padded Vinyl Ceiling
  • LED Flush-Mount Ceiling Lighting
  • Sprung, Residential Style Dinette Seats with Lift Up Storage
  • Coordinating Window Treatments
  • Blackout Roller Shades
  • Hardwood Shaker-Style Cabinetry

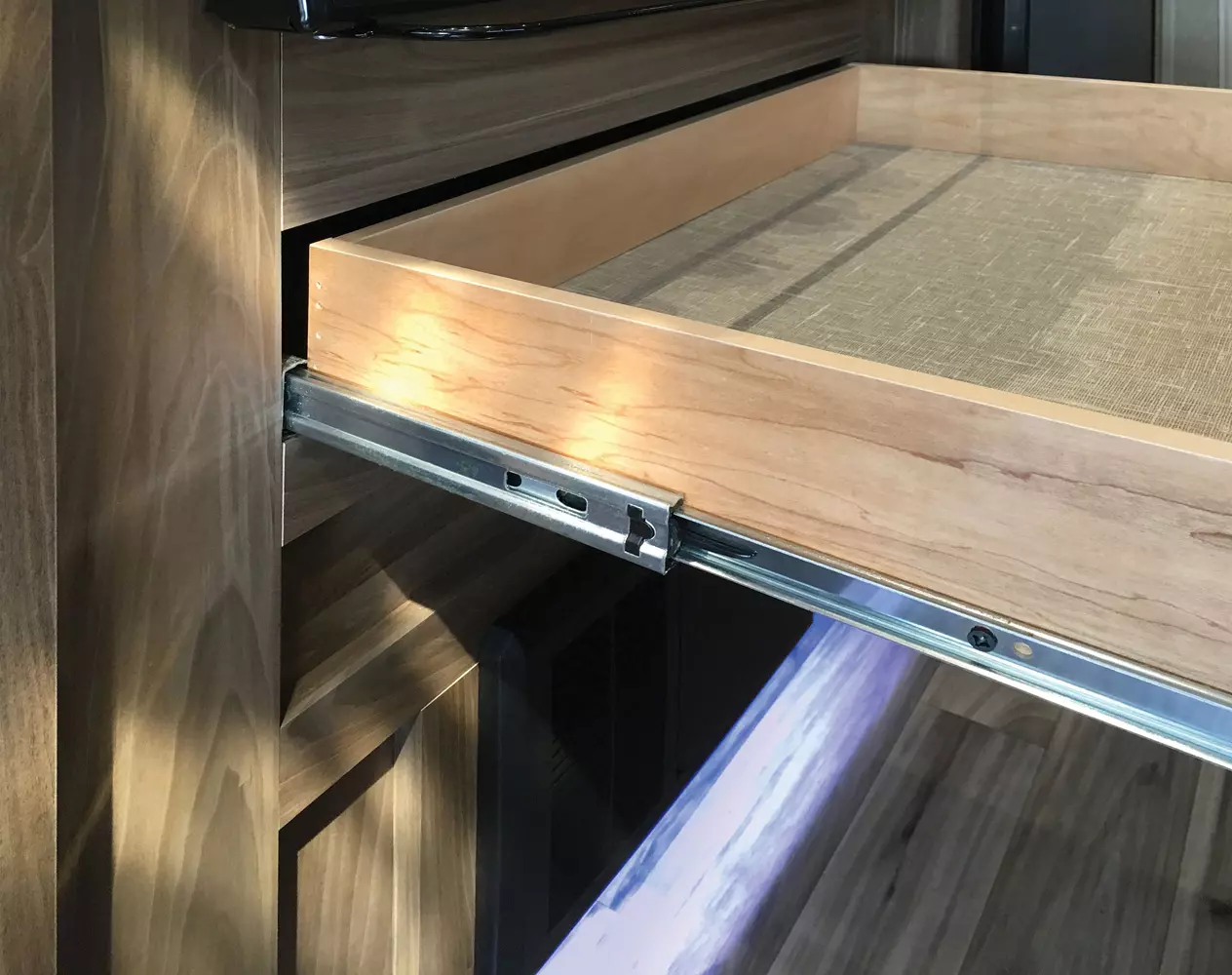

  • Full Extension, Soft-Closing Drawer Guides (where applicable)
  • HiddeHinges
  • 32” LED TV (Living Area)
  • Stereo System - AM/FM/CD/DVD with Zoned Speaker Control and Bluetooth® Smart Phone App Control
  • Easy Access Battery Compartment Beneath Entry Step
  • Entry with Non-Skid Rubber Step and Steel Risers
  • Thermal, Reflective Front Privacy Shades
  • USB Charging Ports
  • 7.0 cu. ft. 2-Way Refrigerator (Double-Door)
  • Gas Range with Glass Cover
  • ConvectioMicrowave Oven
  • Solid Surface Countertops with LED Edge Lighting
  • Solid Surface Countertop Extension
  • Stainless Steel Sink with Solid Surface Cover
  • Residential Stainless Steel Spring Gooseneck Faucet
  • Under-Cabinet Lighting
  • MaxxAir® Power Vent with Built-In Rain Cover

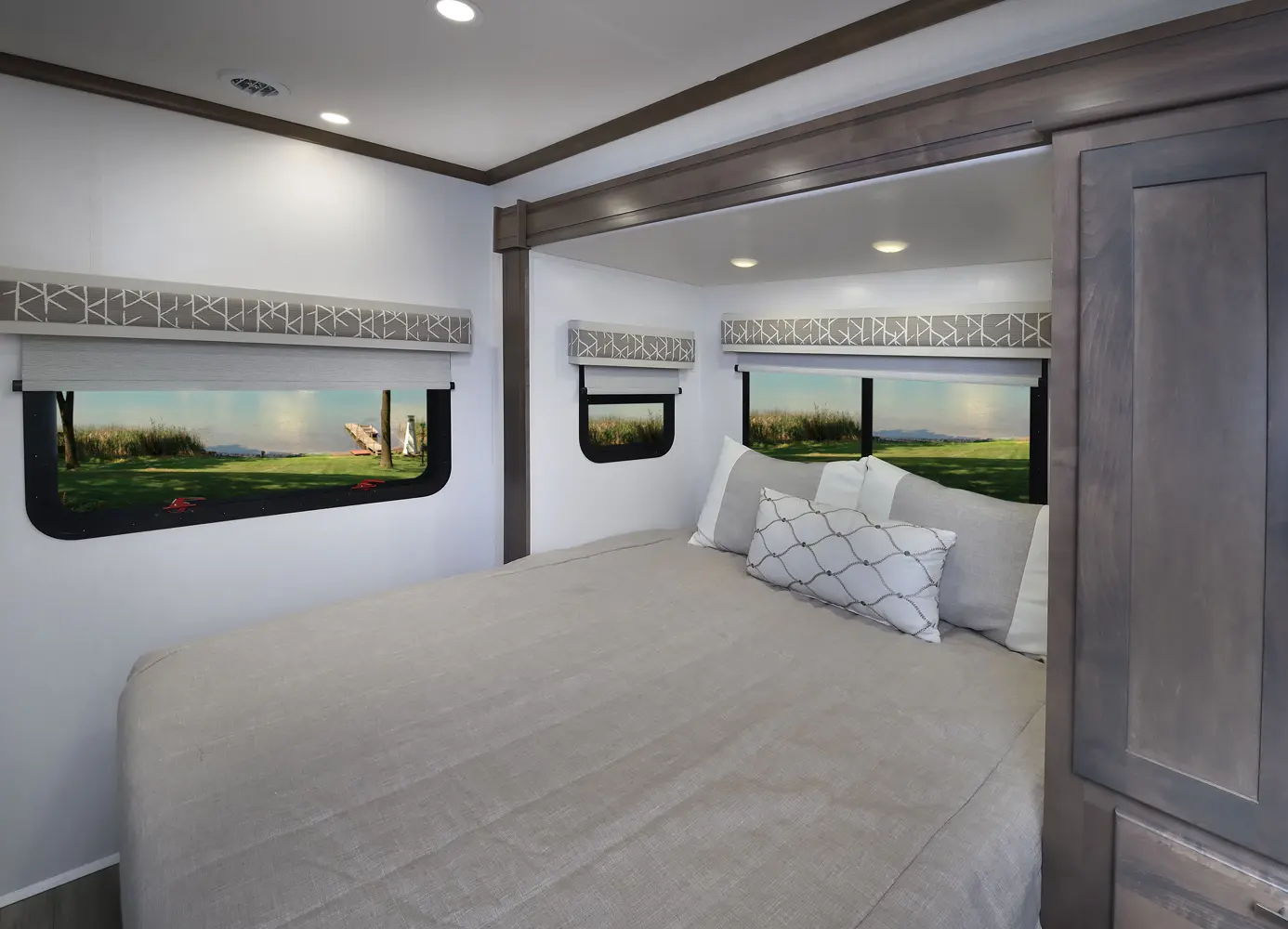

  • QueeBed (60” x 75”) with Gel-Infused Memory Foam Mattress
  • Under-Bed Storage (24FW)
  • Deluxe Padded Headboard (Floor Plan Specific)
  • Designer Bedding Package
  • 32” LED TV
  • Cedar-Lined Wardrobe
  • LED Reading Lights
  • USB Charging Ports
  • Privacy Partition

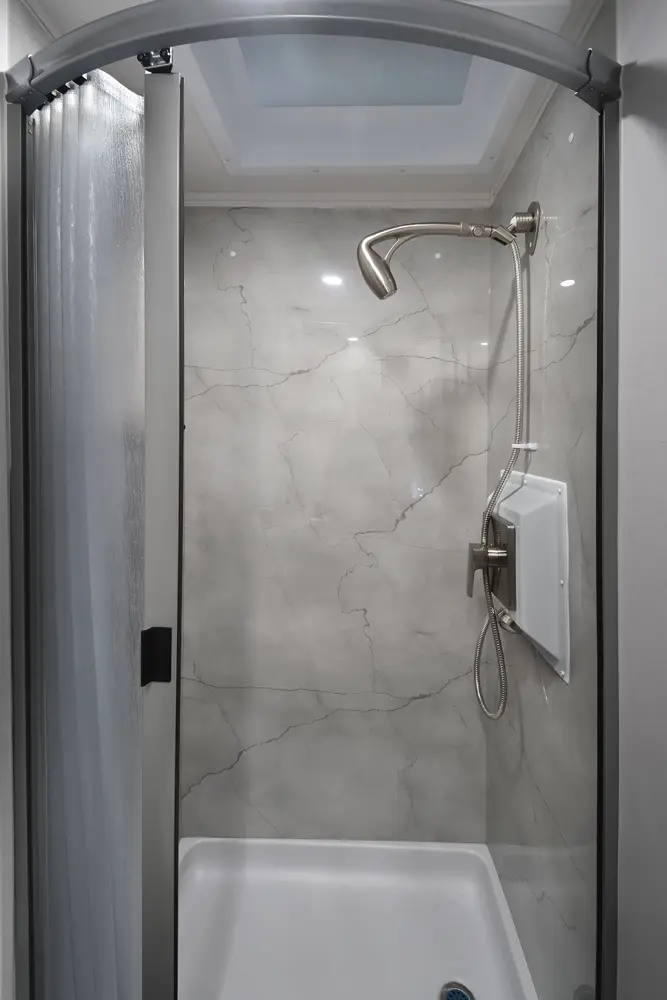

  • Shower with Light-Weight, Soft-Sided Shower Door
  • Shower Skylight

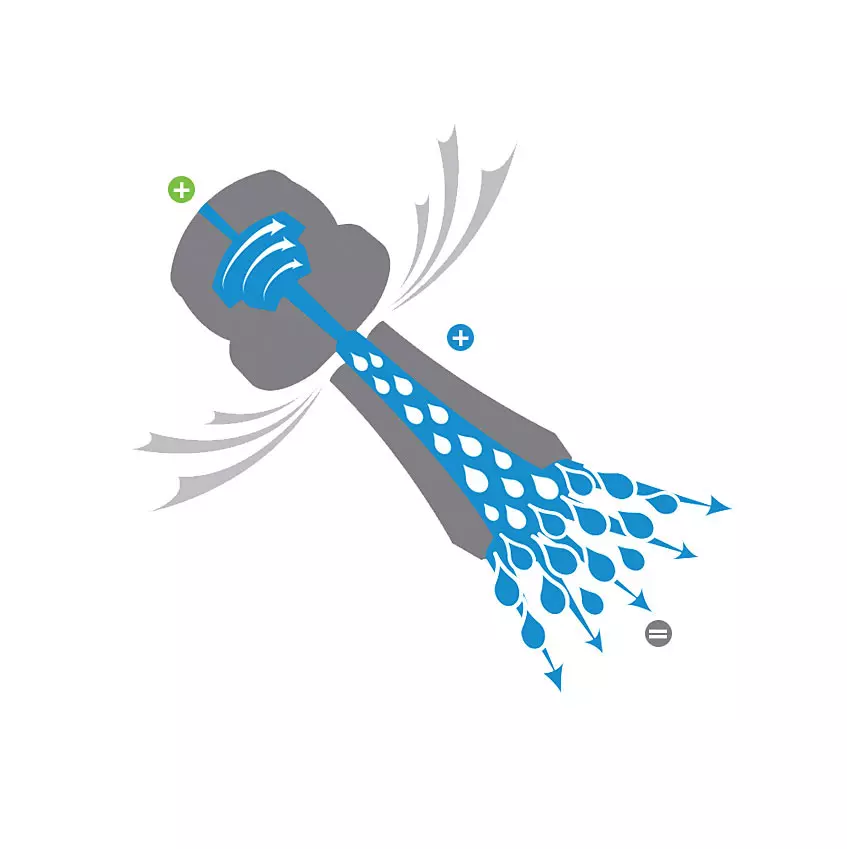

  • Oxygenics Body Spa® RV Shower Head
  • Stainless Steel Sink with Residential Faucet
  • Composite Foot-Flush Toilet with Hand Sprayer
  • MaxxAir® Power Vent with Built-In Rain Cover
  • Dual 12V Group 27 AGM Deep-Cycle, Maintenance-Free Auxiliary Batteries

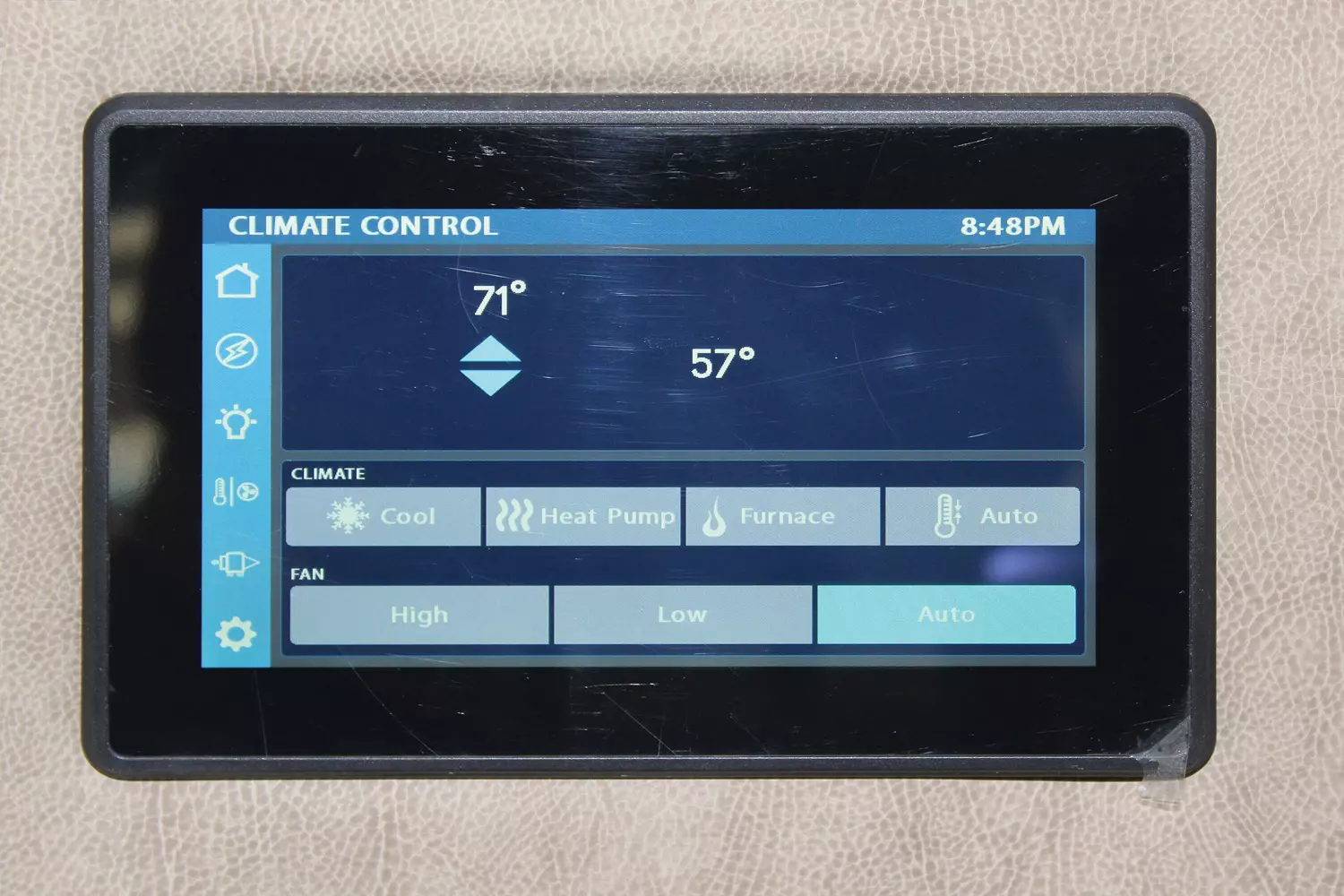

  • Firefly Multiplex® Wiring with Touch ScreeCommand Center, Switch Panels, and Bluetooth® Smart Phone App Control
  • Battery Disconnect at Entry
  • 30-Amp Service
  • 1,000W Pure Sine Wave Inverter (1,920 Peak Watts)
  • 3.6kW Onan® LP Generator with
  • Auto Transfer Switch (Mounted oIsolator Pads)
  • Automatic Generator Start
  • Ducted, Low-Profile 15,000-BTU Air Conditioner with Heat Pump
  • 20,000-BTU Furnace with Electronic Ignition
  • 60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
  • 20.3-GalloLP Tank (WC)

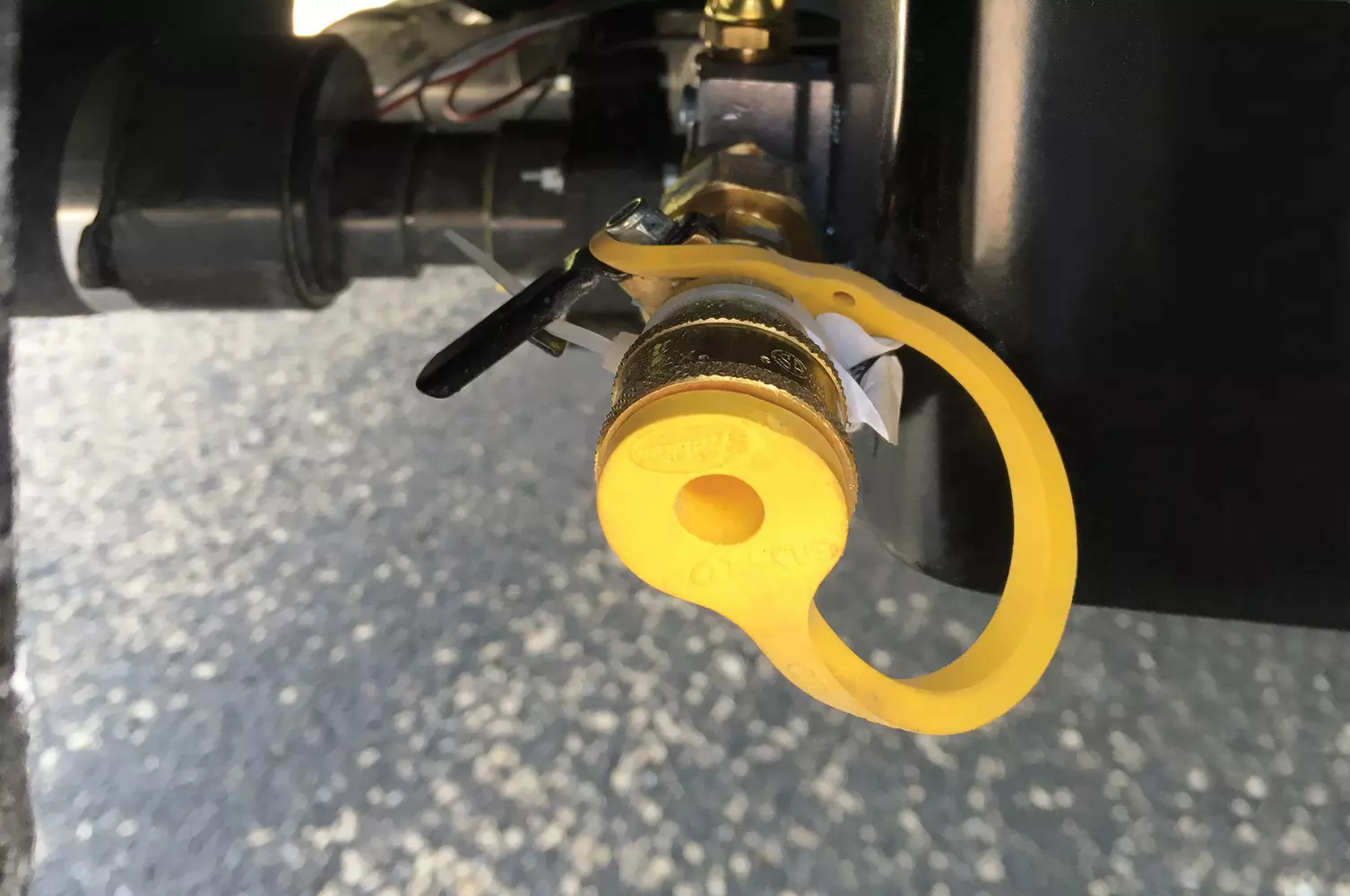

  • LP Quick Connect
  • Water Filtration System
  • Exterior Shower iService Bay
  • Exterior GFCI Receptacle
  • Winegard® ConnecT 2.0™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional HD OTA, FM, SIM Card Port)
  • 4x4 HDMI Matrix
  • Cable TV/Satellite Hookup

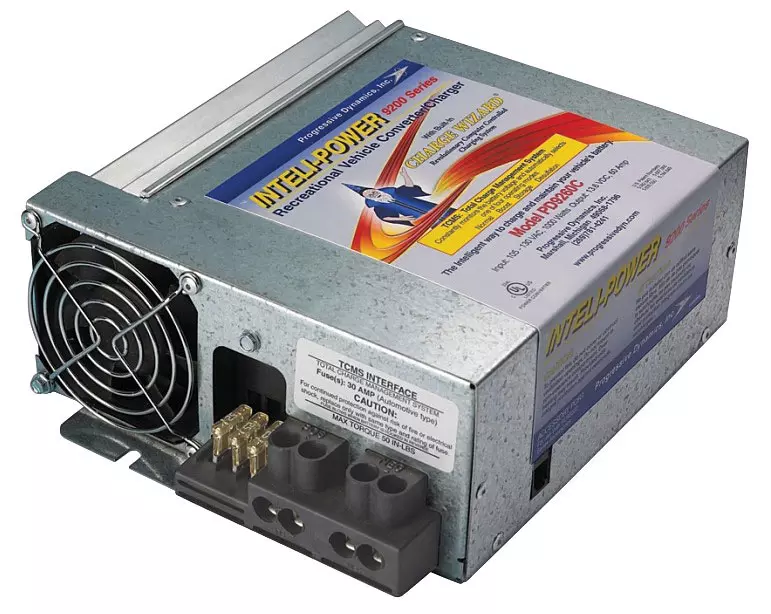

  • 60-Amp Progressive Dynamics Converter with Charge Wizard® System
  • Black Tank Flush
  • TruTank® Level Monitoring (Measures i5% Increments)
  • 12V Heat Pads oGray, and Black Tanks
  • Water Management Valve for Fill and Winterizing
  • Upgraded 12V On-Demand Water Pump (4 gallons per minute)
  • Carbon-Monoxide, LP, and Smoke Detectors
  • Fire Extinguisher

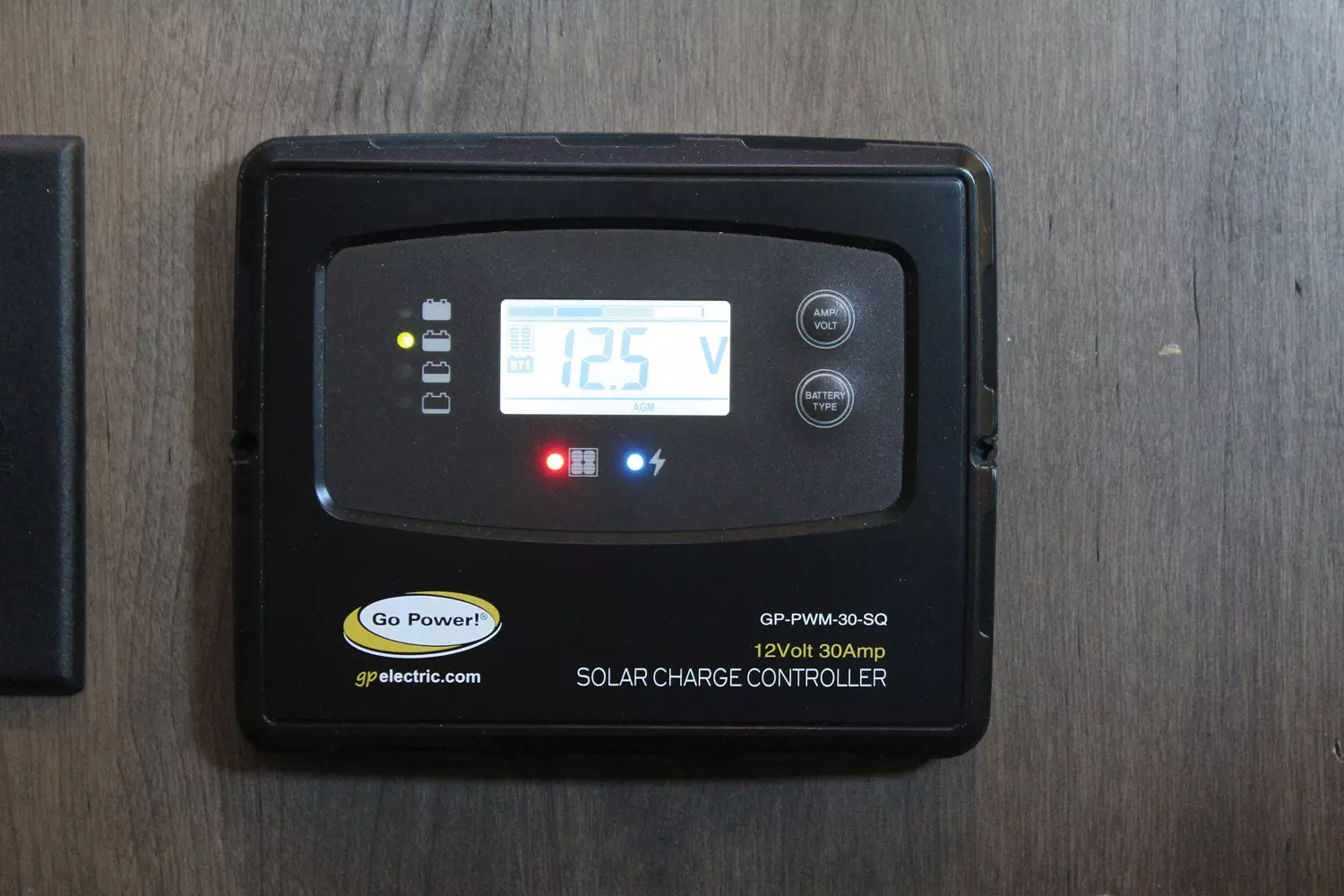

  • Solar Panels - Two 100 Watt with 30 Amp Controller
  • Low-Temp Lithium (200aH) iplace of AGM Batteries
  • Alcoa® Aluminum Wheels (Set of Four) with Metal Valve Extensions

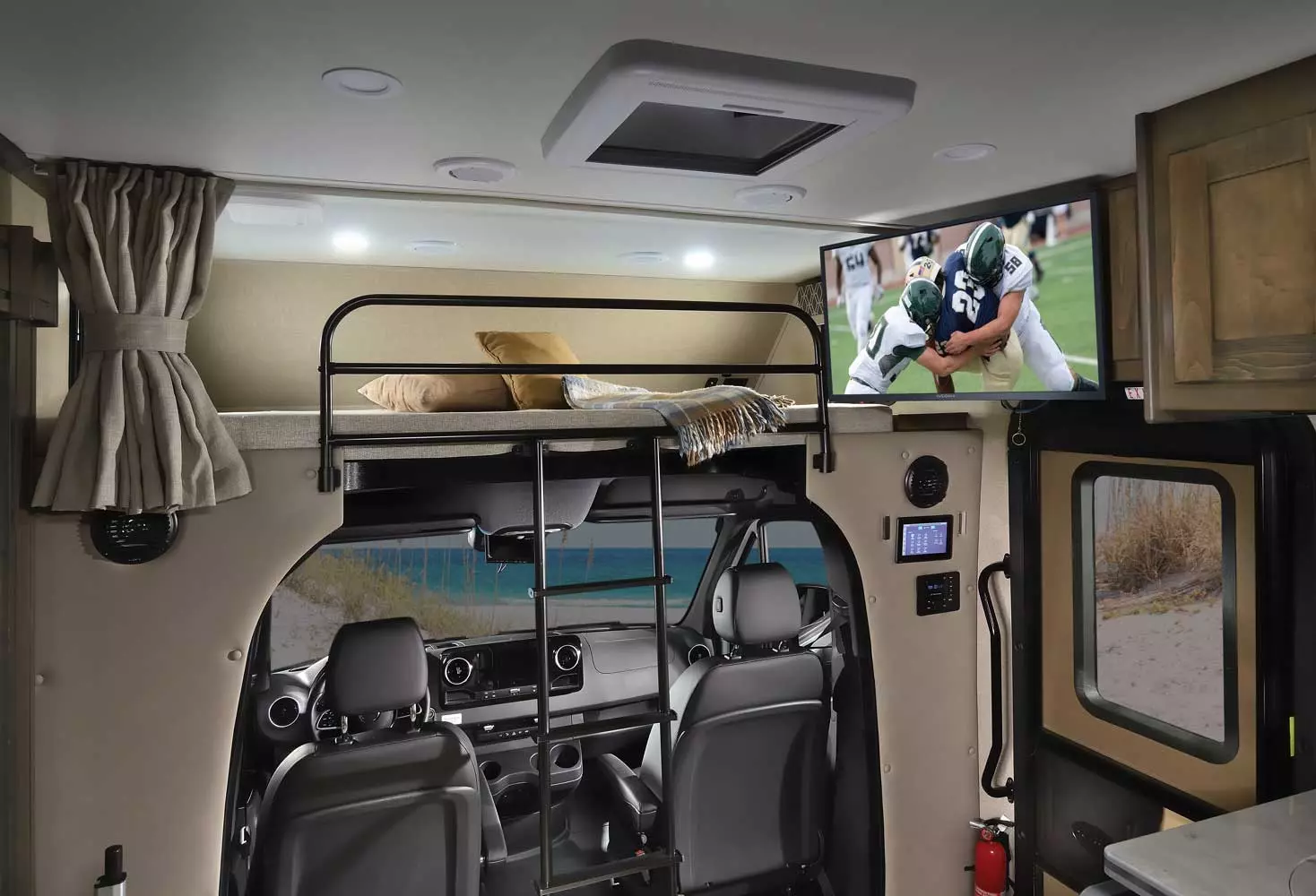

  • Extended Fiberglass Front Cap with 54” x 80” Cab-Over Bunk Mattress and Privacy Curtain
  • Automatic, 4-Point Hydraulic Leveling Jacks with Bluetooth® Smart Phone App Control

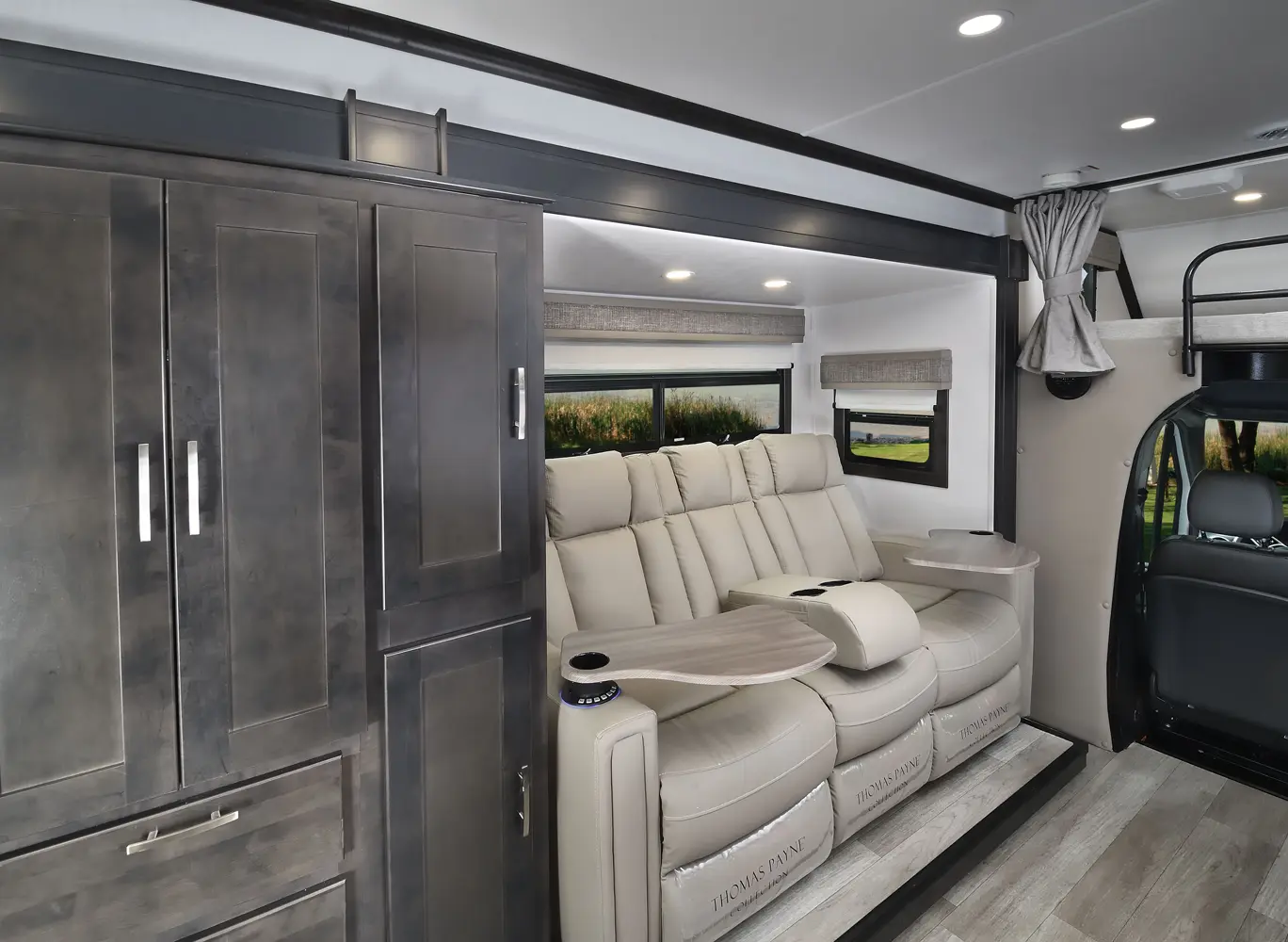

  • Dual, Power Reclining Theater Seats iplace of Dinette
  • Tri-fold Sofa with Pedestal Table iplace of Dinette
  • Cocktail Table BetweeCab Seats
  • Cab Seat Booster Cushions (Set of Two)
  • Winegard® In-MotioT4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
  • 3.2kW Onan® Diesel Generator iplace of Standard 3.6kW LP
  • Tire Pressure Monitoring System with Metal Valve Extensions

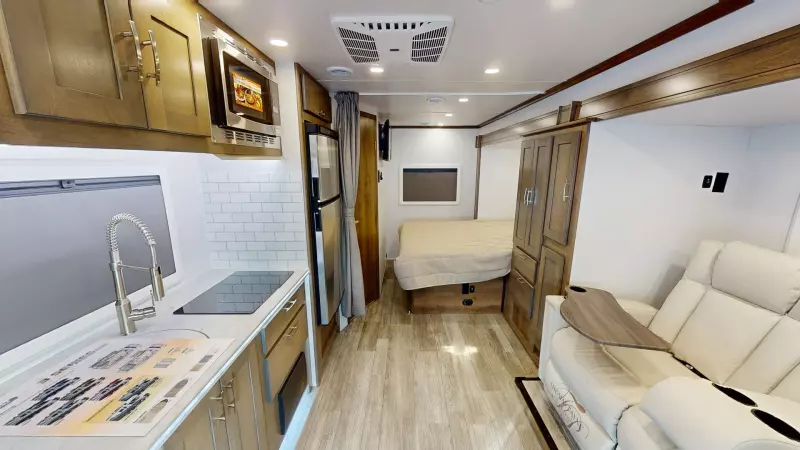

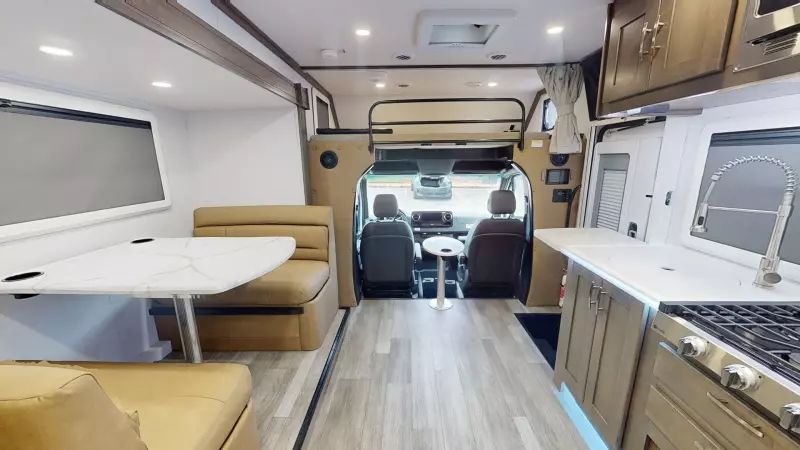

Virtual Tours

24FW

24RB - DSO

24RW



Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature

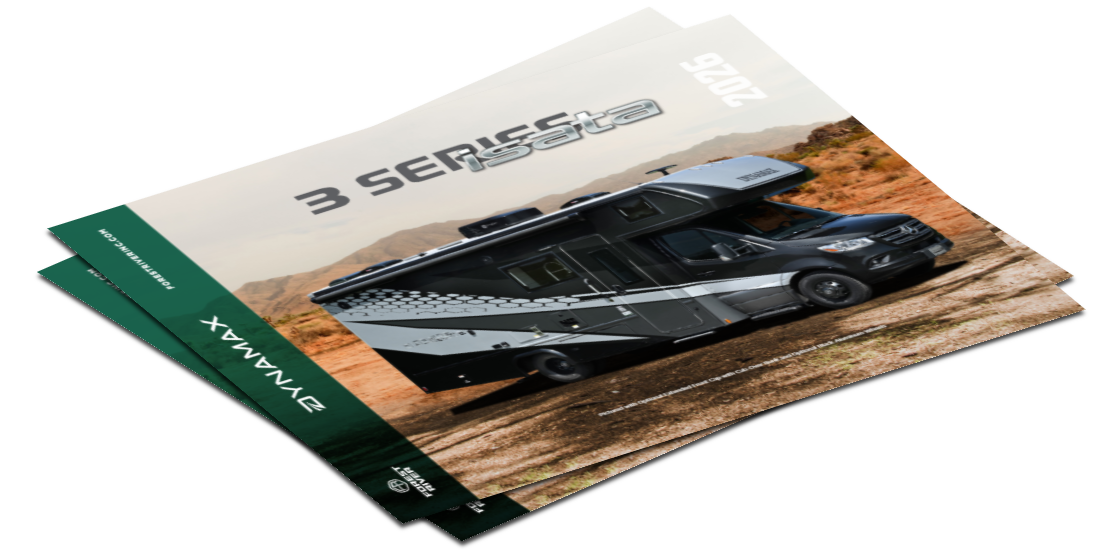

Isata 3 Brochure
Isata 3 Brochure

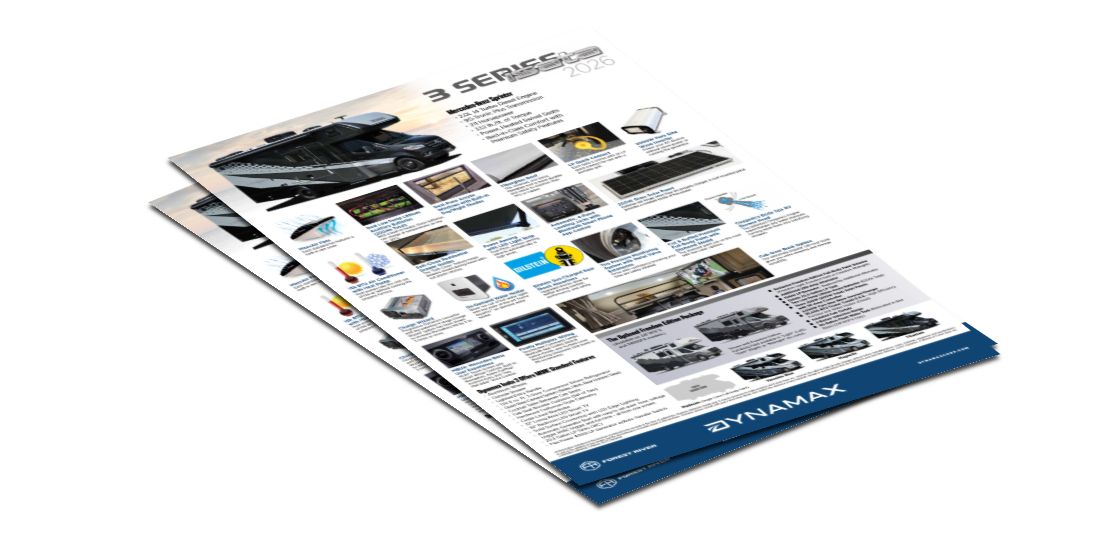

Isata 3 Poster
