Isata 5 Series Class C Motorhome

The Isata 5 Series Class C Motorhome pairs luxury living with a powerful Cummins diesel and best in class towing. You no longer have to choose who or what gets left behind. Behind the wheel of the Isata 5 Series, you'll enjoy familiar and extremely comfortable truck cab and you'll find yourself making up reasons for just one more trip.


SPECIAL FEATURES

  • 6.7L I6 Cummins Turbo Diesel
  • Multiplex® Wiring with Touch Screen Command Center, Back-Lit Switch Panels, and Bluetooth® Smart Phone App Control
  • Aluminum Truss-Structured Roof with One-Piece, Crowned Fiberglass Skin
  • Dual-Pitch, Armless Awning with Motion-Activated Retraction
  • 10,000 lb Hitch

Azdel Onboard™ RV Composite Panels Care Camps, fighting cancer and making memoriesLink opens in a new tab/window

Floorplans

Print

2022 Class C Motorhomes
* MSRP is based on a Standard Built Coach (base price plus common options), excluding tax, license, registration, freight, additional options, Dealer Prep & Fees.


Specifications

Print

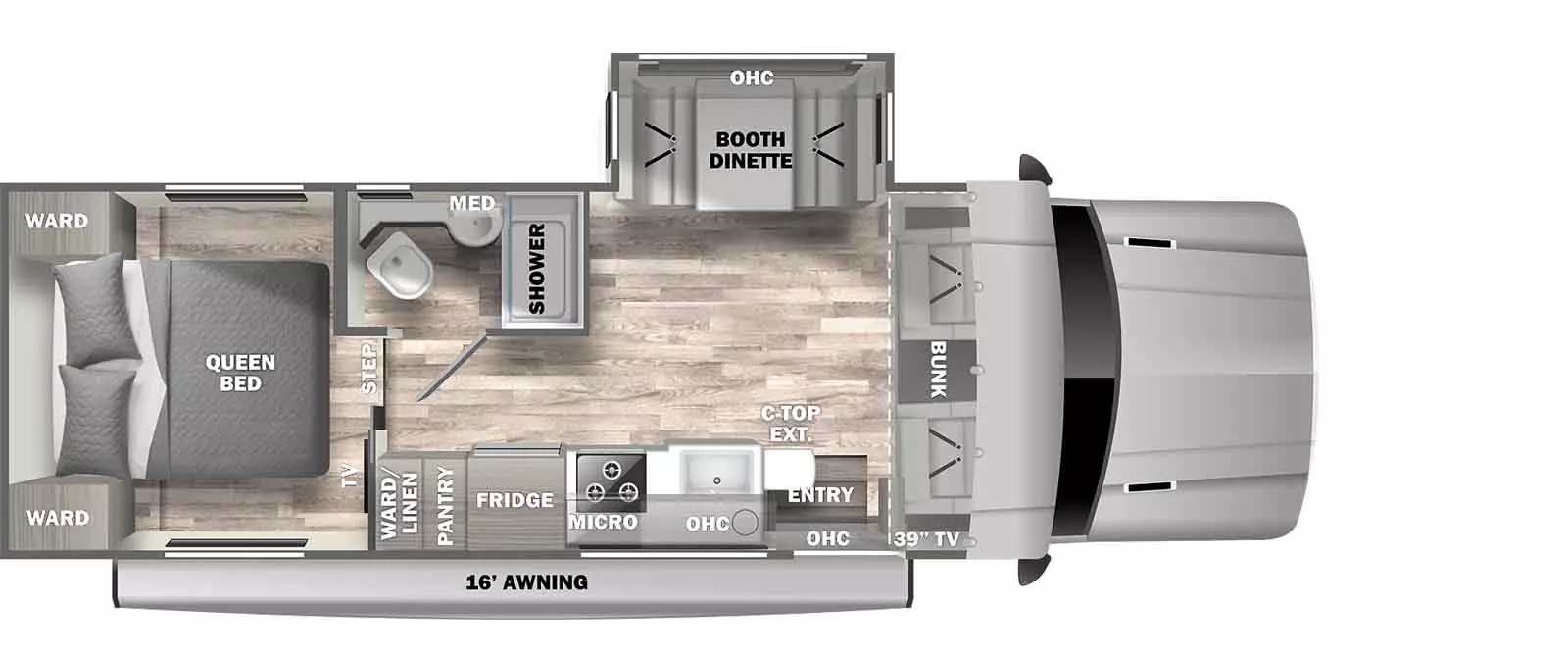

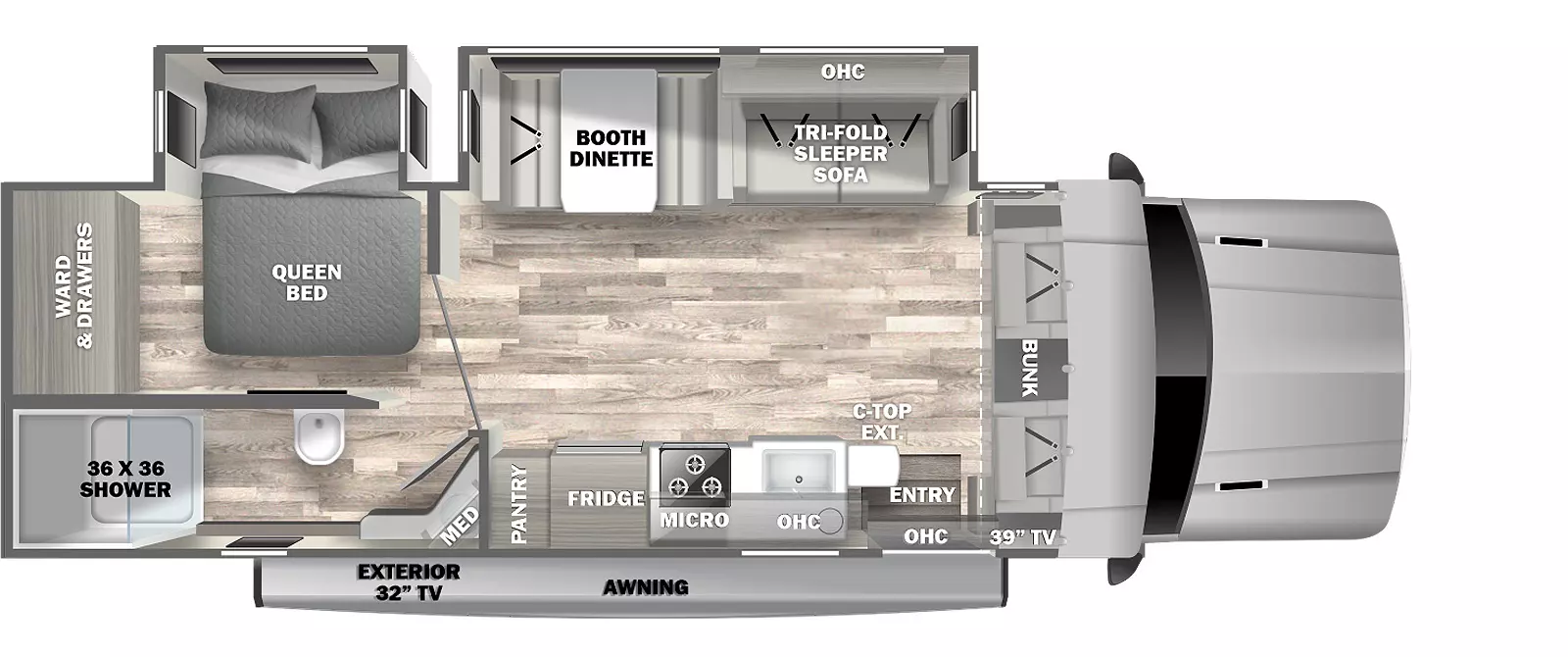

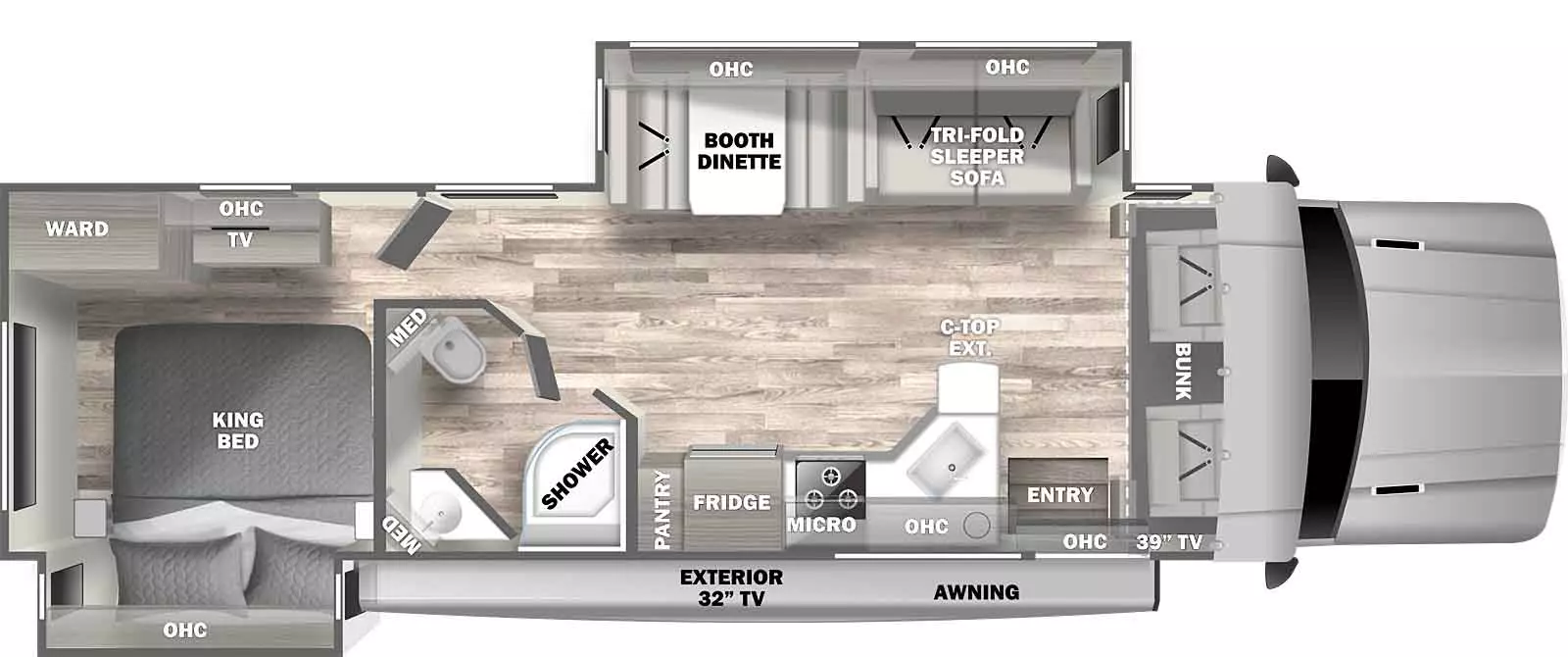

Floorplan: 28SS : 2022 Class C Motorhomes 30FW : 2022 Class C Motorhomes 34DS : 2022 Class C Motorhomes
Wheelbase:217"238"265"
GVWR:19,500 lb.19,500 lb.19,500 lb.
GCWR:37,500 lb.37,500 lb.37,500 lb.
GAWR Front:7,250 lb.7,250 lb.7,250 lb.
GAWR Rear:13,500 lb.13,500 lb.13,500 lb.
Fuel Capacity:52 gal.52 gal.52 gal.
LP Tank Capacity:86 lb.86 lb.86 lb.
Exterior Length:31' 2"32' 1"35' 11"
Exterior Height:12' 4"12' 4"12' 4"
Exterior Width:96"96"96"
Fresh Water:78.00 gal.78.00 gal.78.00 gal.
Gray Water:45.00 gal.45.00 gal.45.00 gal.
Black Water:45.00 gal.45.00 gal.45.00 gal.
Awning Size:16'16'16'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Dynamax RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Dynamax RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Ram® 5500 SLT Chassis - Factory 4-Wheel Drive
  • Cummins® 6.7L I6 Turbo Diesel Engine (360 hp / 800 lb-ft. of Torque)
  • AISIN® HD 6-Speed Automatic Transmission
  • 52-Gallon Fuel Tank
  • 9-Gallon Diesel Exhaust Fluid Tank
  • Trailer Hitch (10,000 Tow lbs. ) with 7-Way Round Tow Connection

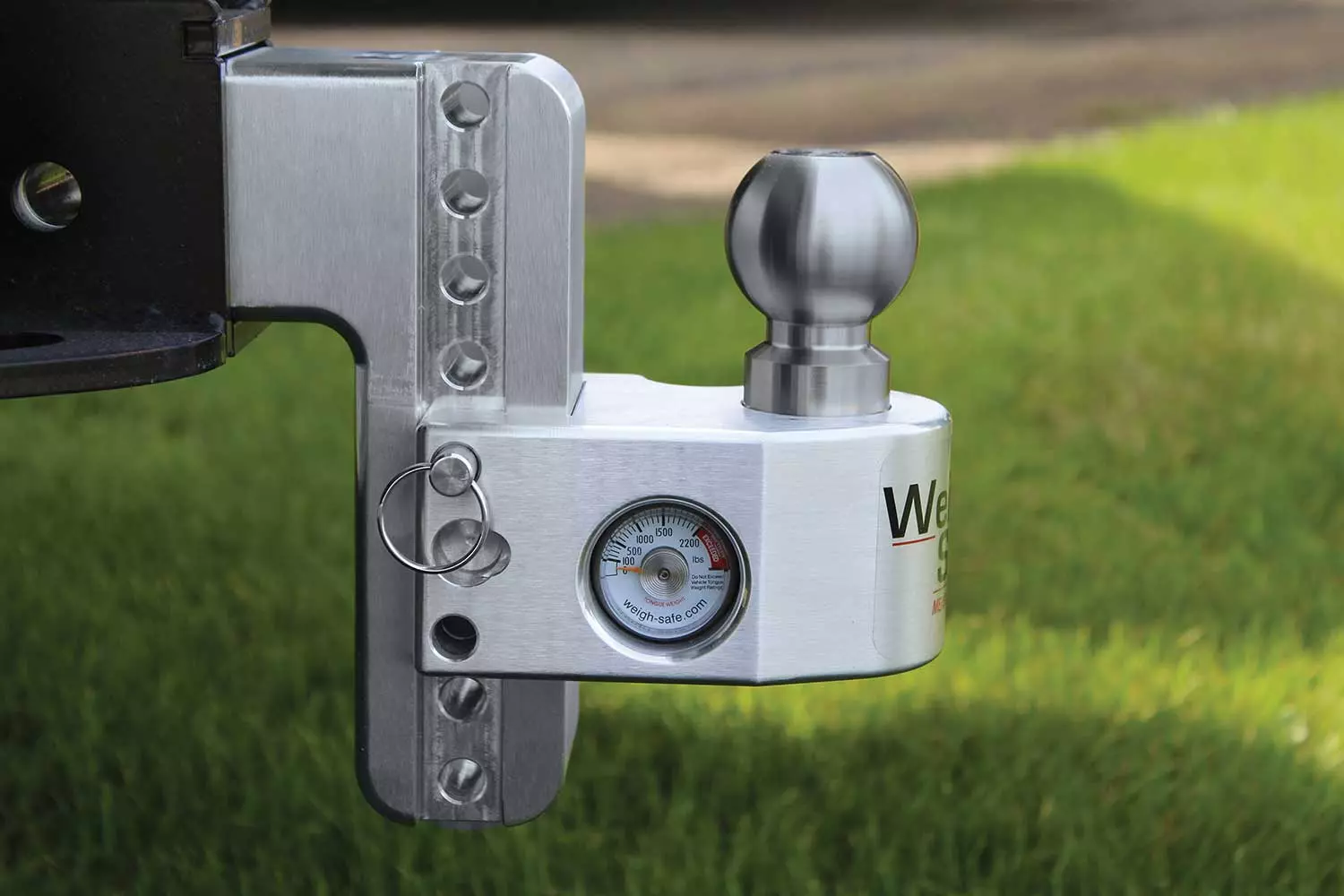

  • Weigh Safe® Trailer Hitch Receiver
  • Active Brake Assist
  • Adaptive Cruise Control
  • Ram® OEM Trailer Brake Control
  • Cummins® Smart Exhaust Brake System
  • Ram® ESC Suspension and Stability Package
  • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
  • Tire Pressuring Monitoring System
  • Dual 12V Chassis Batteries
  • Dual 220-Amp Alternators (440 Total Amps)
  • 4-Wheel ABS
  • B-20 Bio Diesel Capability
  • Ram® 50KSI Chassis Construction
  • Engine Block Heater
  • Aluminum Running Boards
  • Front and Rear Tires: 225/70R19.5G (All Position Front and Rear Traction)
  • Single Front Wheels: Aluminum (19.5" x 6.0") *Outside Rims are Polished
  • Dual Rear Wheels: Aluminum (19.5" x 6.0") *Outside Rims are Polished
  • 4.88 Rear Axle Ratio
  • Daytime Running Lights
  • Leatherette Reclining Driver and Passenger Seats with Armrest
  • Power Driver Seat
  • Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
  • 12V and USB Accessory Ports
  • Temperature/Compass Gauge with Traveler/Mini-Trip Computer
  • 8.4" Touch Screen Dash Radio with U-Connect®, Hands-Free Voice Command with Bluetooth®, Sirius/XM® Radio-Ready, Media Hub (SD, USB, AUX), Apple CarPlay®, Android Auto®, and Six (6) Speakers
  • Adjustable Steering Column
  • Power and Heated Exterior Mirrors with Courtesy Lamps and Turn Signals
  • Power Windows and Locks
  • 3-Point Seat Belts
  • Front Safety Airbags
  • Drink Holders
  • 2" Aluminum-Framed, Laminated Sidewalls with Dow® Block Foam Insulation
  • Gel-Coat Fiberglass Walls with Azdel® Backing
  • Aluminum-Framed Floor
  • Composite Flooring Substrate (Lightweight & Moisture Resistant)
  • Aluminum-Framed Roof Trusses
  • Crowned, One-Piece Fiberglass Roof
  • Foil-Lined Ductwork Throughout
  • Fiberglass Front Cap and Front Wing Panels
  • Rear Bumper
  • Automatic, 4-Point Hydraulic Leveling Jacks
  • Dark-Tinted, Frameless Windows
  • Seamless Rotocast Storage Compartments with LED Lighting
  • Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
  • Electric Slide System
  • Custom Full Body Paint Package
  • Premium Cut and Buffed Paint Finish
  • Front-End Diamond Shield® Paint Protection
  • Dual-Pitch, Armless Patio Awning with LED Lighting and Motion-Activated Retraction
  • Slideout Toppers
  • LED Patio Light
  • Power Entry Steps
  • Entry Door with Rotary Latch Dark-Tinted, Frameless Window and Integrated Shade
  • Keyless Entry Touch Pad at Entry Door
  • Lighted Acrylic Entry Grab Handle
  • Exterior Wall-Mounted Entertainment Center with
  • 32” Smart LED TV (N/A - 28SS)
  • Exterior TV Mount (28SS Only)
  • Front and Rear LED Clearance and Marker Lighting
  • Rear LED Docking Lights
  • Rear “DYNAMAX” Rock Guard
  • Front Cab-Over Bunk Area with Mattress (50"x80") and Privacy Curtain
  • Premium Vinyl Flooring Throughout
  • Deluxe Carpet with Pad in Living Area Slide Room(s)
  • Soft-Touch Padded Vinyl Ceiling
  • LED Recessed Ceiling Lights
  • Sprung, Residential Style Dinette Seats with Lift Up Storage
  • Tri-Fold Sofa (30FW, 34DS)
  • Coordinating Window Treatments
  • Blackout Roller Shades
  • Hardwood Shaker-Style Cabinetry
  • Full Extension, Soft-Closing Drawer Guides (where applicable)
  • Hidden Hinges
  • 39" Smart LED TV (Living Area)
  • Sound Bar (Living Area)
  • Entry with Non-Skid Rubber Steps and Risers
  • Thermal, Reflective Front Privacy Shades
  • USB Charging Ports
  • Gas Range with Glass Cover
  • Convection Microwave Oven
  • 16 cu. ft. Residential Refrigerator with Ice Maker (Double-Door and Stainless Steel) (N/A - 28SS)
  • 10 cu. ft. 2-Way Refrigerator (28SS Only)
  • Solid Surface Countertops with LED Lighting and Backsplash
  • Stainless Steel Double-Bowl Sink with Solid Surface Covers
  • Residential Stainless Steel Spring Gooseneck Faucet
  • Pantry (Floor Plan Specific)
  • Under-Cabinet Lighting
  • Kitchen Trash Can
  • MaxxAir® Power Vent with Built-In Rain Cover
  • King Bed (72"x75") with Gel-Infused Memory Foam Mattress (34DS)
  • Queen Bed (60"x75") with Gel-Infused Memory Foam Mattress (30FW & 28SS)
  • Deluxe Padded Headboard (28SS & 34DS)
  • Designer Bedding Package
  • 32” LED Smart TV
  • Cedar-Lined Wardrobe
  • LED Reading Lights
  • USB Charging Ports
  • Designer Shower with Skylight
  • Oxygenics Body Spa® RV Shower Head
  • Stainless Steel Sink with Residential Faucet
  • Porcelain Electronic-Flush Macerator Toilet (N/A – 30FW)
  • Porcelain Foot-Flush Toilet (30FW)
  • MaxxAir® Power Vent with Built-In Rain Cover
  • Dual 12V Group 27 AGM Deep-Cycle, Maintenance-Free Batteries
  • Firefly Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
  • Battery Disconnect
  • 50-Amp Service
  • 3,000W Hybrid Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
  • 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
  • Automatic Generator Start
  • Solar Panels - Two 100 Watt with 30 Amp Controller
  • Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pump
  • 42,000-BTU LP Furnace with Electronic Ignition
  • 60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
  • 20.3-Gallon LP Tank (WC)
  • LP Quick Connect
  • Water Filtration System
  • Exterior Shower in Service Bay
  • Exterior GFCI Receptacle
  • Winegard® AIR 360+™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
  • 4x4 HDMI Matrix
  • Cable TV/Satellite Hookup in Service Bay
  • Black Tank Flush
  • Furnace-Heated Utility Compartment
  • Enclosed and Furnace-Heated Holding Tanks
  • Upgraded 12V On-Demand Water Pump (4 gallons per minute)
  • Carbon-Monoxide, LP, and Smoke Detectors
  • Fire Extinguisher
  • 2-Stage Front Air Suspension (Self-Leveling)
  • 10 cu ft. 2-Way Refrigerator in place of Standard Refrigerator (30FW, 34DS)
  • Dual, Power Reclining Theater Seats in place of Dinette (28SS Only)
  • Dual, Power Reclining Theater Seats in place of Sofa (30FW, 34DS)
  • Tri-fold Sofa with Pedestal Table in Place of Dinette (28SS Only)
  • Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
  • Innomax® Adjustable Comfort, Digital Smart Bed (28SS Only)
  • Low-Temp Lithium (200aH) in place of AGM Batteries
  • Xplorer Package - includes Dual-Pane, Dark-Tinted Frameless Windows, Insulated Cab Curtain, Four Lithium House Batteries (400aH Total), 800W Solar Package, and Insulated Utility Bay with Secondary Tank Heater and Temperature Sensor (N/A 34DS)


INTERIOR AND EXTERIOR Gallery



MODELS THAT HAVE INDIVIDUAL GALLERIES



Virtual Tours

  • 28SS

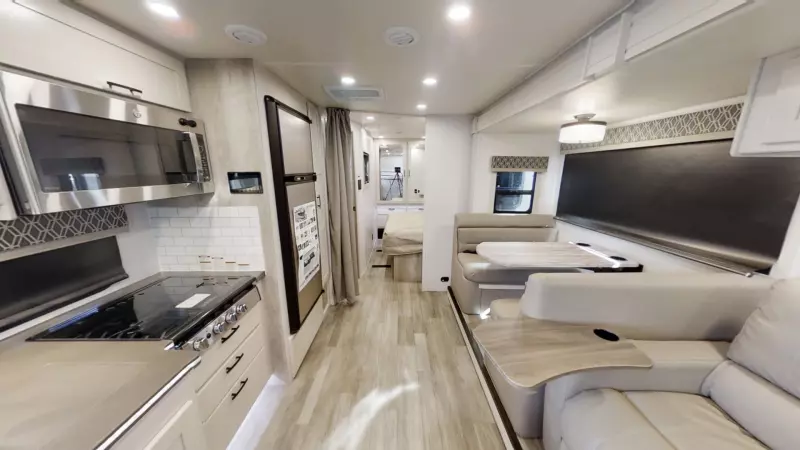

    28SS Main Room
  • 30FW

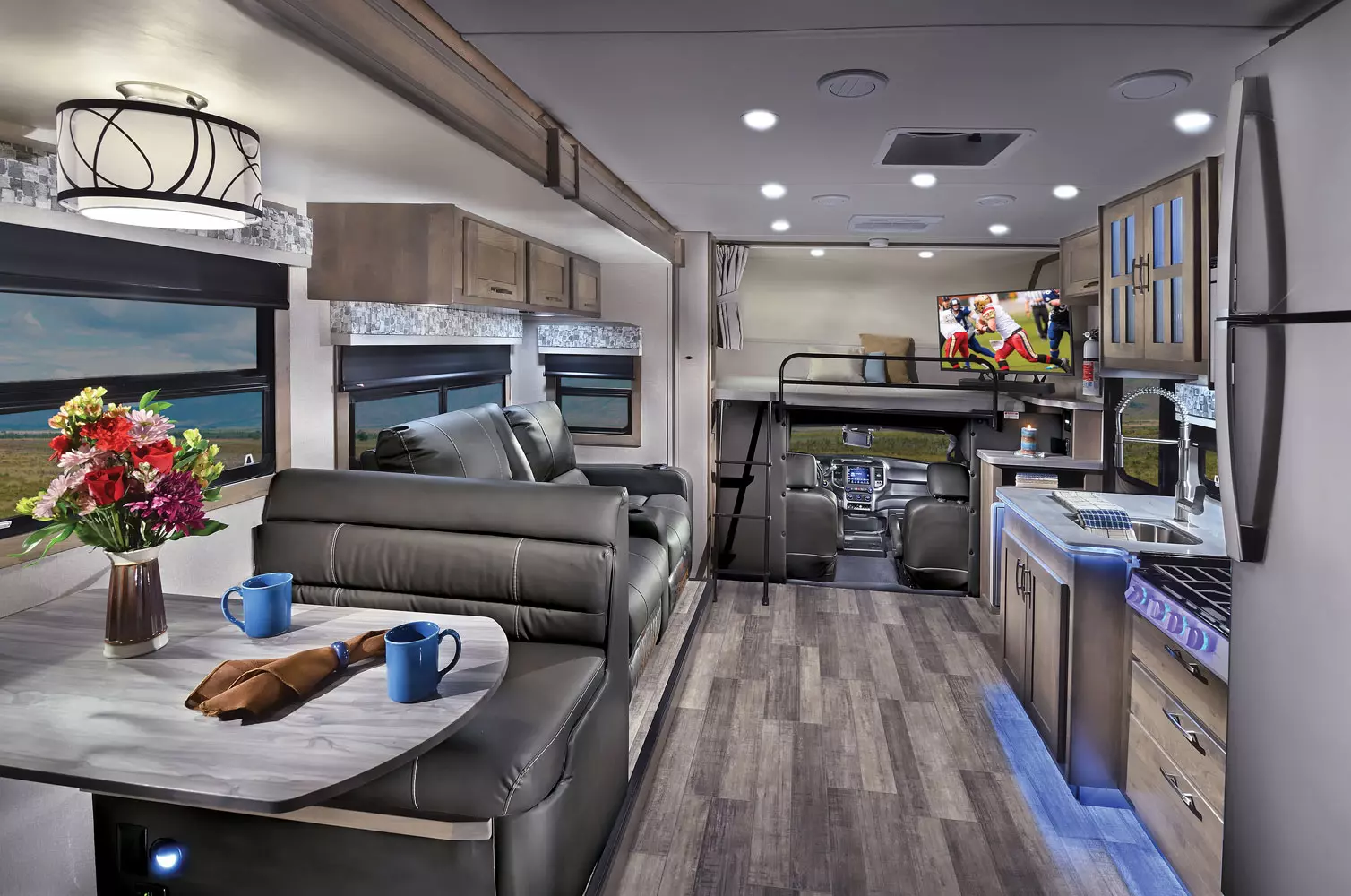

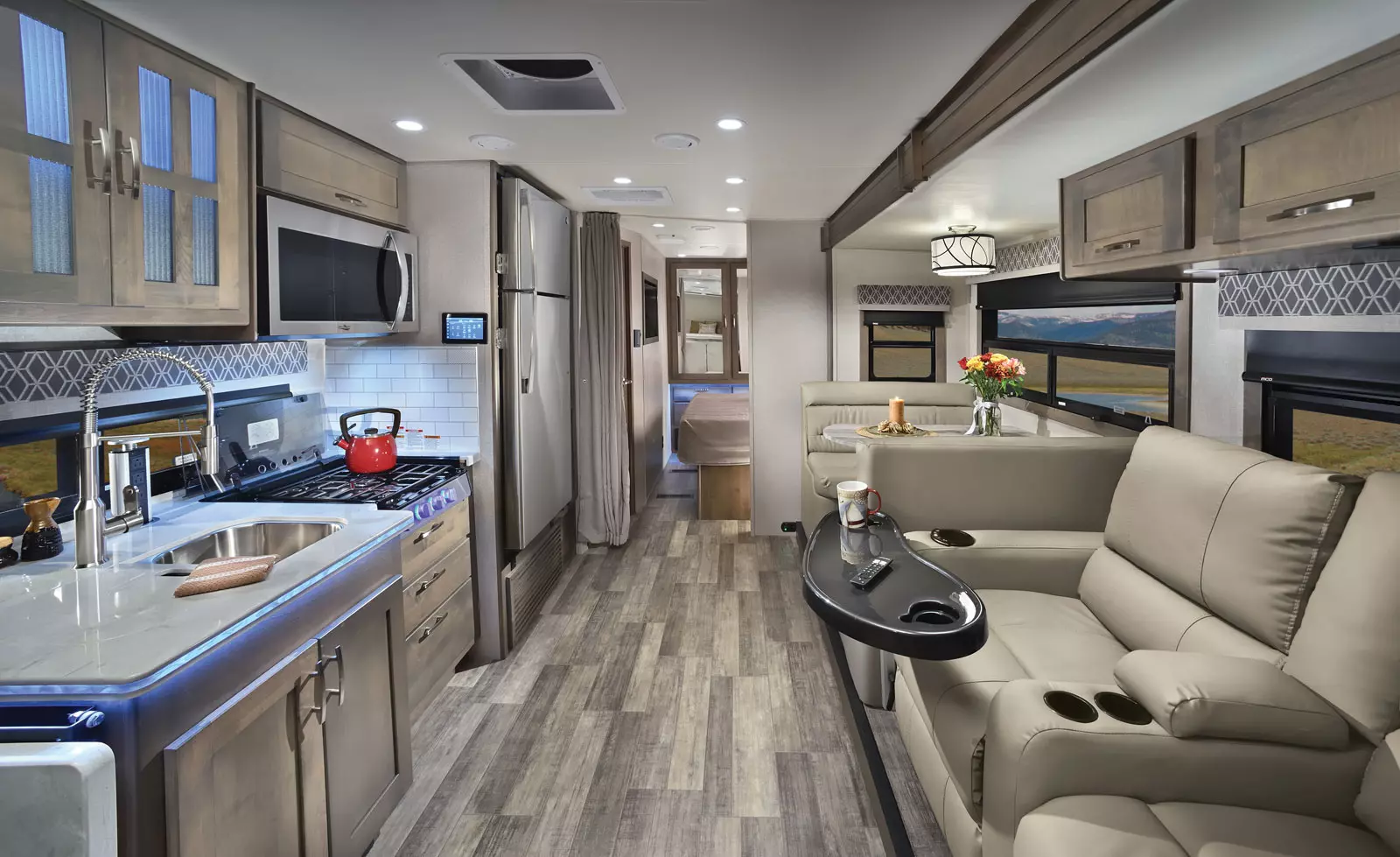

    30FW Main Room
