DX3 32KD

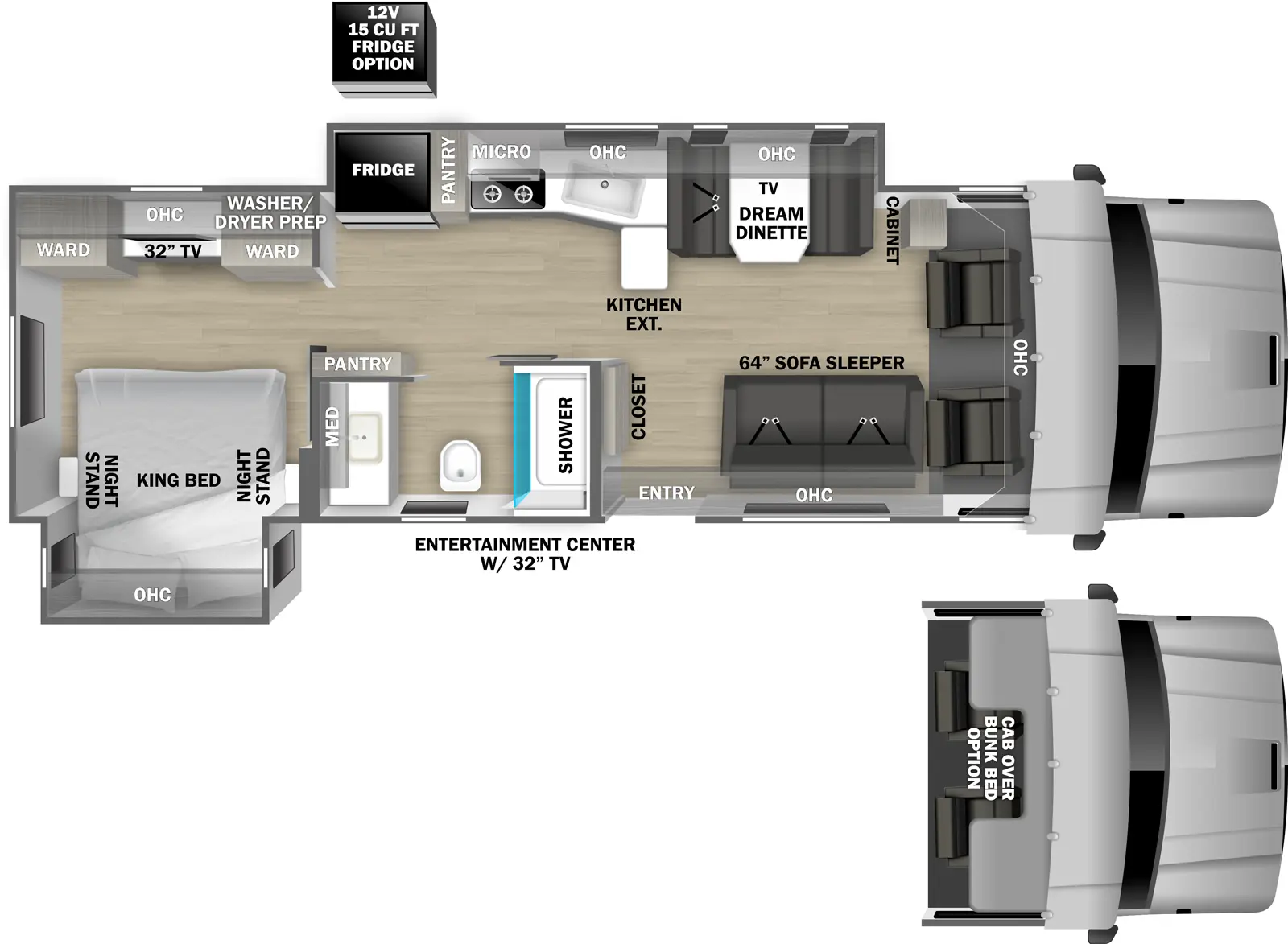

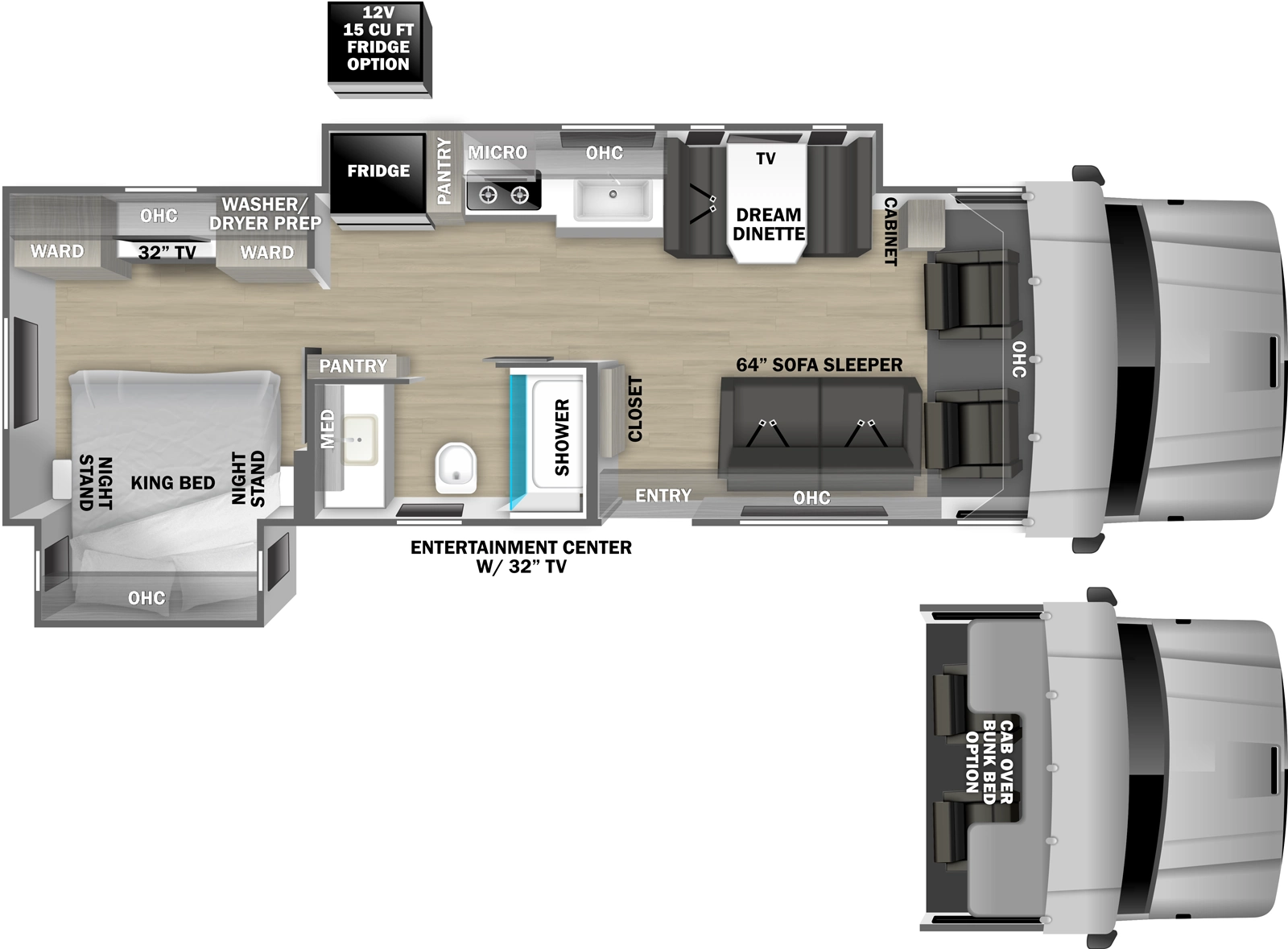

32KD Floorplan DX3 Motorhome Features & Options
-
- Freightliner M2 106 PLUS Chassis (33,000-lbs. GVWR / 54,000-lbs. GCWR)
- Cummins L9 Turbo Diesel Engine (360hp / 1,150 lb-ft. of Torque)
- Allison 3200 TRV Six-Speed Automatic Transmission
- 4.78 Rear Axle Ratio
- Trailer Hitch (20,000 Tow lbs. / 2,000 Tongue lbs.) with 7-Way Round Tow Connection
- 100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks) with Equiflo Inboard Fuel System
- 6-Gallon Diesel Exhaust Fluid Tank
- 275-Amp Alternator
- Air Brakes with 4-Wheel ABS
- Fuel Filter/Water Separator with Primer Pump
- C-Brake by Jacobs with High/Medium/Low Settings
- Brake Controller
- Airliner 21,000-lb. Rear Air Suspension
- Manual Air Suspension Dump Valve Switch on the Dash
- Bilstein Gas-Charged Front Shock Absorbers
- Front Sway Bar
- Rear Locking Differential
- Cruise Control
- Steel-Reinforced, Aluminum Cab
- Chrome Grille
- LED Headlights
- Fog Lights
- Daytime Running Lights
- Tinted Door Glass and Wing Windows
- Front and Rear Tires: 275/80R22.5 (14 Ply Radials)
- Single Front Wheels: Alcoa Aluminum (22.5" x 8.25") *Outside Rims are Polished
- Dual Rear Wheels: Alcoa Aluminum (22.5" x 8.25") *Outside Rims are Polished
- Valve Extensions
- Tire Pressure Monitoring System
- Quick Disconnect Fitting with Tire Inflation Kit
- Engine Block Heater

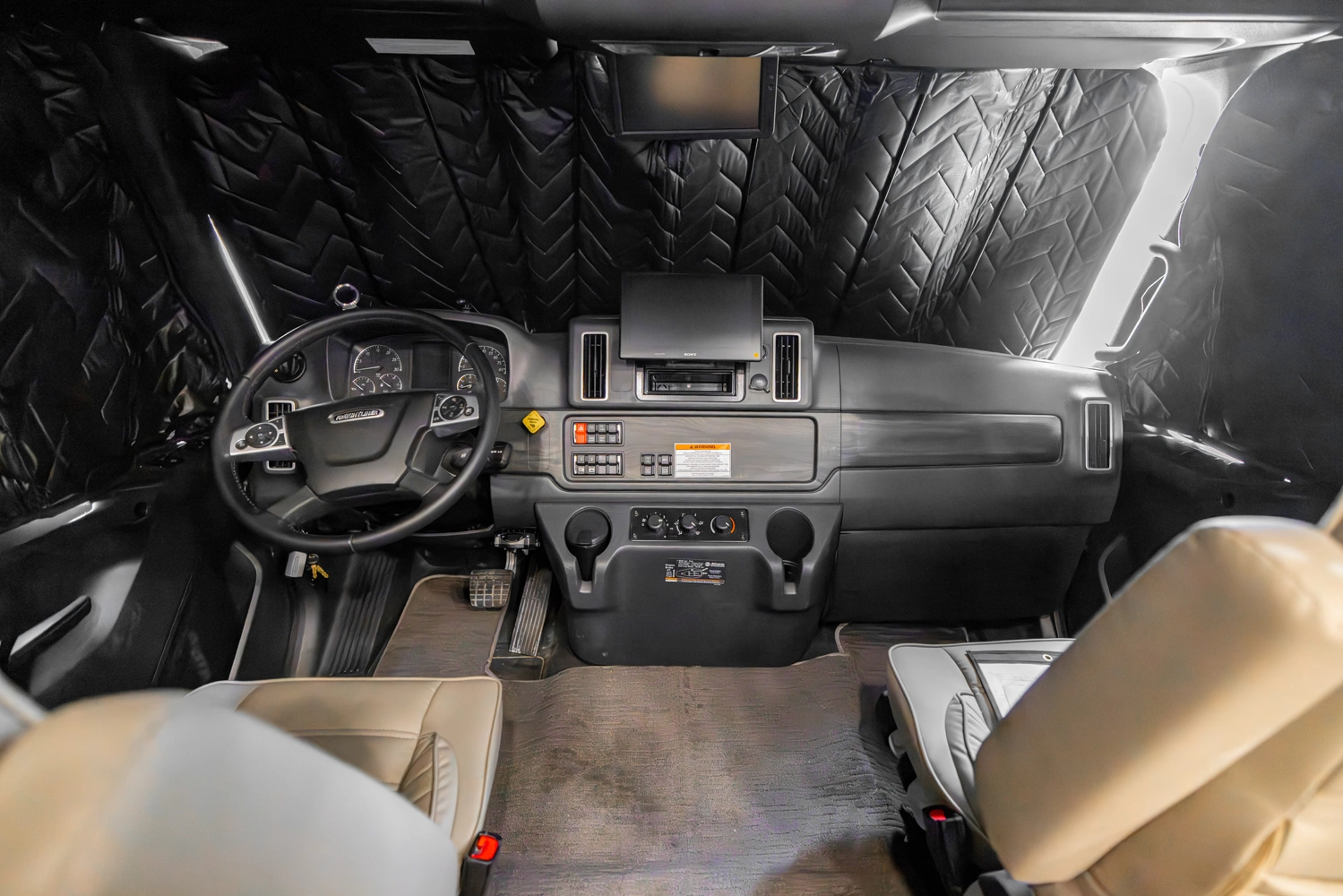

- Leatherette Driver and Passenger Air Ride Seats with Air Lumbar Controls
- Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
- Mobileye Collision Avoidance System
- Sony 10.1" HD Touch Screen Dash Infotainment System with AM/FM, Bluetooth, Sirius/XM (tuner and antenna), Wired and Wireless Apple CarPlay / Android Auto Connectivity, USB-C Port, and High-Resolution Audio
- JBL Premium Cab Sound System JBL full range/tweeter coaxial speakers, dual voice coil subwoofer, and a high-efficiency, high-performing, 4-channel DSP amplifier, all "Tuned" specifically for the Freightliner M2
- 12V Accessory Ports
- Chassis Battery Shut Off Switch in Cab
- Air Horn
- One Valve Parking Brake System with Warning Indicator
- Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
- Momentary Battery Booster Switch for Connecting Chassis and House Batteries
- Marker Lights with Separate Interrupter Switch
- Low Air Pressure Light and Buzzer
- Adjustable Steering Column
- 18" Leather-Wrapped Steering Wheel
- Power and Heated Exterior Mirrors
- Power Windows and Locks
- 3-Point Seat Belts
-
- 2" Aluminum-Framed, Laminated Sidewalls with High-Density Block Foam Insulation
- Composite Exterior Fiberglass (No Exterior Wood)
- Aluminum-Framed Floor
- Aluminum-Framed Roof Trusses
- Crowned, One-Piece Fiberglass Roof
- Foil-Lined Ductwork Throughout
- Fiberglass Rear Cap and Front Wing Panels
- Automatic, 4-Point Hydraulic Leveling Jacks
- Dual-Pane, Dark-Tinted, Frameless Square Windows with Built-In Night Shades & Screens
- Seamless Rotocast Storage Compartments with LED Lighting
- Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
-
- Custom full Body Paint Package with Scheme-Matching Cab Door Jambs
- Premium Cut and Buffed Paint Finish
- Front-End Diamond Shield Paint Protection
- Roof-Mounted, Integrated Armless Patio Awning with LED Lighting and Wind Sensor
- Aluminum-Wrapped Slideout Toppers
- LED Patio Light
- Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
- Keyless Entry Touch Pad at Entry Door
- Remote Locking System for Exterior Storage Doors & Entry Door
- Lighted Acrylic Entry Grab Handle
- Power Entry Steps with Upgraded SeaDek Step Treads
- Exterior Wall-Mounted Entertainment Center with 40" LED Smart TV with Integrated JBL Sound Bar on Swivel Extension Mount
- Front and Rear LED Clearance and Marker Lighting
- Rear LED Docking Lights
- Rear “DYNAMAX” Rock Guard
- Polished Stainless Steel Cab Step Treads
- Chrome Exhaust Tip
-

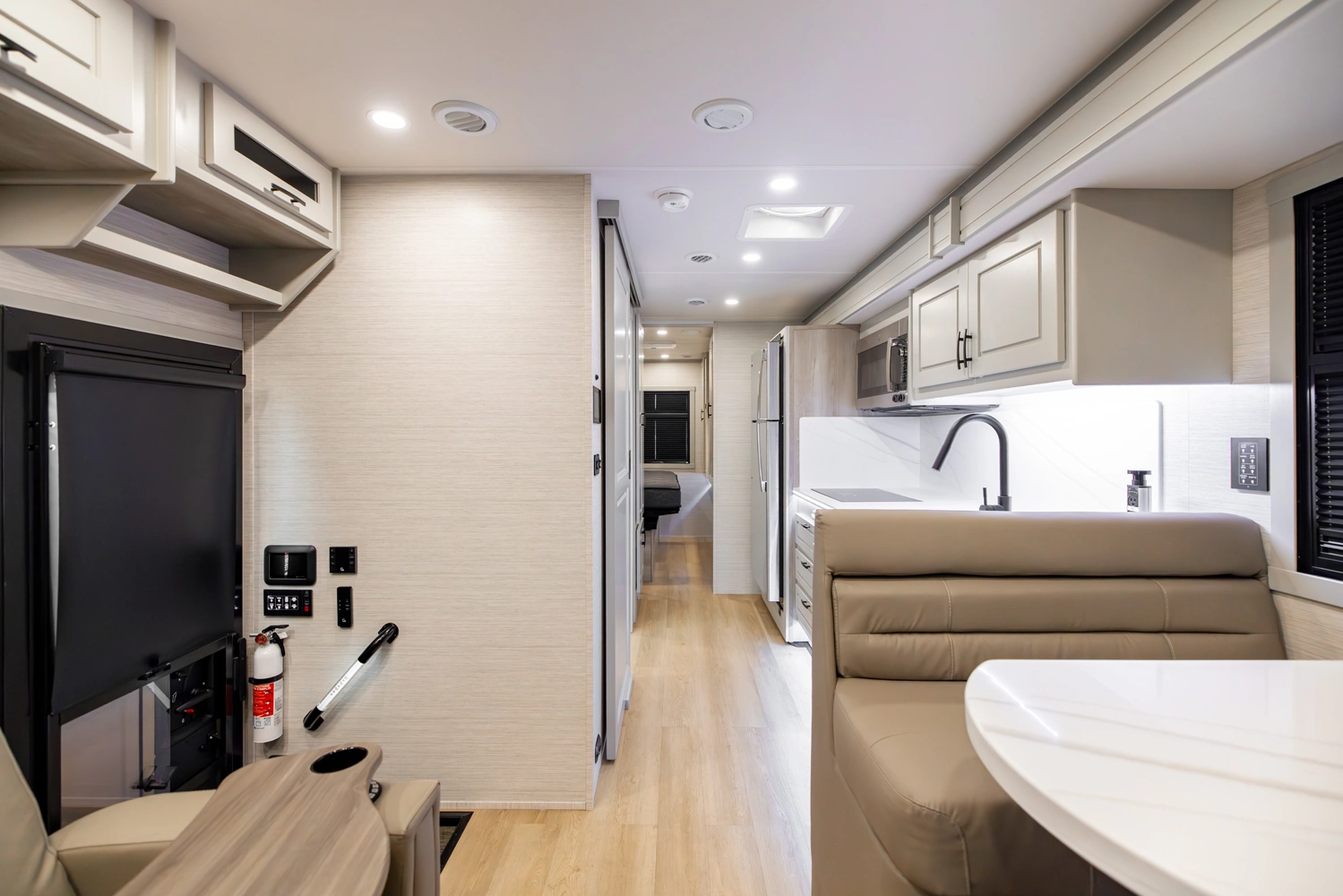

- Luxury Vinyl Tile Throughout
- Soft-Touch Padded Vinyl Ceiling
- Luxury Vinyl Tile Entry
- Dimmable LED Recessed Ceiling Lights

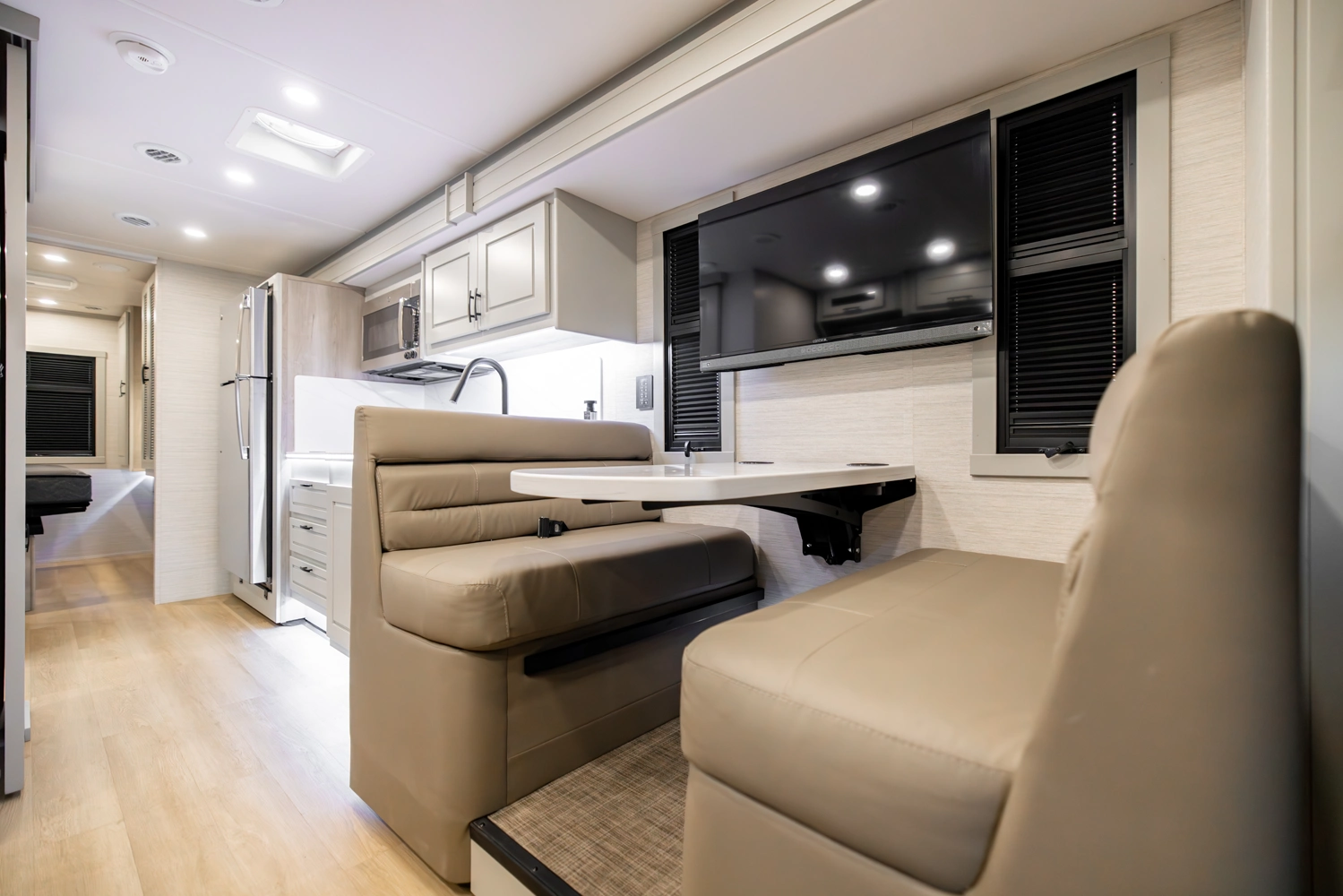

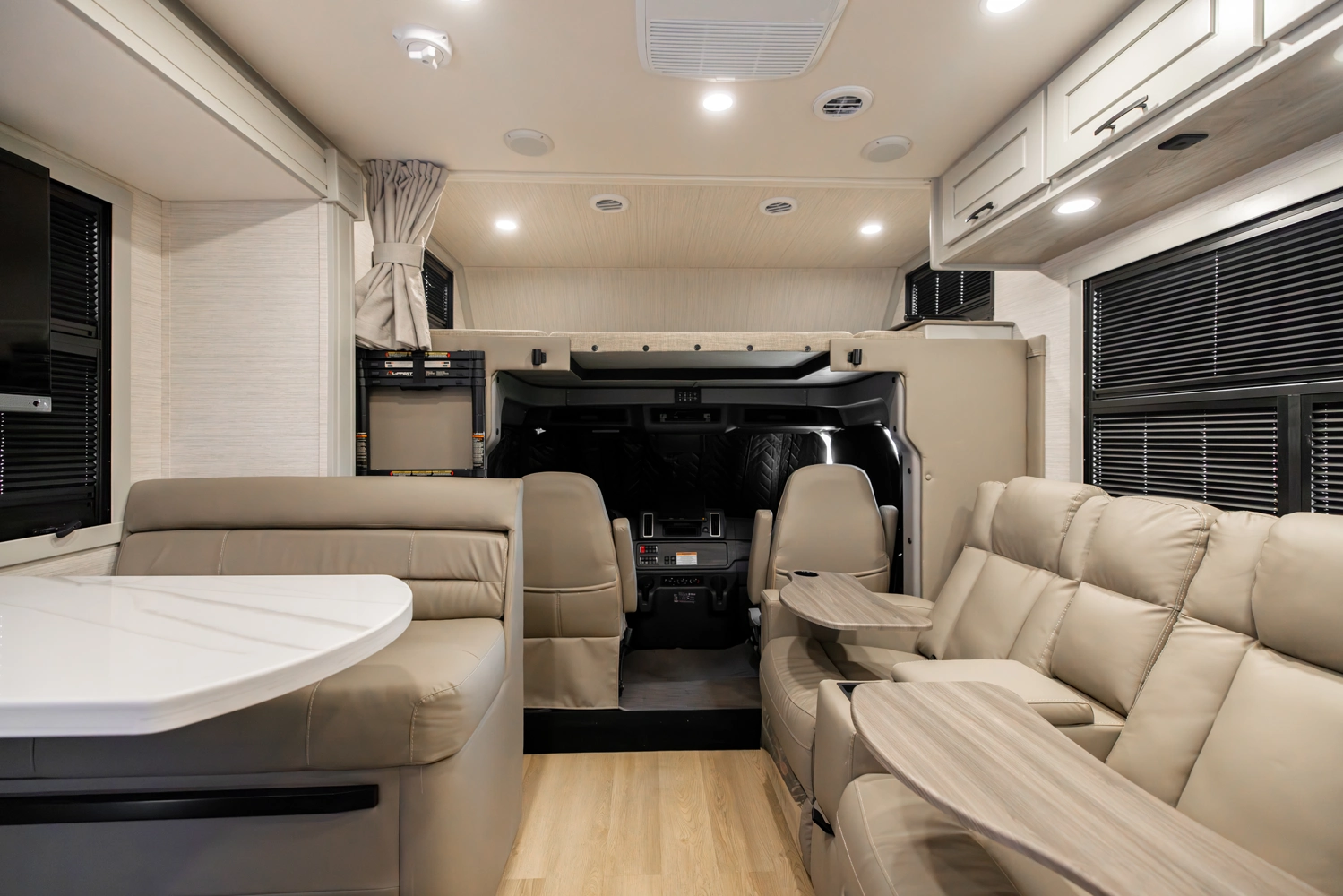

- Sprung, Residential Style Dinette Seats with Lift Up Storage
- Tri-Fold Sofa
- Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
- Hardwood Shaker-Style Passage Doors
- Full Extension, Soft-Closing Drawer Guides (where applicable)
- Hidden Hinges
- 42" LED Smart TV (Living Area) (N/A 37BD & 37TS)
- JBL Sound Bar
- Magnetic Thermal, Reflective Front Privacy Shades
- USB/USB-C Charging Ports
-

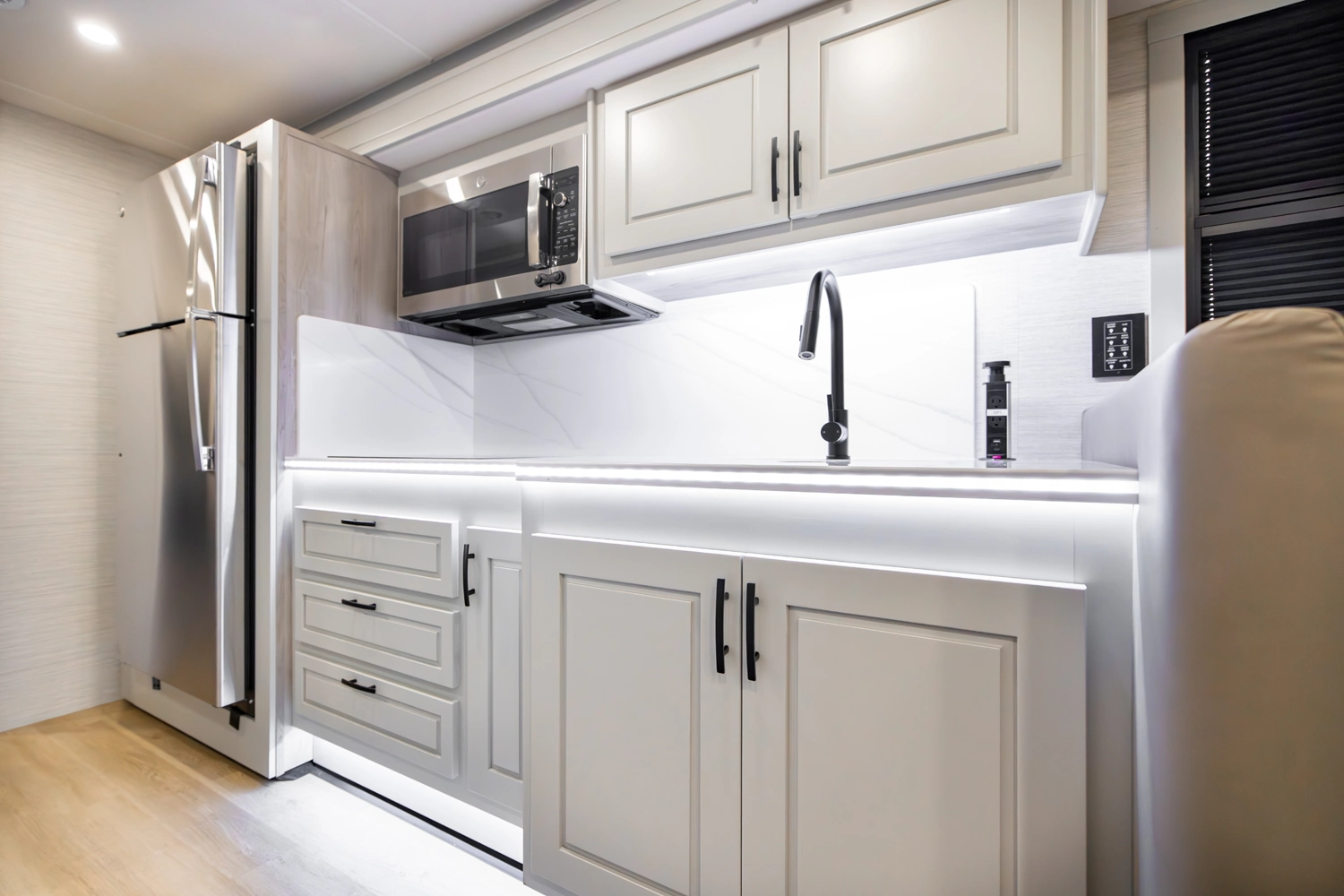

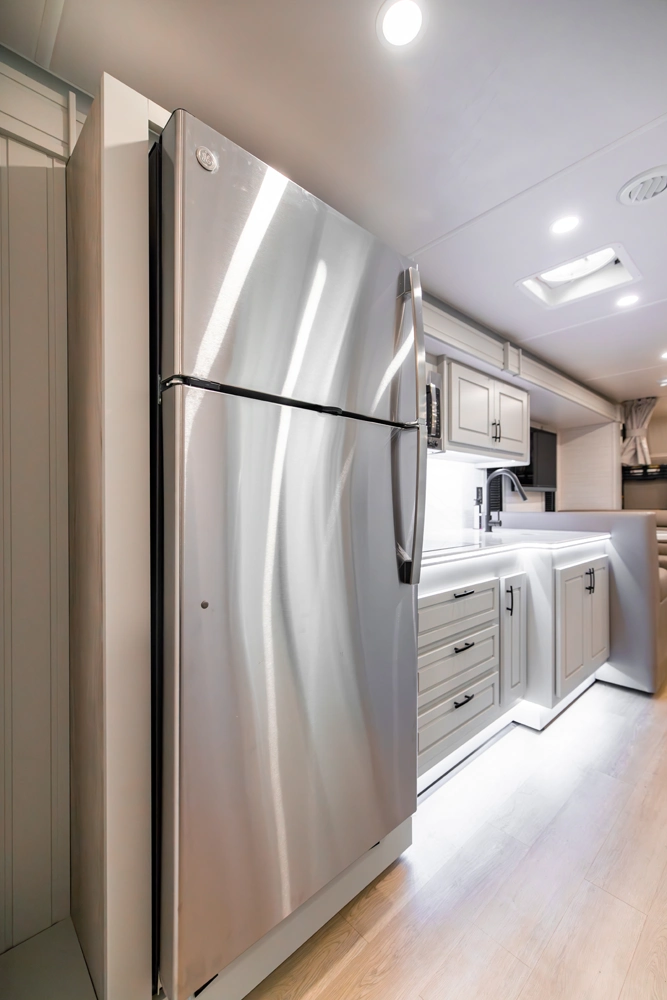

- 16 cu. ft. Residential Refrigerator with Ice Maker (32KD Only)
- Sealed Gas range with Glass Cover

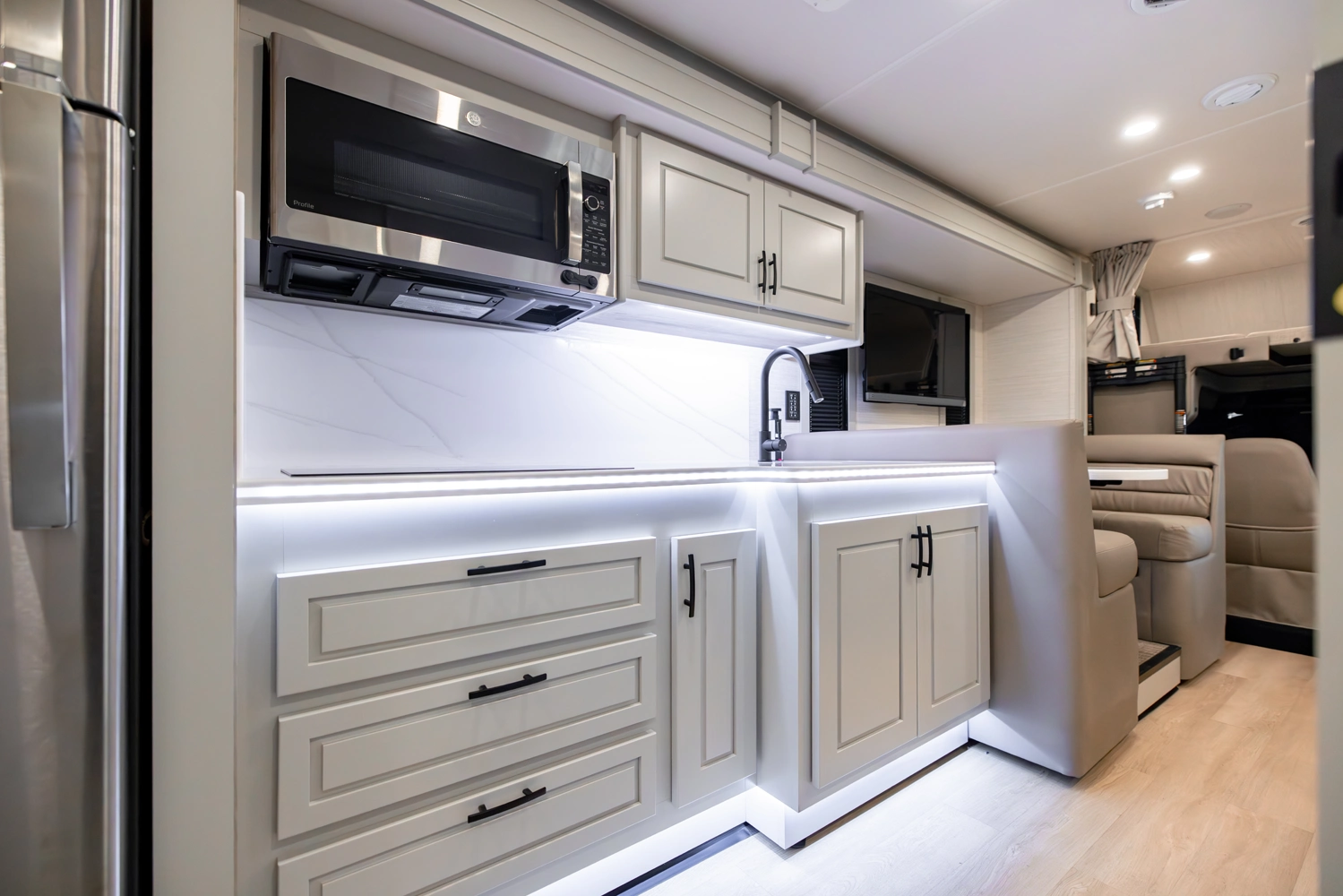

- Convection Microwave Oven with Air Fryer Functionality
- Solid Surface Countertops with LED Edge Lighting and Solid Surface Backsplash
- Stainless Steel Sink with Solid Surface Covers
- Residential Stainless Steel Spring Gooseneck Faucet
- Pantry

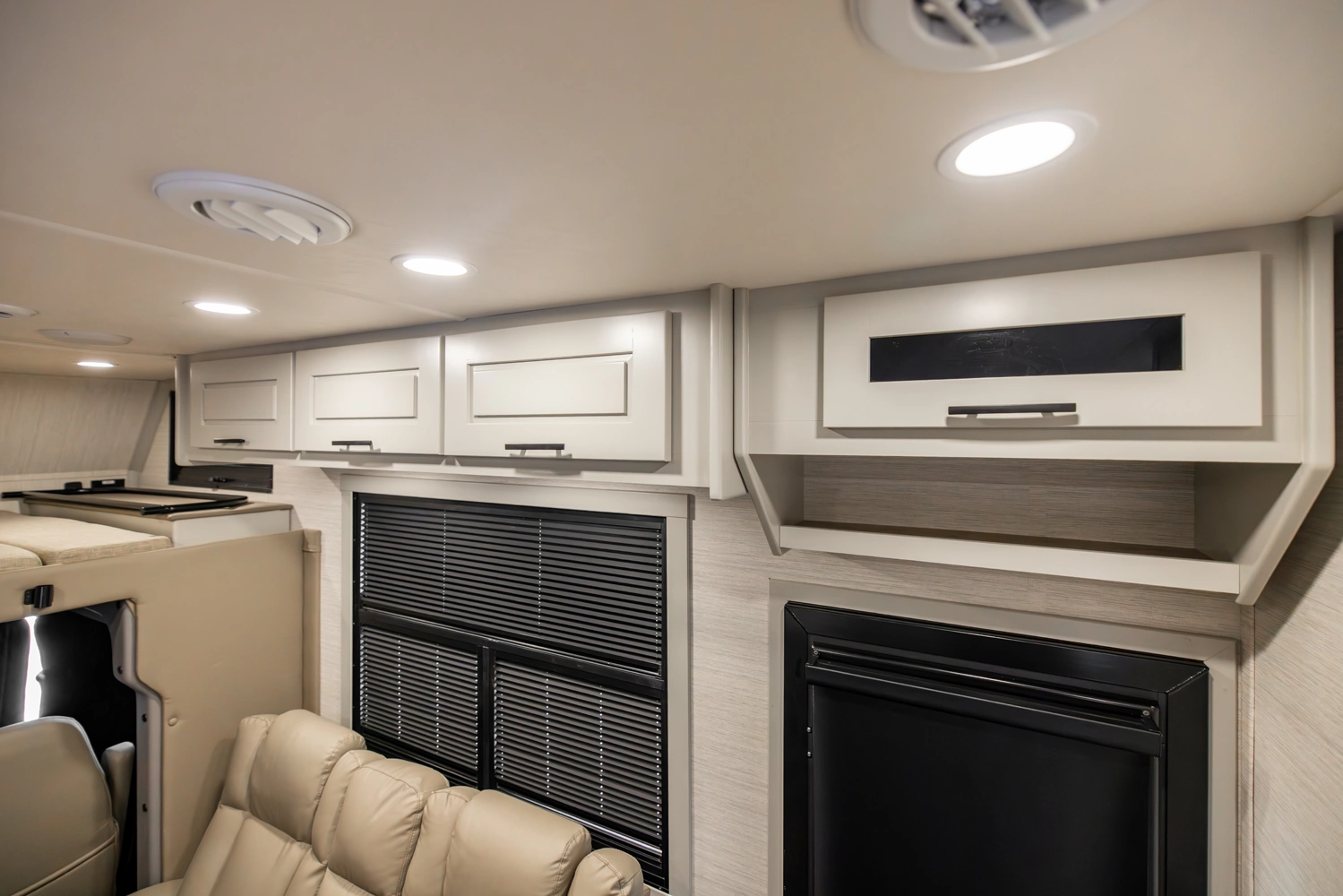

- Overhead Cabinet Accent Lighting
- Under-Cabinet Lighting
- MaxxAir Power Vent with Built-in Rain Cover
-

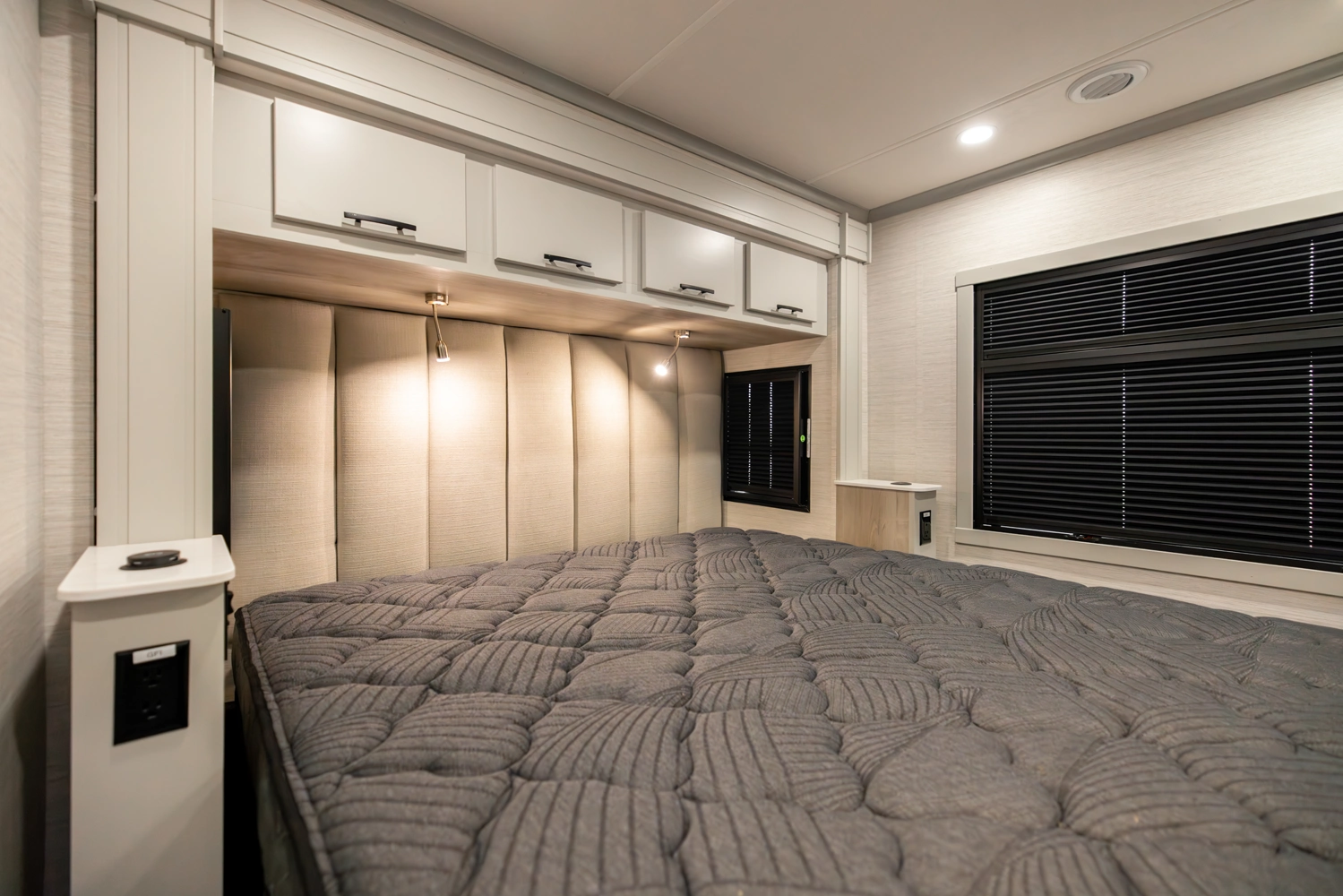

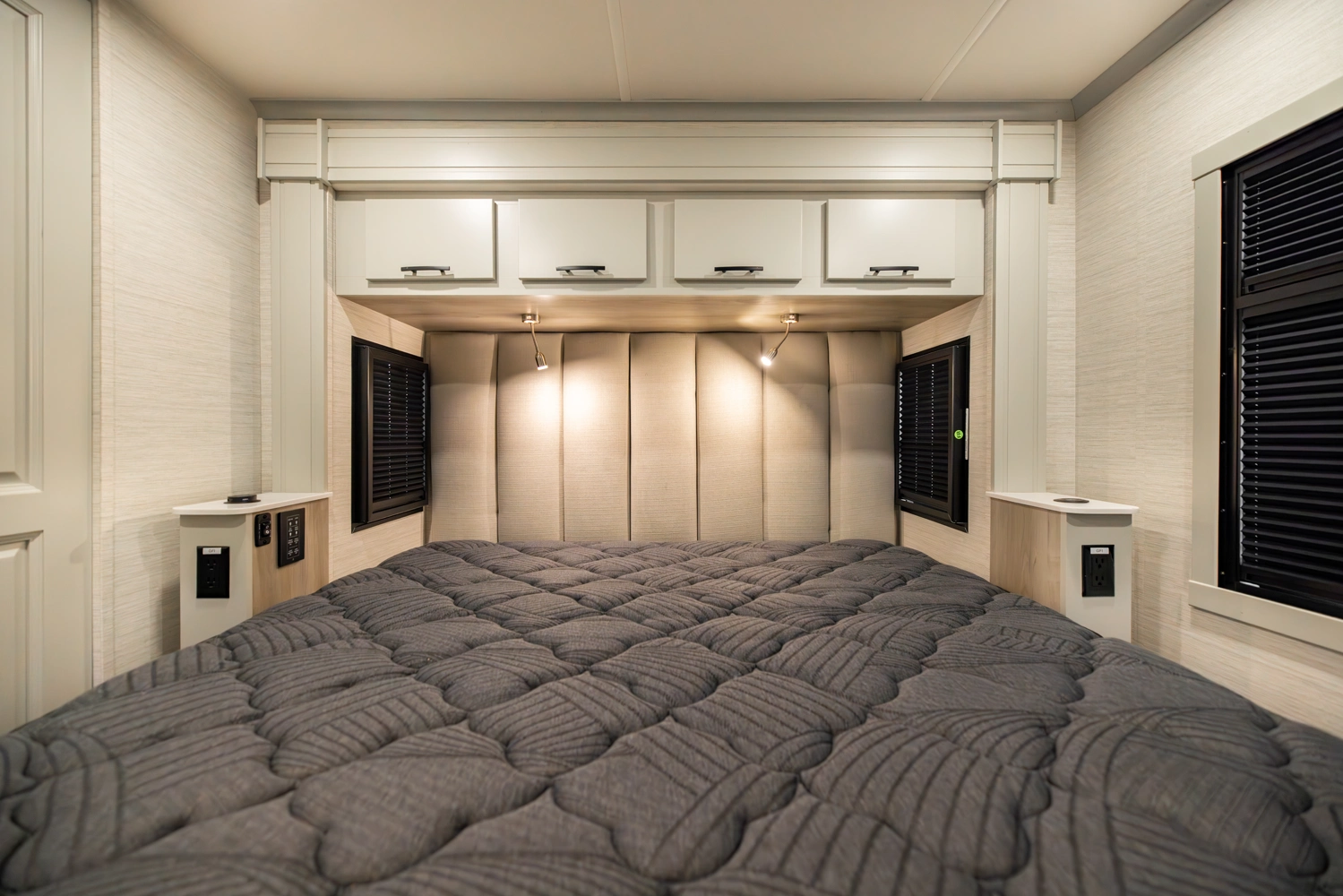

- King Bed (71"x78") with Gel-Infused Memory Foam Mattress
- Deluxe Padded Headboard
- Designer Bedding Package

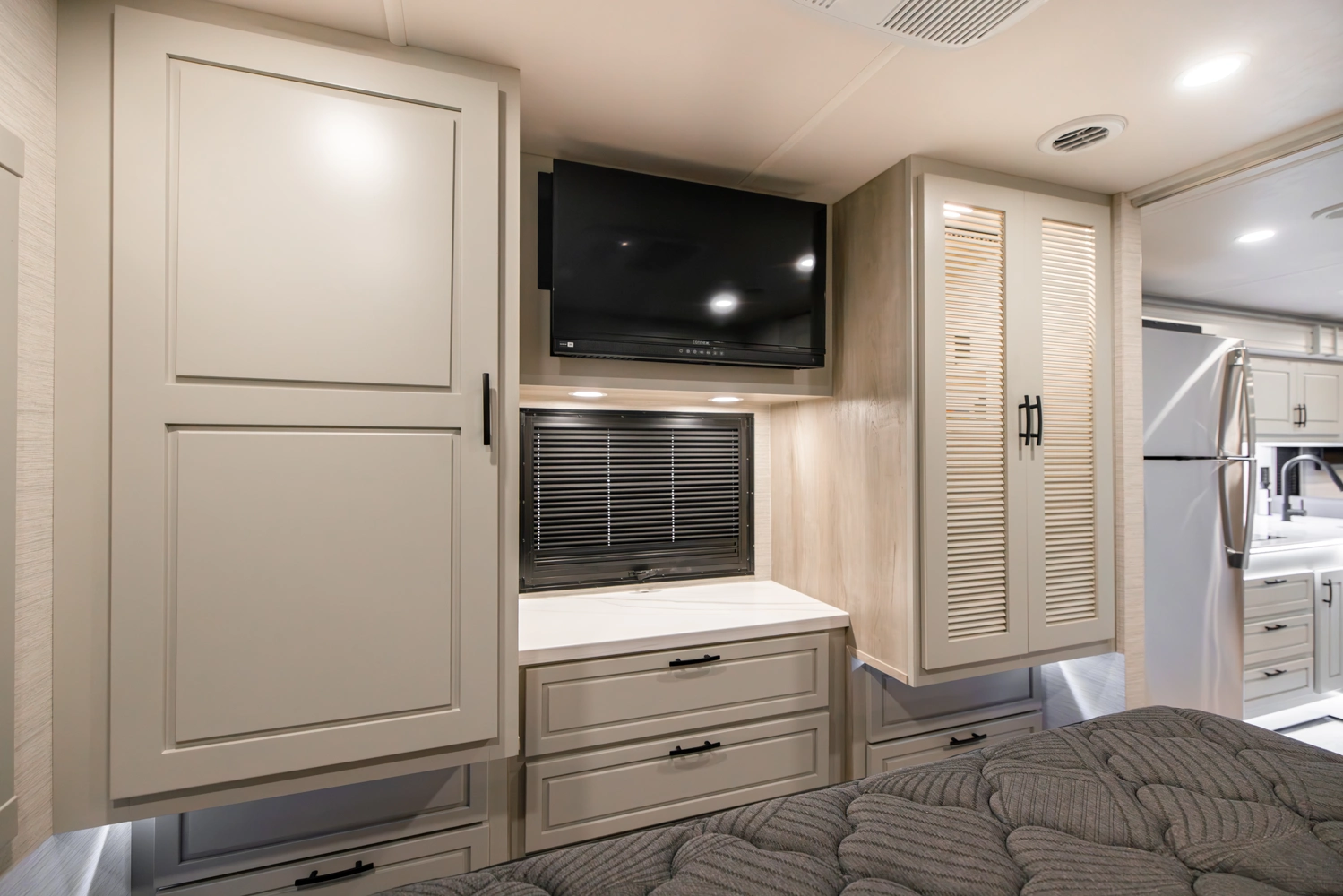

- 32" LED Smart TV
- Cedar-Lined Wardrobe
- Digital Safe in Wardrobe
- Nightstands with Solid Surface Countertops
- LED Reading Lights
- USB/USB-C Charging Ports
-

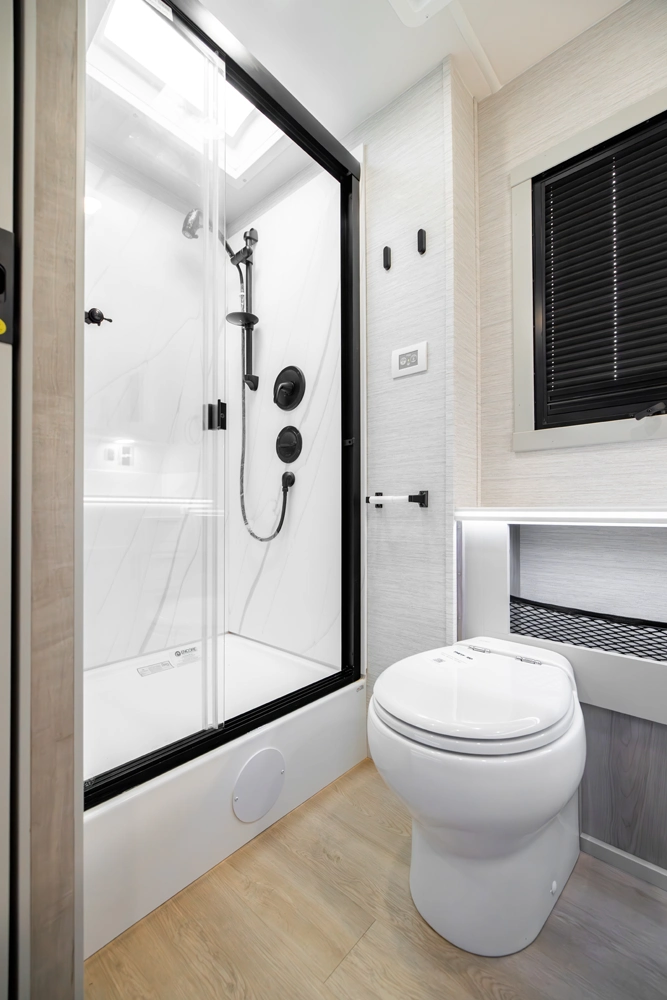

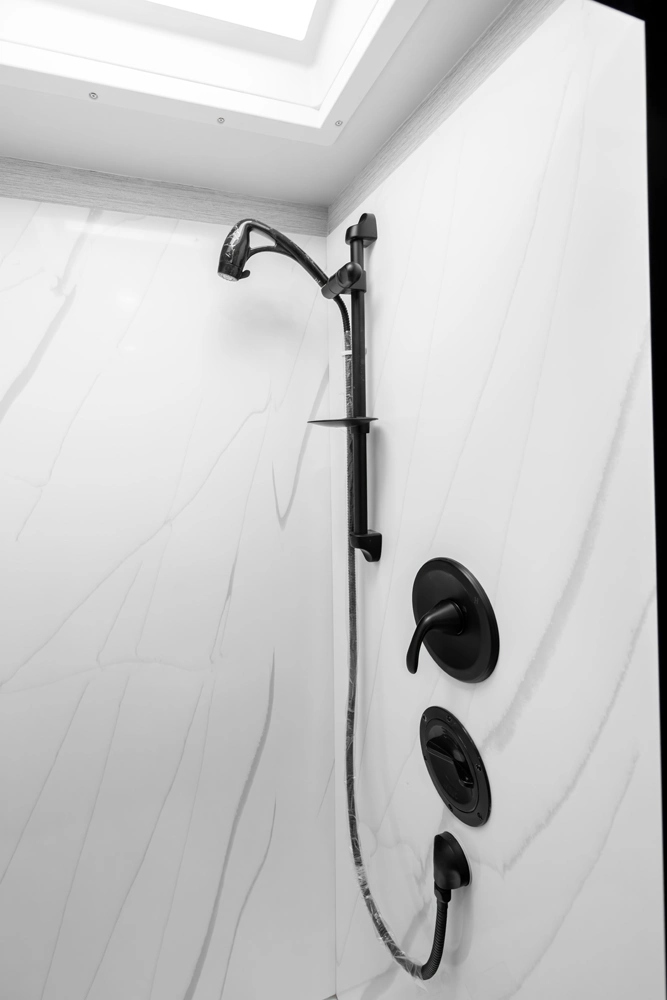

- Solid Surface Shower Surround (30"x36")
- Glass Shower Door
- Shower Skylight
- Oxygenics Body Spa RV Shower Head

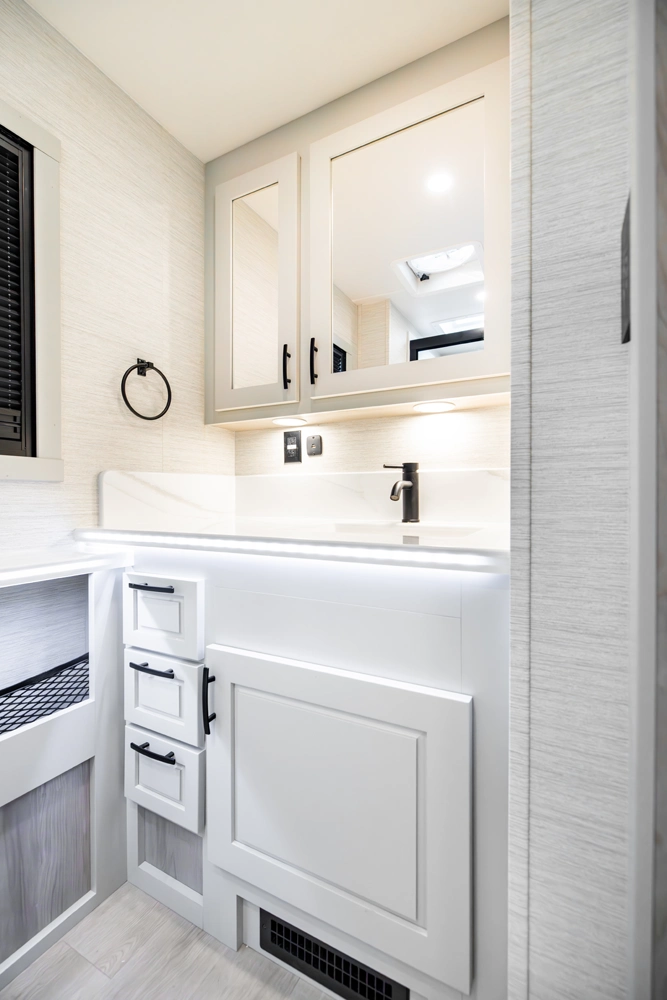

- Solid Surface Countertop with LED Edge Lighting and Backsplash
- Under-Mount Sink with Residential Brushed Nickel Faucet (37RB: Two Sinks in Full Rear Bath)
- Porcelain Electronic-Flush Macerator Toilet(s) (N/A 37BD & 37TS)
- MaxxAir Power Vent with Built-in Rain Cover
-
- Dual 12V 8D AGM Deep-Cycle, Maintenance-Free Batteries (490aH Total)
- 200W Glass Solar Panel with 30-Amp Controller
- 3,000W Hybrid Pure Sine Wave Inverter/Charger
- 50-Amp Service with 36' Power Cord Reel
- Firefly Multiplex Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth Smart Phone App Control
- 8kW Onan Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
- Automatic Generator Start
- Energy Management System (EMS)
- Battery Disconnect
- Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pumps
- Aqua-Hot 400D Diesel System
- Combo Washer Dryer Prep (32KD)
- 20.3-Gallon LP Tank (WC)
- LP Quick Connect
- Water Filtration System
- Exterior Shower in Service Bay
- Power Water Hose Reel in Service Bay
- Exterior GFCI Receptacle
- Starlink Satellite Internet System (Roof-Mounted)
- Winegard OTA HDTV Antenna
- King DISH Tailgater Pro Premium HD Satellite with DISH Network Receiver
- Winegard in-Motion Satellite
- 4x4 HDMI Matrix
- Cable TV/Satellite Hookup in Service Bay
- Thetford Sani-Con Turbo Macerator System
- Black Tank Flush
- SureLevel Tank Level Monitoring System
- Utility Compartment Heated by Aqua-Hot System
- Enclosed Holding Tanks Heated by Aqua-Hot System
- Upgraded 12V On-Demand Water Pump (4 gallons per minute)
- Carbon-Monoxide, LP Gas, and Smoke Detectors
- Fire Extinguisher
-
- Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets

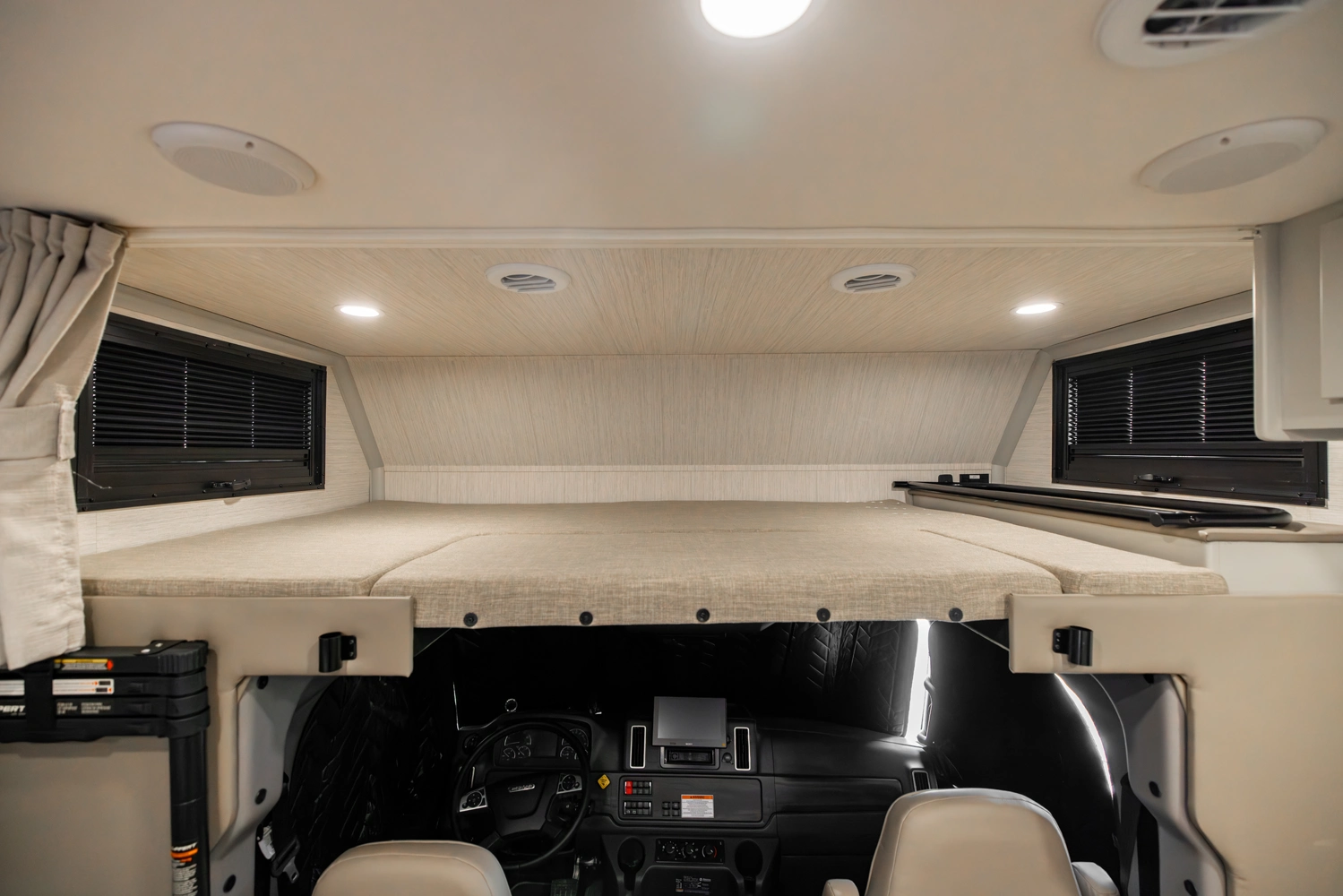

- Extended Fiberglass Front Cap with Cab-Over Bunk Mattress (50"x79") and Privacy Curtain
- Black Out Package (Cab Entry Steps, Side Mirrors, Rock Guard, Wheels, Headlight Bezels, Exterior Grab Handle Trim, Custom Grille & Vent)
- Chrome Appearance Package (Custom Grill and Vent; Dual Roof-Mounted Air Horns, Baggage Door Handles; & Remote-Locking System for Exterior Bays & Entry Door)
- Remote-Locking System
- Single Color Full Body Paint (with $3,750 MSRP credit)
- 12V 15 cu. ft. 3-Door Compressor-Driven Refrigerator in place of Standard Refrigerator
- All-Electric Package: Induction range and Exterior Storage Compartment in Place of LP Tank

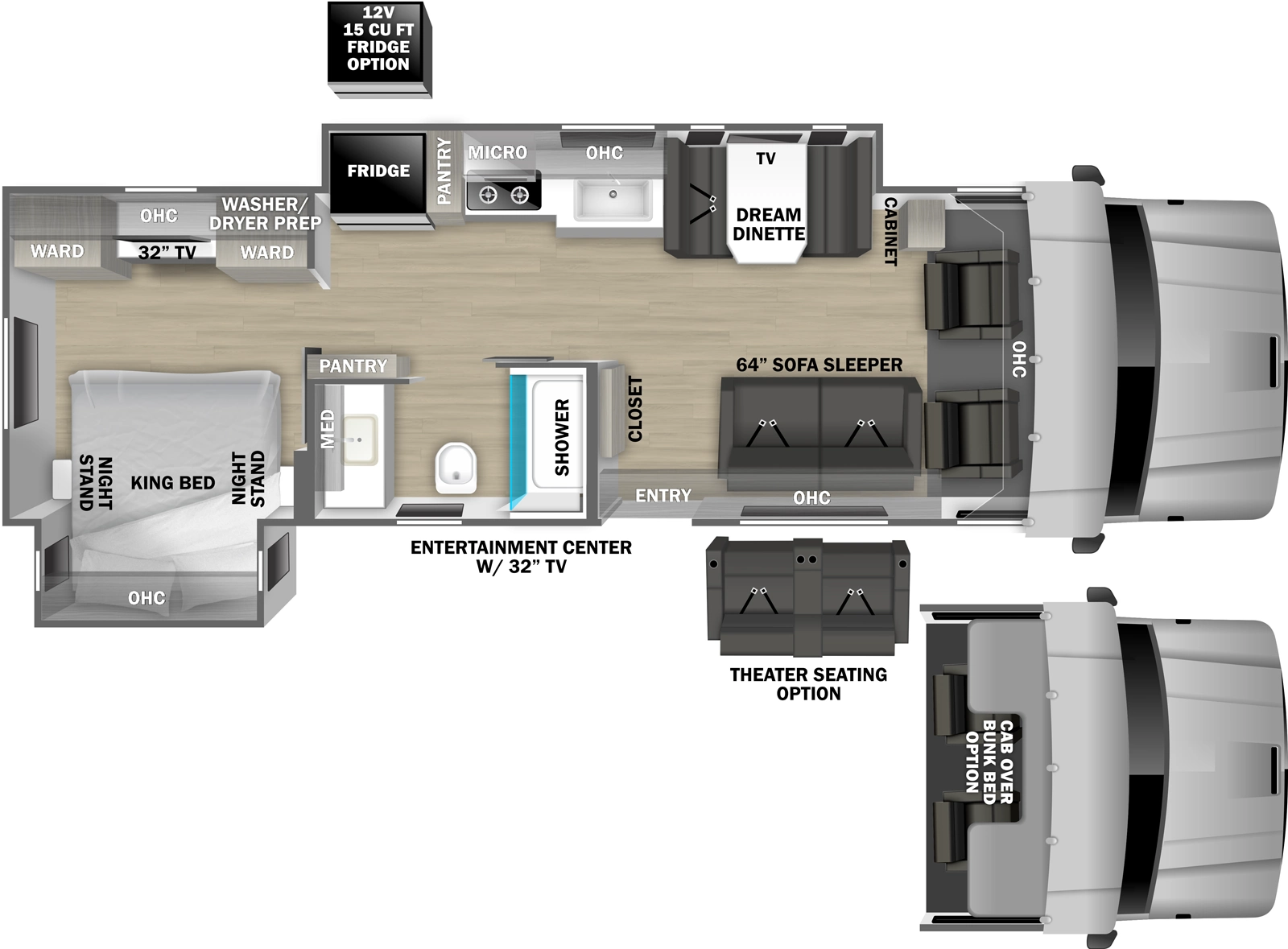

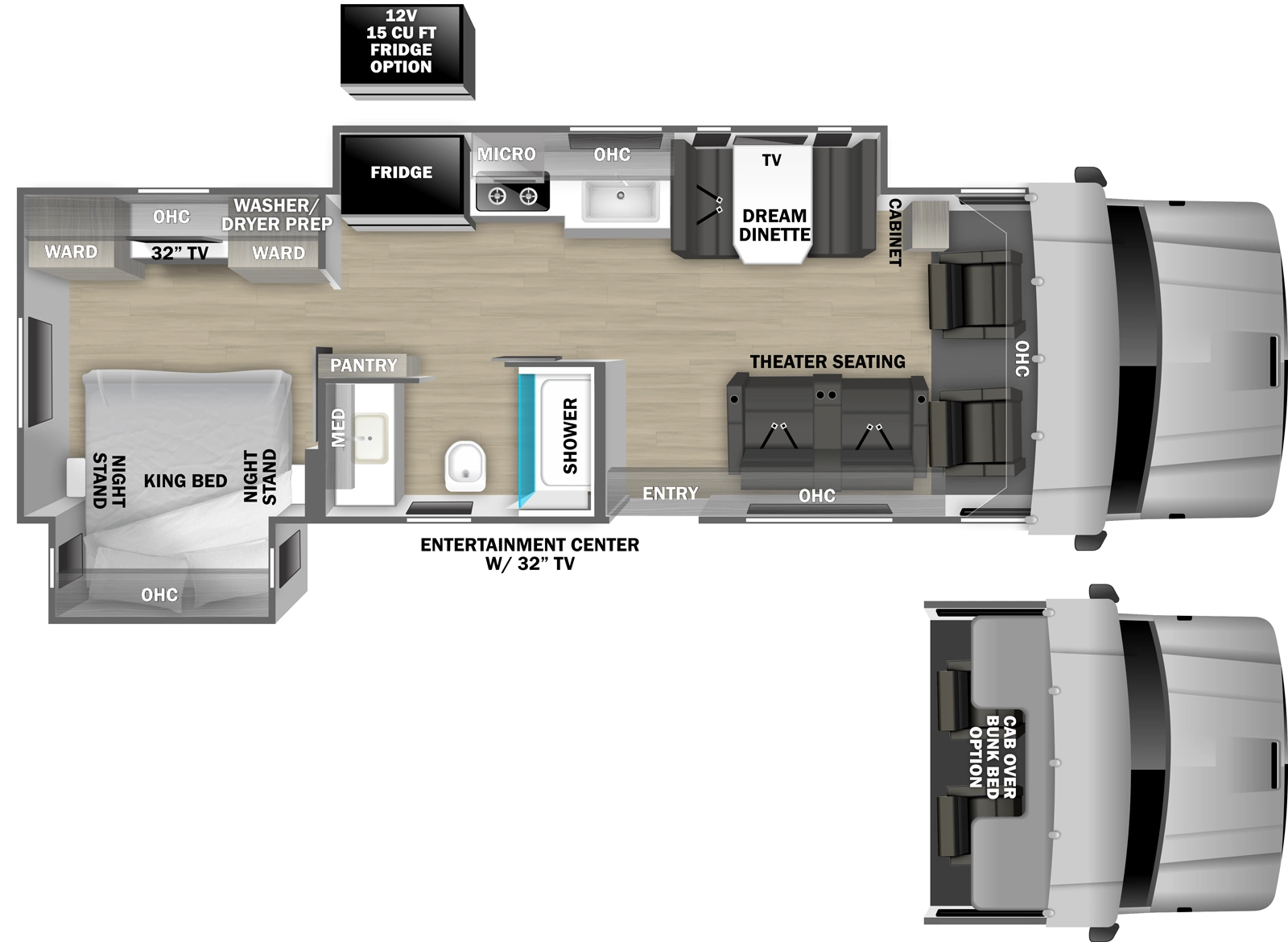

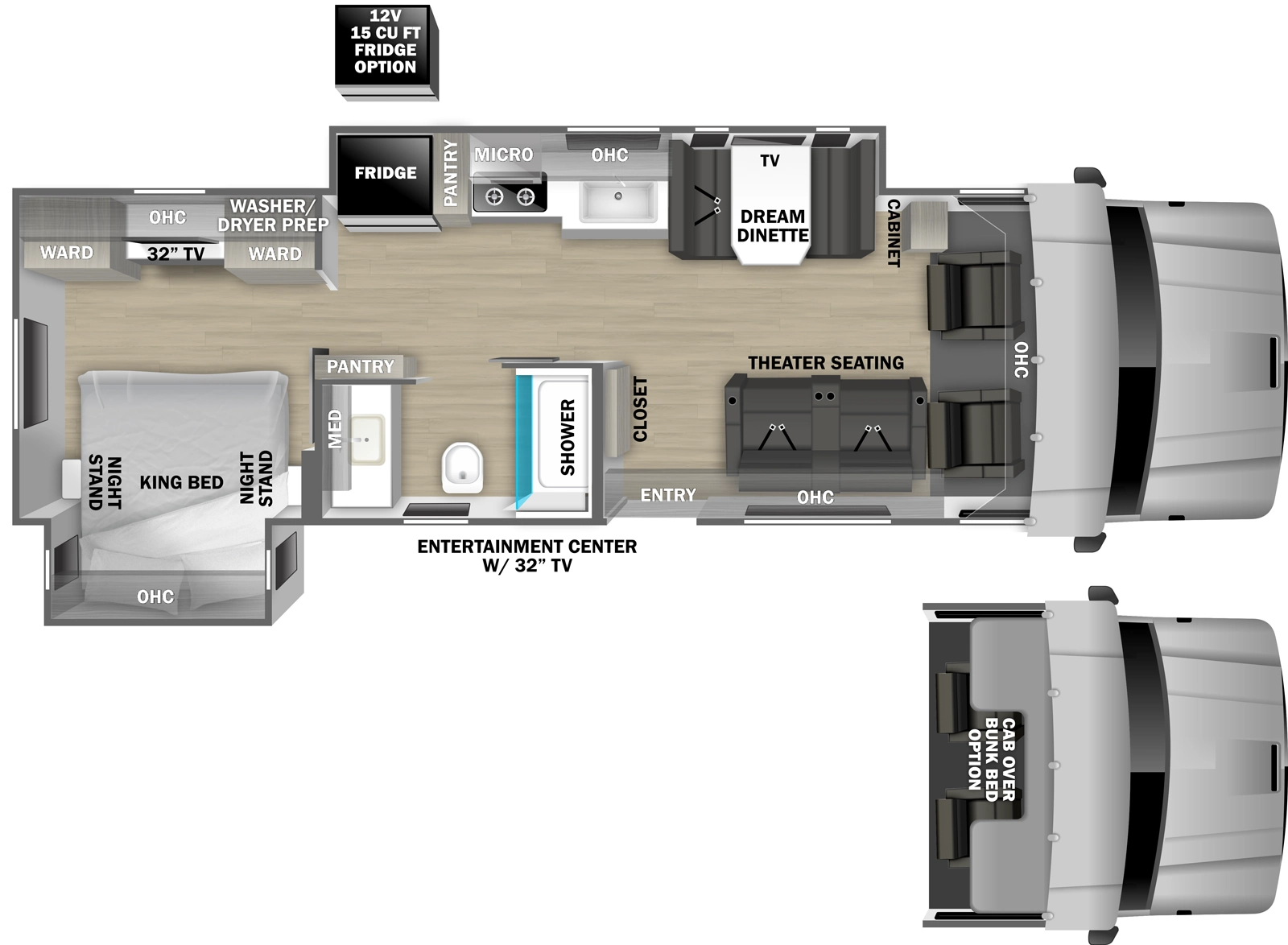

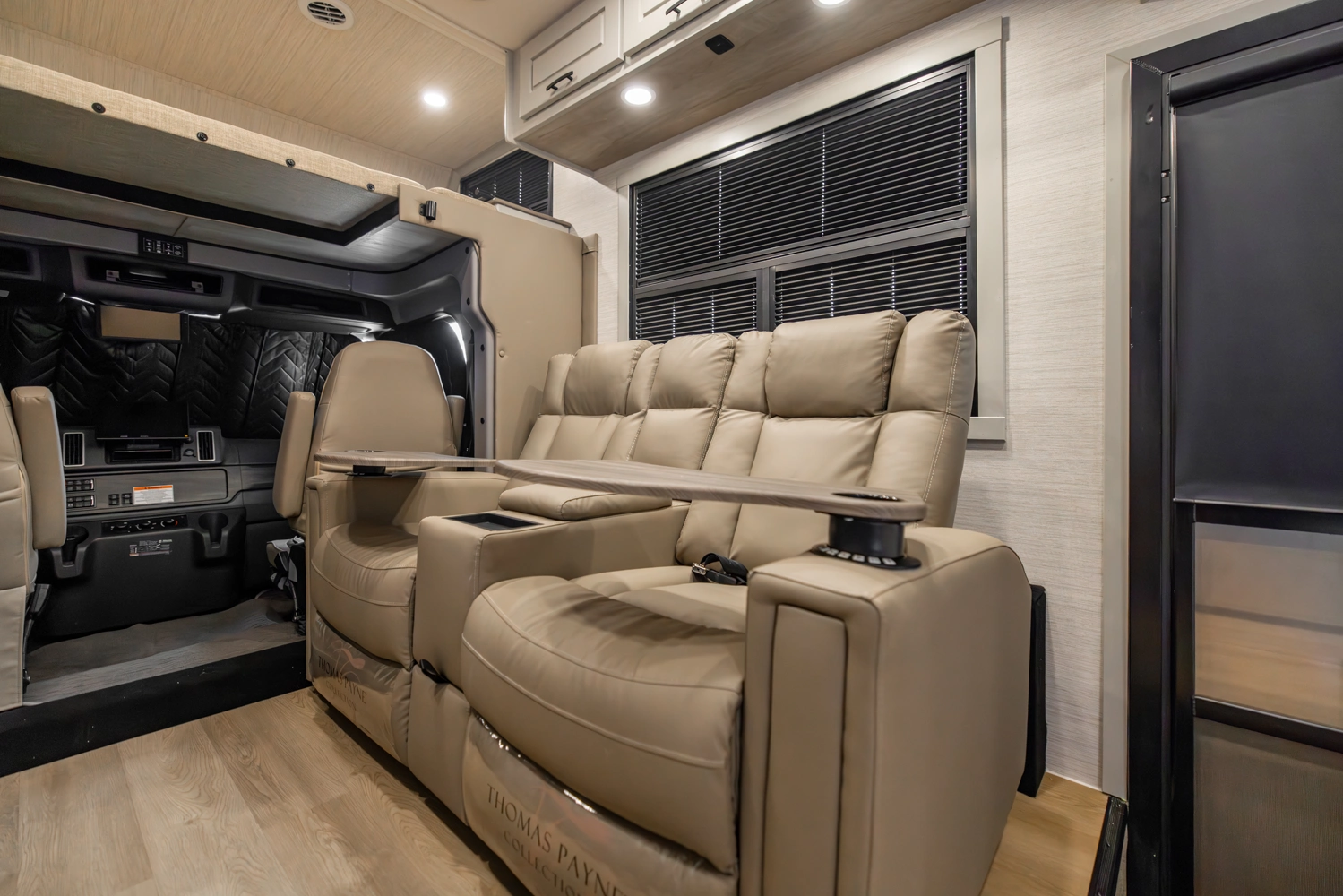

- Dual, Power Reclining Theater Seats in Place of Sofa (N/A 34KD & 37RB)
- Three-Seat, Power Reclining Theater Seats in Place of Sofa (34KD & 37RB Only Outer Seats are Powered)
- Xplorer Package includes Insulated Cab Curtain; Two Lithium House Batteries (540aH Total); 1,000W Solar Package; Insulated Utility Bay; & Access to Exclusive Xplorer Package Paint Scheme (Dark, Light, or Midnight)
- Three Lithium House Batteries (720aH Total)
