DynaQuest XL RVs

Explore DynaQuest XL

Dynaquest XL Class C Motorhome

For the motorhome enthusiast, the drive is as important as the destination. We start with a commercial grade chassis designed to exceed the comfort and safety demands of professional drivers. We add to that all the upscale appointments you’ve come to expect in a luxury Class A. The end result is a perfect combination of brute force and refined living space - The Ultimate Super Class C Motorhome.

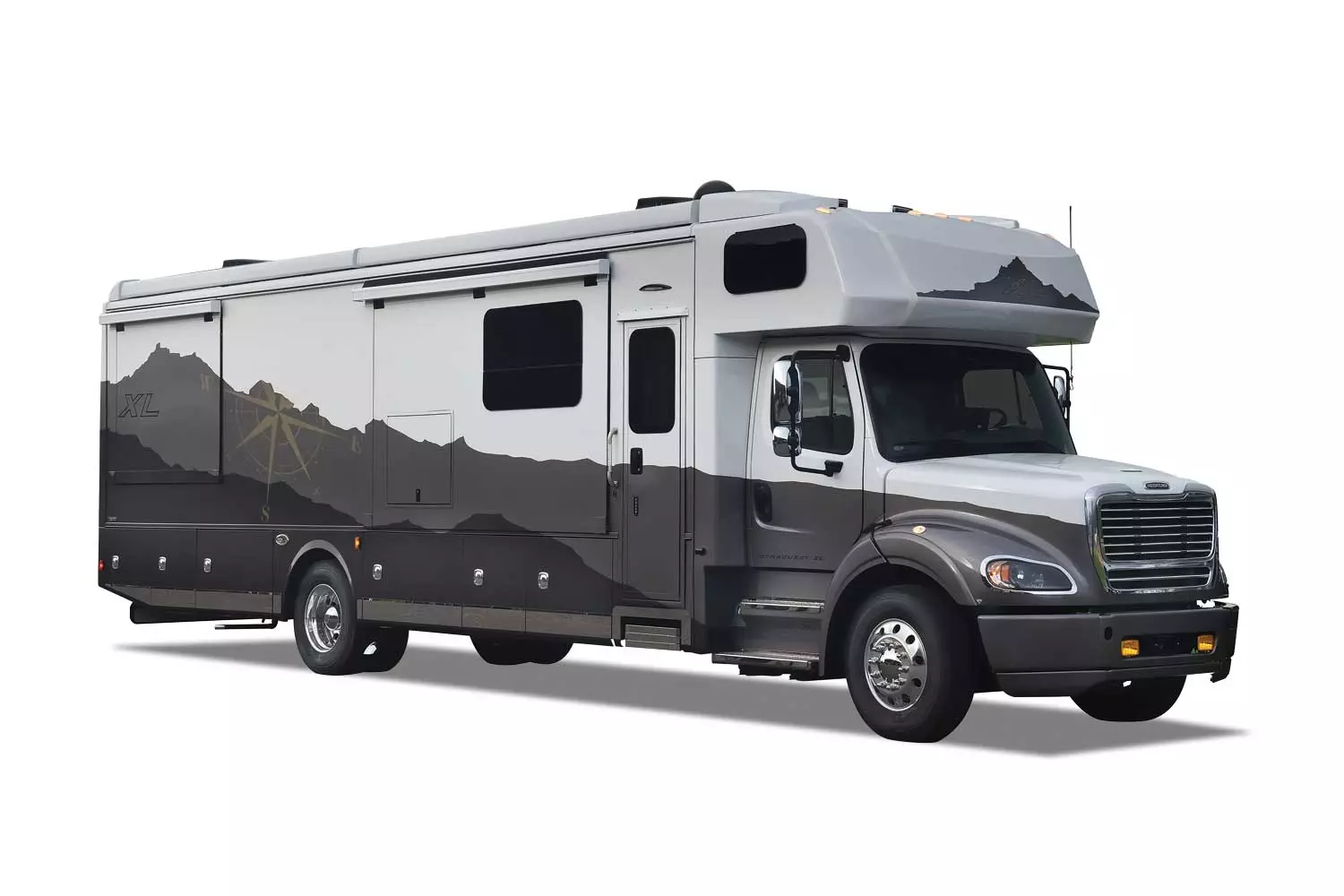

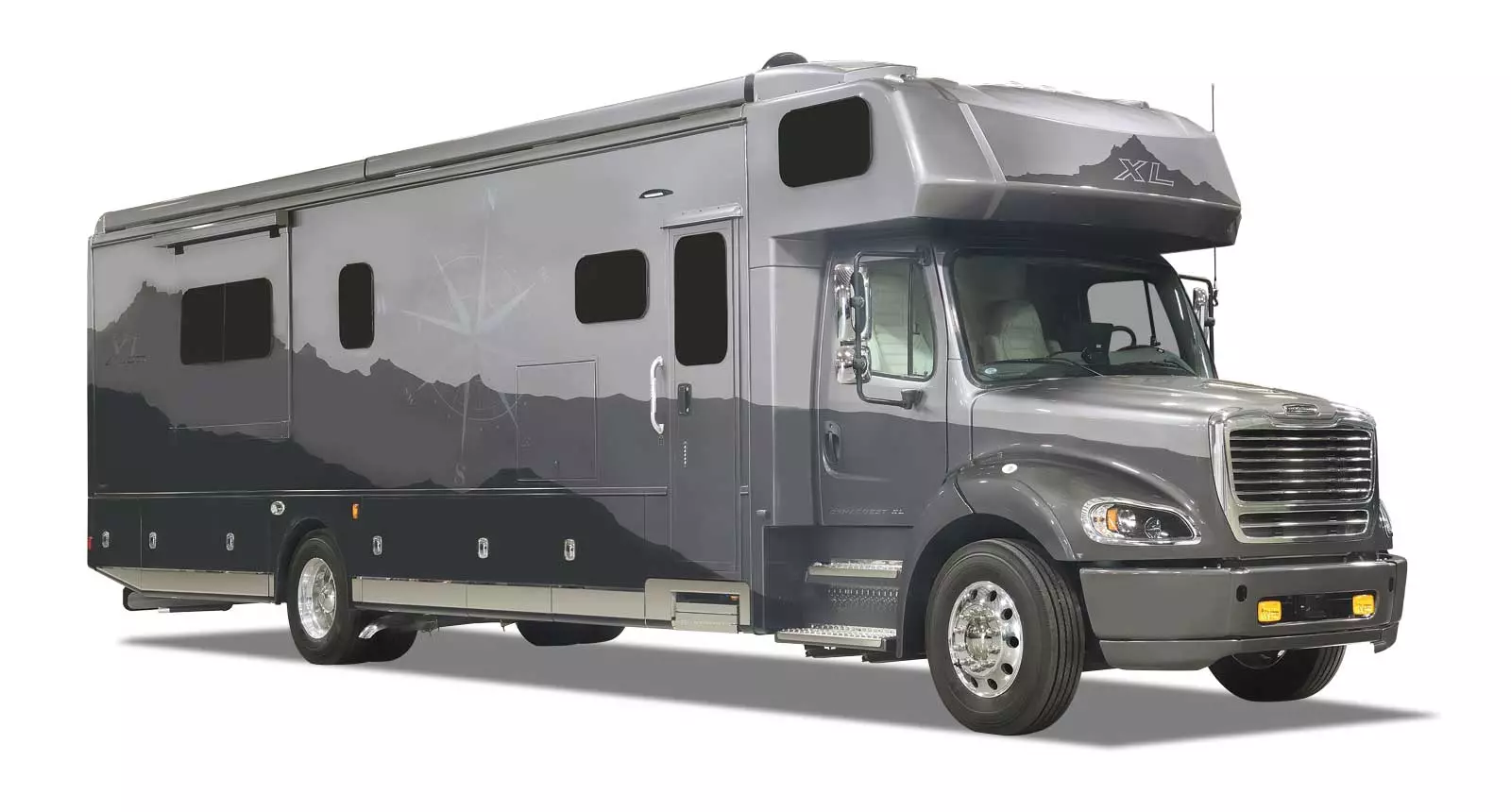

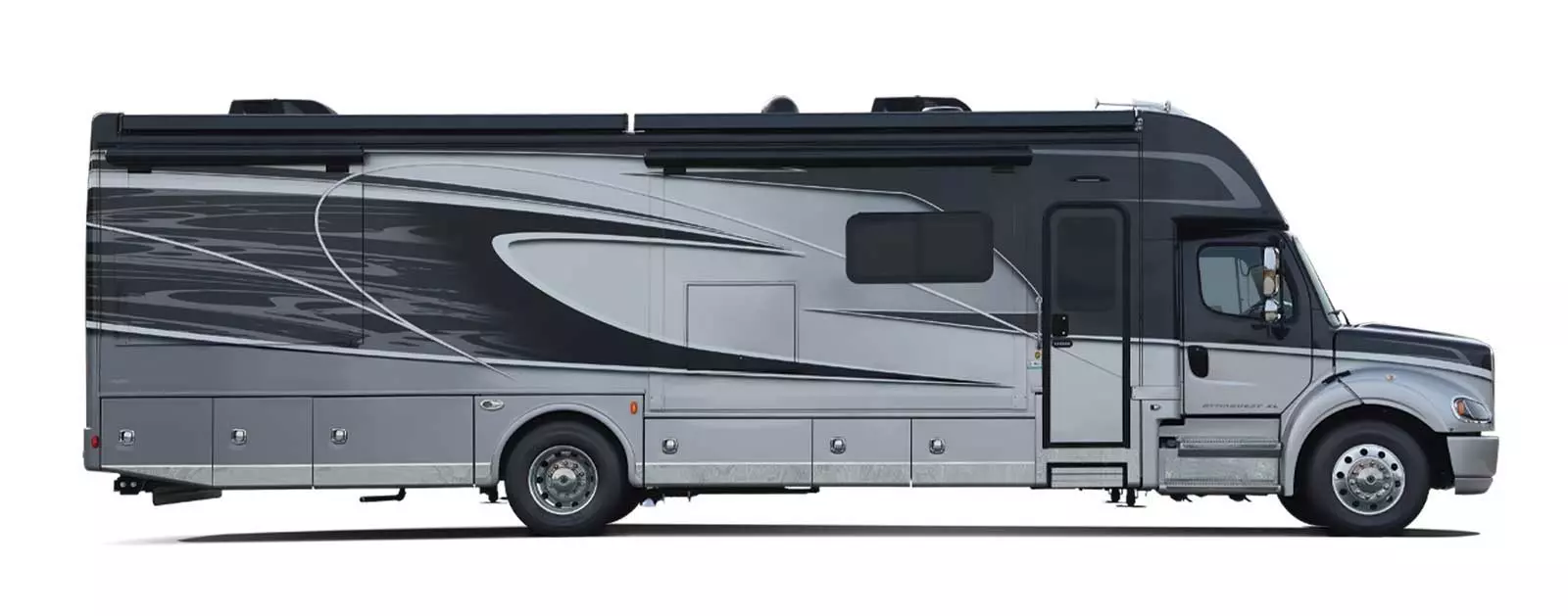

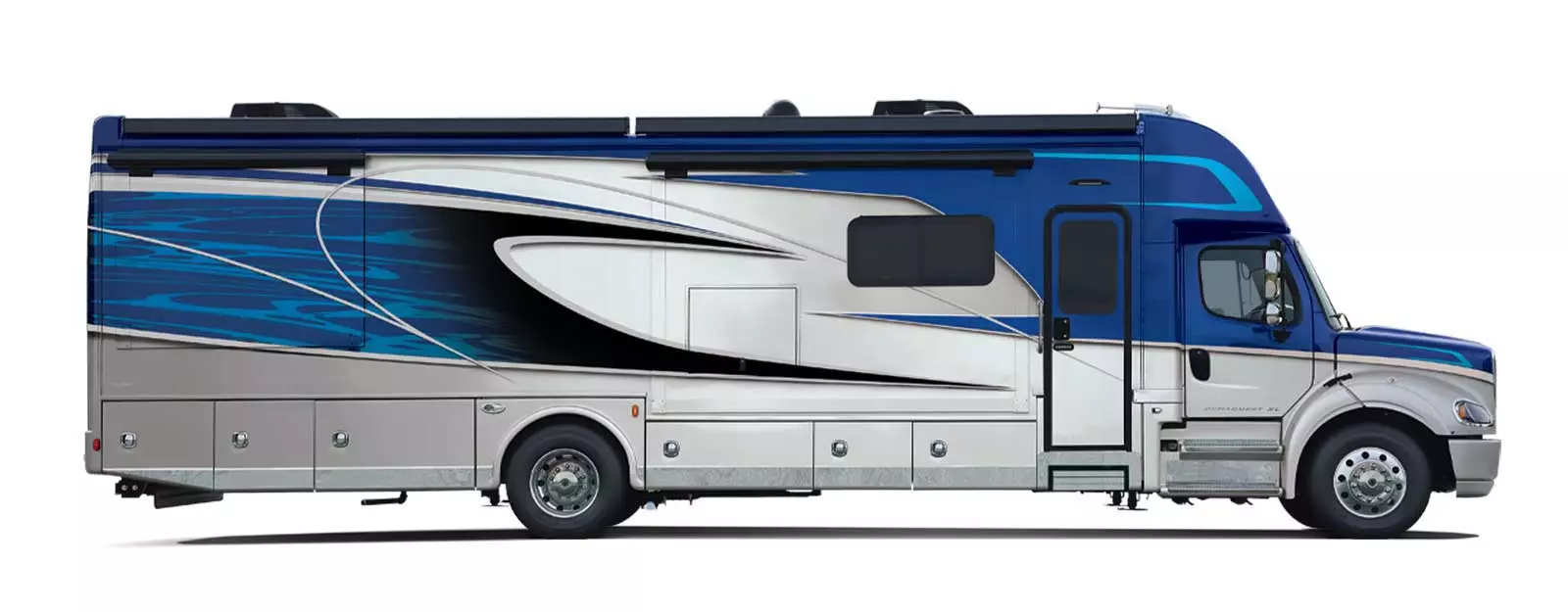

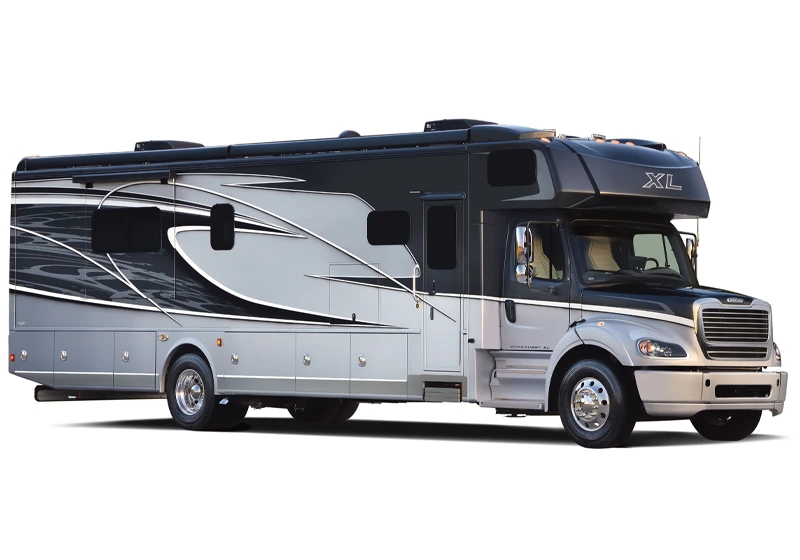

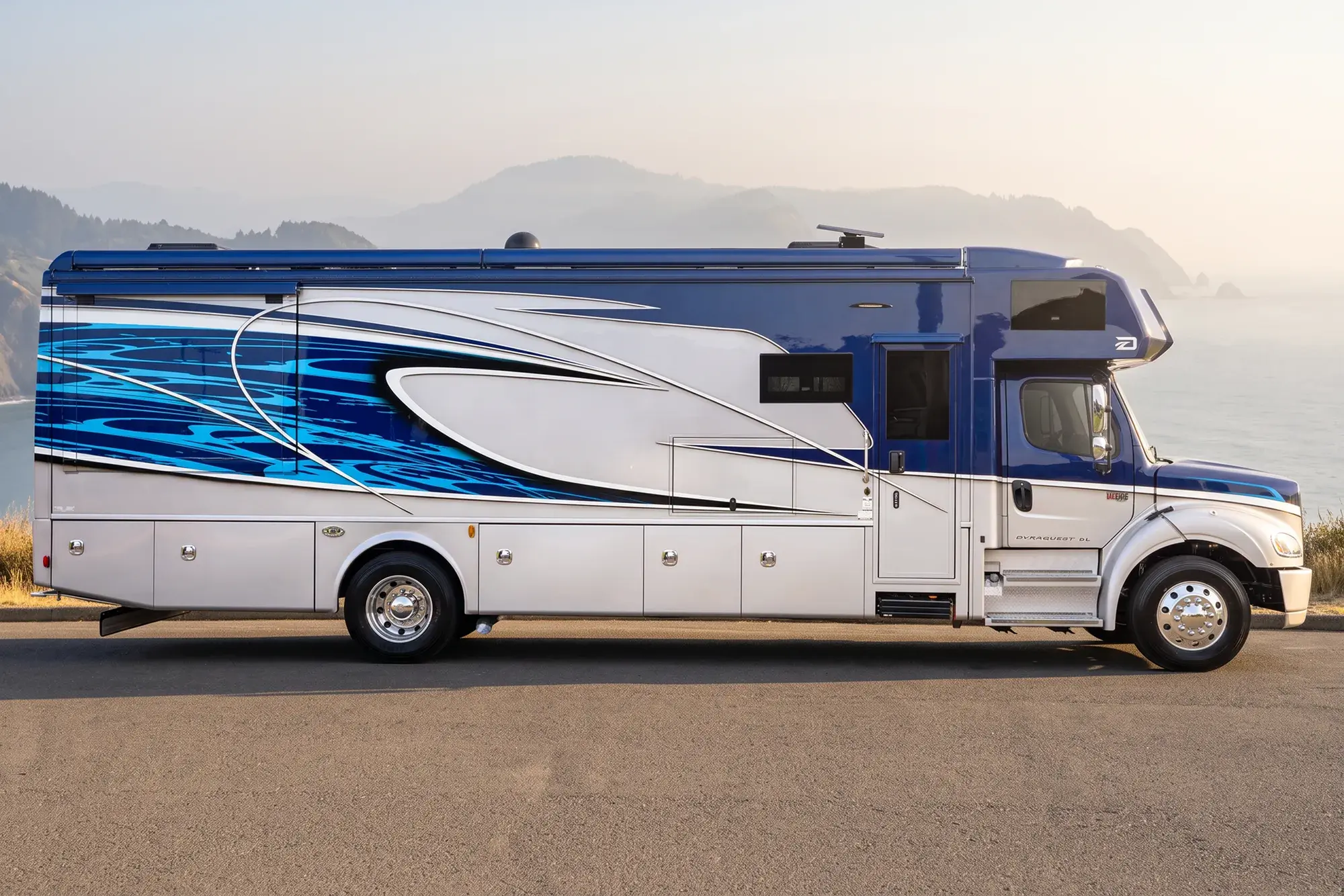

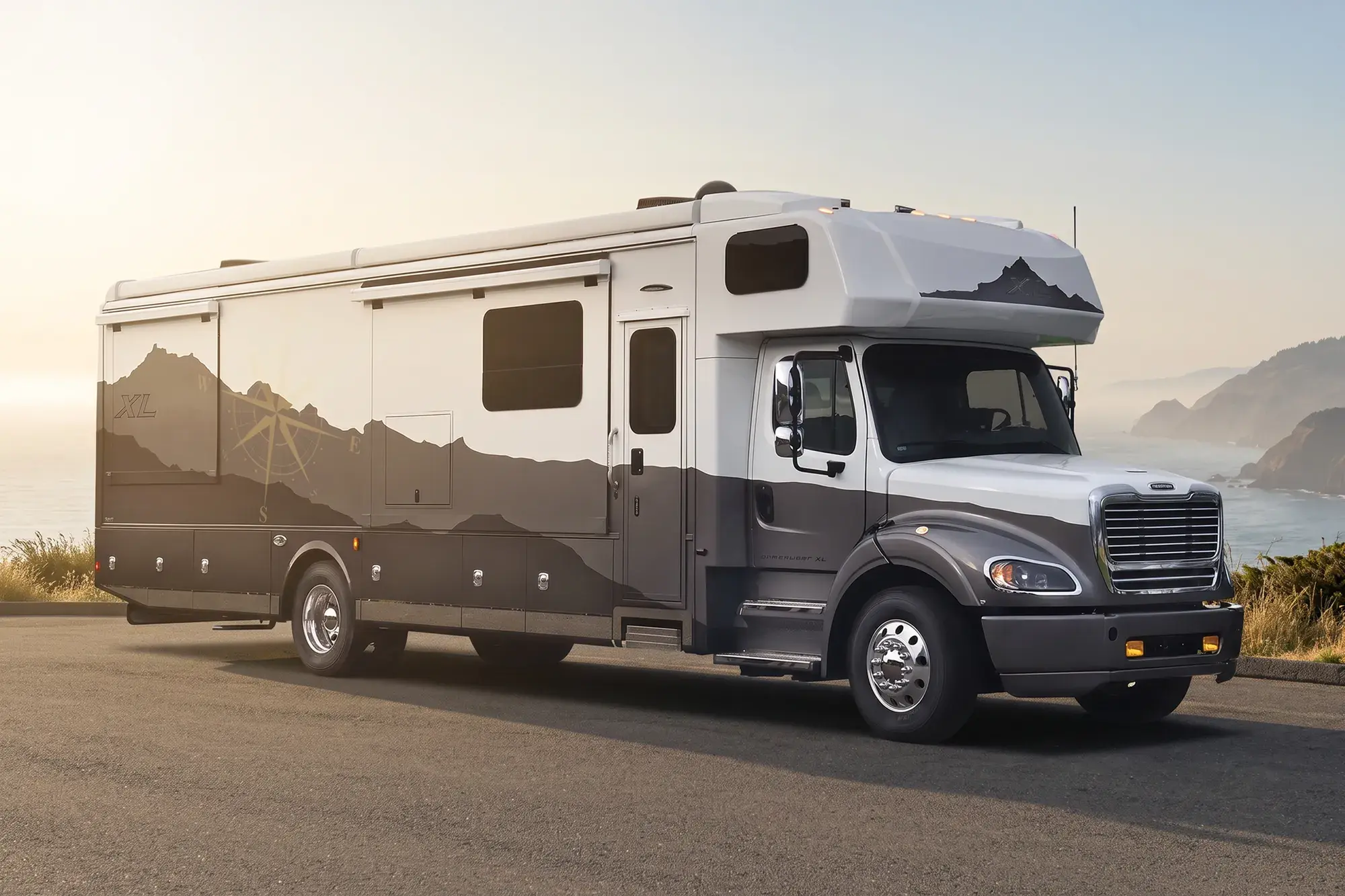

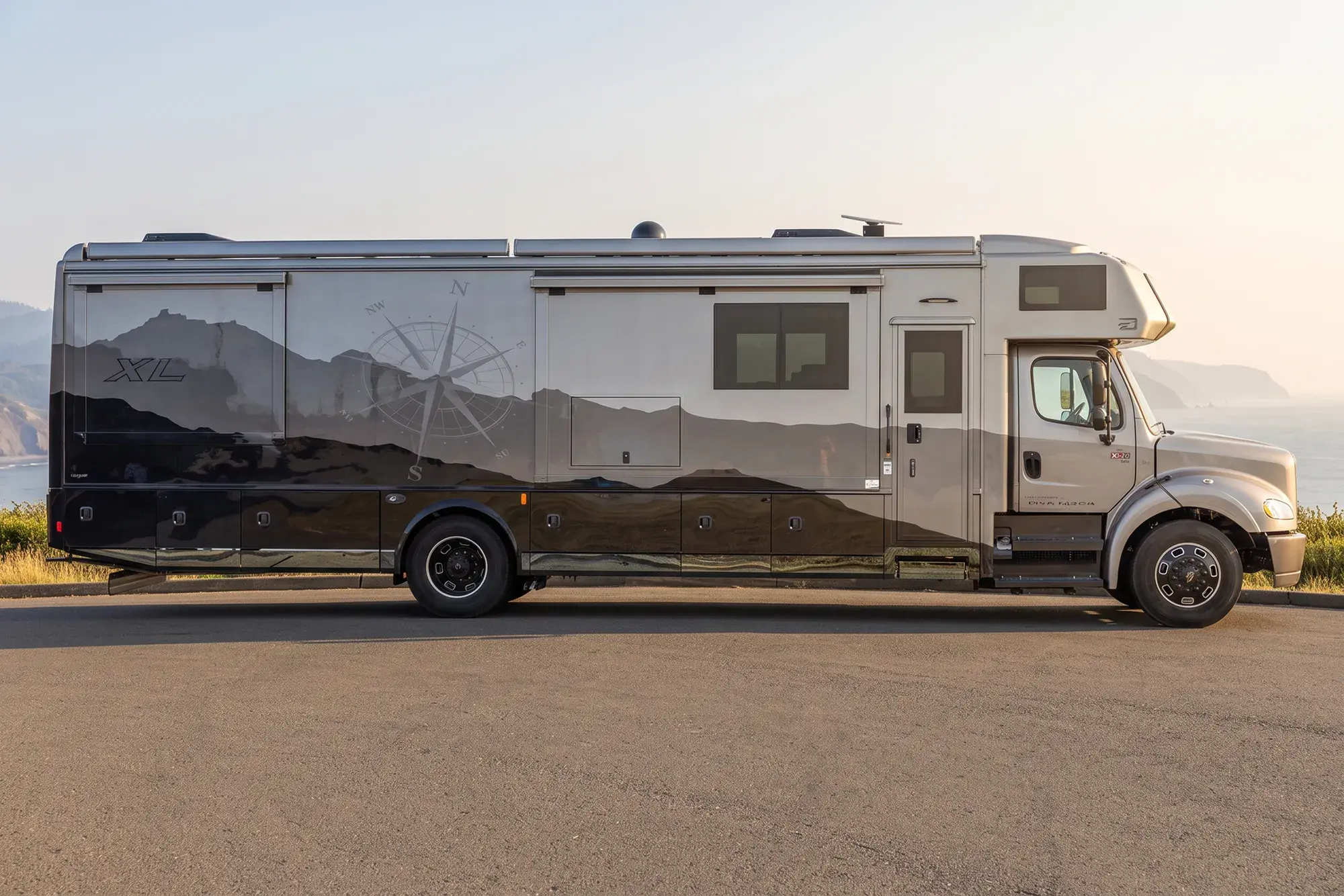

DynaQuest XL Exterior Image
Follow DynaQuest XL on Social Media:

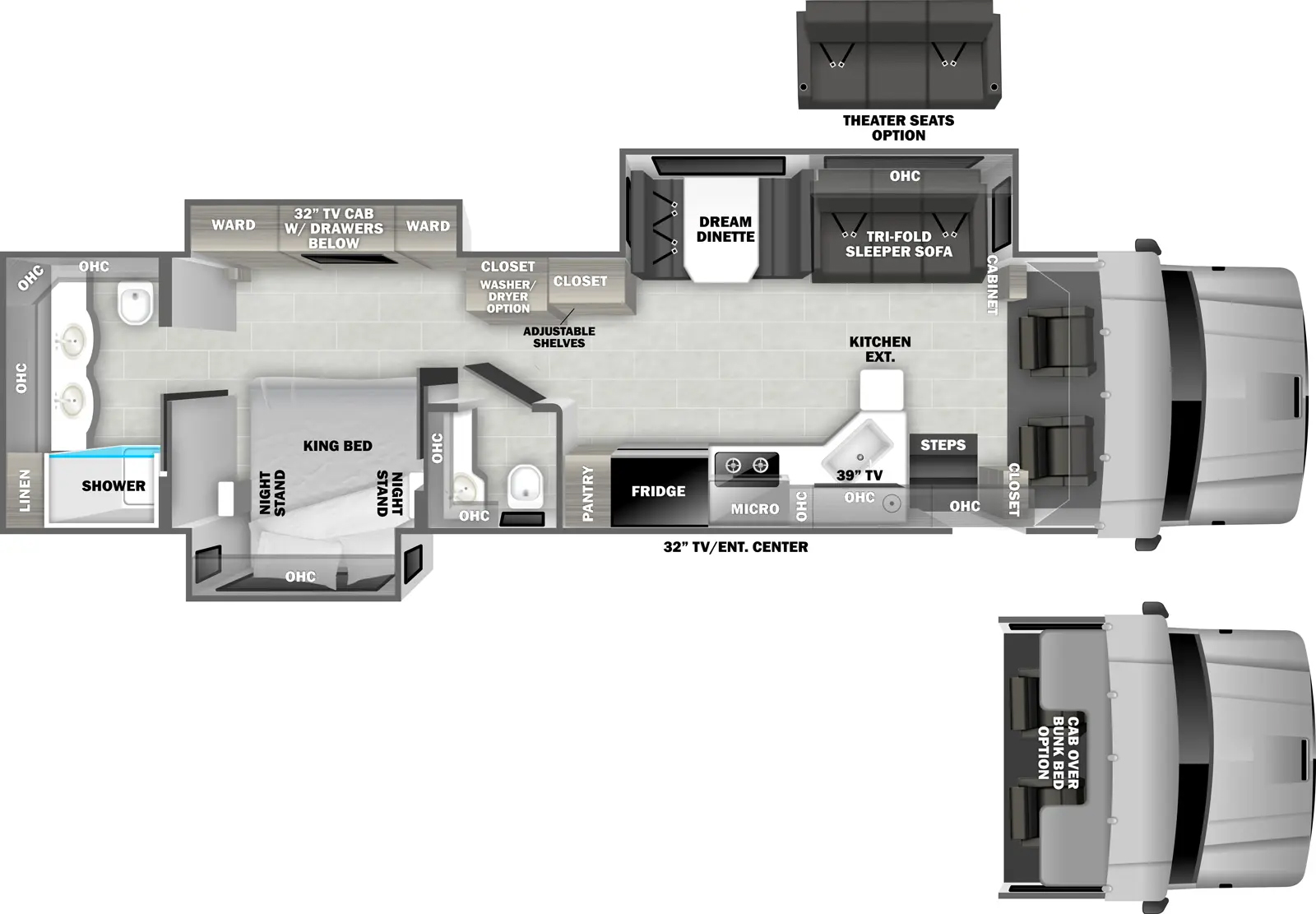

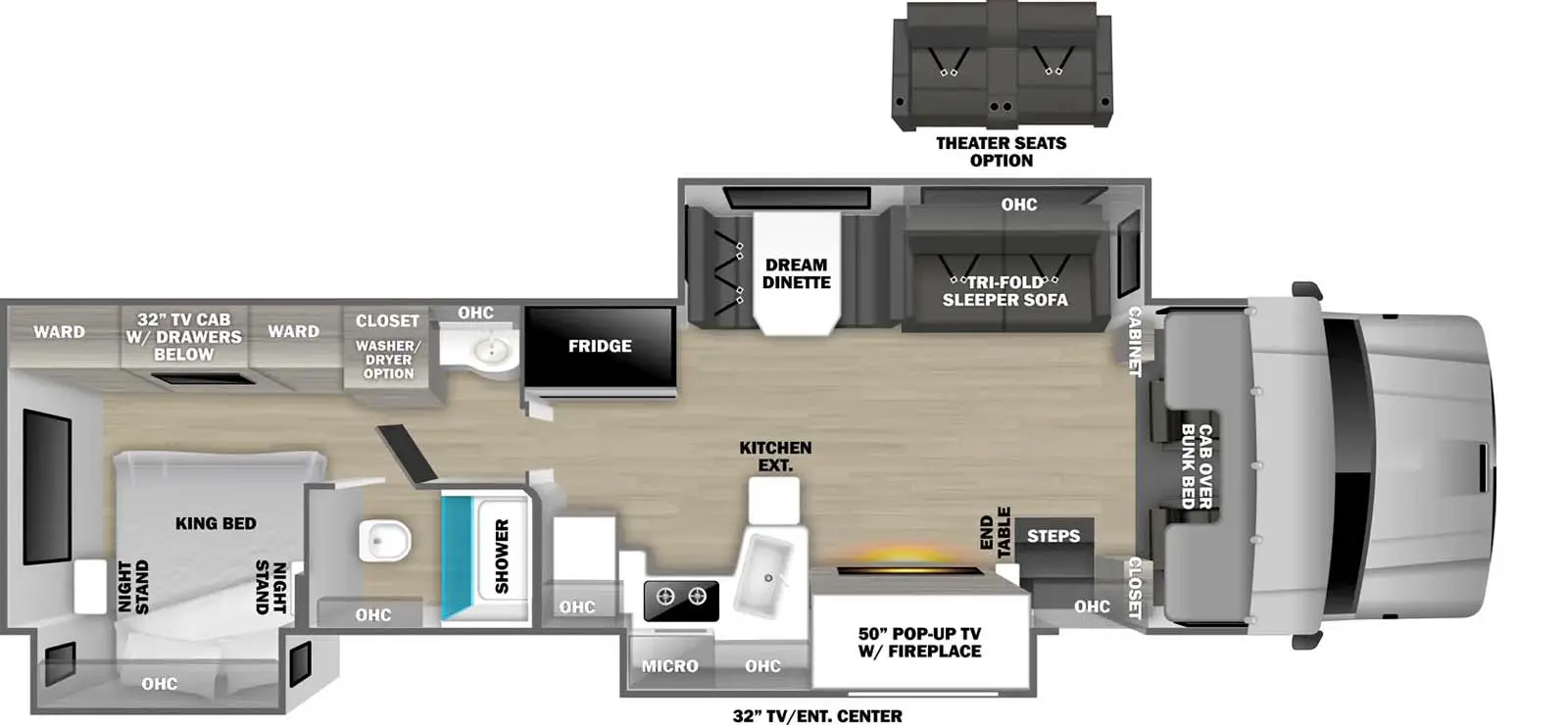

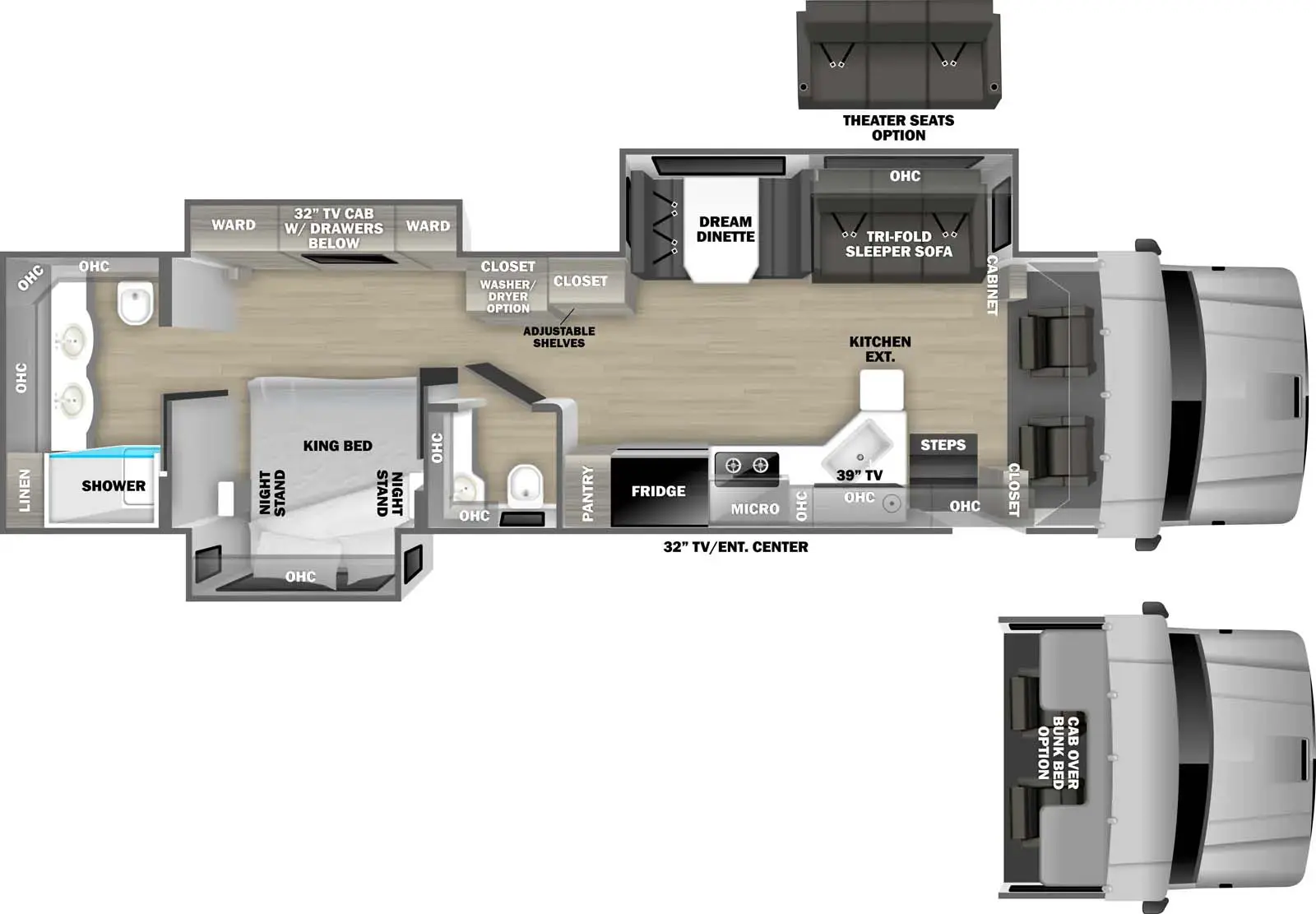

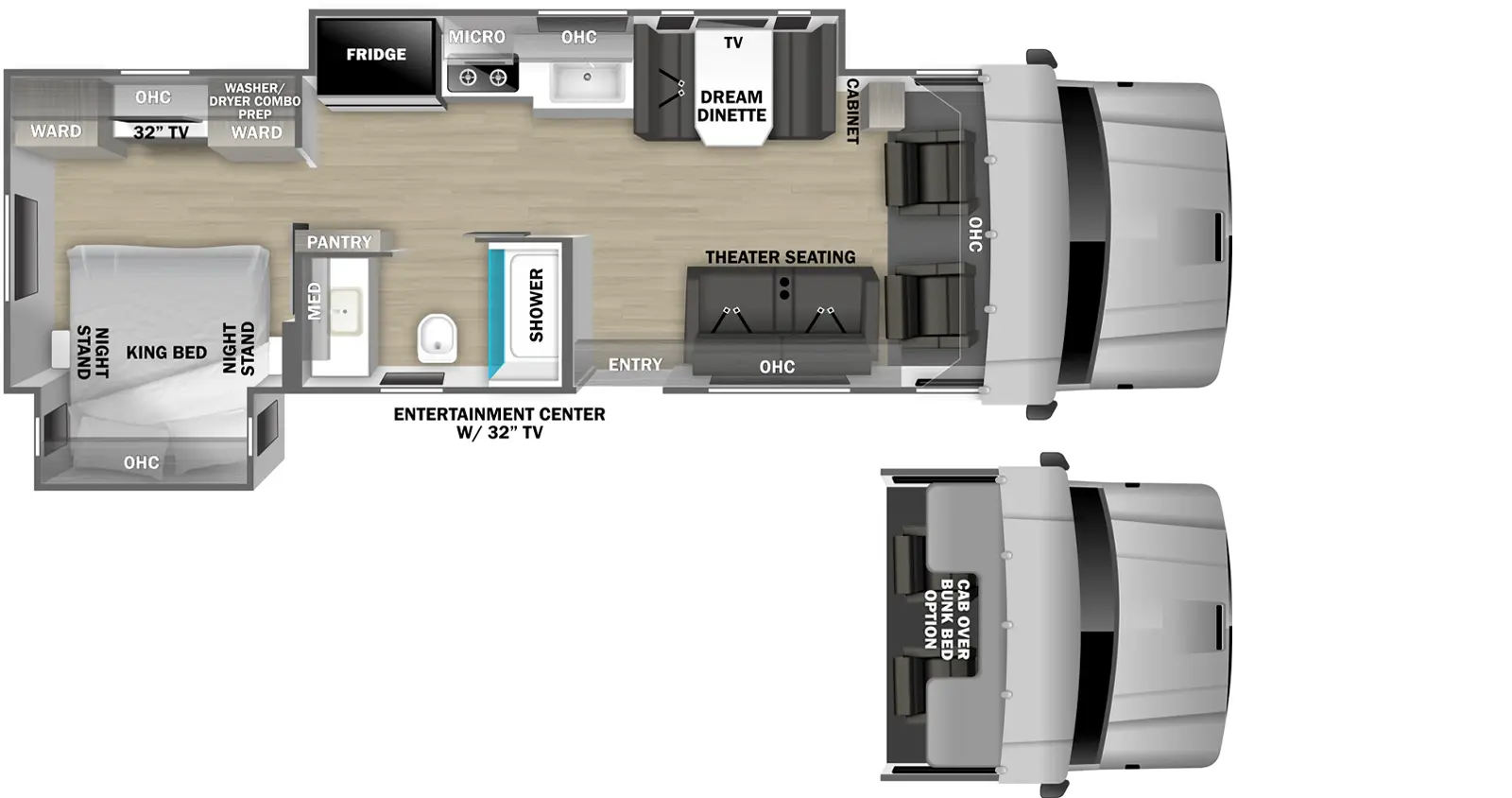

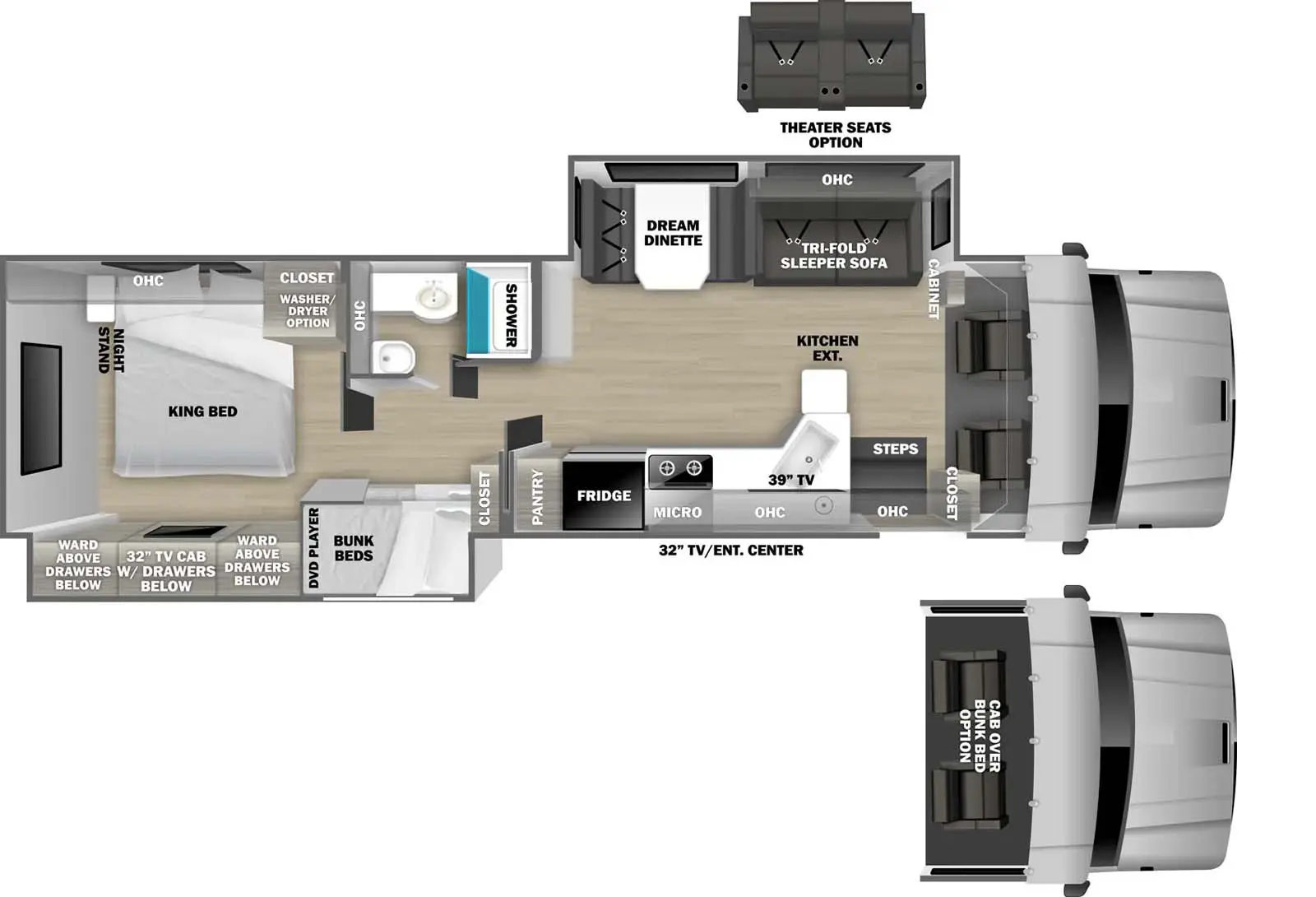

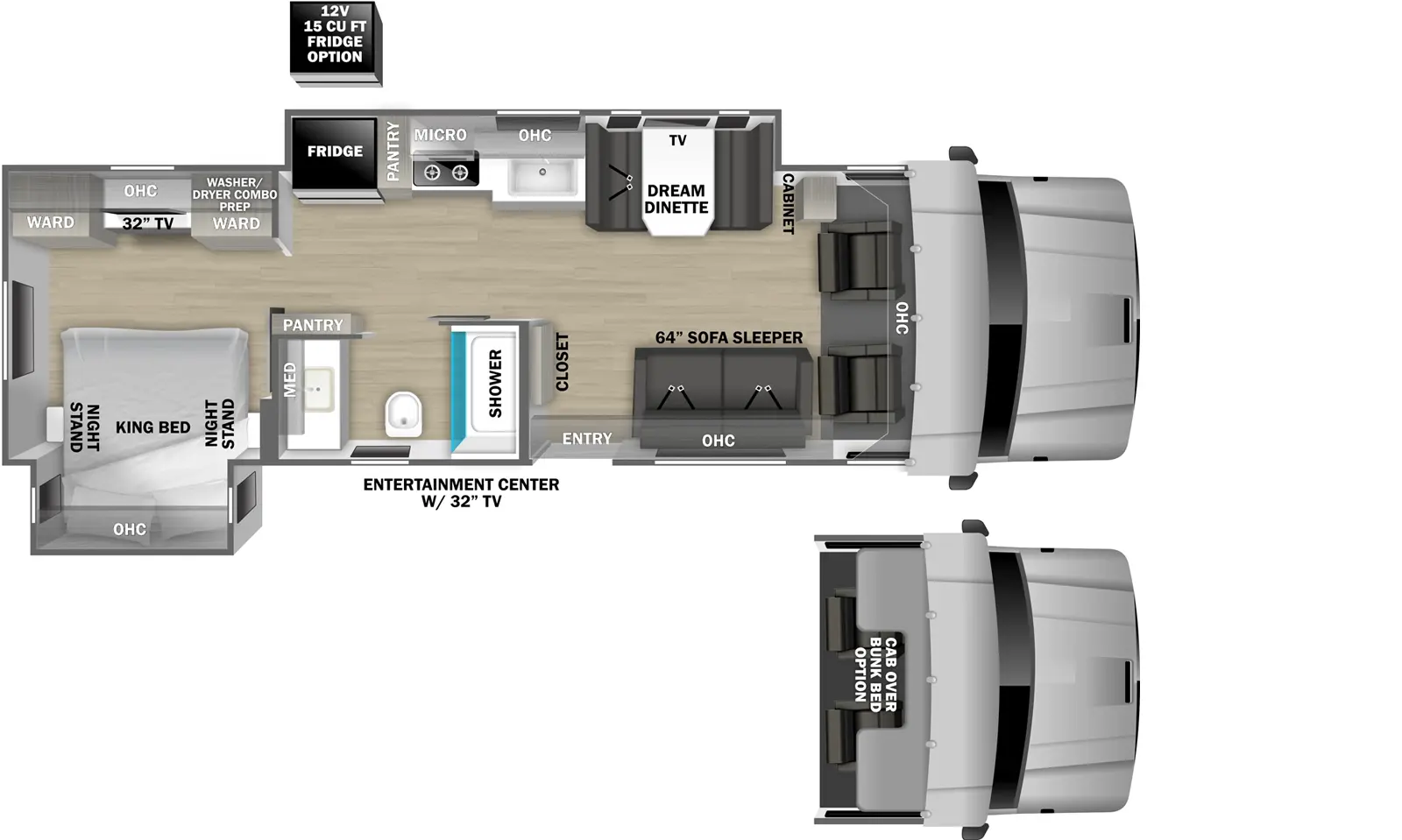

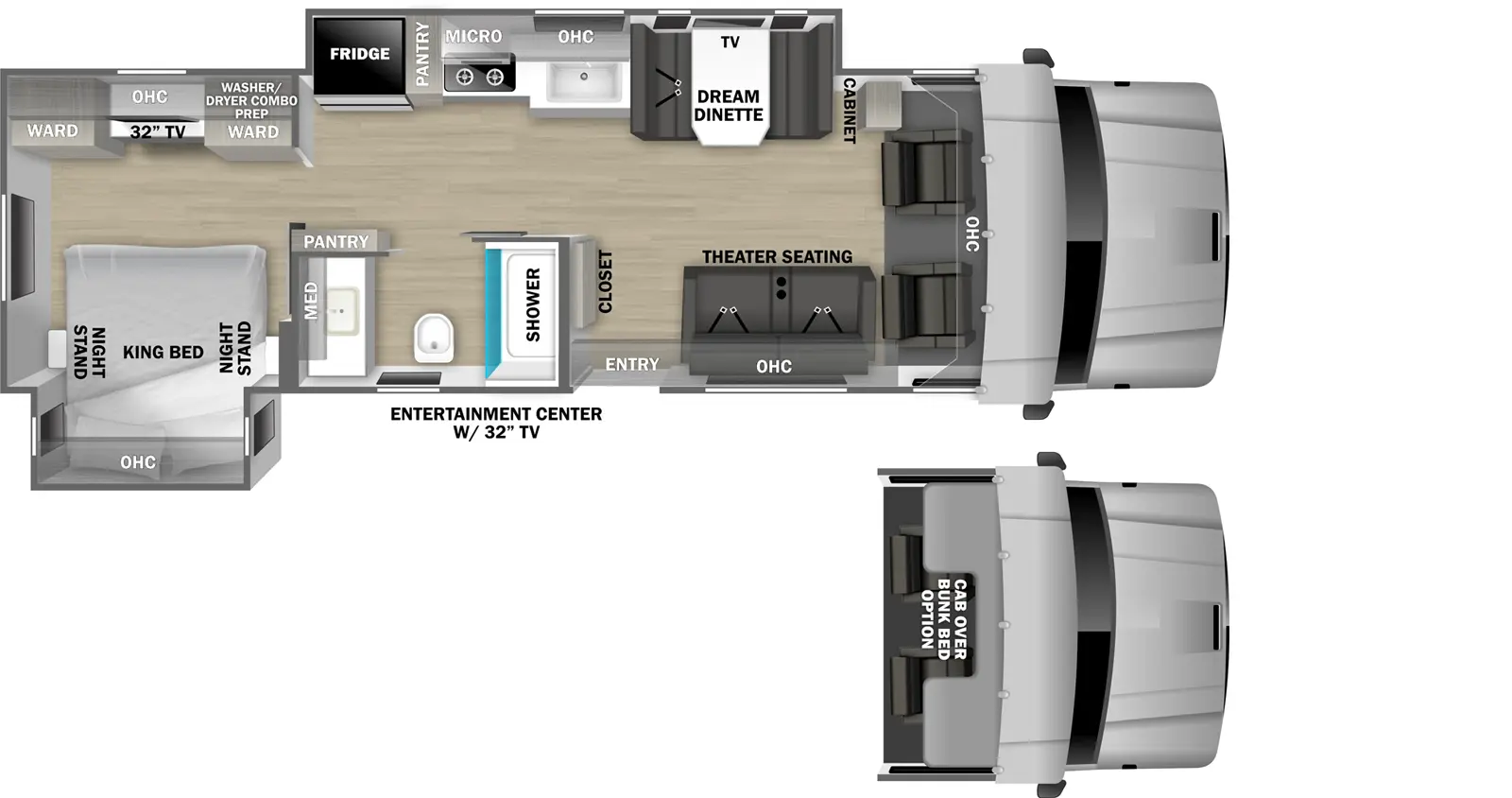

2024 DynaQuest XL Floorplans

2024 DynaQuest XL Features & Options

    • Freightliner® M2 112 Chassis (33,000-lbs. GVWR / 54,000-lbs. GCWR)
    • Cummins® L9 Turbo Diesel Engine (450hp / 1,250 lb-ft. of Torque)
    • Allison® 3200 TRV Six-Speed Automatic Transmission
    • 100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks)
    • 6-Gallon Diesel Exhaust Fluid Tank
    • Trailer Hitch (20,000 Tow lbs. / 2,000 Tongue lbs.) with 7-Way Round Tow Connection
    • Weigh Safe® Trailer Hitch Receiver
    • Active Brake Assist
    • Brake Controller
    • C-Brake by Jacobs® with Low/Off/High Braking Dash Switch
    • Locking Differential
    • Airliner® 21,000-lb. Rear Suspension
    • Manual Air Suspension Dump Valve Switch on the Dash
    • 275-Amp Alternator
    • Quick Disconnect Fitting with Tire Inflation Kit
    • Air Brakes with 4-Wheel ABS
    • Equiflo™ Inboard Fuel System (Dual Supply – Dual Return)
    • Fuel Filter/Water Separator with Primer Pump
    • Engine Block Heater
    • Steel-Reinforced, Aluminum Cab
    • Chrome Grille and Air Intake Grille
    • Front and Rear Tires: Michelin® XZE2 275/80R22.5 (14 Ply Radials)
    • Single Front Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
    • Dual Rear Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
    • Valve Extensions
    • Tire Pressure Monitoring System
    • 4.78 Rear Axle Ratio
    • Daytime Running Lights
    • LED Headlights
    • Tinted Door Glass and Wing Windows
    • Chassis Battery Shut Off Switch in Cab
    • Leatherette Driver and Passenger Air Ride Seats with Air Lumbar Controls
    • Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
    • Kenwood® 10” Touch Screen Dash Infotainment System with AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and Garmin® RV Navigation
    • JBL® Premium Cab Sound System - JBL full range/tweeter coaxial speakers, dual voice coil subwoofer, and a high-efficiency, high-performing, 4-channel DSP amplifier, all "Tuned" specifically for the Freightliner M2
    • 12V Accessory Ports
    • One Valve Parking Brake System with Warning Indicator
    • Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
    • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
    • Marker Lights with Separate Interrupter Switch
    • Low Air Pressure Light and Buzzer
    • Adjustable Steering Column
    • 18" Leather-Wrapped Steering Wheel
    • Hydrographic Woodgrain Cab Accents
    • Power Remote/Heated Mirrors
    • Power Windows and Locks
    • 3-Point Seat Belts
    • Dual Reading Lights
    • Two (2) Cup Holders in Dash

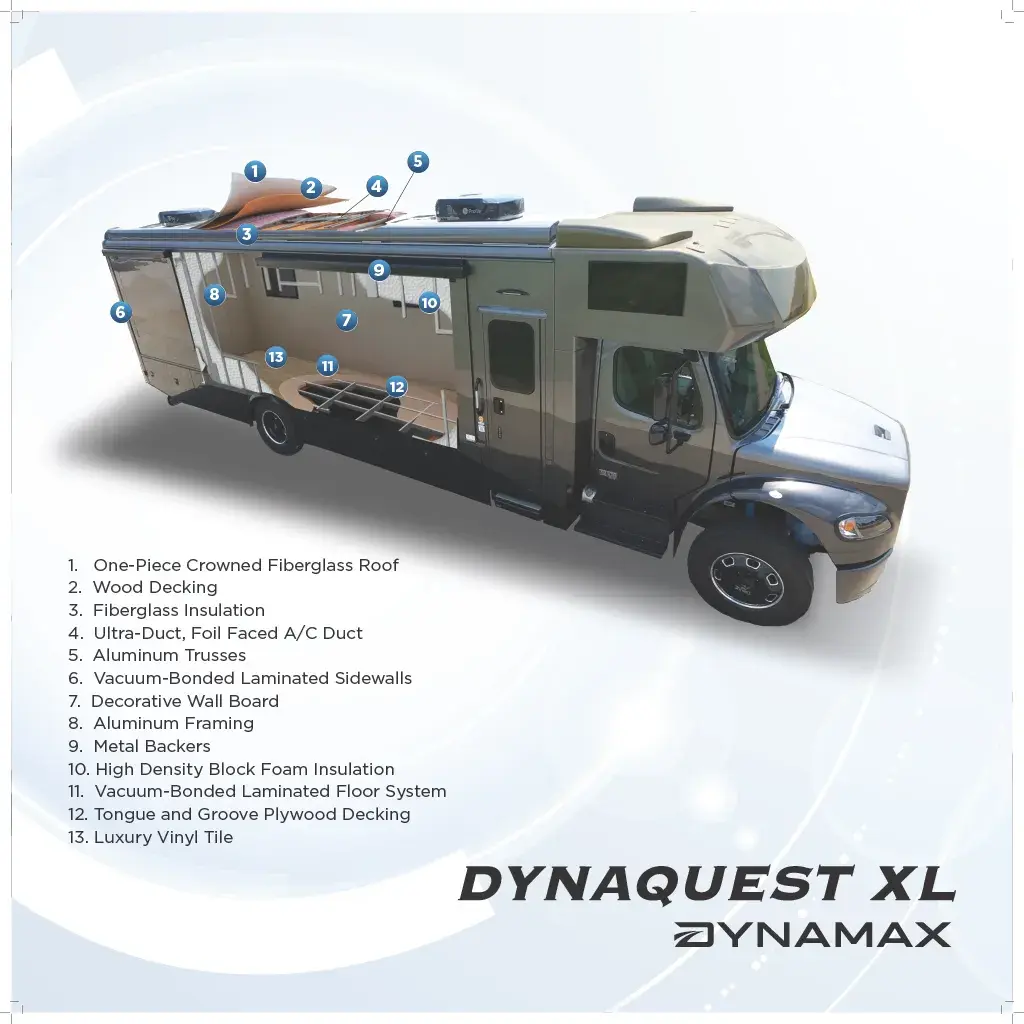

    • 2" Aluminum-Framed, Laminated Sidewalls with High-Density Block Foam Insulation
    • Composite Exterior Fiberglass (No Exterior Wood)
    • Aluminum-Framed Floor
    • Aluminum-Framed Roof Trusses
    • Crowned, One-Piece Fiberglass Roof
    • Foil-Lined Ductwork Throughout
    • Fiberglass Rear Cap and Front Wing Panels
    • Automatic, 4-Point Hydraulic Leveling Jacks
    • Dual-Pane, Dark-Tinted, Frameless Windows
    • Seamless Rotocast Storage Compartments with LED Lighting
    • Side-Hinged, Locking Aluminum Exterior Storage Doors with Chrome Handles
    • Custom Full Body Paint Package with Scheme-Matching Slideout Sides
    • Premium Cut and Buffed Paint Finish
    • Front-End Diamond Shield® Paint Protection
    • Dual Roof-Mounted, Integrated Armless Patio Awnings with LED Lighting and Wind Sensors (Single Awning - 3200KD)
    • Aluminum-Wrapped Slideout Toppers
    • LED Patio Light
    • Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
    • Keyless Entry Touch Pad at Entry Door
    • Lighted Acrylic Entry Grab Handle
    • Power Entry Steps with Upgraded SeaDek® Step Treads and Polished Stainless Steel Step Treads
    • Remote Locking System for Exterior Storage Doors
    • Portable Truma® Cooler (Fridge/Freezer) on Sliding Tray in Exterior Storage Bay (N/A - 3200KD)
    • Exterior Wall-Mounted Entertainment Center with 32? LED Smart TV
    • Front and Rear LED Clearance and Marker Lighting
    • Rear LED Docking Lights
    • Dual Chrome Roof-Mounted Air Horns
    • Molded Fiberglass Cab Step Covers with Polished Stainless Steel Step Treads
    • Polished Stainless Accents on Lower Skirt
    • Polished Stainless Rear Tail Light Accents
    • Rear “DYNAMAX” Rock Guard
    • Chrome Exhaust Tip
    • Luxury Vinyl Tile with Soft Silence Accoustical Pad Throughout with Non-Skid Rubber Steps
    • Deluxe Carpet with Pad in Select Living Area Slide Rooms
    • Soft-Touch Padded Vinyl Ceiling
    • LED Recessed Ceiling Lights
    • Sprung, Residential Style Dinette Seats with Lift Up Storage
    • Tri-Fold Sofa
    • Coordinating Fabric Window Treatments
    • Day/Night Roller Shades
    • Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
    • Hardwood Shaker-Style Passage Doors
    • Full Extension, Soft-Closing Drawer Guides (where applicable)
    • Dovetail Joints on Cabinet Drawers
    • Hidden Hinges
    • 39" LED Smart TV (Living Area) (N/A - 3801TS)
    • Entertainment Center with Fireplace (3700BD Only)
    • Entertainment Center with 50" LED Smart TV and Fireplace (3801TS Only)
    • Bose® Sound System
    • Thermal, Reflective Front Privacy Shades
    • USB Charging Ports
    • 24 cu. ft. Residential Refrigerator with Ice Maker (N/A - 3200KD)
    • 16 cu. ft. Residential Refrigerator with Ice Maker (3200KD Only)
    • Induction Range with Induction Pan Set
    • Convection Microwave Oven
    • Solid Surface Countertops with LED Edge Lighting and Backsplash
    • Stainless Steel Sink with Solid Surface Covers
    • Residential Stainless Steel Spring Gooseneck Faucet
    • Pantry
    • Overhead Cabinet Accent Lighting
    • Under-Cabinet Lighting
    • MaxxAir® Power Vent with Built-In Rain Cover
    • King Bed (71"x78") with Gel-Infused Memory Foam Mattress
    • Deluxe Padded Headboard
    • Designer Bedding Package
    • 32" LED Smart TV
    • Bose® Sound Bar
    • Cedar-Lined Wardrobe
    • Nightstands with Solid Surface Countertops
    • LED Reading Lights
    • USB Charging Ports
    • Bunk Bed Mattresses (28" x 76") and Privacy Partition (3700BD)
    • Two Bunk CD/DVD Players with Monitors (3700BD)
    • Solid Surface Shower (NA -3200KD)
    • Polymarm® Shower Surround (3200KD Only)
    • Teak-Fold Seat in Shower
    • Shower Skylight
    • Glass Shower Door
    • Oxygenics Body Spa® RV Shower Head
    • Solid Surface Countertop with LED Edge Lighting and Backsplash
    • Under-Mount Sink with Residential Brushed Nickel Faucet
    • Porcelain Foot-Flush Toilet (3700BD & 3801TS)
    • Porcelain Electronic-Flush Macerator Toilet(s) (N/A - 3700BD & 3801TS)
    • MaxxAir® Power Vent with Built-In Rain Cover
    • Two (2) 12V Group 8D AGM Deep-Cycle, Maintenance-Free Batteries
    • Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
    • Battery Disconnect
    • 50-Amp Service with Power Cord Reel
    • 3,000W Hybrid Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
    • 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
    • Automatic Generator Start
    • Solar Panel - Single 200 Watt with 30 Amp Controller
    • Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pumps
    • Aqua-Hot® 450D Diesel System with Engine Pre-Heat
    • Combo Washer Dryer Prep (3200KD)
    • Stackable Washer/Dryer Prep (N/A - 3200KD)
    • Dyson® Rechargeable Vacuum with Attachments
    • Water Filtration System
    • Exterior Shower in Service Bay
    • Power Water Hose Reel in Service Bay
    • Exterior GFCI Receptacle
    • Winegard® AIR 360+™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
    • 4x4 HDMI Matrix
    • Cable TV/Satellite Hookup in Service Bay
    • Thetford® Sani-Con Turbo Macerator System
    • Black Tank Flush
    • SureLevel® Tank Level Monitoring System
    • Utility Compartment Heated by Aqua-Hot® System
    • Enclosed Holding Tanks Heated by Aqua-Hot® System
    • Upgraded 12V On-Demand Water Pump (4 gallons per minute)
    • Carbon-Monoxide, LP, and Smoke Detectors
    • Fire Extinguisher
    • Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
    • Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
    • Extended Fiberglass Front Cap with Cab-Over Bunk Mattress and Privacy Curtain
    • Black Out Package (Cab Entry Steps; Side Mirrors; Rock Guard; Wheels; Headlight Bezels; Exterior Grab Handle Trim; Exterior Storage Door Handles; Custom Grill and Vent; and Black Stainless Lower Skirt Accents and Rear Tail Light Accents)
    • Washer/Dryer (N/A - 3200KD)
    • Three-Seat, Power Reclining Theater Seats in Place of Dinette (3400KD - Only Outer Seats are Powered) (+40 lbs.)
    • Dual, Power Reclining Theater Seats in Place of Dinette (N/A - 3400KD) (+40 lbs.)
    • Xplorer Package - includes Insulated Cab Curtain; Two Lithium House Batteries (600aH Total); 1,000W Solar Package; & Insulated Utility Bay
