MSRP Starting At: $496,674 USD*
* MSRP is based on a Standard Built Coach (base price), excluding tax, license, registration, freight, additional options, Dealer Prep & Fees.
This 41'3" triple slide, one and a half bathroom floorplan is the longest of the DynaQuest XL floorplans. In the rear of the motorhome, you will find a full bath equipped with dual sinks and extra storage. The bedroom features a king size bed in the passenger's side slide out. The master wardrobe and additional storage closet is found on the opposing driver's side slide room. This floorplan also features a midship half bathroom, standard booth dinette and sofa in the living room slide out,
- Wheelbase
- 286"
- GVWR
- 33,000 lb.
- GCWR
- 54,000 lb.
- GAWR Front
- 12,000 lb.
- GAWR Rear
- 21,000 lb.
- Fuel Capacity
- 100 gal.
- LP Tank Capacity
- 0 lb.
- Exterior Length
- 41' 3"
- Exterior Height
- 12' 9"
- Exterior Width
- 101"
- Interior Height
- 84"
- Fresh Water
- 100 gal.
- Gray Water
- 52 gal.
- Black Water
- 52 gal.
- Awning Size
- 29' 11"
DynaQuest XL 3700RB
This 41'3" triple slide, one and a half bathroom floorplan is the longest of the DynaQuest XL floorplans. In the rear of the motorhome, you will find a full bath equipped with dual sinks and extra storage. The bedroom features a king size bed in the passenger's side slide out. The master wardrobe and additional storage closet is found on the opposing driver's side slide room. This floorplan also features a midship half bathroom, standard booth dinette and sofa in the living room slide out,

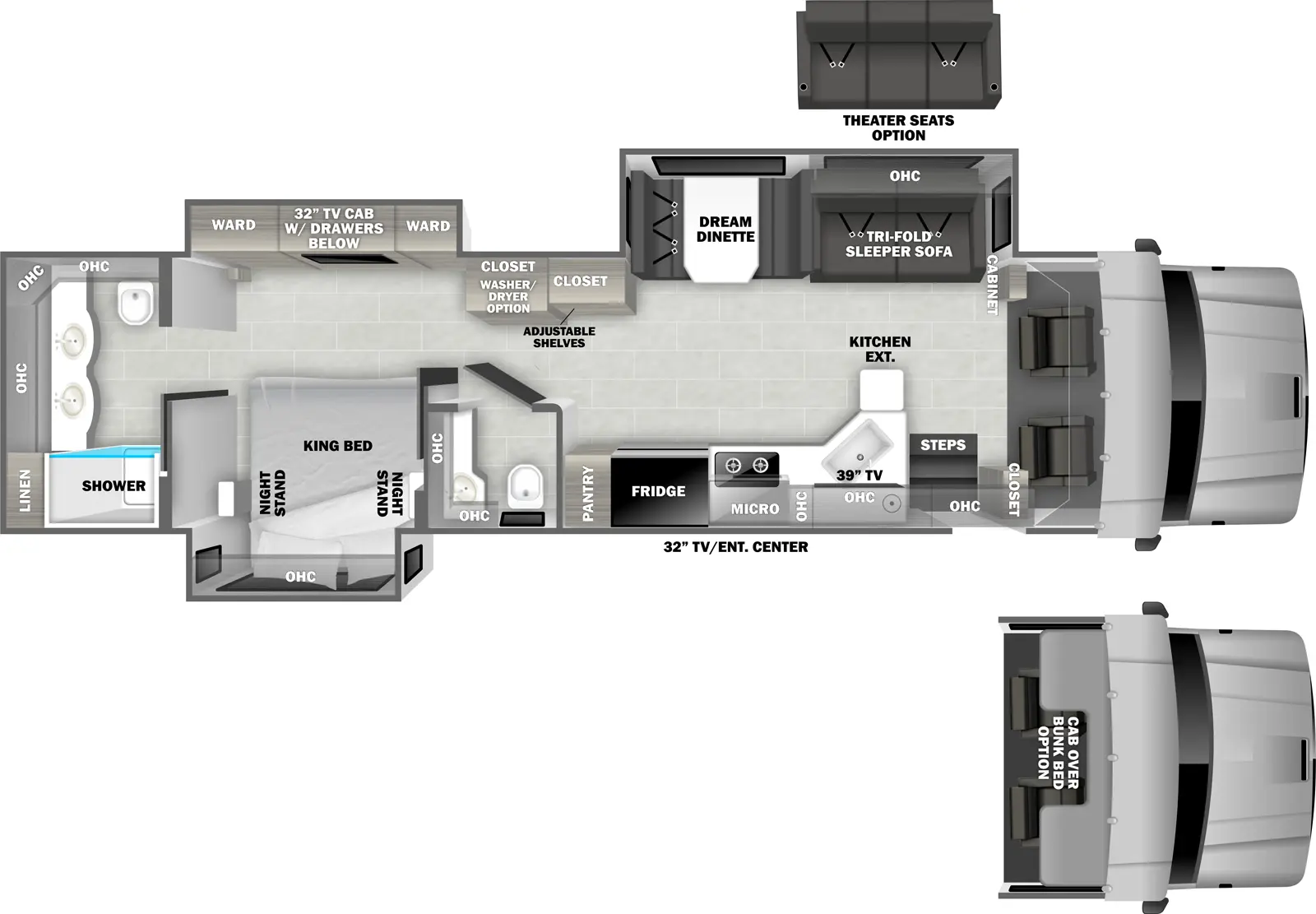

3700RB Floorplan DynaQuest XL Features & Options
-
- Freightliner® M2 112 Plus Chassis (33,000-lbs. GVWR / 54,000-lbs. GCWR)
- Cummins® L9 Turbo Diesel Engine (450hp / 1,250 lb-ft. of Torque)
- Allison® 3200 TRV Six-Speed Automatic Transmission
- 100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks)
- 6-Gallon Diesel Exhaust Fluid Tank
- Trailer Hitch (20,000 Tow lbs. / 2,000 Tongue lbs.) with 7-Way Round Tow Connection
- Active Brake Assist
- Front Collision Warning
- Lane Departure Warning
- Brake Controller
- C-Brake by Jacobs® with High/Low Settings
- Locking Differential
- Airliner® 21,000-lb. Rear Suspension
- Manual Air Suspension Dump Valve Switch on the Dash
- 275-Amp Alternator
- Quick Disconnect Fitting with Tire Inflation Kit
- Air Brakes with 4-Wheel ABS
- Equiflo™ Inboard Fuel System (Dual Supply – Dual Return)
- Fuel Filter/Water Separator with Primer Pump
- Engine Block Heater
- Steel-Reinforced, Aluminum Cab
- Chrome Grille and Air Intake Grille
- Front and Rear Tires: Michelin® XZE2 275/80R22.5 (14 Ply Radials)
- Single Front Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
- Dual Rear Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
- Valve Extensions
- Tire Pressure Monitoring System
- 4.78 Rear Axle Ratio
- Daytime Running Lights
- LED Headlights
- Tinted Door Glass and Wing Windows
- Chassis Battery Shut Off Switch in Cab
- Leatherette Driver and Passenger Air Ride Seats with Air Lumbar Controls
- Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
- Kenwood® 10” Touch Screen Dash Infotainment System with AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and Garmin® RV Navigation
- JBL® Premium Cab Sound System - JBL full range/tweeter coaxial speakers, dual voice coil subwoofer, and a high-efficiency, high-performing, 4-channel DSP amplifier, all "Tuned" specifically for the Freightliner M2
- 12V Accessory Ports
- One Valve Parking Brake System with Warning Indicator
- Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
- Momentary Battery Booster Switch for Connecting Chassis and House Batteries
- Marker Lights with Separate Interrupter Switch
- Low Air Pressure Light and Buzzer
- Cruise Control
- Adjustable Steering Column
- 18? Leather-Wrapped Steering Wheel
- Power Remote/Heated Mirrors
- Power Windows and Locks
- 3-Point Seat Belts
- Dual Reading Lights
- Two (2) Cup Holders in Dash
-
- 2" Aluminum-Framed, Laminated Sidewalls with High-Density Block Foam Insulation
- Composite Exterior Fiberglass (No Exterior Wood)
- Aluminum-Framed Floor
- Aluminum-Framed Roof Trusses
- Crowned, One-Piece Fiberglass Roof
- Foil-Lined Ductwork Throughout
- Fiberglass Rear Cap and Front Wing Panels
- Automatic, 4-Point Hydraulic Leveling Jacks
- Dual-Pane, Dark-Tinted, Frameless Windows
- Seamless Rotocast Storage Compartments with LED Lighting
- Side-Hinged, Locking Aluminum Exterior Storage Doors with Chrome Handles
-
- Custom Full Body Paint Package with Scheme-Matching Slideout Sides
- Premium Cut and Buffed Paint Finish
- Front-End Diamond Shield® Paint Protection
- Dual Roof-Mounted, Integrated Armless Patio Awnings with LED Lighting and Wind Sensors (Single Awning - 3200KD)
- Aluminum-Wrapped Slideout Toppers
- LED Patio Light
- Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
- Keyless Entry Touch Pad at Entry Door
- Lighted Acrylic Entry Grab Handle
- Power Entry Steps with Upgraded SeaDek® Step Treads and Polished Stainless Steel Step Treads
- Remote Locking System for Exterior Storage Doors & Entry Door
- 2.43 cu. ft. Portable Truma® Cooler (Fridge/Freezer) on Sliding Tray in Exterior Storage Bay (N/A - 3200KD)
- Exterior Wall-Mounted Entertainment Center with 32? LED Smart TV
- Front and Rear LED Clearance and Marker Lighting
- Rear LED Docking Lights
- Dual Chrome Roof-Mounted Air Horns
- Molded Fiberglass Cab Step Covers with Polished Stainless Steel Step Treads
- Polished Stainless Accents on Lower Skirt
- Polished Stainless Rear Tail Light Accents
- Rear “DYNAMAX” Rock Guard
- Chrome Exhaust Tip
-
- Luxury Vinyl Tile with Soft Silence Accoustical Pad Throughout with Non-Skid Rubber Steps
- Deluxe Carpet with Pad in Select Living Area Slide Rooms
- Soft-Touch Padded Vinyl Ceiling
- Luxury Vinyl Tile Entry with Non-Skid Rubber Steps
- LED Recessed Ceiling Lights
- Sprung, Residential Style Dinette Seats with Lift Up Storage
- Tri-Fold Sofa
- Coordinating Fabric Window Treatments
- Day/Night Roller Shades
- Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
- Hardwood Shaker-Style Passage Doors
- Full Extension, Soft-Closing Drawer Guides (where applicable)
- Dovetail Joints on Cabinet Drawers
- Hidden Hinges
- 42? LED Smart TV (Living Area) (N/A - 3700BD & 3801TS)
- Bose® Sound System
- Thermal, Reflective Front Privacy Shades
- USB Charging Ports
-
- 24 cu. ft. Residential Refrigerator with Ice Maker (N/A - 3200KD)
- Induction Range
- Convection Microwave Oven
- Solid Surface Countertops with LED Edge Lighting and Backsplash
- Stainless Steel Sink with Solid Surface Covers
- Residential Stainless Steel Spring Gooseneck Faucet
- Pantry
- Overhead Cabinet Accent Lighting
- Under-Cabinet Lighting
- MaxxAir® Power Vent with Built-In Rain Cover
-
- King Bed (71"x78") with Gel-Infused Memory Foam Mattress
- Deluxe Padded Headboard
- Designer Bedding Package
- 32" LED Smart TV
- Bose® Sound Bar
- Cedar-Lined Wardrobe
- Nightstands with Solid Surface Countertops
- LED Reading Lights
- USB Charging Ports
-
- Solid Surface Shower (NA -3200KD)
- Teak-Fold Seat in Shower
- Shower Skylight
- Glass Shower Door
- Oxygenics Body Spa® RV Shower Head
- Solid Surface Countertop with LED Edge Lighting and Backsplash
- Under-Mount Sink with Residential Brushed Nickel Faucet
- Porcelain Electronic-Flush Macerator Toilet(s) (N/A - 3700BD & 3801TS)
- MaxxAir® Power Vent with Built-In Rain Cover
-
- Two (2) 12V Group 8D AGM Deep-Cycle, Maintenance-Free Batteries
- Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
- Battery Disconnect
- 50-Amp Service with Power Cord Reel
- 3,000W Hybrid Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
- 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
- Automatic Generator Start
- Solar Panel - Single 200 Watt with 30 Amp Controller
- Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pumps
- Aqua-Hot® 450D Diesel System with Engine Pre-Heat
- Stackable Washer/Dryer Prep (N/A - 3200KD)
- Water Filtration System
- Exterior Shower in Service Bay
- Power Water Hose Reel in Service Bay
- Exterior GFCI Receptacle
- Winegard® AIR 360+™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
- 4x4 HDMI Matrix
- Cable TV/Satellite Hookup in Service Bay
- Thetford® Sani-Con Turbo Macerator System
- Black Tank Flush
- SureLevel® Tank Level Monitoring System
- Utility Compartment Heated by Aqua-Hot® System
- Enclosed Holding Tanks Heated by Aqua-Hot® System
- Upgraded 12V On-Demand Water Pump (4 gallons per minute)
- Carbon-Monoxide, LP, and Smoke Detectors
- Fire Extinguisher
- Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
-
- Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
- Extended Fiberglass Front Cap with Cab-Over Bunk Mattress and Privacy Curtain
- Black Out Package (Cab Entry Steps; Side Mirrors; Rock Guard; Wheels; Headlight Bezels; Exterior Grab Handle Trim; Exterior Storage Door Handles; Custom Grill and Vent; and Black Stainless Lower Skirt Accents and Rear Tail Light Accents)
- Washer/Dryer (N/A - 3200KD)
- Three-Seat, Power Reclining Theater Seats in Place of Dinette (3400KD - Only Outer Seats are Powered) (+40 lbs.)
- Dual, Power Reclining Theater Seats in Place of Dinette (N/A - 3400KD) (+40 lbs.)
- Xplorer Package - includes Insulated Cab Curtain; Two Lithium House Batteries (600aH Total); 1,000W Solar Package; & Insulated Utility Bay
